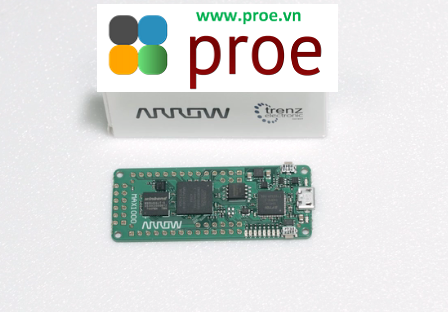

MAX1000 10M08SAU169C8G FPGA Development Board Flash

For engineers designing compact smart solutions for the IoT market, this FPGA IoT Maker Board is an excellent tool to speed up the development process and enter the market with a high-performance, reliable product.

The lowest-priced MAX10 solution on the market, MAX1000 is a great fit for IoT-focused developers, from experienced engineers to designers just starting out with FPGAs as well as startup companies with new ideas for the IoT market. The kit is a plug-and-play solution with an integrated Arrow USB Programmer2, and it has a preprogrammed demo application to give you a starting point and a better idea as to how the board works. These features help you easily navigate the board’s functionalities and allow you to get your own project off the ground more quickly.

In addition, MAX1000 is built on technology from some of the most trusted names in the industry; it includes a Microchip MEMS oscillator, an Enpirion DC/DC power supply via USB, and an SDRAM 64 Mbit from Winbond. This single-chip solution also includes integrated ADC for analogue signals, a 32 Bit soft-microcontroller NIOS2, and integrated configurable Flash.

The kit is available in a standard version, but you also have the option of ordering a customized kit to meet the unique requirements you or your team may have. Regardless of your needs, it’s easy to get started on designing your IoT applications with MAX1000. If you need additional information to drive your operation forward, check out useful datasheets, reference designs and design resources available at Arrow.com.

LEARN MORE:

Arrow FPGA IoT Maker Board – MAX1000

Specifications

• EU RoHS

  Supplier Unconfirmed

• Type

  Development Board

• Supported Device

  10M08SAU169C8G

• Supported Device Technology

  FPGA

• Program Memory Type

  Flash

• Main Program Memory Type

  Flash

• ADC

  7

• JTAG Support

  Yes

• UART

  1

• SPI

  1

• I2C

  1

• GPIO

  23

• USB

  1

• Audio Interfaces

  No

• Push Buttons and Switches

  2

• Number of LEDs

  8
