JETSON-IO-BASE-B Jetson Xavier NX AI Development Board, Waveshare NX Development Board Based on Jetson Xavier NX

  • Mã sản phẩm: JETSON-IO-BASE-B
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
2.750.000₫
PACKAGE CONTENT

Weight: 0.084 kg

JETSON-IO-BASE-B

  1. JETSON-IO-BASE-B (carrier board)

1

Jetson Xavier NX AI Development Board, Waveshare NX Development Board Based On Jetson Xavier NX

Waveshare Jetson Xavier NX Dev Kit

Alternative Solution For Jetson Xavier NX Developer Kit



Based On Jetson Xavier NX Module
AI Edge Computing Development Kit

This Is Not The NVIDIA Official Developer Kit

Based on Jetson Xavier NX Module, providing almost the same peripheral interfaces, size and thickness as the Jetson Xavier NX Developer Kit.

This kit includes a Xavier NX Module with onboard 16GB eMMC, does not support Micro SD card. Free 128 GB NVMe SSD, high-speed reading/writing, meet the needs of large AI project development.



Version Option

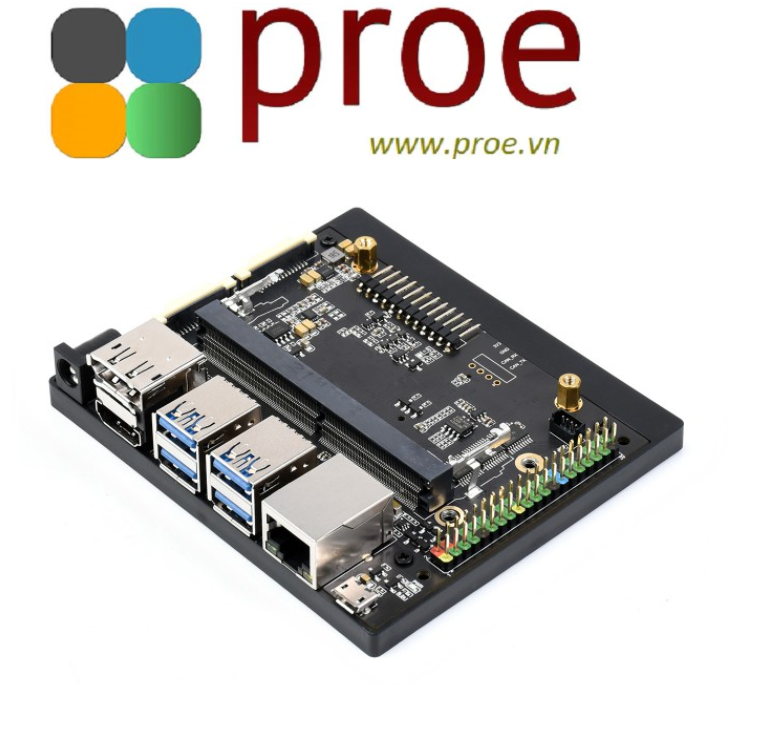

JETSON-IO-BASE-B
Carrier board, can directly insert into Jetson Xavier NX Module.

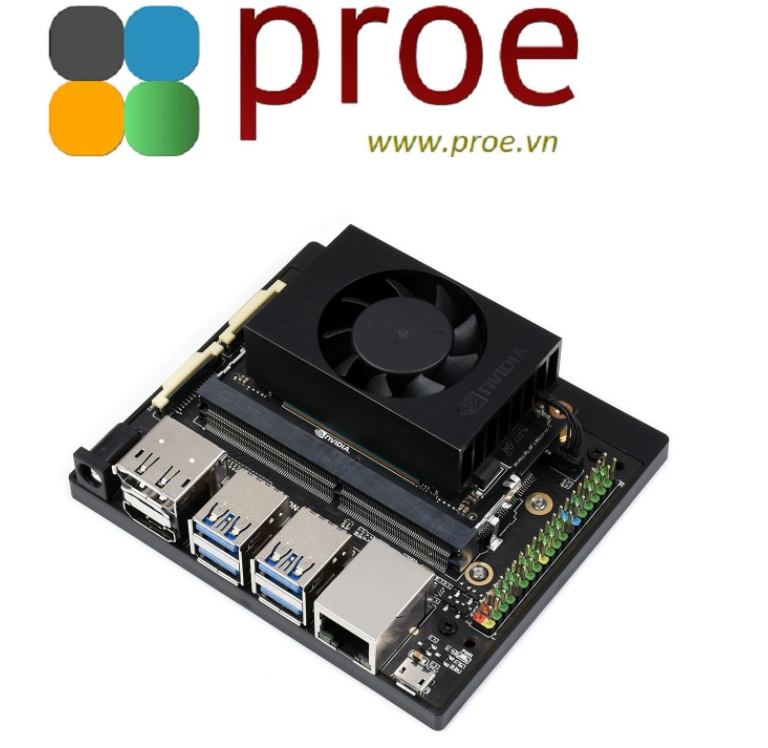

Waveshare NX development kit 8/16 GB
Includes Jetson Xavier NX 8/16 GB Module, JETSON-IO-BASE-B, 128GB NVMe SSD, power adapter and cooling fan.

Comparing The Specifications



  JETSON XAVIER NX DEVELOPER KIT WAVESHARE XAVIER NX DEVELOPER KIT
APPEARANCE



It is almost the same as the Jetson Xavier NX Developer Kit, compatible with the expansion board and the case of the NX official developer kit
CORE BOARD 8GB memory, a special no eMMc version included in the official kit. NVIDIA Official 8/16 GB Xavier NX Module with 16GB eMMC
EXTERNAL STORAGE
Micro SD card (sold separately)

Free 128G NVMe SSD, the read speed of PCIe 3.0 interface up to 2400MB/s, no need to purchase additionally, which can meet the requirements of complex development projects
NETWORK CARD Original M.2 wireless network card, support Bluetooth 5.0, dual-band WIFI M.2 wireless network card, support Bluetooth 5.0, dual-band WIFI
GPIO

Normal 40PIN GPIO Interface


Colorful 40PIN GPIO Interface
OTHERS Parameters such as AI performance, CPU, GPU, peripheral interface, size, bottom case and thickness are the same

Jetson Xavier NX Module Specification

VERSION 8GB 16GB
AI PERFORMANCE 21 TOPS
GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU
6MB L2 + 4MB L3
MEMORY 8 GB 128-bit LPDDR4x 59.7GB/s 16 GB 128-bit LPDDR4x 59.7GB/s
STORAGE 16 GB eMMC 5.1
POWER 10W | 15W | 20W
PCIE 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*
CSI Up to 6 cameras (24 via virtual channels)
14 lanes (3x4 or 6x2, 3x4 + 1x2 or 5x2 + 1x4 ) MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)
VIDEO ENCODE 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)
VIDEO DECODE 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
DISPLAY 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
DL ACCELERATOR 2x NVDLA Engines
VISION ACCELERATOR 2x PVA
NETWORKING 10/100/1000 BASE-T Ethernet
DIMENSIONS 45 mm x 69.6 mm
260-pin SO-DIMM connector

*Please refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features



Compact, Powerful Performance At The Edge

21 TOPS AI Performance

Up To 21 TOPS Of Accelerated Computing Delivers The Horsepower To Run Modern Neural Networks In Parallel And Process Data From Multiple High-Resolution Sensors, That Is A Requirement For Full AI Systems

With Cloud-Native Support

Jetson Xavier NX modules cloud-native support lets developers build and deploy high-quality, software-defined features on embedded and edge devices. Pre-trained AI models from NVIDIA NGC and the TAO Toolkit give you a faster path to trained and optimized AI networks, while containerized deployment to Jetson devices allows flexible and seamless updates.

Ideal For Critical Embedded Applications

Jetson Xavier NX is perfect for high-performance AI systems like commercial robots, medical instruments, smart cameras, high-resolution sensors, automated optical inspection, smart factories, and other AIoT embedded systems.

Image Recognition



Object Recognition



Semantic Segmentation



Pose Estimation



Monocular Depth



Position Tracking

AI Computing Neural Networks SDK

Jetson Development Pack (JetPack) Is An On-Demand All-In-One Package That Bundles And Installs All Development Software Tools For The NVIDIA Jetson Embedded Platform.

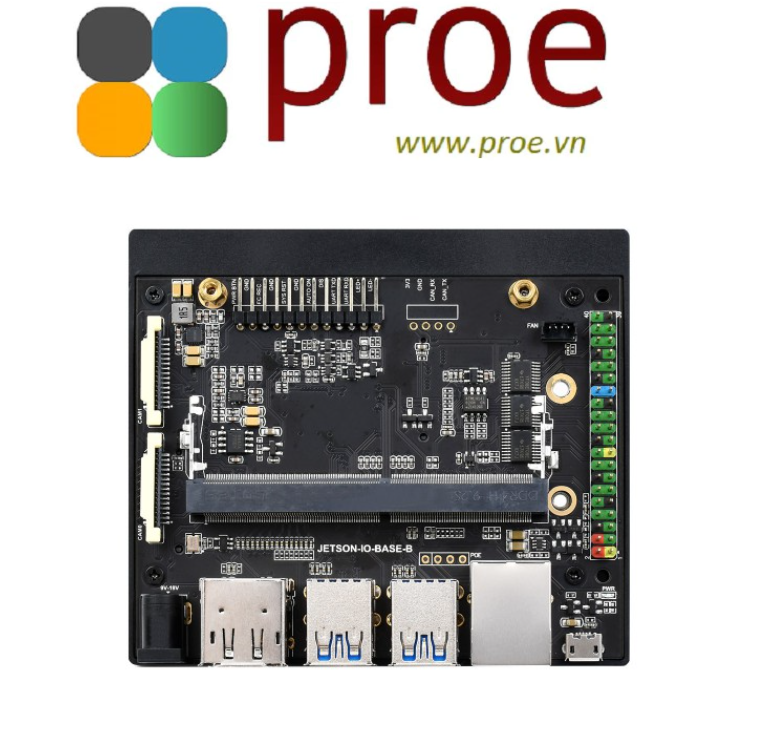

Onboard Resources

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/JETSON-XAVIER-NX-DEV-KIT
