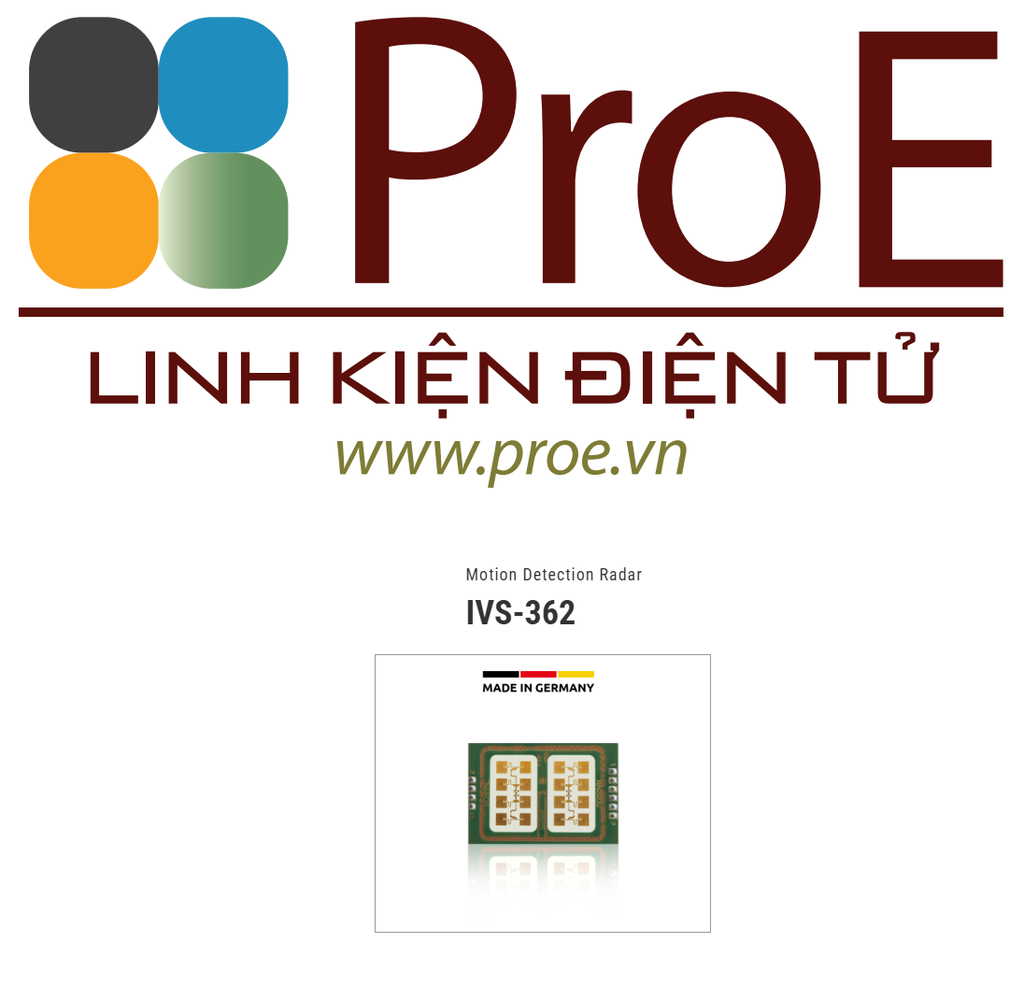

Motion Detection Radar

IVS-362

The IVS-362 is a mid-range radar sensor supporting FSK and FMCW modulation schemes. The K-band transceiver is operating at 24GHz. It detects presence and movement of objects within a detection range up to 30m depending on the RCS. It is possible to capture speed, direction and distance of moving and even stationary objects.

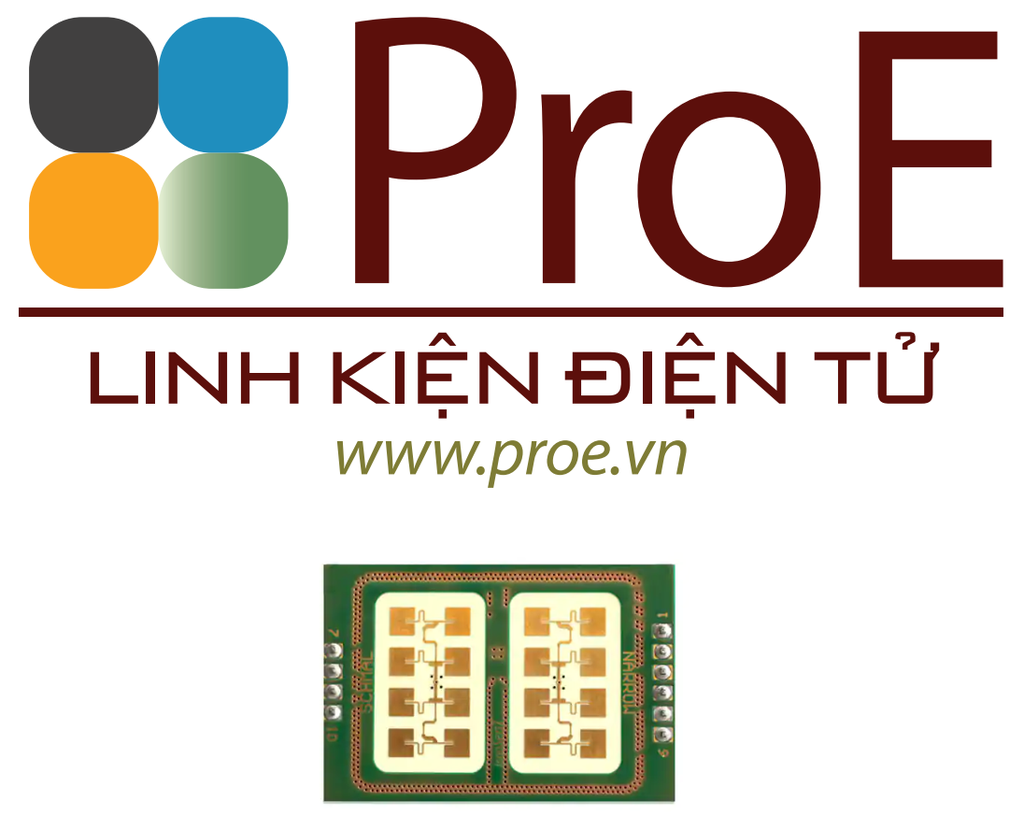

The IVS-362 comes with separate transmit and receive antennas, as well as an integrated IF-Pre-Amplifier to achieve maximum sensitivity. The product was developed for customers that wanted to upgrade their current system based on the IPS-354. It has the same outlines and field of view, this enables an easy exchange and offers more functionality to the end users. The IVS-362 is used for industrial and building technology applications like the automated control of doors or escalators. The additional information like speed, direction and distance increases the performance of the automation.

Another related product is the IPS-355, which is a CW version of this unit with a broader field of view.

PRODUCT HIGHLIGHTS

• Mid-Range Motion Sensor with velocity, direction and distance detection
• VCO Transceiver for FMCW and FSK mode
• Captures moving and stationary objects
• Detection Range up to 30m
• Separated transmit and receive antenna
• Equipped with IF-pre-amplifier
