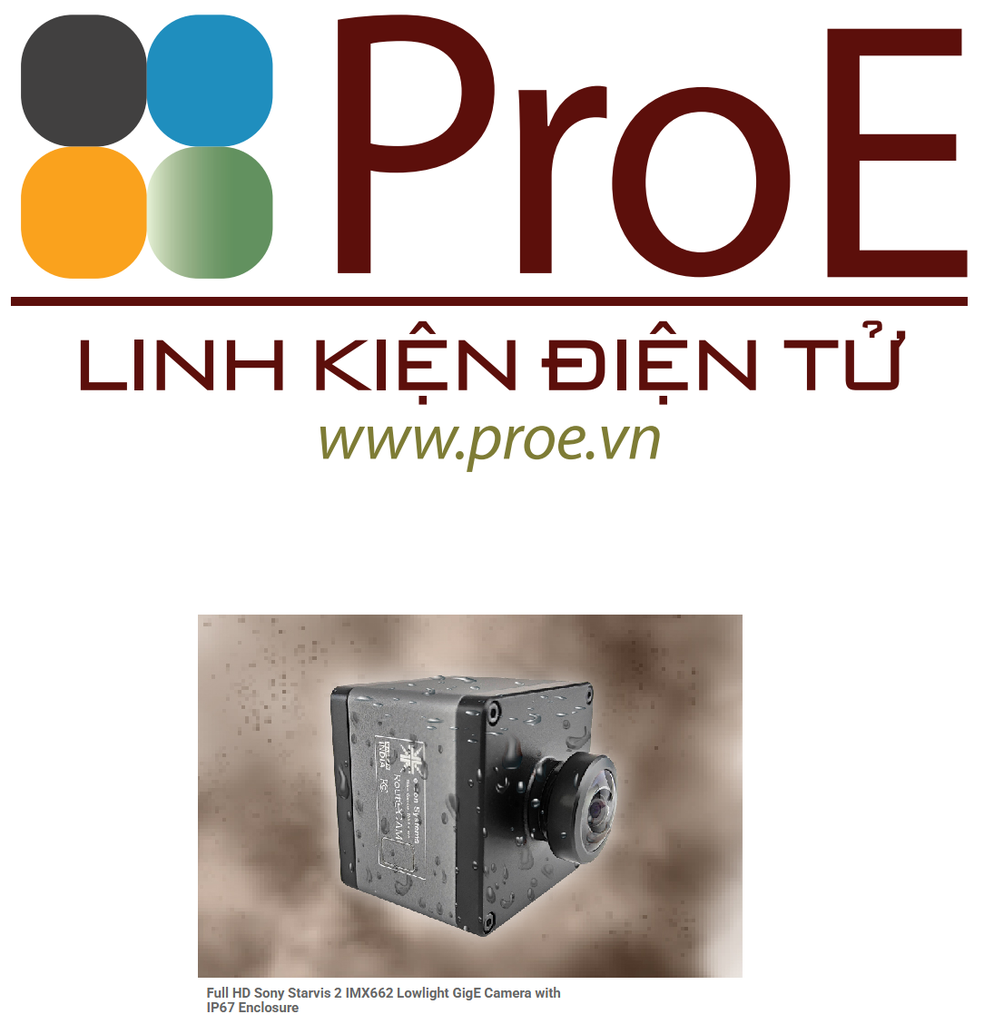

RouteCAM_CU22_IP67 Full HD Sony Starvis 2 IMX662 Lowlight GigE HDR Camera

RouteCAM_CU22_IP67 is an IP67-rated HDR Power-over-Ethernet (PoE) camera featuring the Sony® STARVIS™ IMX662, a 1/2.8" CMOS image sensor. This camera can stream compressed 1080p video at 60 fps. It also adheres to IEEE 802.3af compliance and includes PTP synchronization support.

RouteCAM_CU22 comes with the high-performance in-built ISP that helps in achieving excellent HDR performance even in ultra-low light environments. This PoE camera ensures reliable imaging even with cable lengths of up to 100m. Qualified for Road Vehicles Standards, this camera endures extreme temperatures, ensuring its durability and resilience for outdoor use in any environment with an IP67 rating while complying with industry regulations.

This camera is compatible with the CloVis Central™, an easy-to-use and powerful cloud-based device management platform that manages entire on-field device operations, enabling faster time to market, reduced costs, and enhanced application success rates.

Refer Datasheet for complete frame rate details.

• Key features:
• • Frame Rate: HD @ 60 fps & Full HD @ 60 fps
    Refer Datasheet for complete frame rate details.
  • Output format: Compressed MJPEG, H.265 and H.264 formats

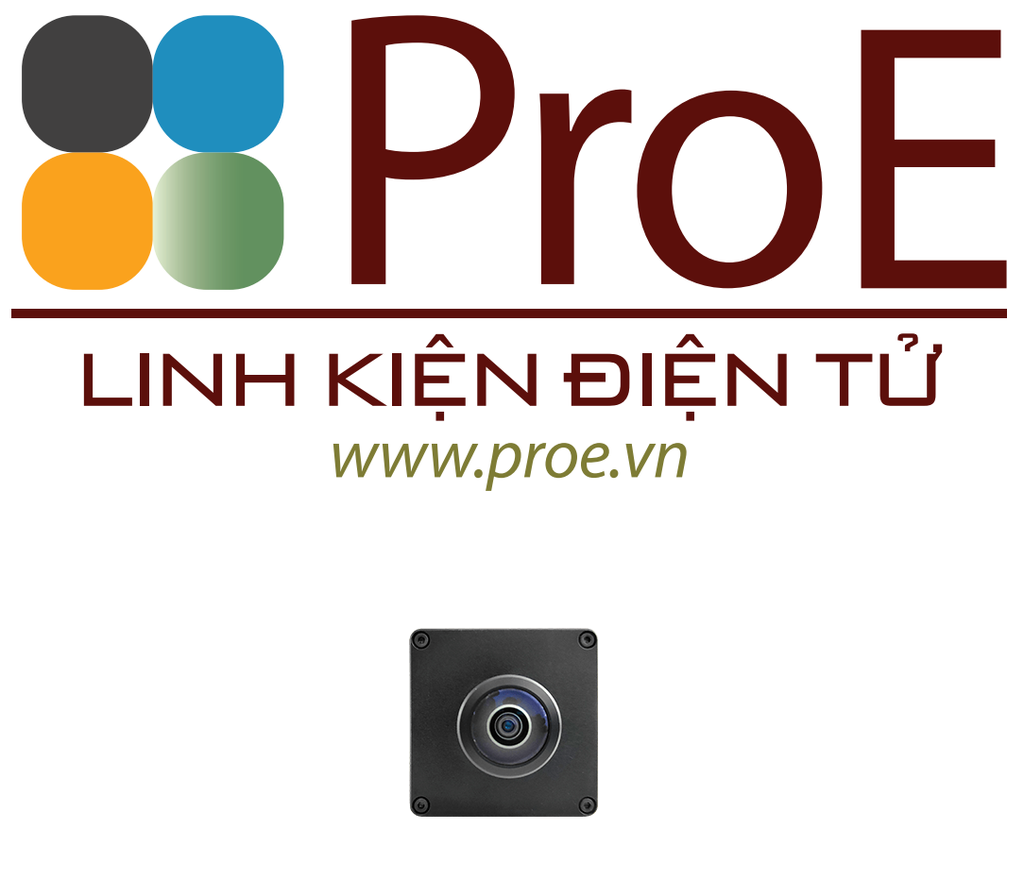

  • S-mount lens focused and glued at factory

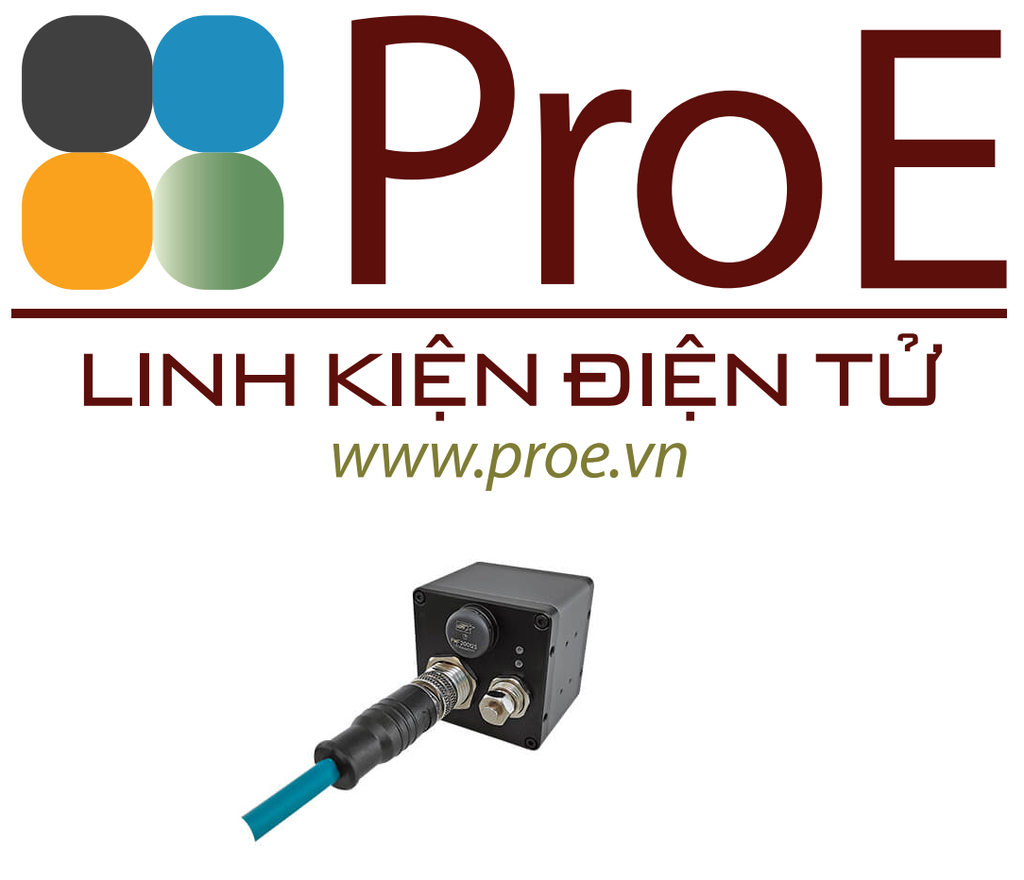

  • Shielded Cat6 M12 to RJ45 cable for transmission of both power and data for long distance
  • Supports 10Base-T, 100Base-TX and 1000base-T modes
  • Unique ID for each camera
  • Lightweight, versatile, and portable design
• Interface:
• • Interface: GigE

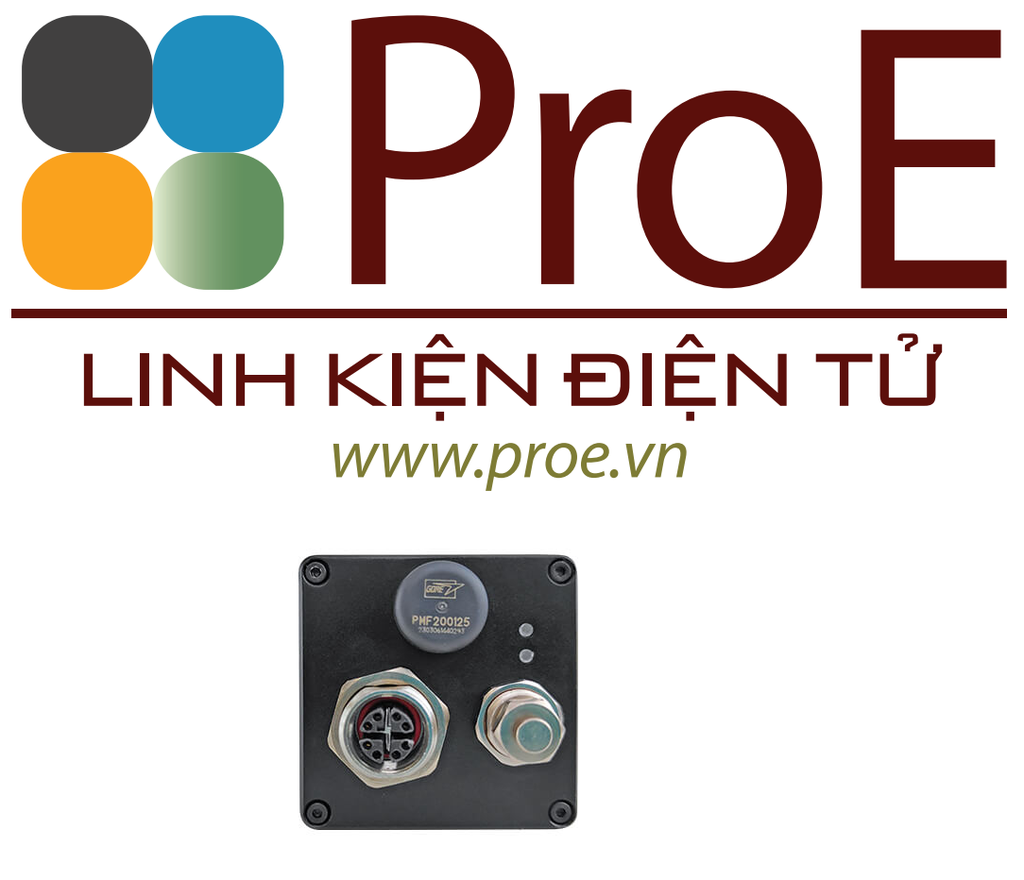

  • Connector: M12
  • Cable length: 3m
• Module features:
• • Sensor: IMX662 from Sony® Starvis 2
  • Focus Type: Fixed focus
  • Sensor Resolution: Full HD
  • Chroma: Color
  • Shutter type: Electronic Rolling Shutter
  • Optical Format: 1/2.8"
  • Output Format: Compressed MJPEG, H.265 and H.264 formats
  • Focus Distance: 1m to Infinity
  • Pixel size: 2.9 μm x 2.9 μm
  • Sensor Active Area: 1937H x 1097V
  • Dynamic Range: 88 dB
  • Holder: M12 (S-Mount)
  • FOV: 151.74°(D), 130°(H), 70.75°(V) (with the lens provided by e-con)
• Electrical & Mechanical:
• • Power-up Options:
    • IEEE802.3af standard PoE Input through M12 Connector
    • 12V supply through M8 connector for non-POE applications
  • Operating Temperature Range: -30°C to 70°C
  • Power requirements: 2.78W
  • Size in mm (l x b x h) :
    • Without lens: 46mm x 46mm x 52.95mm
    • With lens: 46mm x 46mm x 65.12mm
  • Board Weight: 186.5 Grams (with lens with enclosure)
• Standards and Compliance:
• • FCC Class-B, RoHS
  • Refer detailed standards & compliance here »
