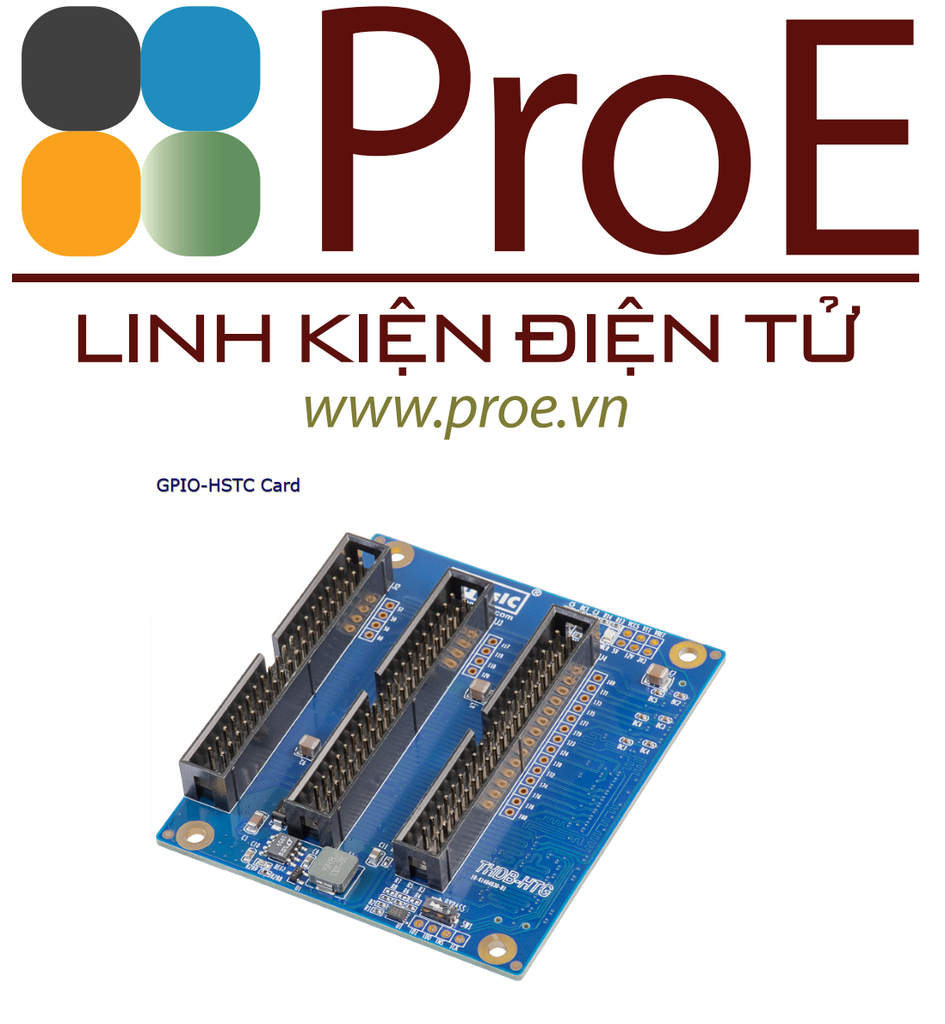

GPIO-HSTC Card P0024

The HTG Card can be used with the FPGA host board which has the High-Speed Mezzanine connector (HSMC) or High-Speed Terasic Connector (HSTC) connector. It is designed to convert HSMC I/Os to two 40-pin expansion prototype connectors. For HSTC connector, three 40-pin expansion prototype connectors can be converted.

• Convert HSTC/HSMC-interfaced I/O to standard 40-pin expansion connectors.
• Allow users to connect Altera DE3/DE2-115/DE2/DE1/DE0 boards to a HSTC/HSMC-interfaced host board.
• Provide test points for signal measurement

Block diagram

 HTG

• Connect HTG with Altera Cyclone III Starter Board

• Connect HTG with Altera DE3
  Note. An adapter (SFF or HFF) is required to connect ADA-HSMC with DE3. It is bundled in DE3 kit.

• Connect HTG with Altera DE4
  Note. One adapters (HFM2) required to connect DVI-HSMC with DE4. They are bundled in DE4 kit.

• Connect HTG with Altera DE2-115
