ESP32-P4-Module Core Board, Based On ESP32-P4 And ESP32-C6 Dual-Chip Design, Supports 2.4GHz Wi-Fi And Bluetooth 5.3

ESP32-P4-Module

Based On ESP32-P4 And ESP32-C6 Dual Chips

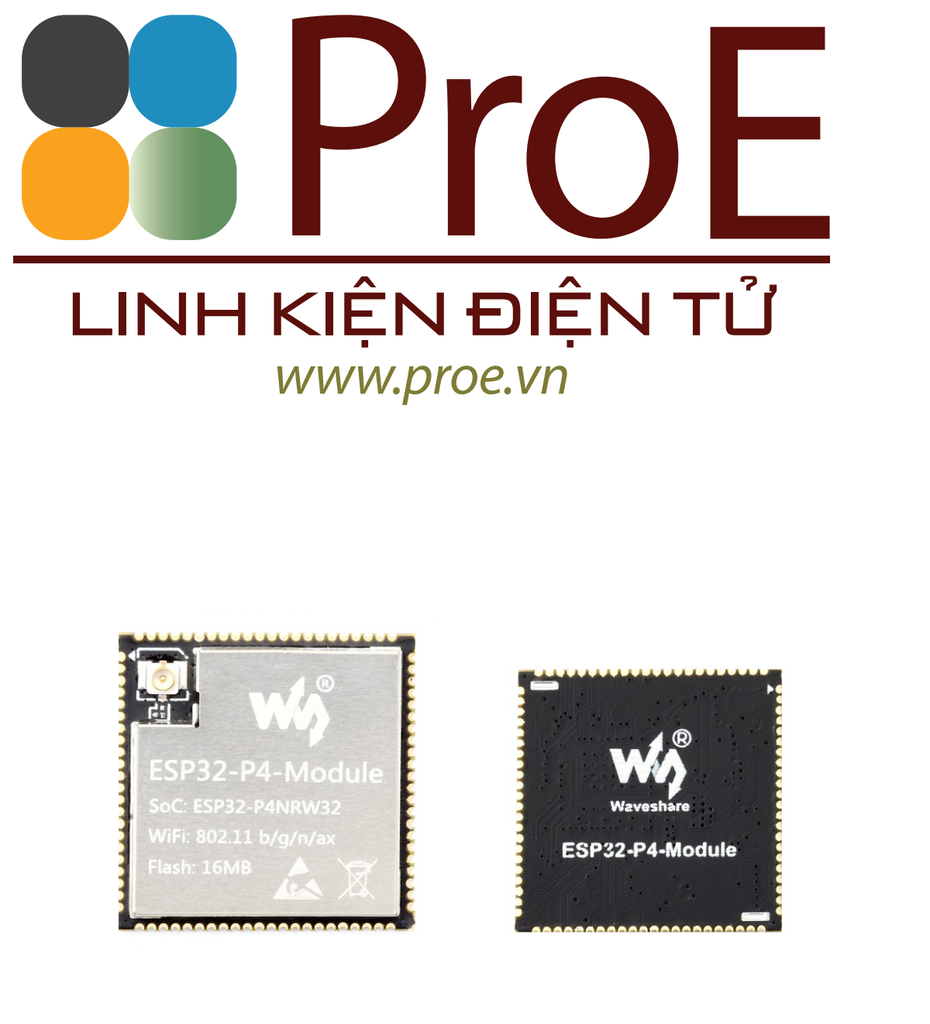

 ESP32-P4-Module core board, front view

Features at a glance

  • High-performance MCU with RISC-V 32-bit dual-core and single-core processors
  • Integrated ESP32-C6 chip with support for 2.4GHz Wi-Fi, compliant with 802.11 b/g/n/ax standards
  • 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
  • Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
  • 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
  • Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation



Specifications

Main Control Chip ESP32-P4NRW32
RF chip ESP32-C6H8
PSRAM 32MB
Flash 16MB
RF Band 802.11 b/g/n/ax; 2.4GHz Wi-Fi; Bluetooth 5.3
Operating Voltage 3.3V
Connector castellated edge, pitch 1mm
Dimensions 25 × 25 (mm)



Pinout definition

ESP32-P4-Module core board, pinout definition

High-quality Components

For stable performance of communication module

ESP32-P4-Module core board, adopts original chip

Original chip
ESP32-P4

 ESP32-P4-Module core board, onboard two connection methods for Antenna

Two connection methods for Antenna
IPEX / Castellated hole

 ESP32-P4-Module core board, with professional shield

Professional shield
Anti-interference & ESD protection



Application examples

Image Recognition, Smart Watches, Smart Industry, Human-Machine Interface (HMI), Voice Recognition, and IoT Applications

ESP32-P4-Module core board, front view

Outline Dimensions

ESP32-P4-Module core board, outline dimensions

Resources & Services


WIKI: www.waveshare.com/wiki/ESP32-P4-Module
