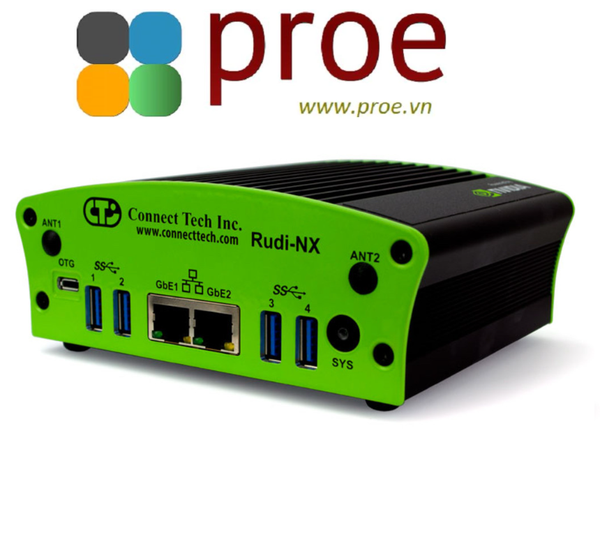

ESG602 Connect Tech Rudi-NX Embedded Systems With NVIDIA Jetson Xavier NX
- Mã sản phẩm: ESG602-01
- Nhà sản xuất: Connect Tech Inc
- Website hỗ trợ: https://www.proe.vn
95.000.000₫
Rudi-NX Embedded System with NVIDIA® Jetson Xavier™ NX
- Extremely small footprint: 135mm x 50mm x 105mm
- GMSL, USB 3.0, USB 2.0, CAN 2.0b, USB OTG, RS-485, I2C, GPIO, SPI, PWM
- 1x NVMe (PCIe x4, 2280), 1x SD card slot
- Operating Temperature Range: -20°C to +80°C
More Information
Connect Tech’s Rudi-NX is the ultimate Edge AI computing device for state-of-the-art, compute-intensive applications. Powered by NVIDIA® Jetson Xavier™ NX, it can deliver up to 21 TOPS of performance in 15W. With 384 CUDA Cores, 48 Tensor Cores, and 2 NVDLA engines, it can run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.
The Rudi-NX enables multiple vision inputs including up to 4x GMSL (MIPI CSI-2) Camera inputs, 4x USB 3.0 ports and 2x Gigabit Ethernet ports. Additional connectivity via CAN, UARTs, RS-485, I2C, SPI, and GPIO.
Specifications
| NVIDIA Jetson Module Compatibility |
Rudi-NX is pre-integrated with the NVIDIA® Jetson Xavier™ NX |
|---|---|
| AI Performance |
21 TOPS (INT8) |
| GPU |
384-core NVIDIA® Volta™ GPU with 48 Tensor Cores |
| CPU |
6-core NVIDIA® Carmel ARM® v8.2 64-bit CPU |
| Memory |
8 GB 128-bit LPDDR4x @1600MHz, 51.2GB/s |
| Video Decode |
2x 4K @ 30(HEVC) |
| Video Encode |
2x 4K @ 60 (HEVC) |
| DL Accelerator |
2x NVDLA Engines |
| Networking |
2x 10/100/1000 BASE-T Ethernet |
| Display Output |
1 x HDMI 2.0 |
| USB |
4 x USB 3.0 Ports (Type-A) |
| GMSL Camera Inp |
4x GMSL1/2 Camera Inputs (MIPI CSI-2 Access to Jetson) |
| Storage |
16 GB internal eMMC 5.1 |
| Wireless / Misc Expansion |
1x M.2 B-Key (USB 3.0 + USB 2.0, 3042) |
| MISC / IO Connector |
1x UART, 1x RS-485, 2x I2C, 2x SPI, 4x GPIO, 2x PWM, 3x +5V Output, 3x +3.3V Output |
| CAN |
1 x CAN 2.0b Port |
| Input Power |
+9 to 36V DC Input |
| Operating Temperature |
-20°C to +80°C |
| Dimensions |
135mm x 50mm x 105mm (Width x Height x Depth) |
