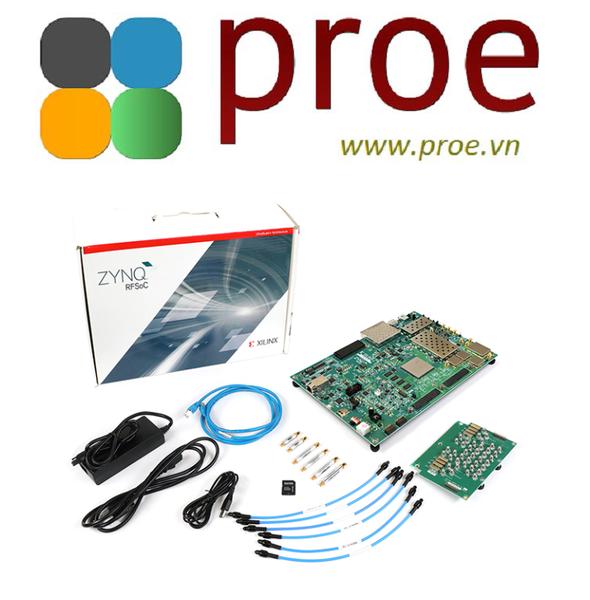

EK-U1-ZCU111-G Evaluation Kit, ZCU111, Zynq UltraScale+ XCZU28DR-2FFVG1517E RF SoC

  • Mã sản phẩm: EK-U1-ZCU111-G Evaluation Kit
  • Nhà sản xuất: XILINX
  • Website hỗ trợ: https://www.proe.vn
310.000.000₫

Product Description

The Zynq® UltraScale+™ RFSoC ZCU111 evaluation kit enables designers to jumpstart RF-Class analog designs for wireless, cable access, early-warning(EW)/radar, and other high-performance RF applications. This kit features a Zynq UltraScale+ RFSoC supporting 8 12-bit 4.096GSPS ADCs, 8 14-bit 6.554GSPS DACs, and 8 soft-decision forward error correction (SD-FECs). Complete with Arm® Cortex®-A53 and Arm Cortex-R5 subsystems, UltraScale+ programmable logic, and the highest signal processing bandwidth in a Zynq UltraScale+ device, this kit provides a rapid, comprehensive RF Analog-to-Digital signal chain prototyping platform.

Key Features & Benefits

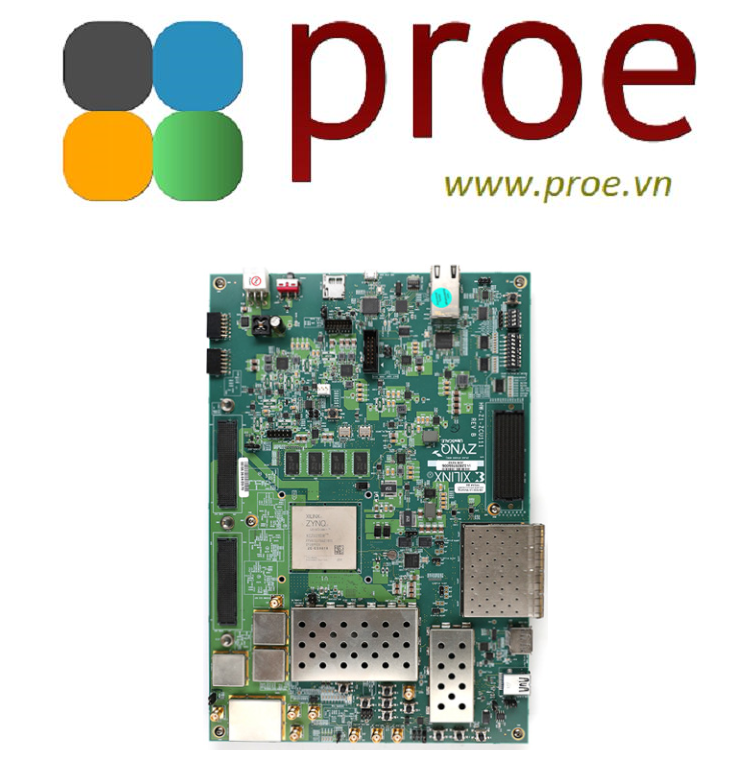

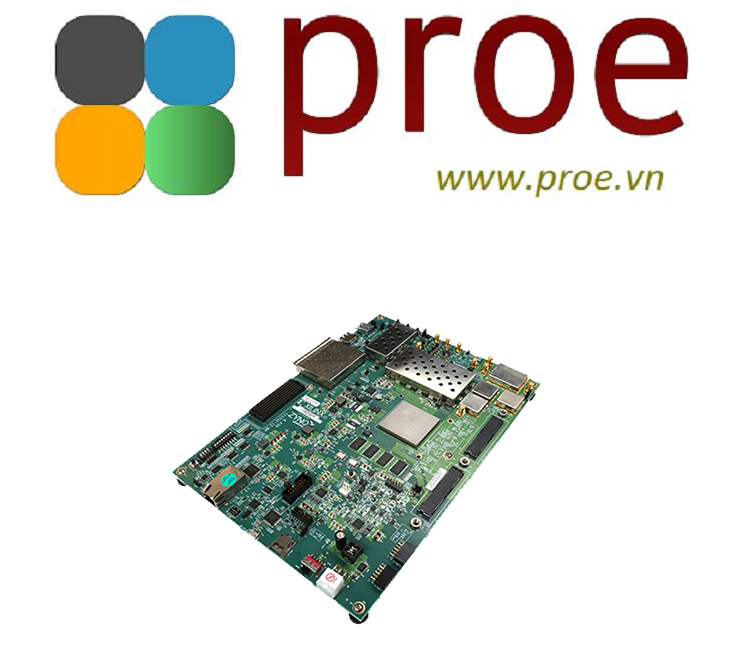

  • Zynq UltraScale+ RFSoC ZCU111 Evaluation Board with XCZU28DR-2FFVG1517E RFSoC
  • DDR4 Component – 4GB, 64-bit, 2666MT/s, attached to Programmable Logic (PL)
  • DDR4 SODIMM – 4GB 64-bit, 2400MT/s, attached to Processor Subsystem (PS)
  • Ganged SFP28 cage to support up to 4 SFP/SFP+/zSFP+/SFP28 modules
  • USB3, DisplayPort, and SATA
  • FPGA Mezzanine Card (FMC+) interface for I/O expansion including 12 33Gb/s GTY transceivers and 34 user defined differential I/O signals
  • XM500 RFMC balun transformer add-on card with 4 DACs/4 ADCs to baluns 4 DACs/4 ADCs to SMAs

Board Features

Featuring the Zynq® UltraScale+™ XCZU28DR-2FFVG1517E RFSoC

zcu111-callout_update
Board Specifications Value
Height 11.811 inch (30.0 cm)
Width 7.874 inch (20.0 cm)
Thickness (+/-5%) 0.10799 inches (0.2743 cm)
Operating Environmental Temperature 0C to +45C
Storage Environmental Temperature -25C to +60C
RF Data Converter
# of 12-bit ADCs 8
Max Rate (GSPS) 4.096
# of 14-bit DACs 8
Max Rate (GSPS) 6.554
SD-FEC 8
Memory
PS DDR4 4GB 64-bit SODIMM
SD-Card Yes
M.2 SATA Connector Yes
QSPI 2
Communications & Networking
USB UART/JTAG 1
RJ45 1
SFP+ 4
USB 3.0 1
Display
DIP Switches Yes
LEDs Yes
Push Buttons Yes
VESA DisplayPort 1.2 Yes
Expansion Connectors
FMC-HPC Connector 2
PMOD 2
RFMC 1.0 2
Add-on Cards
XM500 Yes
Control & I/O
I2C Yes
PMBUS Yes
JTAG PC4 Header Yes
Boot Options
SD Boot Yes
QSPI Boot Yes
JTAG Boot Yes
Power
12V Wall Adapter Yes
ATX Power Compatible Yes
