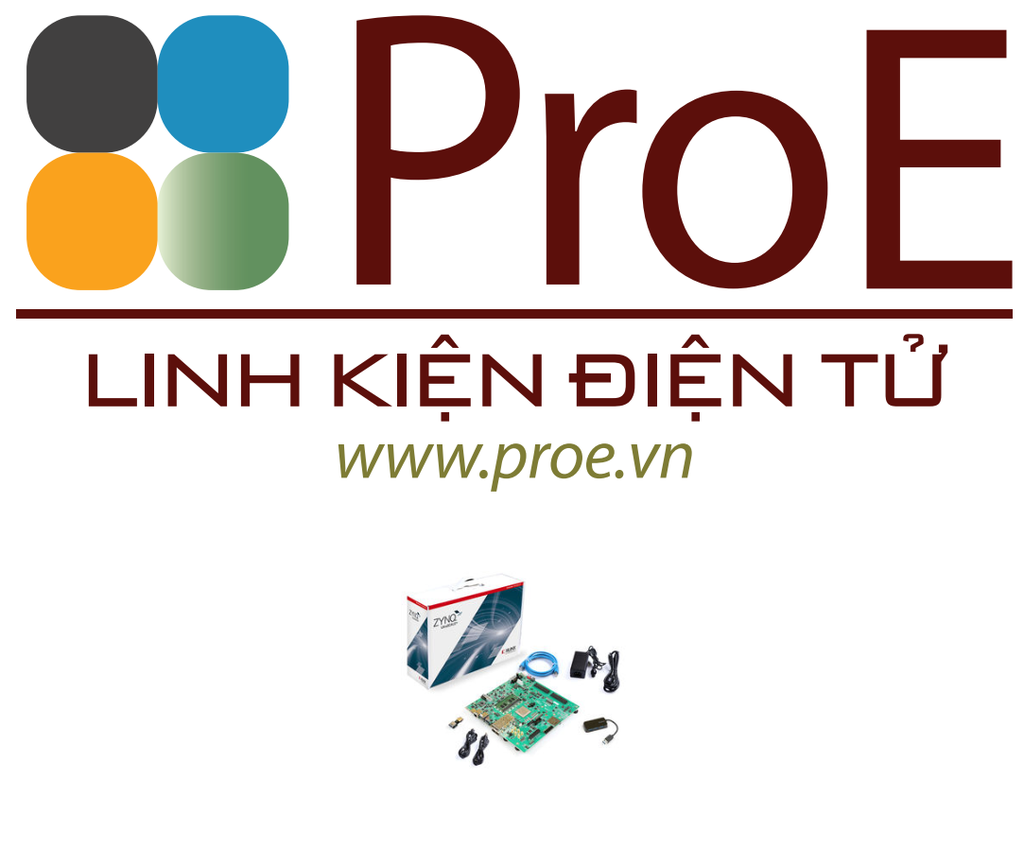

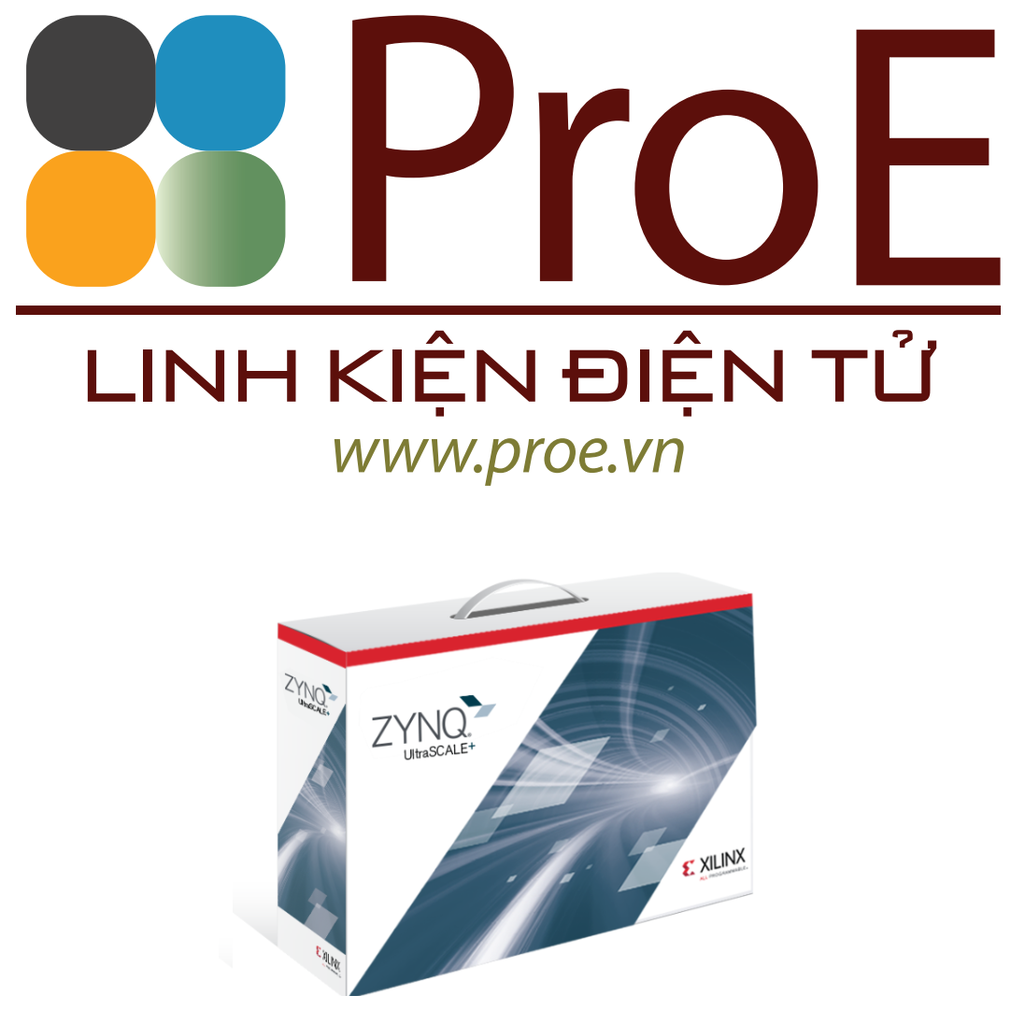

EK-U1-ZCU102-G Zynq UltraScale+ MPSoC ZCU102 Evaluation Kit

  • Mã sản phẩm: EK-U1-ZCU102-G
  • Nhà sản xuất: XILINX
  • Website hỗ trợ: https://www.proe.vn

Product Description

The ZCU102 Evaluation Kit enables designers to jumpstart designs for automotive, industrial, video, and communications applications. This kit features a Zynq® UltraScale+™ MPSoC with a quad-core Arm® Cortex®-A53, dual-core Cortex-R5F real-time processors, and a Mali™-400 MP2 graphics processing unit based on Xilinx's 16nm FinFET+ programmable logic fabric. The ZCU102 supports all major peripherals and interfaces, enabling development for a wide range of applications.

Key Features & Benefits

  • Optimized for quick application prototyping with Zynq UltraScale+ MPSoC
  • DDR4 SODIMM – 4GB 64-bit w/ ECC attached to processing system (PS)
  • DDR4 Component – 512MB 16-bit attached to programmable logic (PL)
  • PCIe® Root Port Gen2 x4, USB3, Display Port, and SATA
  • 4x SFP+ interfaces for Ethernet
  • 2x FPGA Mezzanine Card (FMC) interfaces for I/O expansion, including 16 16.3Gb/s GTH transceivers and 64 user-defined differential I/O signals

Board Features

Featuring the ZCU102 Evaluation Board



  • Onboard JTAG configuration circuitry to enable configuration over USB
  • Dual Quad-SPI flash memory
  • Boot from SD card


  • PS 4GB DDR4 64-bit SODIMM w/ ECC
  • PL 512MB DDR4 component memory ([256 Mb x 16] devices) at 1200MHz / 2400Mbps DDR
  • Dual 64MB Quad SPI flash
  • SD card slot

Control & I/O

  • 6x Directional Push Buttons (5x PL, 1x PS)
  • DIP switches (8x PL)
  • PMBUS & System Controller MSP430 for power, clocks, and I2C bus switching
  • USB2/3 (MIO ULPI and 1 GTR)**

Expansion Connectors

  • 2x FMC-HPC connectors (16 GTH Transceivers,  64 differential user defined signals)
  • 2x PMOD headers
  • IIC

Communication & Networking

  • RGMII communications at 10, 100, or 1000 Mb/s. Serial GMII interface-supports a 1 Gb/s SGMII interface
  • 4x SFP+ cage
  • SMA GTH support (4x SMA Tx/Rx connectors)
  • UART To USB bridge
  • RJ45 Ethernet connector
  • SATA (1 x GTR)**
  • PCIe Gen2x4 Root Port**


  • HDMI video input and output (3 GTH)
  • External Retimer device driving an HDMI output connector
  • 9x GPIO user LEDs (8x PL, 1x PS)
  • VESA DisplayPort 1.2 source-only controller supports up to two lanes of main link data at rates of 1.62 Gb/s, 2.70 Gb/s, or 5.40 Gb/s.


  • Programmable clocks
  • System clocks, user clocks, jitter attenuated clocks
  • 2x SMA MGT input clocks


  • 12V wall adapter or ATX

** Switch enables either PCIe Root Port OR SATA, USB2/3 & DisplayPort

Featured Xilinx Devices

Featuring the Zynq UltraScale+ XCZU9EG-2FFVB1156 MPSoC

System Logic Cells (K) 600
Memory (Mb) 32.1
DSP Slices 2,520
Maximum I/0 Pins 328
