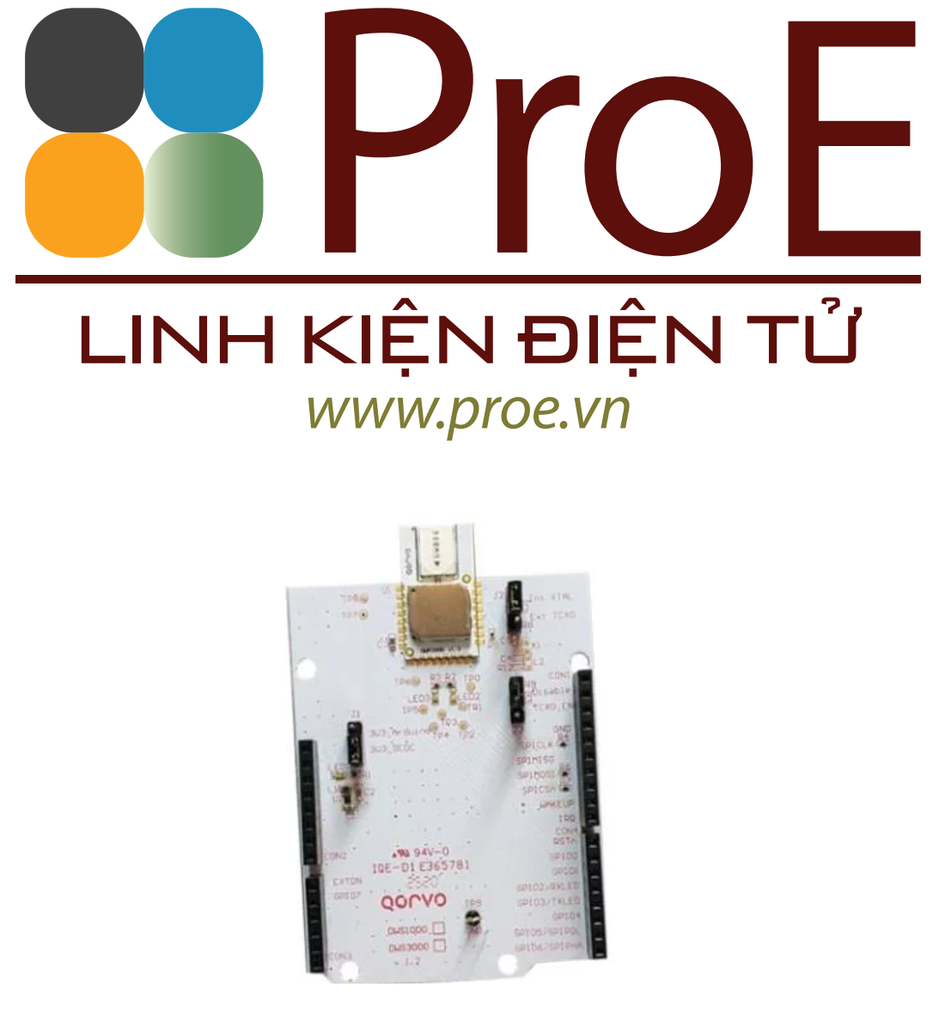

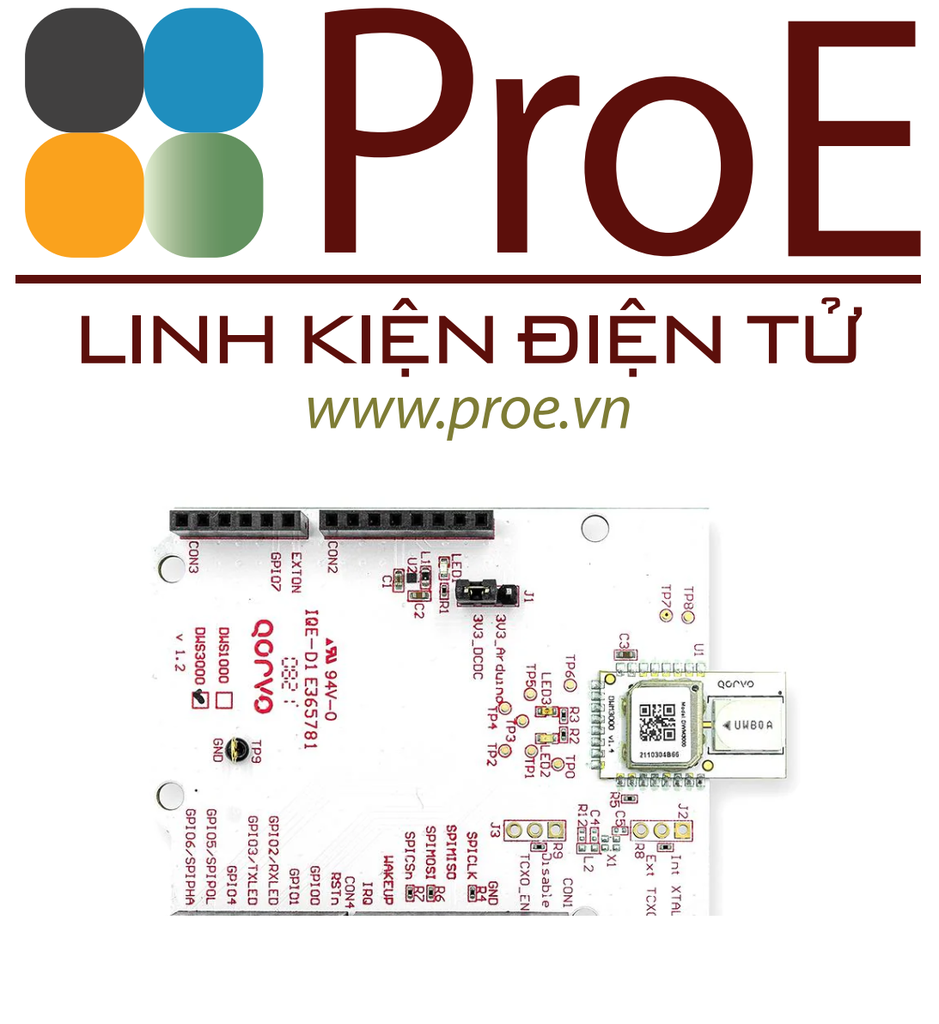

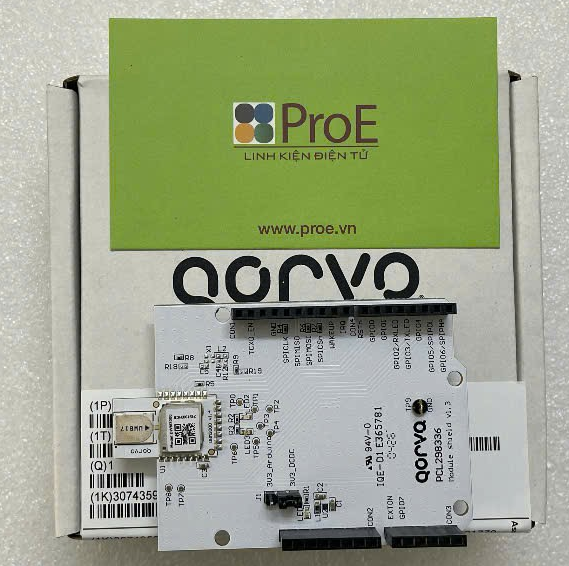

DWS3000 Ultra-Wideband (UWB) Transceiver Arduino Shield
- Mã sản phẩm: DWM3000EVB
- Nhà sản xuất: Decawave Limited
- Website hỗ trợ: https://www.proe.vn
1.690.000₫
Qorvo's DWM3000EVB is an Arduino form factor compatible shield designed for the evaluation of the DWM3000 ultra-wideband (UWB) module for use in a scalable real time location system (RTLS).
This Arduino shield can be used with the customer's choice of microcontroller. The Arduino shield form factor is supported by many MCU vendors including STMicroelectronics, Nordic Semiconductor and more.
The DWM3000EVB is designed to be compliant to the FiRa™ PHY and MAC specifications enabling interoperability with other FiRa™ compliant devices.
The DWM3000EVB is interoperable with the Apple U1 & U2 chip.
DWM3000EVB was formerly known as DWS3000.
Key Features
- Interoperable with Apple U1 & U2 chip
- Compatible with Arduino Uno Shield form factor
- Supports UWB channels 5 (6.5 GHz) and 9 (8 GHz)
- Fully aligned with FiRa™ PHY, MAC and certification development
- Incorporates the DWM3000 module containing DW3110 UWB IC and ceramic UWB antenna
- On-board 3V3 DC-DC
- Jumper allowing selection of the power supply and current consumption measurements
- All module pins accessible via Arduino connectors
| Based On | DW3110 IC |
| Contents | 1 Arduino shield with DWM3000 module |
| Ideal For | UWB Real Time Location System (RTLS) development while providing developers flexibility on MCU selection |
Application Notes
Schematics
| DWS1000 & DWS3000 Schematics 3/12/2020 |
Software
| DW3xxx & QM3xxx SDK v1.1.1 |
User Manuals
| DWM3000EVB Quick Start Guide Rev A – 05/2021 |
