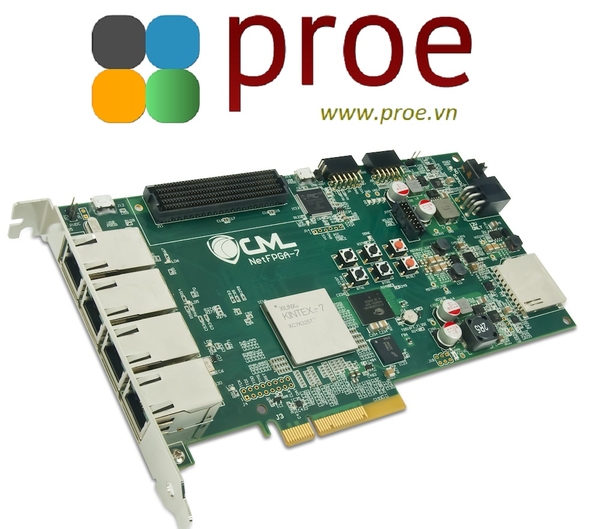

Digilent NetFPGA-1G-CML Kintex-7 FPGA Development Board

Product Description

The NetFPGA-1G-CML is a versatile, low cost network hardware development platform featuring a Xilinx Kintex-7 XC7K325T-1FFG676 FPGA and includes four Ethernet interfaces capable of negotiating up to 1 GB/s connections. 512 MB of 800 MHz DDR3 can support high-throughput packet buffering while 4.5 MB of QDRII+ can maintain low-latency access to high demand data, like routing tables. Rapid boot configuration is supported by a 128 MB BPI Flash, which is also available for non-volatile storage applications. The standard PCIe form factor supports high-speed x4 Gen 2 interfacing. The FMC carrier connector provides a convenient expansion interface for extending card functionality via Select I/O and GTX serial interfaces. The FMC connector can support SATA-II data rates for network storage applications, and can also be used to extend functionality via a wide variety of other cards designed for communication, measurement, and control.

Key Features and Benefits

• 1-Gbit BPI Flash
• 32-bit PIC microcontroller
• Can be powered inside or outside a PC using a standard ATX power supply with PCIe 6 pin or 6pin+2 connector. Please refer to reference manual for more detail
• Crypto-authentication chip
• Four 10/100/1000 Ethernet PHYs with RGMII
• Four on-board LEDs and four onboard general-purpose buttons
• High pin count FMC connector (VITA 57) with 100 Select-IO and 4 GTX serial pairs
• Low-jitter 200 MHz oscillator
• Real time clock
• SD card slot
• Two Pmod ports
• USB microcontroller
• X16 4.5 MB QDRII+ static RAM (450 MHz)
• X4 Gen 2 PCI Express
• X8 512 MB DDR3 dynamic RAM (800 MHz)
• Xilinx Kintex-7 XC7K325T-1FFG676 FPGA

What's Included

• 1-Gbit BPI Flash
• Crypto-authentication chip
• Four 10/100/1000 Ethernet PHYs with RGMII
• High pin count FMC connector (VITA 57)
• SD card slot
• Two Digilent PMOD connectors to expand the IO capability
• X16 4.5 MB QDRII+ static RAM (450 MHz)
• X4 Gen 2 PCI Express
• X8 512 MB DDR3 dynamic RAM (800 MHz)

Featured Documents

• Reference manual
