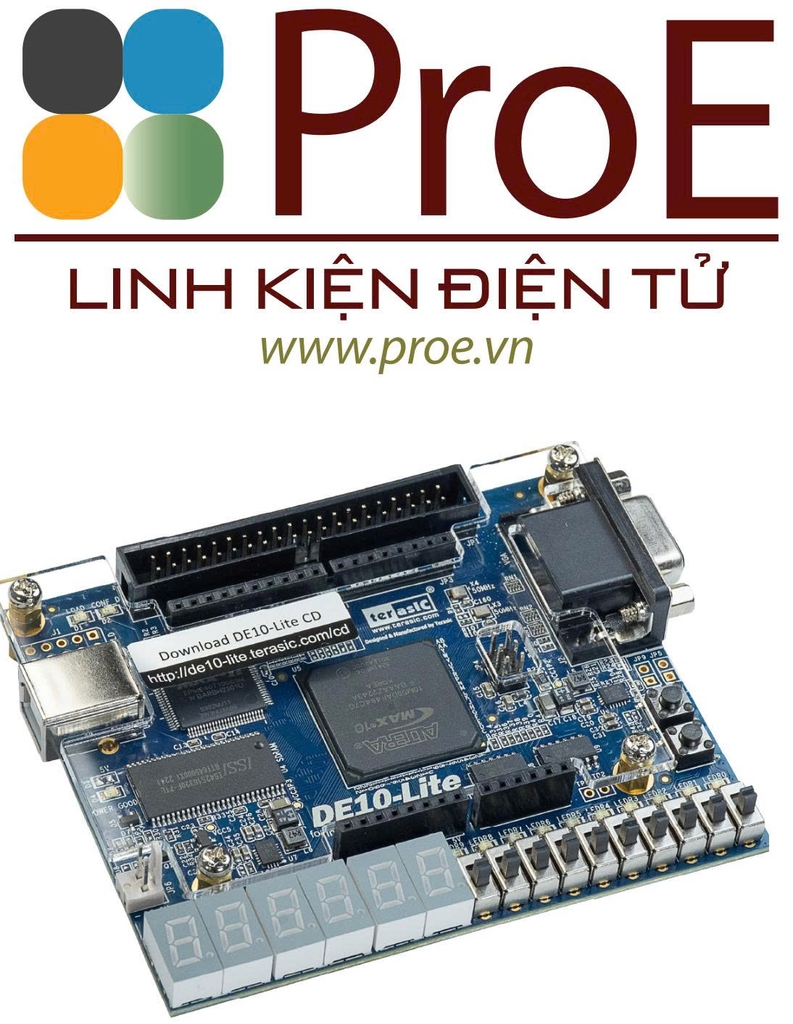

DE10-Lite Development and Education Board

Terasic DE10-Lite is a cost-effective Altera MAX 10 based FPGA board. The board utilizes the maximum capacity MAX 10 FPGA, which has around 50K logic elements(LEs) and on-die analog-to-digital converter (ADC). It features on-board USB-Blaster, SDRAM, accelerometer, VGA output, 2x20 GPIO expansion connector, and an Arduino UNO R3 expansion connector in a compact size. The kit provides the perfect system-level prototyping solution for industrial, automotive, consumer, and many other market applications.

The DE10-Lite kit also contains lots of reference designs and software utilities for users to easily develop their applications based on these design resources.

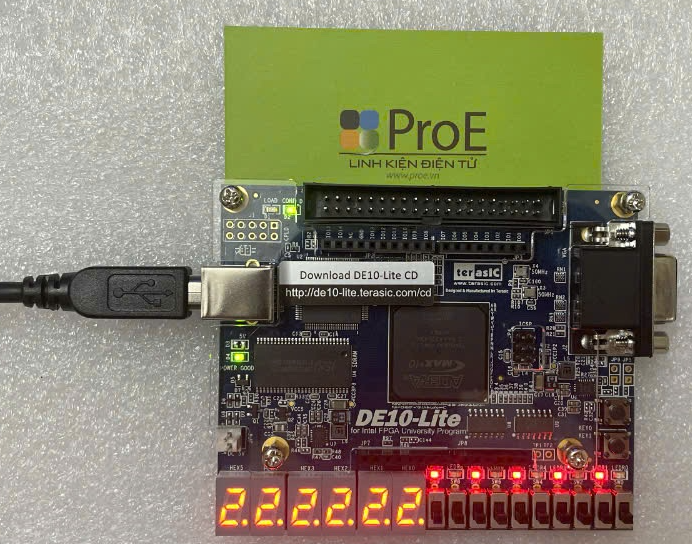

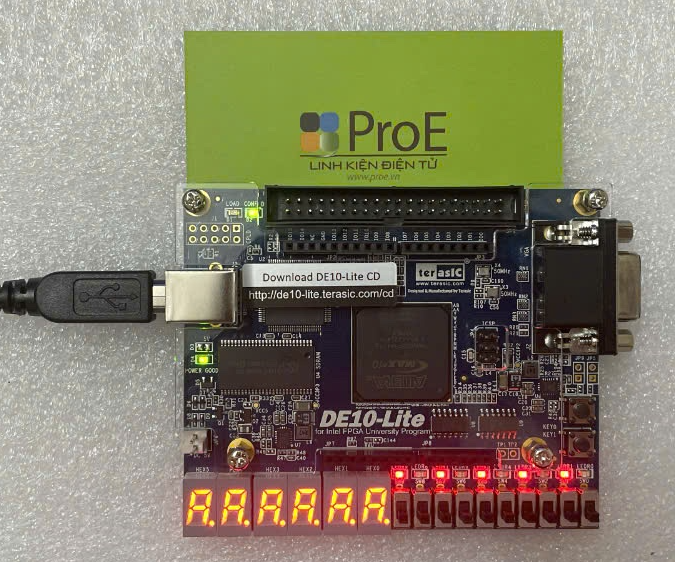

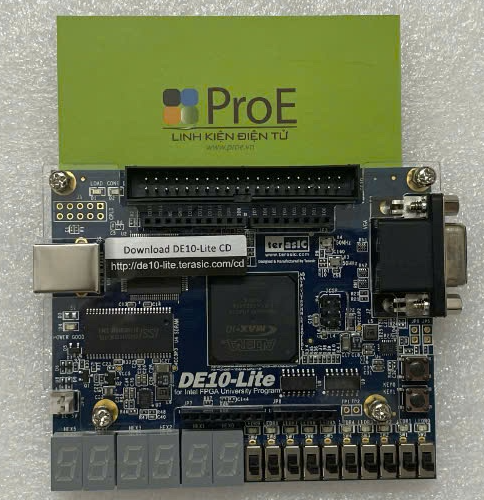

DE10-Lite Development and Education Board

This board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects. The following hardware is provided on the board:

FPGA Device

• MAX 10 10M50DAF484C7G Device
• Integrated dual ADCs, each ADC supports 1 dedicated analog input and 8 dual function pins
• 50K programmable logic elements
• 1,638 Kbit M9K Memory
• 144 18 × 18 Multiplier
• 4 PLLs

Programming and Configuration

• On-Board USB Blaster (Normal type B USB connector)

Memory Device

• 64MB SDRAM, x16 bits data bus

Sensor

• Accelerometer

Expansion Connectors

• One 2x20 GPIO Connector(voltage levels: 3.3V)
• Arduino Uno R3 Connector, including six ADC channels.

Display

• 4-bit Resistor VGA

Switches/Buttons/LEDs/7-Segment Display

• 10 LEDs
• 10 Slide Switches
• 2 Push Buttons
• Six 7-Segments Display

Power

• 5V DC input

Block Diagram of the DE10-Lite Board

Connectivity

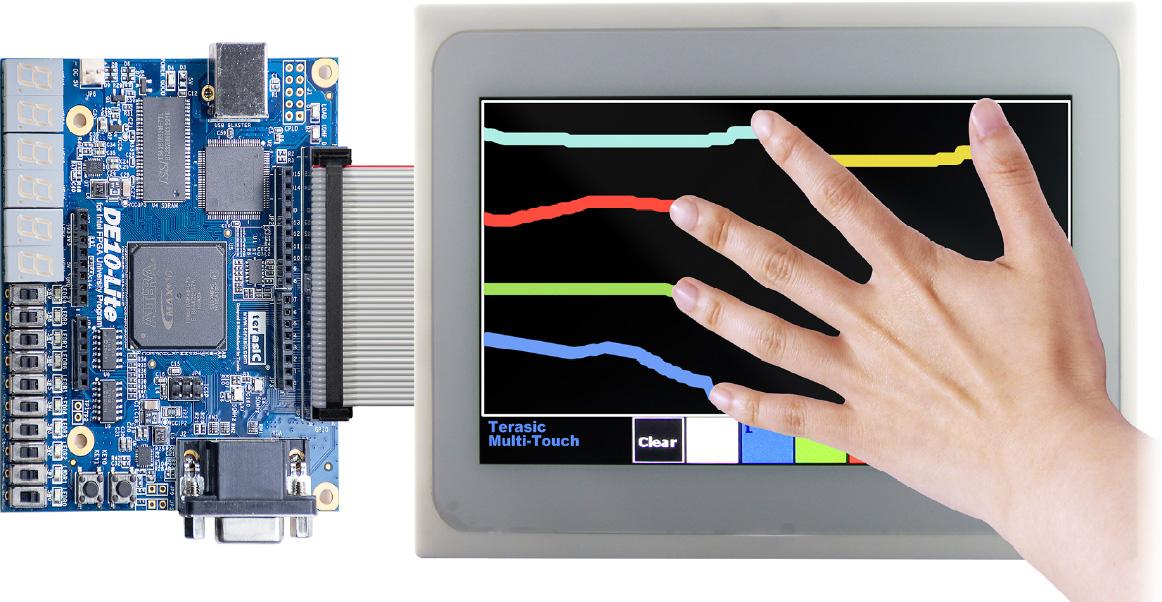

• Connect with MTL2

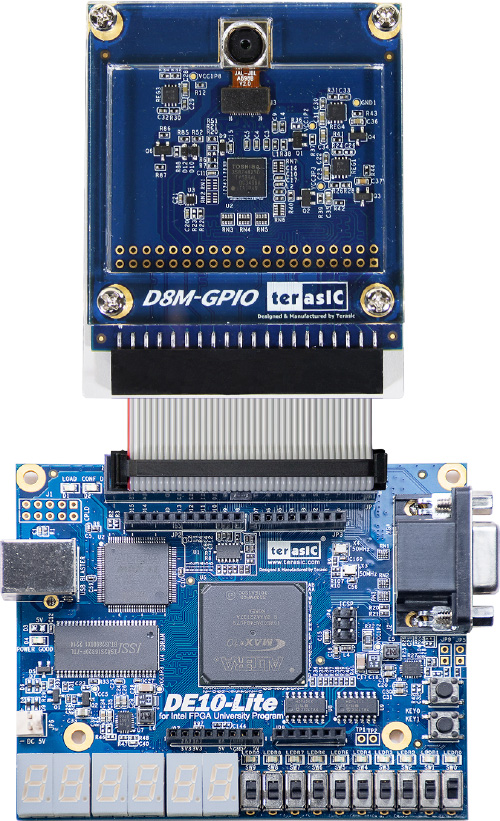

• Connect with D8M-GPIO

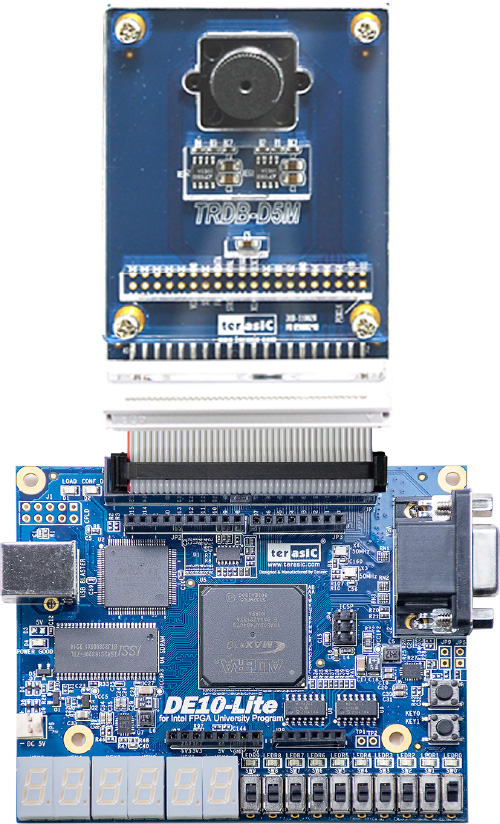

• Connect with D5M

• Connect with Arduino Shield

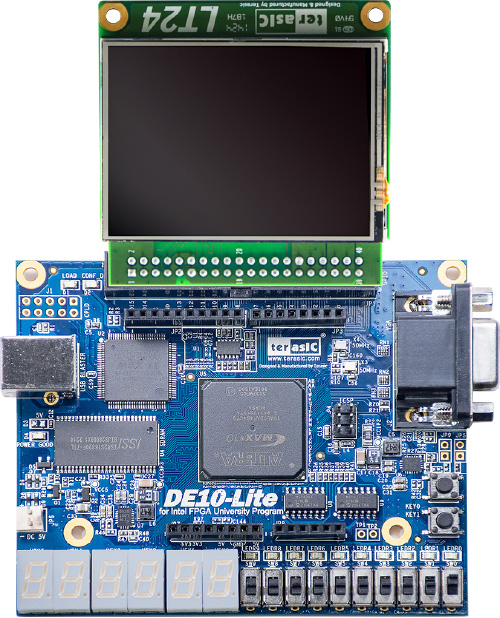

• Connect with LT24
