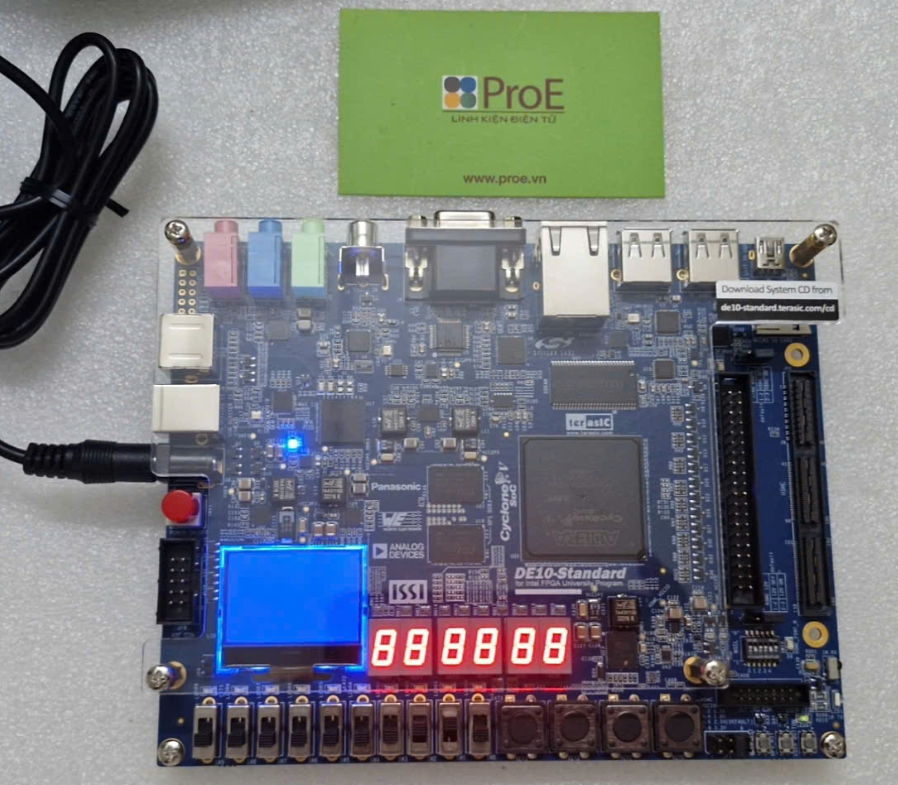

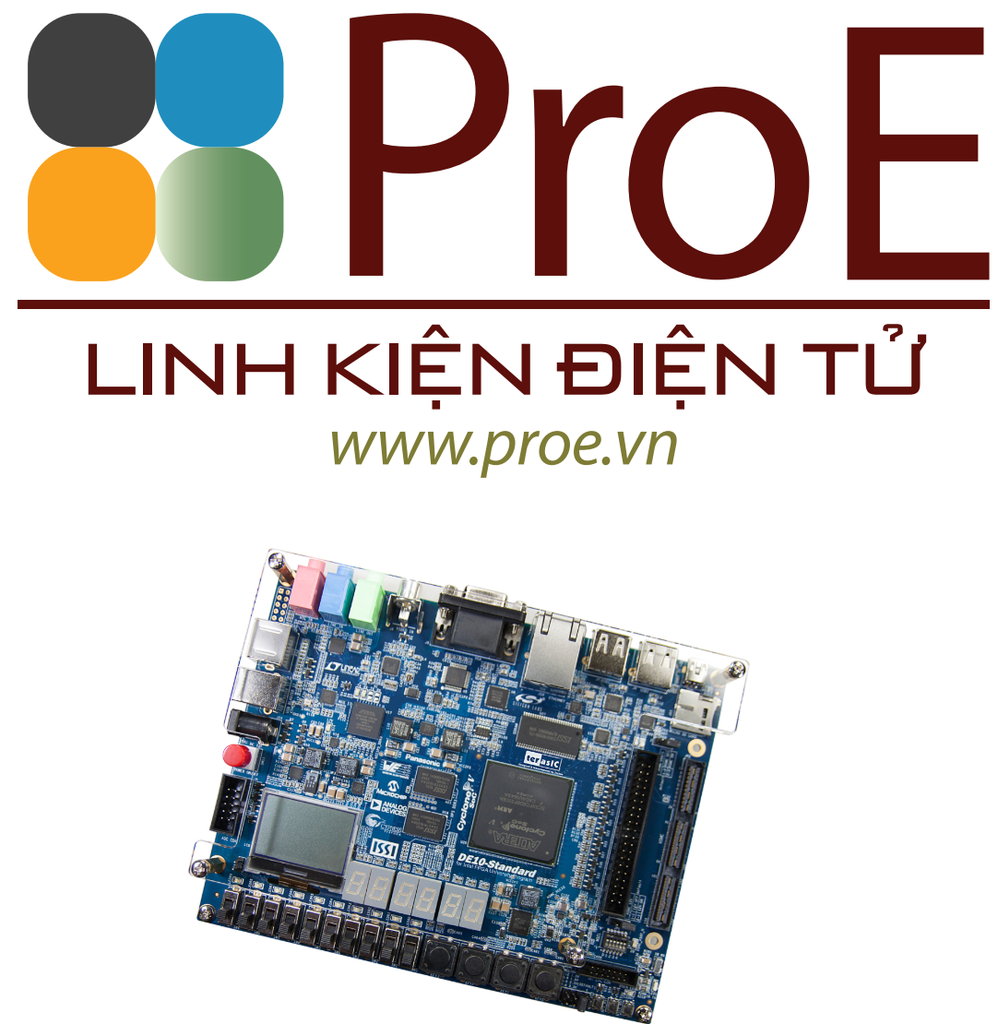

DE10-STANDARD DEV KIT P0493 Terasic

The DE10-Standard Development Kit presents a robust hardware design platform built around the Intel System-on-Chip (SoC) FPGA, which combines the latest dual-core Cortex-A9 embedded cores with industry-leading programmable logic for ultimate design flexibility. Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power processor system. Altera’s SoC integrates an ARM-based hard processor system (HPS) consisting of processor, peripherals and memory interfaces tied seamlessly with the FPGA fabric using a high-bandwidth interconnect backbone. The DE10-Standard development board includes hardware such as high-speed DDR3 memory, video and audio capabilities, Ethernet networking, and much more.

The DE10-Standard board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.

The following hardware is provided on the board:

FPGA Device

• Cyclone V SX SoC—5CSXFC6D6F31C6N
• 110K LEs, 41509 ALMs
• 5,761 Kbits embedded memory
• 6 FPGA PLLs and 3 HPS PLLs
• 2 Hard Memory Controllers

ARM-Based Hard Processor System (HPS)

• 925 MHz, Dual-Core ARM Cortex-A9 MPCore Processor
• 512 KB of Shared L2 Cache
• 64 KB of Scratch RAM
• Multiport SDRAM Controller with Support for DDR2, DDR3, LPDDR1, and LPDDR2
• 8-Channel Direct Memory Access (DMA) Controller

Configuration and Debug

• Serial Configuration Device – EPCS128 on FPGA
• On-Board USB Blaster II (Normal Type B USB Connector)

Memory Device

• 64MB (32Mx16) SDRAM on FPGA
• 1GB (2x256Mx16) DDR3 SDRAM on HPS
• MicroSD Card Socket on HPS

Communication

• Two USB 2.0 Host Ports (ULPI Interface with USB Type A Connector) on HPS
• USB to UART (Micro USB Type B Connector) on HPS

• 10/100/1000 Ethernet on HPS
• PS/2 Mouse/Keyboard
• IR Emitter/Receiver

Connectors

• One 40-pin Expansion Header (Voltage Levels: 3.3V)
• One HSMC Connector(Configurable I/O Standards 1.5/1.8/2.5/3.3V)
• One 10-Pin ADC Input Header
• One LTC Connector (One Serial Peripheral Interface (SPI) Master ,One I2C and One GPIO Interface ) on HPS

Display

• 24-bit VGA DAC
• 128x64 Dots LCD Module with Backlight on HPS

Audio

• 24-bit CODEC, Line-in, Line-out, and Microphone-In Jacks

Video Input

• TV Decoder (NTSC/PAL/SECAM) and TV-In Connector

ADC

• Sample Rate: 500 KSPS
• Channel Number: 8
• Resolution: 12 bits
• Analog Input Range : 0 ~ 4.096 V

Switches, Buttons and Indicators

• 4 User Keys (FPGA x4)
• 10 User Switches (FPGA x10)
• 11 User LEDs (FPGA x10 ; HPS x 1)
• 2 HPS Reset Buttons (HPS_RST_n and HPS_WARM_RST_n)7-Segment Display x6

Sensors

• G-Sensor on HPS

Power

• 12V DC Input

Block Diagram of the DE10-Standard Board

Connectivity

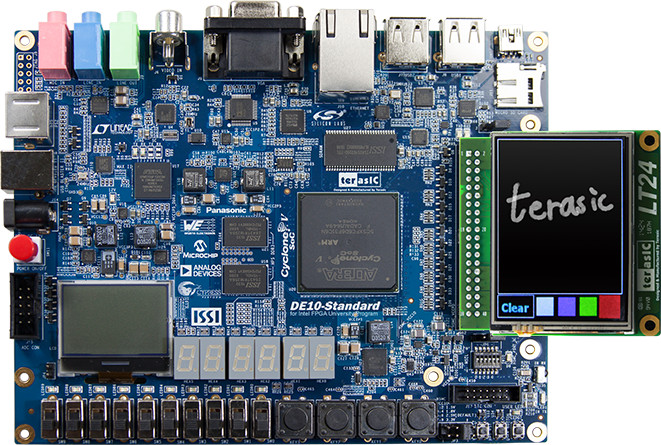

• Connect LT24

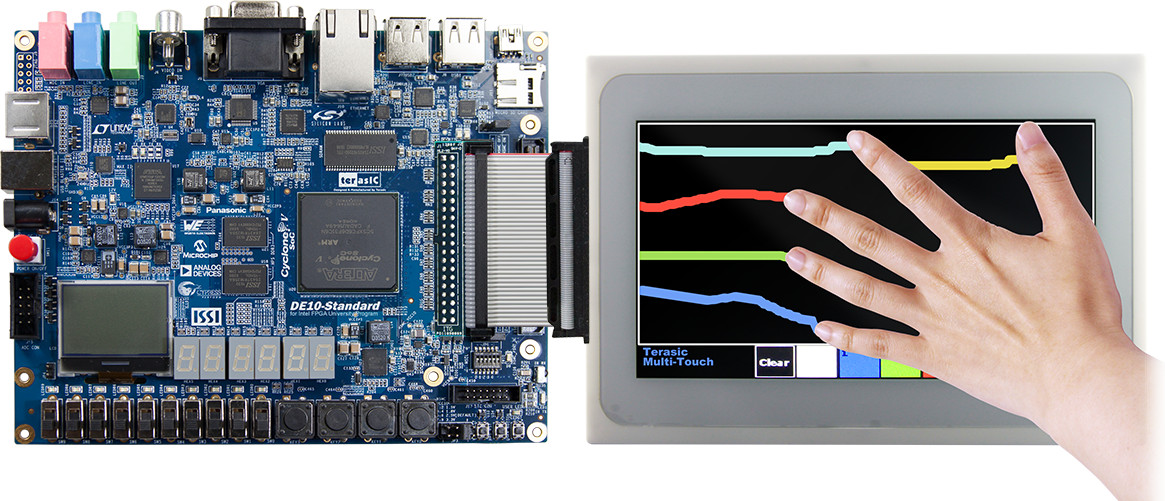

• Connect MTL2

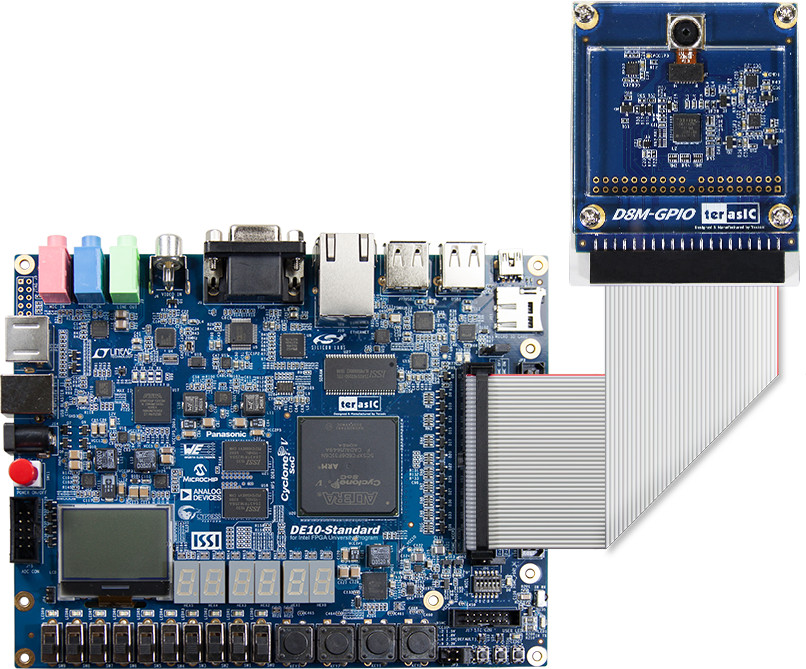

• Connect D8M

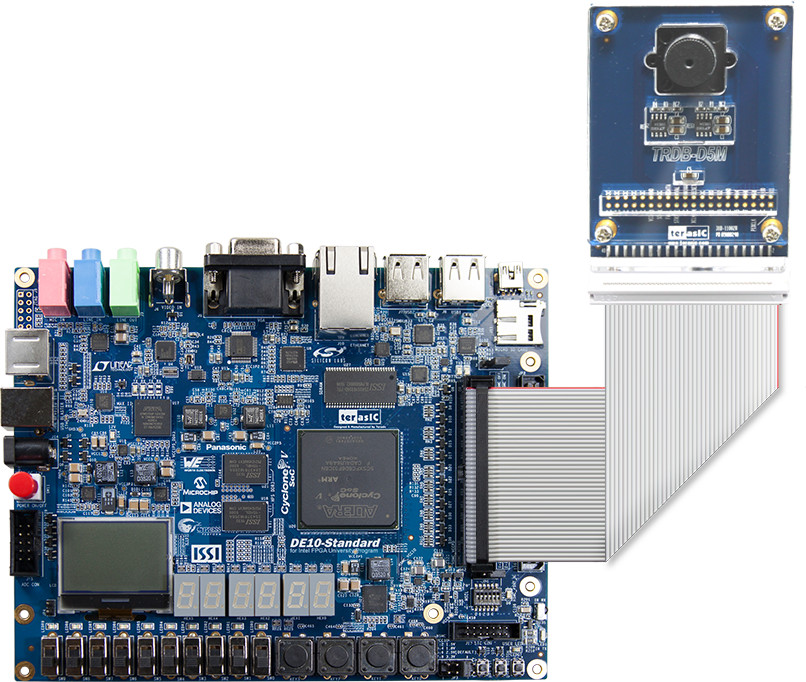

• Connect D5M

• Connect SMK

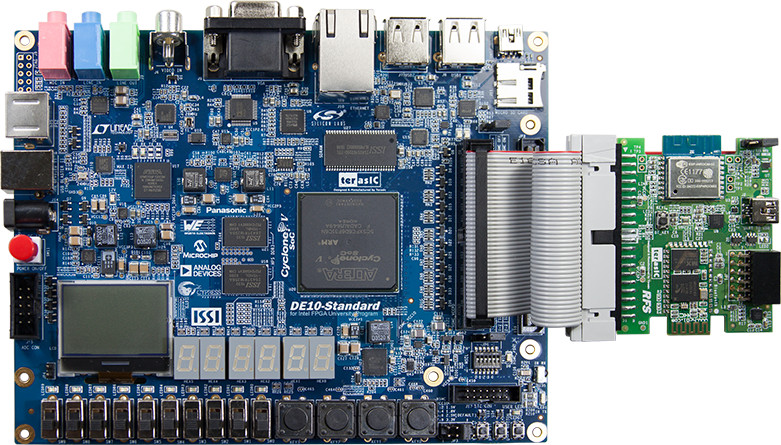

• Connect RFS

• Connect HTG

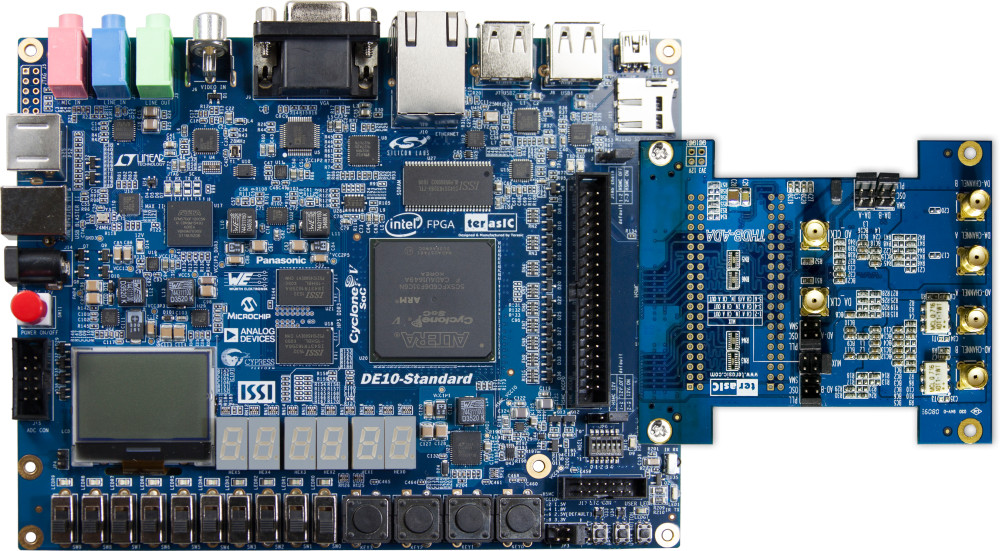

• Connect ADA

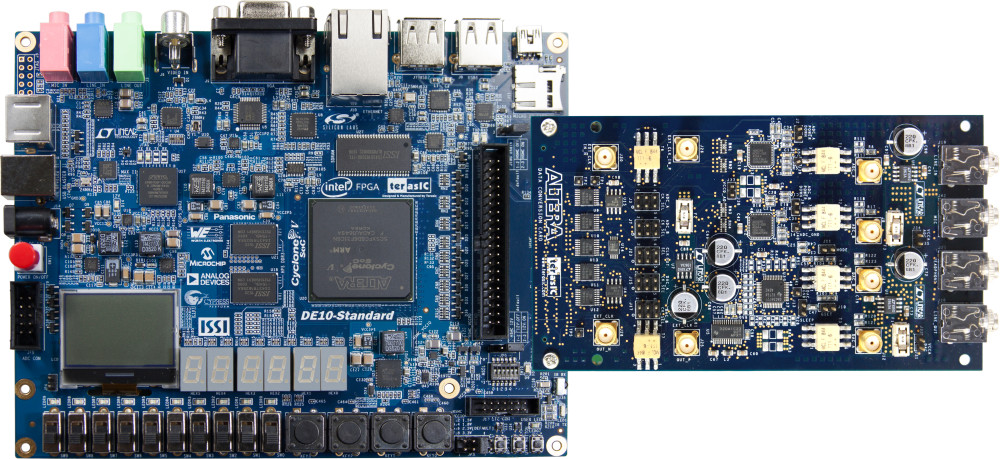

• Connect DCC

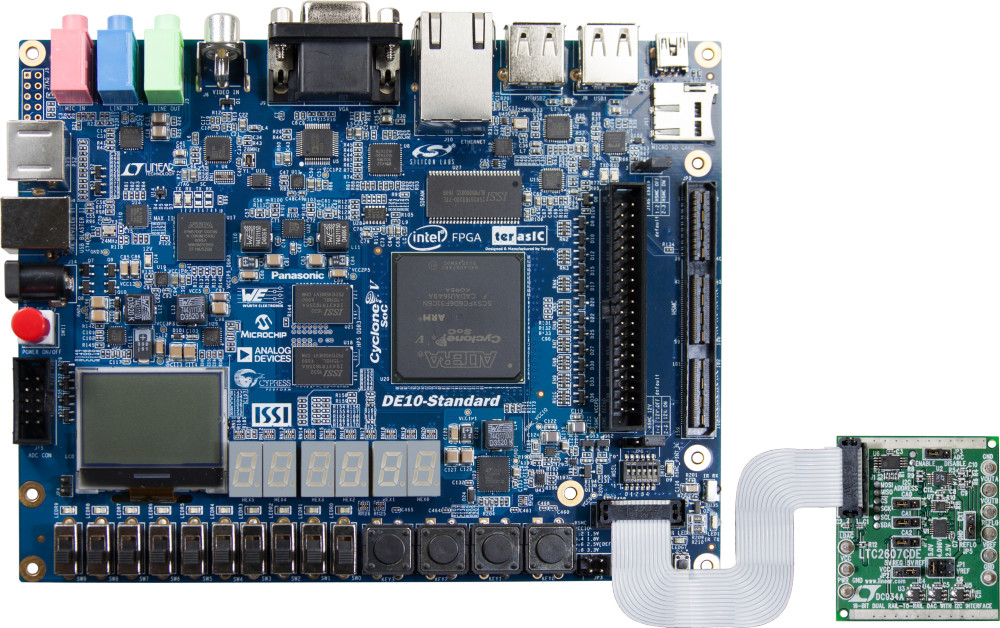

• Connect LTC2607 (AD/DA Daugher Card)
