CoreEP4CE10, ALTERA Core Board

  • Mã sản phẩm: CoreEP4CE10, ALTERA Core Board
  • Nhà sản xuất: Waveshare
  • Tình trạng: Còn hàng
  • Website hỗ trợ: https://www.proe.vn
1.100.000₫

FPGA core board, features the ALTERA Cyclone IV chip EP4CE10F17C8N onboard

Overview

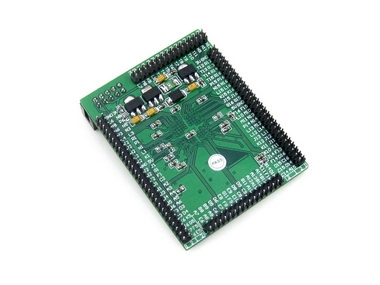

CoreEP4CE10 is an FPGA core board that features an EP4CE10F17C8N device onboard, supports further expansion.

  • onboard Serial Configuration Device EPCS16SI8N
  • integrated FPGA basic circuit, such as clock circuit
  • onboard nCONFIG button, RESET button, 4 x LEDs
  • all the I/O ports are accessible on the pin headers
  • onboard JTAG debugging/programming interface
  • 2.00mm header pitch design, suitable for being plugged-in your application system

What's On Board

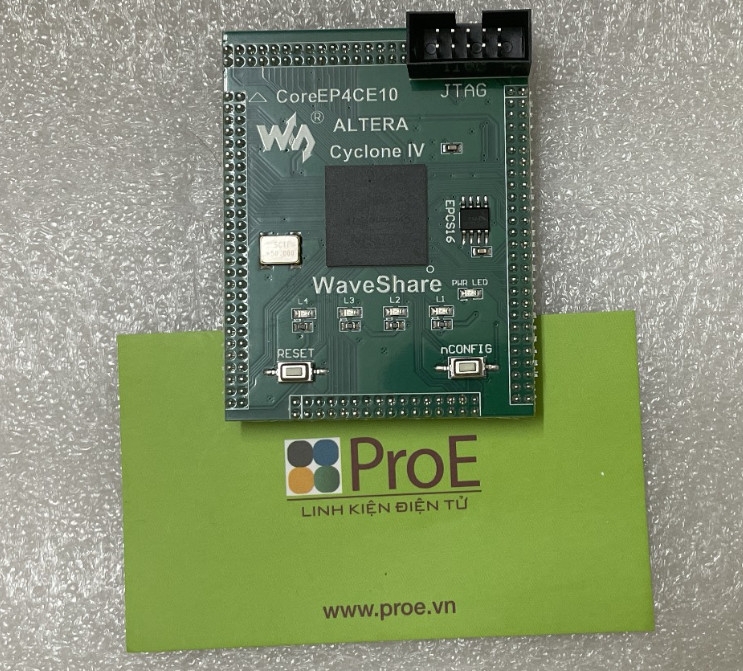

EP4CE10F17C8N core board on board resource

  1. EP4CE10F17C8N:the ALTERA Cyclone IV FPGA device which features:
    • Operating Frequency: 50MHz
    • Operating Voltage: 1.15V~3.465V
    • Package: BGA256
    • I/Os: 164
    • LEs: 10K
    • RAM: 414kb
    • PLLs: 2
    • Debugging/Programming: supports JTAG

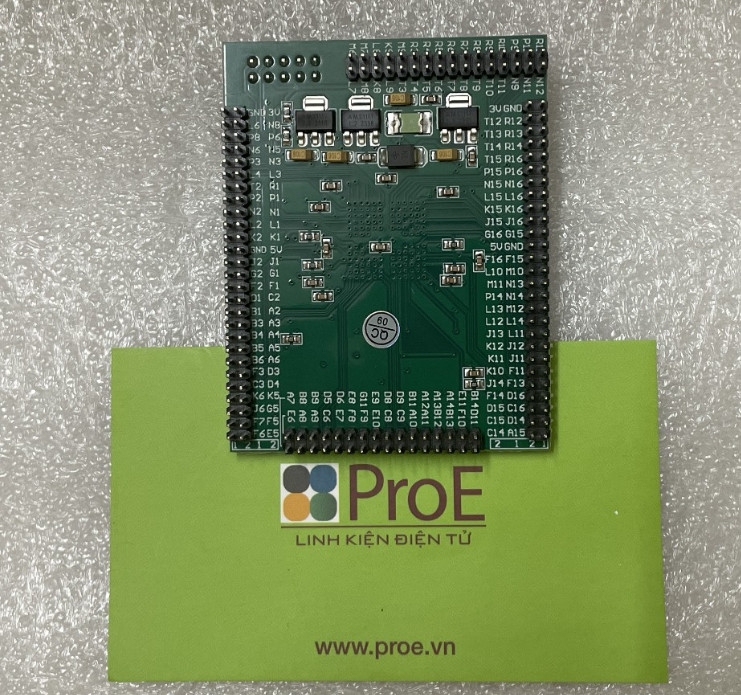

  2. AMS1117-3.3 (on bottom side), 3.3V voltage regulator
  3. AMS1117-2.5 (on bottom side), 2.5V voltage regulator
  4. AMS1117-1.2 (on bottom side), 1.2V voltage regulator
  5. EPCS16, onboard serial FLASH memory, for storing code
  6. Power indicator
  7. LEDs
  8. Reset button
  9. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
  10. 50M active crystal
  11. JTAG interface: for debugging/programming
  12. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion



JTAG Interface

The figure below shows the header pinout of JTAG

Figure 1. JTAG Header Pinout
JTAG Header Pinout


Development Resources

CoreEP4CE10 FPGA core board comes with a User Guide CD including development resources listed as below:

  • Related software (Quaters II, NIOS II etc.)
  • Demo code (Verilog, VHDL, NIOS II C)
  • Schematic (PDF)
  • FPGA development documentations

Wiki: www.waveshare.com/wiki/CoreEP4CE10
