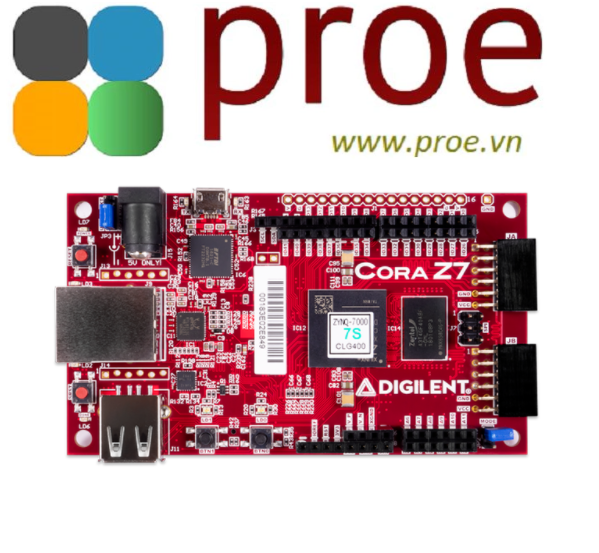

Cora Z7: Zynq-7000 Single Core and Dual Core Options for ARM/FPGA SoC Development

  • Mã sản phẩm: Cora Z7-10 410-370-1
  • Nhà sản xuất: Digilent
  • Website hỗ trợ: https://www.proe.vn
6.900.000₫

The Cora Z7 is our most cost-optimized SoC development board featuring the power and flexibility of Xilinx's Zynq®-7000 SoC family.

Featuring Arduino™ headers, 1Gbps Ethernet, an onboard analog-to-digital converter, and Pmod ports, the Cora Z7 can be used in a variety of embedded applications. The Zynq-7000(S) SoC family integrates the software programmability of an ARM®-based processor with the hardware programmability of an FPGA, delivering cost-optimized system integration. At such a friendly price point, the Cora Z7 is a great development board to get started with Zynq-based designs.

The Cora Z7 is supported by Xilinx's Vivado Design Suite, including the free WebPACK version. You can also interact with the processing system (PS) with Xilinx's Vitis Unified Software Platform and PetaLinux Tools.

There are two variants of the Cora Z7: the Cora Z7-07S and Cora Z7-10. The primary difference is that ARM Cortex-A9 processor on the Cora Z7-07S is single-core, versus dual-core on the Cora Z7-10. See the Features tab for a side-by-side comparison of the two boards.

   Cora Z7-10  Cora Z7-07S
 Zynq Part  XC7Z010-1CLG400C  XC7Z007S-1CLG400C
 ARM Processor Cores  2  1
 1MSPS On-chip ADC  Yes  Yes
 Logic Cells  28,000  21,000
 Look-up Tables (LUTs)  17,600  14,400
 Block RAM (Mbits)  2.1  1.8
 Clock Management Tiles  2  2



  • 667 MHz Cortex-A9 processor with tightly integrated Xilinx FPGA (option between Dual Core and Single Core options)
  • 512 MB DDR3 memory
  • Arduino shield and Pmod connectors for add-on hardware devices
  • USB and Ethernet connectivity
  • Large array of general purpose input/output ports for any number of different custom solutions
  • Small form factor and mounting holes
  • Programmable from JTAG and microSD card
  • Product Compliance:
    • HTC: 8473301180
    • ECCN: EAR99
