Cobra Flex

WIKI: www.waveshare.com/wiki/Cobra_Flex

Weight: 0.194 kg

 Warning: battery inside.

1. Cobra Flex x1
2. USB Type-A male to Type-A female cable ~1.5m x1
3.  12.6V 2A power supply x1
4. Packing box x1
5. Accessory pack x1

1

2

3

4

5

Cobra Flex Universal Modular Drive-by-Wire Chassis, 4 Wheels 4WD Compact Differential Chassis, Hub Motors, Multi-Host Compatible, Fully Open-Source Code

Specifications

Features At A Glance

The Cobra Flex is a universal modular Drive-by-Wire chassis with strong off-road crossing ability and shock-absorbing performance, open source all code for secondary development. It supports multiple host computers (Raspberry Pi, Jetson Orin Nano, etc.), the host computer can communicate with the chassis through USB or serial port. The four wheels are driven by 4x bus hub motors with built-in FOC control circuit, which provide strong power and smooth running speed.
Built in Lithium battery set with 6x 18650 Lithium batteries, which provides uninterruptible power for the robot and supports charging and power output at the same time. Built in multi-functional robot driver board based on ESP32, adopts strong and weak electric isolation design and supports connecting bus servos, with onboard Wi-Fi (only for short-distance debugging) and Bluetooth. Adopts compact four-wheel independent suspension with CNC process, can easily meet the needs of heavy loads, shock absorption, and off-road. Also, it comes with 2 x 1020 European standard profile rails, providing more possibilities for secondary development.

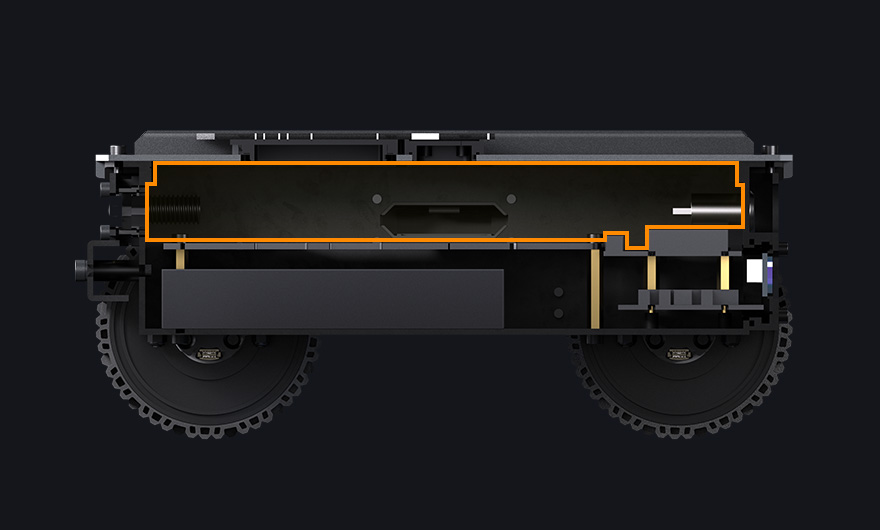

All Metal Compact Body with Extra-large Internal Space

Adopts independent suspension structure and hub motor design, significantly optimizing the internal space of the chassis. Built in a battery set consisting of 6x 18650 Lithium batteries (3s2p), ensuring long runtime while also providing enough space for installing Raspberry Pi, Jetson Orin series or other host computers, and camera module, etc. Users can also freely plan the use of the space according to their actual needs.

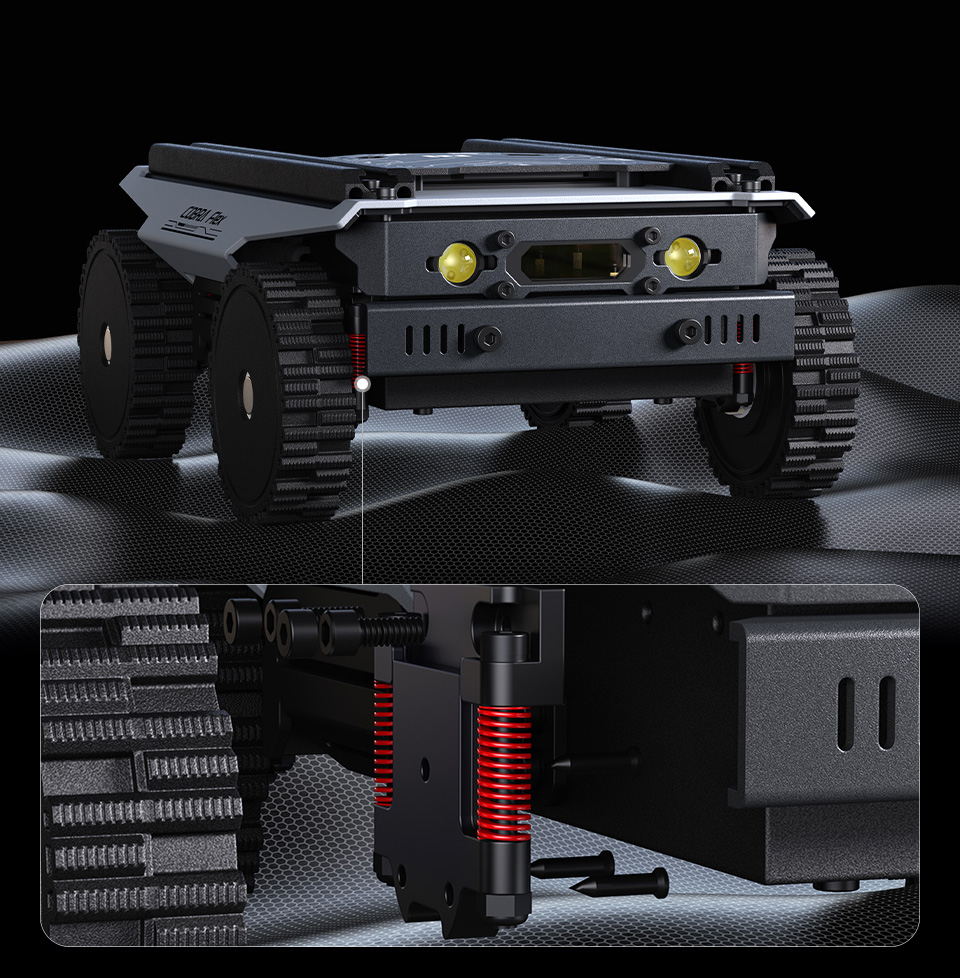

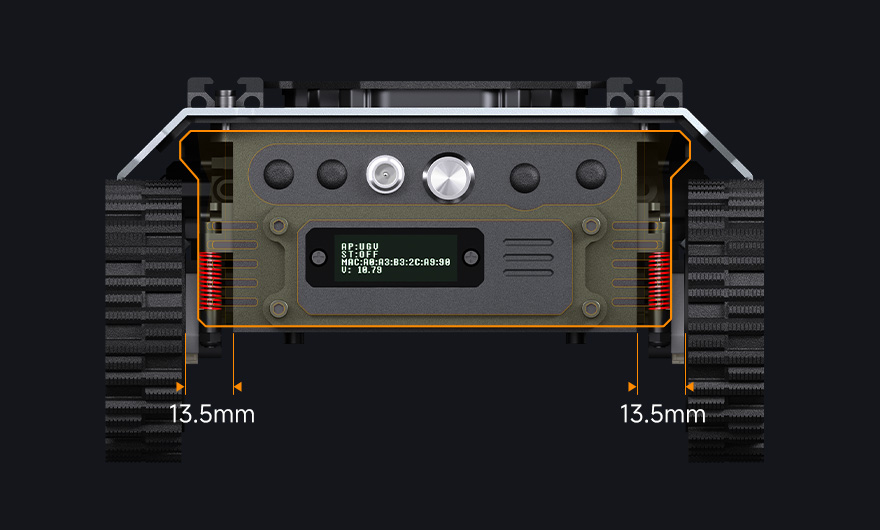

Superb shock absorption performance

Each hub motor is equipped with an individual CNC metal suspension, featuring simple and reliable structure with better shock absorption performance

Multi-Host Compatible

Supports installing Raspberry Pi or Jetson Orin series boards as the host computer inside the chassis. The host computer can communicate with the chassis via USB or UART interfaces for motion control and obtaining real-time status feedback from the chassis

Install Jetson Orin series as host computer

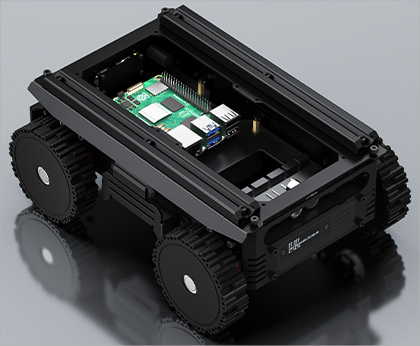

Install Raspberry Pi as host computer

1020 Standard Aluminum Profile Rails

Supports installing various peripherals and modular mounting components for efficient secondary development

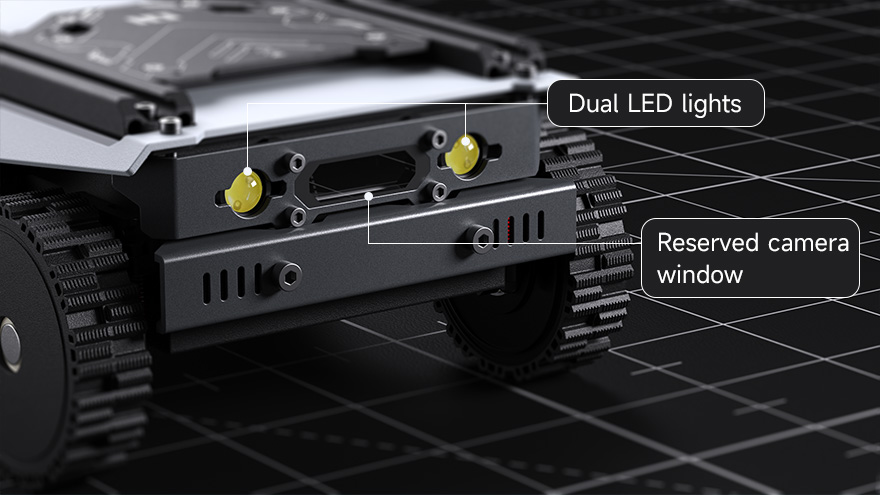

more design details

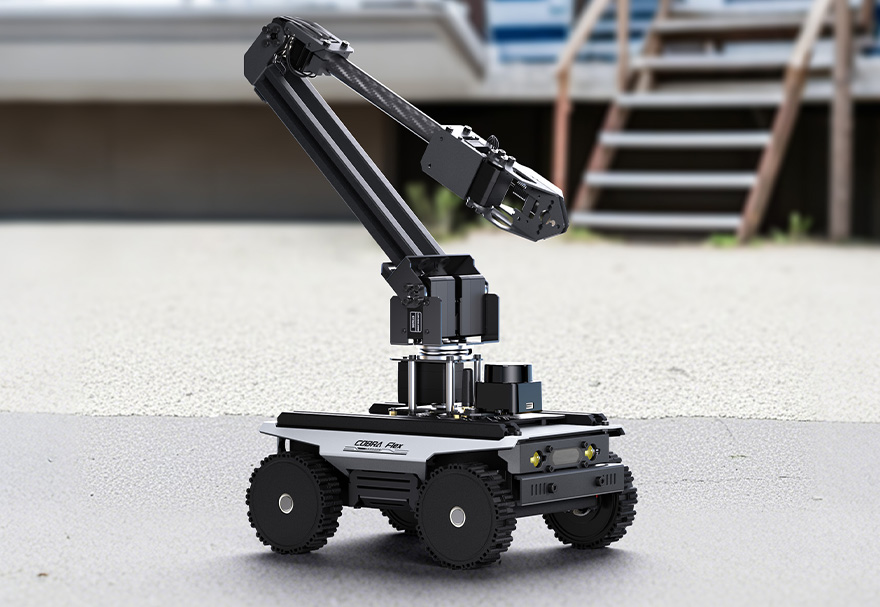

Supports connecting Bus Servos

The chassis driver board can support RSBL series and ST/SC series bus servos
(* the power supply voltage for servos must be matched)

Rich Open-Source Demos

Product Show

Outline Dimensions
