Open-Q™ 6490 Development Kit

The Open-Q™ 6490CS Development Kit is designed to facilitate easy evaluation and development. The kit includes many standard sockets, enabling customers to choose from a wide range of third-party accessories. The SOM utilizes on-Chip with multiple specialized processing cores for powerful AI, image and graphics, and audio processing.

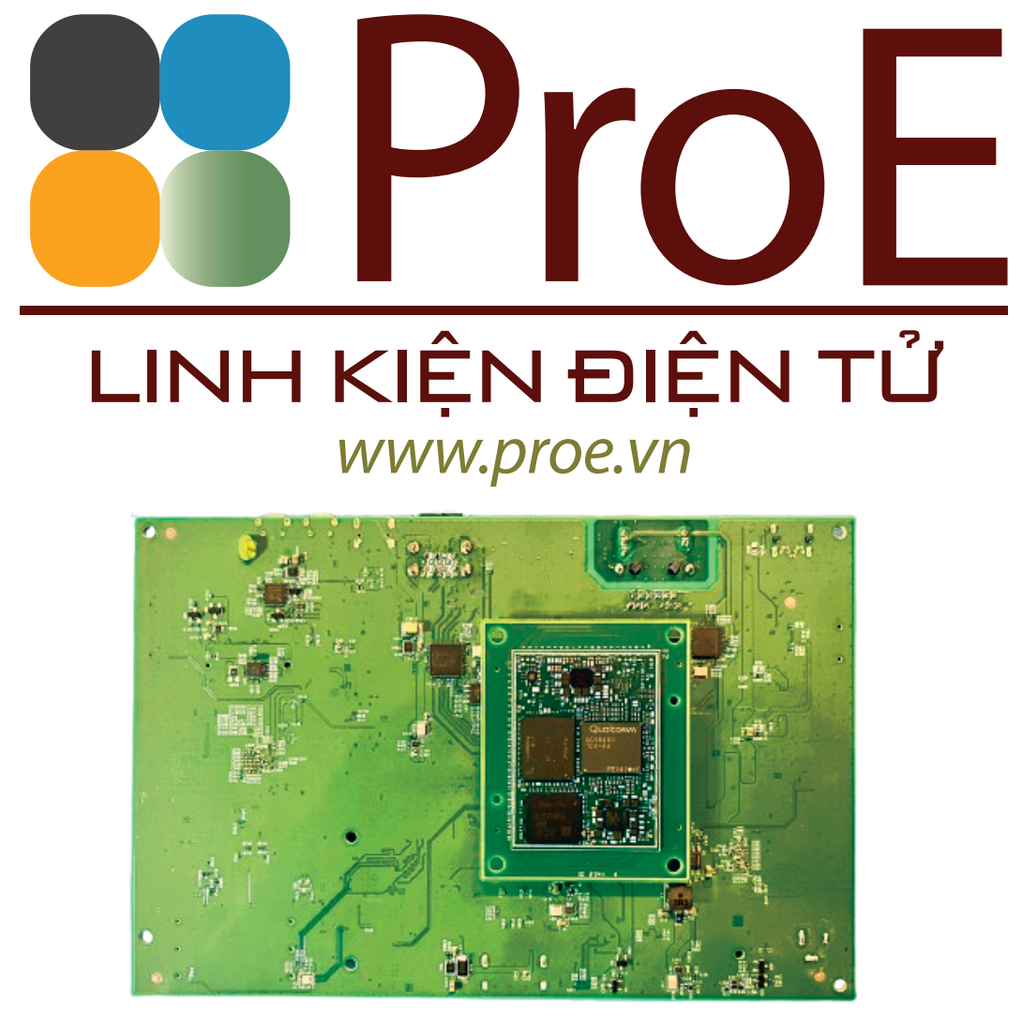

The development kit provides the ideal starting point for evaluating the Open-Q™ 6490CS SOM. The platform consists of Lantronix’s Open-Q™ 6490CS SOM, an open-frame carrier board exposing all the available I/O, and a range of accessories to fast-track your product development.

Open-Q™ 6490CS SOM Development Kit Tech Specs

• Open-Q™ 6490CS SOM

  • Processors
    • Qualcomm® Dragonwing™ QCS6490 SoC built on 6nm technology:
    • Kryo™ 670 Octa-core CPU: 1 Prime @ 2.7 GHz + 3 Gold @ 2.4 GHz + 4 Silver @ 1.8 GHz
    • Hexagon™ 770 with Hexagon Vector eXtensions (HVX)
  • Memory/Storage
    • Supports external UFS and SD
  • Wireless
    • Supports external Wi-Fi via PCIe 1-lane, up to Wi-Fi 6E, 2x2 MU-MIMO + Bluetooth 5.2

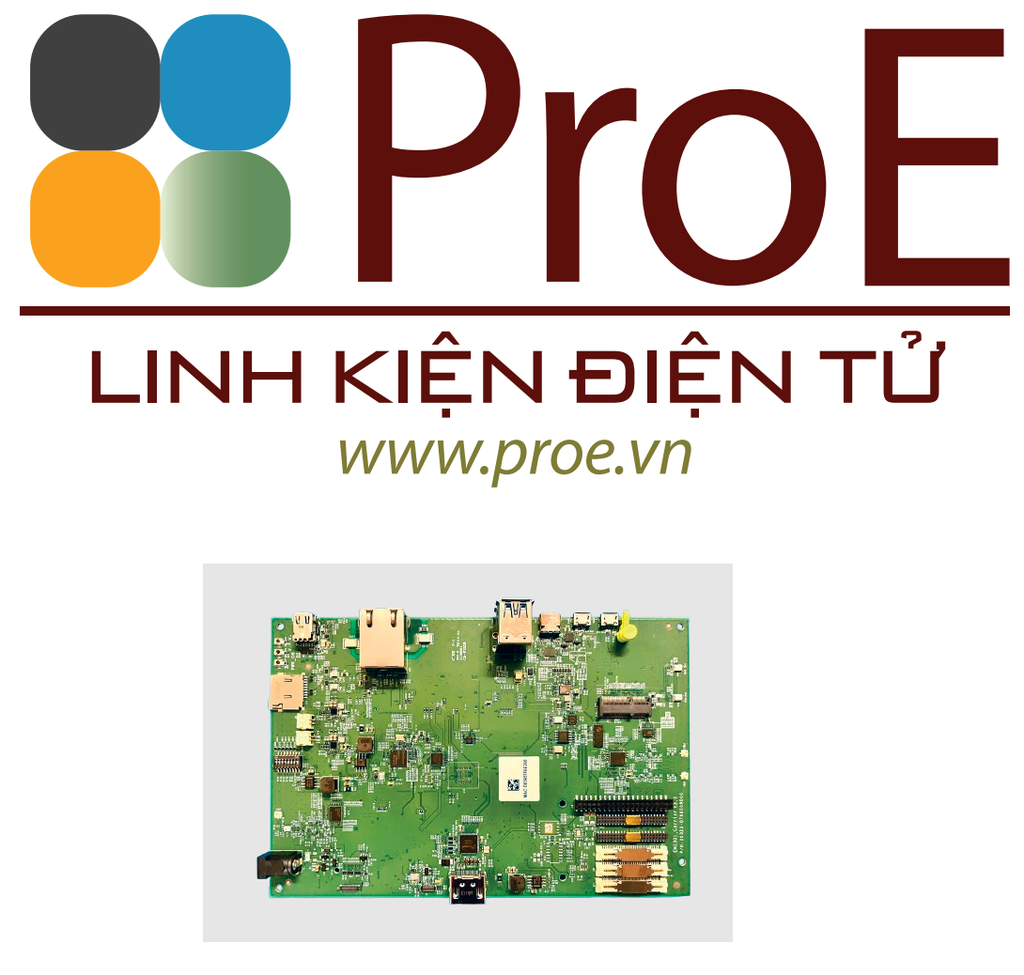

• Open-Q™ 6490CS SOM Carrier Board

  • Display Interfaces
    • HDMI Port
    • DisplayPort v1.4 via USB Type-C (ALT mode)
    • Embedded DisplayPort (eDP)
  • Camera Interfaces
    • 5x MIPI CSI interfaces, supports for both D-PHY and C-PHY camera interfaces
  • Audio Interfaces
    • Qualcomm® WSA8835 audio amplifiers for the left and right speaker output, 4 digital microphones
  • I/O Interfaces
    • 2x USB 3.0 ports: 1x USB3.1 Type-C with DisplayPort, Micro USB-B OTG, Serial UART over USB for debug
    • SD socket, SIM Card socket, Low-Speed and High-Speed connectors, GPIO, 12C, UART, M.2 for LTE, M.2 for Wi-Fi, M.2 for NVMe SSD
    • Support up to 2.5 Gb Ethernet
  • Wireless
    • Onboard chip: Qualcomm® WCN6750 (2x2 MU-MIMO, with tri-band (2.4 GHz/5 GHz/6 GHz) and Bluetooth 5.2)
    • External Module: Compatible with PCIe Wi-Fi module (WCBN813A) (Compliance with IEEE 802.11 b/g/n/ac/ax for Wi-Fi and Bluetooth 5.0 standards)
  • GPS
    • Qualcomm® SDR735 GPS RF receiver
  • Power Input
    • Input: 12V/3A
  • Form Factor
    • SOM: 47mm x 35mm, Carrier Board: 120mm x 180mm
  • OS Support
    • Android 13 and Qualcomm Linux

Development Kit (LOQ-6490-EVK-BI) includes:

• 1x Main board
• 1x SOM (QC-SIP-6490CS-A SOM – 4GB RAM and 32GB eMMC)
• 1x IMX577 camera
• 1x OV9282 camera
• 1x Power supply
• Wi-Fi & GPS antennas
• 1x USB debug cable
