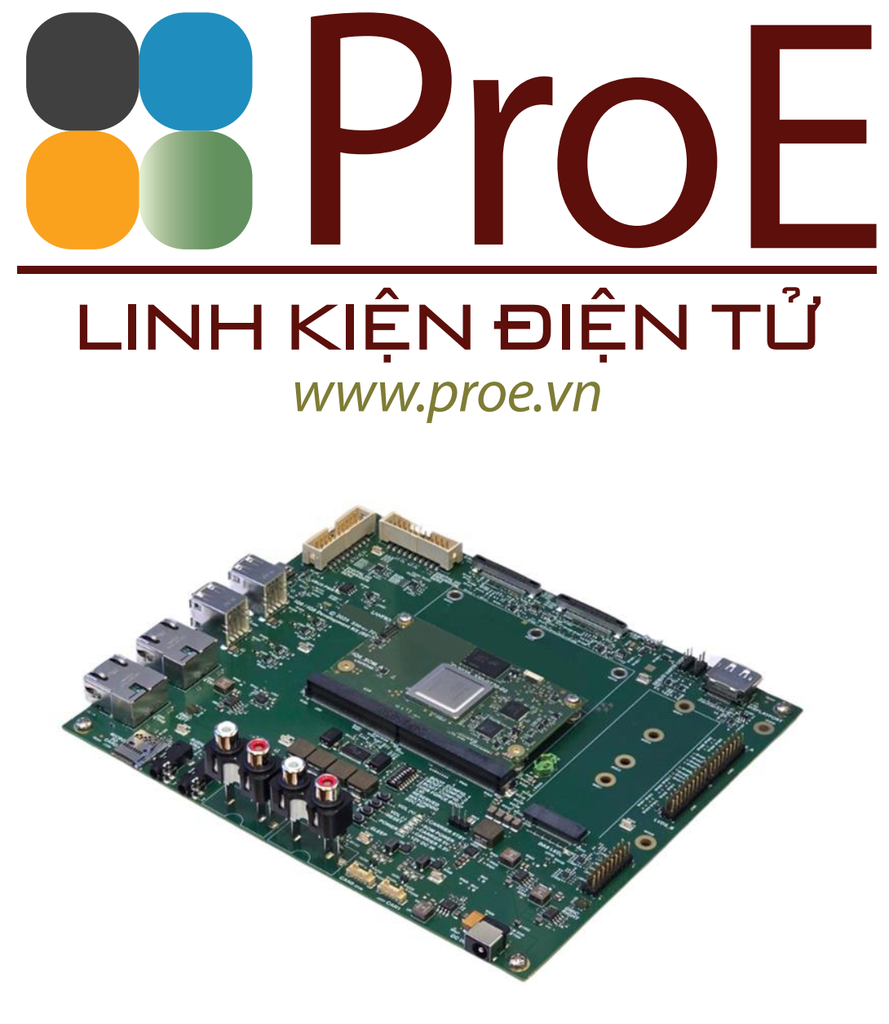

Open-Q™ 615IQ Development Kit

The Open-Q™ 615IQ Development Kit is engineered to support evaluation and prototyping with Lantronix’s new industrial SMARC System on Module (SOM) product line. Built around the Qualcomm IQ-615 chipset, this kit highlights key features such as MIPI CSI camera, display, Ethernet, audio, and sensor interfaces. Its SMARC standard form factor makes it ideal for proof-of-concept applications in industrial robotics and control systems. The kit also serves as a reference design, showcasing the unique camera and audio interface capabilities of the SOM.

Open-Q™ 615IQ Development Kit Tech Specs

• Open-Q™ 615IQ SOM

  • Processors
    • Qualcomm® IQ-615 SoC:
    • Qualcomm® Kryo™ 460: 2x Gold @ 1.9GHz, 6x Silver @ 1.6GHz
    • Qualcomm® Hexagon™
    • Qualcomm® Adreno™ 612 GPU
    • Qualcomm® Spectra™ ISP
    • Qualcomm® Adreno™ Display Processing unit
    • Trust Zone, Cryptographic Accelerator
  • Memory/Storage
    • Up to 8GB LPDDR4x DRAM, 2.133GHz, up to 128GB UFS with SDIO storage support
  • Wireless
    • Pre-certified Wi-Fi/BT, support up to Wi-Fi 6 and Bluetooth 5.2

• Open-Q™ 615IQ SOM Carrier Board

  • Display Interfaces
    • DisplayPort v1.4
    • LVDS Connectors; Supporting LVDS panels up to 1920 × 1080p at 60 fps)
  • Camera Interfaces
    • 1x MIPI 2-lane CSI D-PHY 1.2 with CCI I2C control
    • 1x MIPI 4-lane CSI D-PHY 1.2 with CCI I2C control
    • Compatible camera module: Lantronix IMX258 13MP (QC-DB-U10006)
  • Audio Interfaces
    • RCA 2 Channel Audio input
    • RCA 2 Channel Audio output
    • TRS connector Audio input
    • DMIC
  • I/O Interfaces
    • 4× USB 2.0 ports, 1× USB 3.1 Type-C port
    • Micro USB debug UART and serial debug UART connectors
    • MicroSD socket
    • GPIO, I²C, UART, CAN, and JTAG interfaces
    • Digital I/O expansion headers
    • M.2 M-Key connector for PCIe: 1-lane for IQ-615, 4-lane to SOM connector
    • 2× Gigabit Ethernet interfaces: IQ-615: Ethernet 1 = RGMII, Ethernet 2 = N/A
  • Power
    • 12V input
  • Form Factor
    • 200mm x 170mm
  • OS Support
    • Yocto Linux
