CHAMELEON96 Features the Intel® Cyclone V SoC FPGA, a dual-core ARM® Cortex™-A9
- Mã sản phẩm: CHAMELEON96
- Nhà sản xuất: NovTech, Inc
- Website hỗ trợ: https://www.proe.vn
4.900.000₫

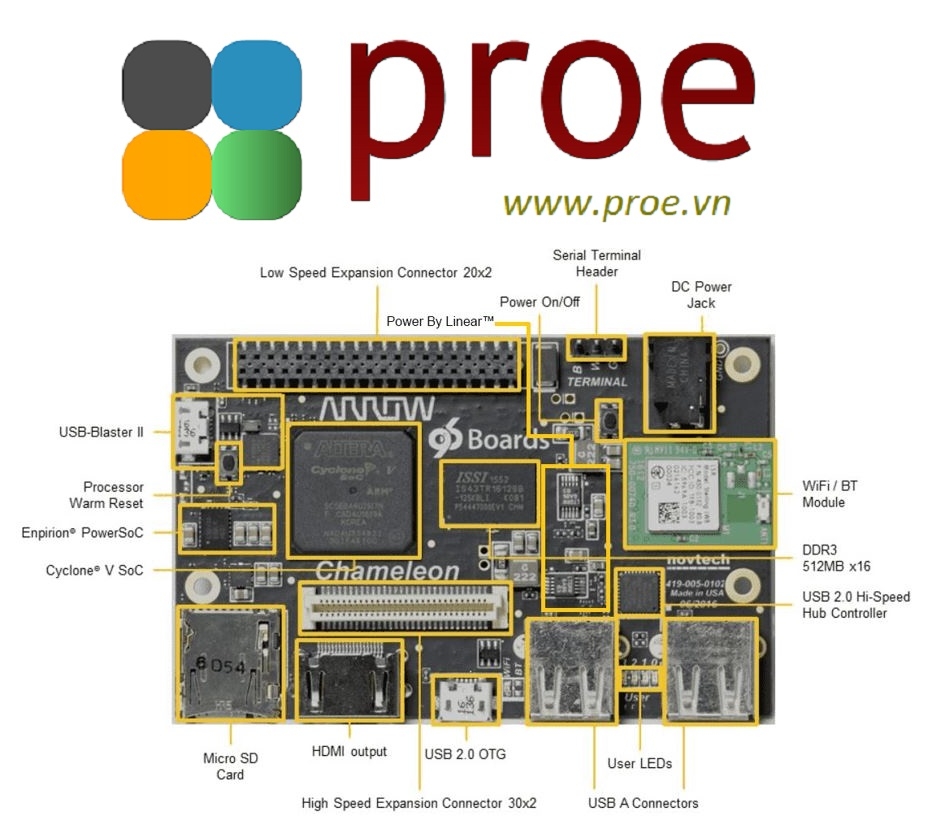

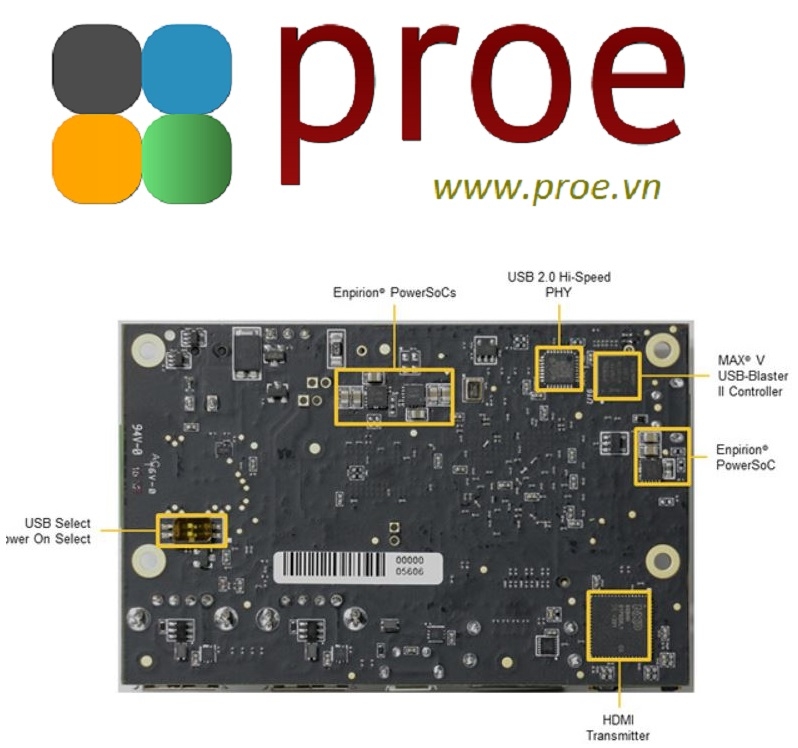

The Chameleon96™ board, based on Intel® Cyclone V SoC FPGA, is a member of 96Boards community and complies with Consumer Edition board specifications. The Chameleon96™ meets all 96Boards mandatory specifications (excluding MIPI DSI Interface) and most optional specifications. The Chameleon96™ features Dual ARM Cortex-A9 processors and a set of peripherals allow direct interfacing and connecting to MMC/SD card, HDMI out, USB, WLAN and BLE. Two expansion connectors provide additional interfaces to cameras, USB, UARTs, I2C, SPI and GPIOs. The use of the FPGA fabric for the video processing allows development of custom IPU/GPU/VPU solutions on this platform.
Additional Information
| Component | Description |
|---|---|
| SoC | Intel Cyclone V SoC FPGA Dual ARM Cortex-A9 110K Logic Elements FPGA fabric |
| GPU | Graphics based on Intel Video Suite for FPGA |
| RAM | 512MB DDR3L (support to 1GByte) |
| PMU | 4 to 64 GByte microSD |
| Connectivity | WLAN 802.11 b/g/n 2.4GHz, Bluetooth 4.1, One USB 2.0 OTG micro AB, Two USB 2.0 HOST |
| 1 USB 2.0 Host via expansion connector, Integrated USB-Blaster II JTAG cable | |
| USB | |
| Display | Up to 1080p@60fps HD video through a HDMI interface |
| Video | |
| Audio | HDMI Audio, Bluetooth Audio, I2S 4Wire interface via expansion connector |
| Camera | MIPI CSI interface (Mobile Industry Processor Interface - Camera Serial Interface) 2x lane. (requires a custom IP for the FPGA) |
| Expansion Interface | One 40-pin Low Speed (LS) expansion connector UART x2, SPI, I2S, I2C x2, GPIO x12 and DC power. One 60-pin High Speed (HS) expansion connector SDHC/SDIO, 2L-MIPI DSI, 2L-MIPI CSI, I2C, USB 2.0 HOST & USB 2.0 HOST HSIC The board can be made compatible with Arduino using an add-on mezzanine board. |
| User Interface | Power Button, Reset Button, 6 LED Indicators 4 – user controllable 2 – for radios (BT and WLAN activity) |
| Power Source | +5V to +42VDC (exceeding 96Boards specifications) |
| OS Support | Linux OS, terminal base (BuildRoot build) Linux OS, GUI (Yocto build) |
| Size | Dimensions: 54mm x 85mm meeting 96Boards™ Consumer Edition standard dimensions specifications |
