Arduino LoRa ASR6501 LoRaWAN SX1262 CubeCell Module

  • Mã sản phẩm: Arduino LoRa ASR6501 Module
  • Nhà sản xuất: Heltec
  • Website hỗ trợ: https://www.proe.vn
290.000₫

CubeCell (TM) is a new product series made by Heltec team, mainly for LoRa/LoRaWAN node applications.

CubeCell (TM) series is based on ASR605x (ASR6501, ASR6502), those chips are already integrated with the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably, and can easily connect lithium batteries and solar panels.

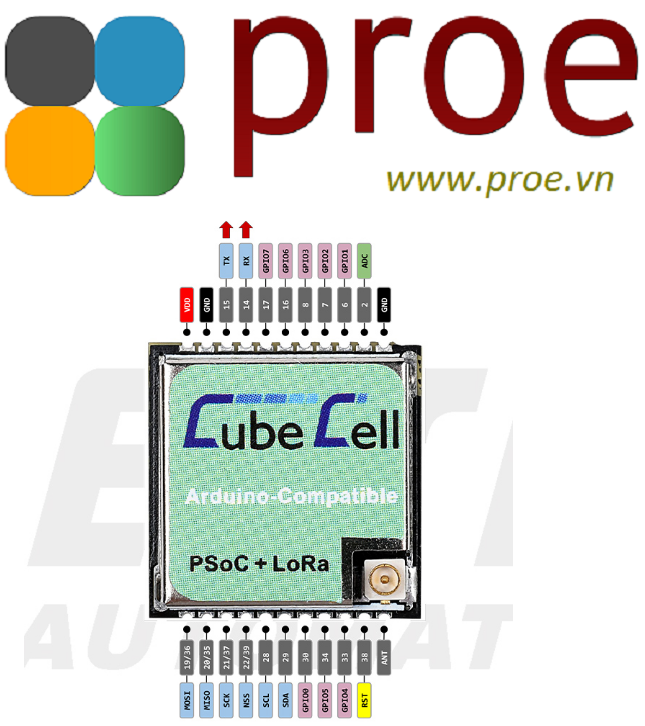

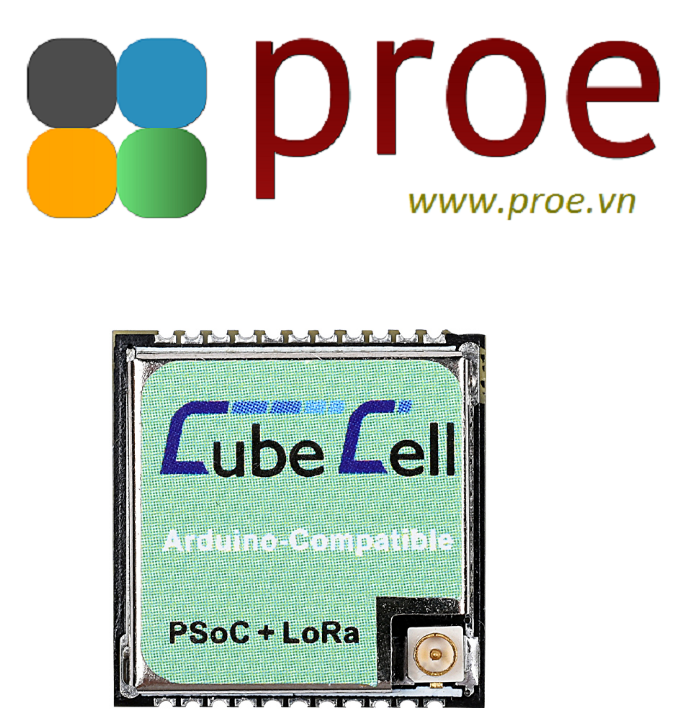

HTCC-AM01 is a Module. Supports AT transparent transmission commands, can be directly integrated into the application circuit.

Know more about CubeCell (TM) series



HTCC-AM01 is a part of the “CubeCell“ series, with the following features:


  • Perfect Arduino-Compatible!
  • CE and FCC certification;
  • Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
  • LoRaWAN 1.0.3 support;
  • Ultra low power design, 3.5uA in deep sleep;
  • 1.27 stamp edge design for SMT;
  • Good impendence matching and long communication distance.

Technical Parameters

Source Parameter
MCU  ASR6501 (48 MHz ARM® Cortex® M0+ MCU, 128KB FLASH, 16KB SRAM )
LoRa Chip  ASR6501 (Internal assembled Semtech® LoRa® Transceiver SX1262)
LoRa working band  EU_433, CN_470_510, EU_863_870, US_902_928
LoRa maximum output power 21dB ± 1dB
Hardware resources UART x 1; SPI x 1; I2C x 1; SWD x 1
12 – bits ADC; 8 – channel DMA engine
6 x GPIO
FLASH 128KB internal FLASH
Interface 1.27 x 11 stamp edge x 2;LoRa Antenna (IPEX) x 1
Size 18mm x 18mm x 2 mm
Low power design Deep Sleep 3.5uA

Electrical characteristics

Electrical characteristics condition Minimum Typical Maximum
Power Supply 3.3V(pin)powered(≥150mA) 2.7V 3.3V 3.5V
Power consumption(mA) LoRa Rx Mode   10mA
LoRa 10dBm output   70mA
LoRa 14dBm output   90mA
LoRa 17dBm output   100mA
LoRa 20dBm output   105mA
Sleep Mode (3.3V header powered)   3.5uA
Xem thêm Thu gọn
