Adapter Board for Arduino & Raspberry Pi ARPI600

  • Mã sản phẩm: Adapter Board for Arduino & Raspberry Pi ARPI600
  • Nhà sản xuất: Waveshare
  • Tình trạng: Còn hàng
  • Website hỗ trợ: https://www.proe.vn
600.000₫

Raspberry Pi Expansion Board, Supports Arduino XBee


Overview

Arduino is a massive ecosystem, if there's a way for the Raspberry Pi GPIO interface to adapt to Arduino pinouts, it is possible to use the Pi together with vast Arduino shields and hardware/software resources. The ARPI600 is just intended for this.

What's more, the ARPI600 also support XBee modules, make it easy to add wireless feature to your great project.

Supported Pi

  • Raspberry Pi 1 Model A+
  • Raspberry Pi 1 Model B+
  • Raspberry Pi 2 Model B
  • Raspberry Pi 3 Model B
  • Raspberry Pi 3 Model B+

ARPI600 Features

  • Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields
  • XBee connector for connecting various XBee modules
  • Sensor interface for connecting various sensors
  • Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter
  • Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
  • Onboard RTC

What's on the ARPI600

Raspberry Pi Expansion Board on board resource

  1. Arduino connector : for connecting Arduino shields
  2. ICSP interface : Arduino ICSP
  3. XBee connector : for connecting XBee communication modules
  4. Sensor interface : for connecting sensors
  5. Raspberry Pi connector : for connecting Raspberry Pi
  6. USB TO UART
  7. TLC1543 : AD converter
  8. PCF8563 : RTC
  9. CP2102
  10. 32.768KHz crystal : for RTC
  11. Power indicator
  12. XBee state LED
  13. XBee and Arduino interface RESET button
  14. XBee EASYLINK button
  15. RTC battery holder : for CR1220 button battery
  16. TLC1543 reference voltage configuration jumper
  17. RTC jumper
  18. UART jumper
    • when connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port
    • when connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port
    • when connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port
  19. Arduino AD selection jumper
    • short 2 and 3 : Arduino A0-A5 as AD input
    • short 1 and 2 : Arduino A0-A5 as digital control
  20. Arduino I2C selection jumper
    • short the jumper : Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened)
  21. Arduino SPI selection jumper
    • short 1 and 2 : Arduino D11-D13 as SPI control (default)
    • short 2 and 3 : Arduino D11-D13 as digital control

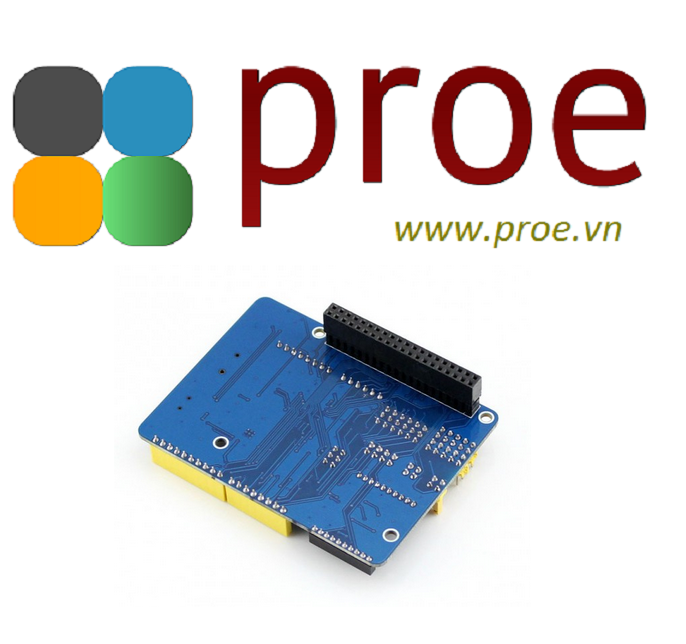

ARPI600 Photos

Raspberry Pi Expansion Board

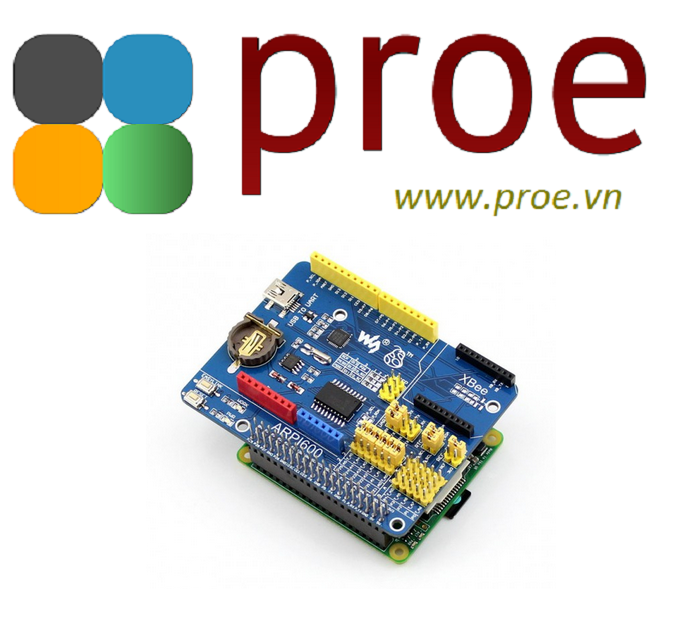

Connecting with Raspberry Pi

Raspberry Pi Expansion Board

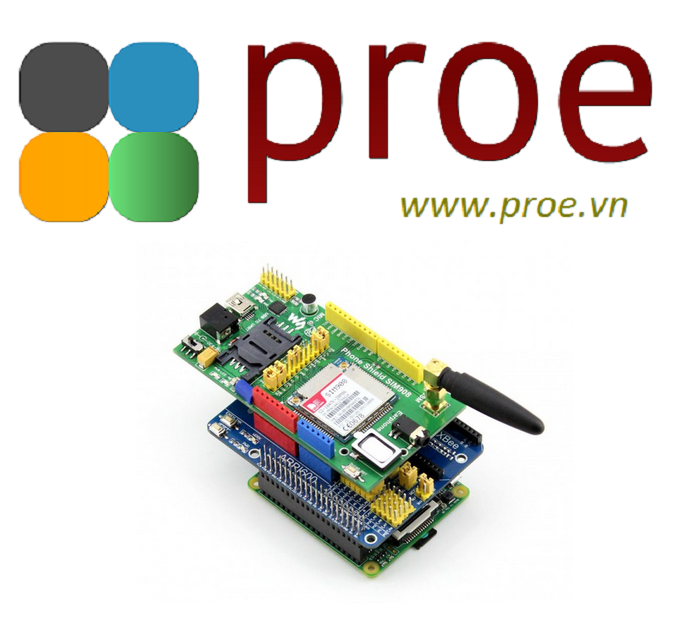

Connecting with GSM/GPRS Shield

Raspberry Pi Expansion Board

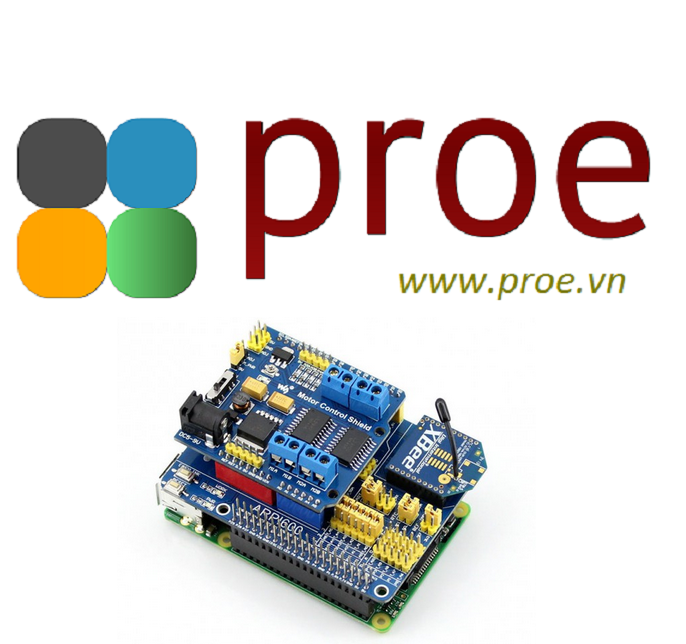

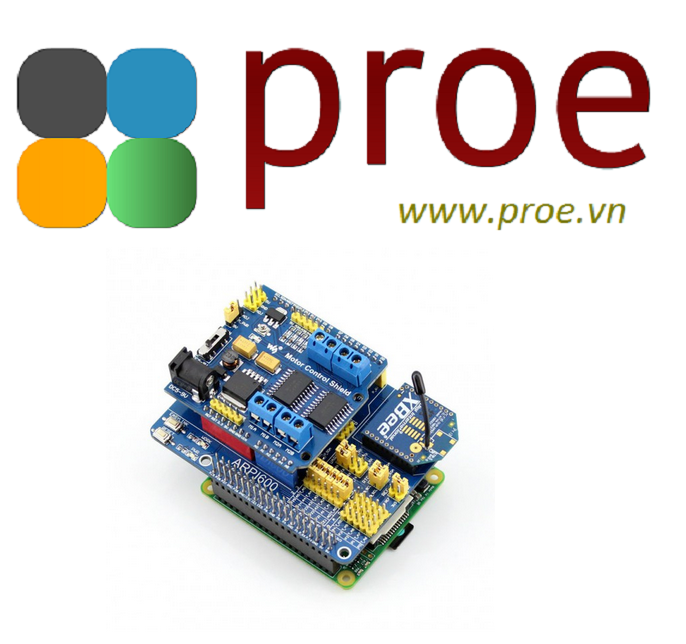

Connecting with Motor Control Shield and XBee

Raspberry Pi Expansion Board

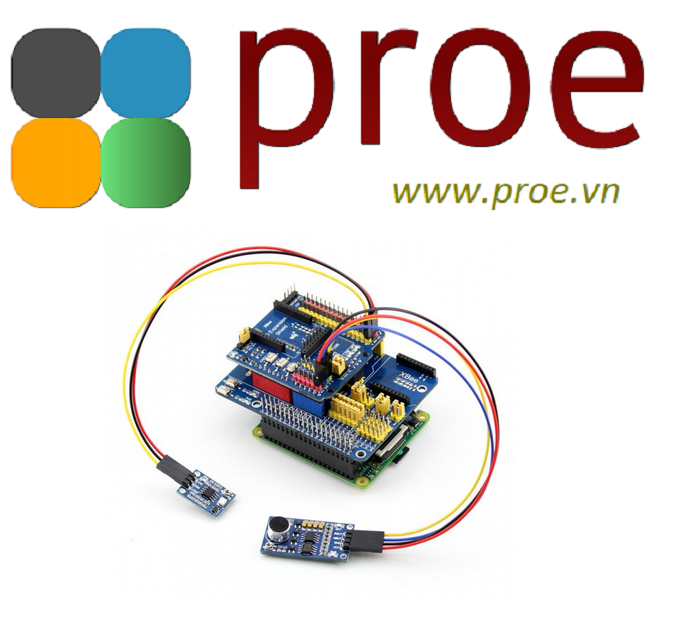

Connecting with Arduino IO Expansion Shield and sensors

Development Resources

Wiki : www.waveshare.com/wiki/ARPI600

ARPI600 Dimension
