5G CPE BOX WiFi6 Industrial 5G CPE Wireless Router, Gigabit Ethernet / WiFi / USB-C, Snapdragon X55

  • Mã sản phẩm: 5G CPE BOX
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
19.900.000₫

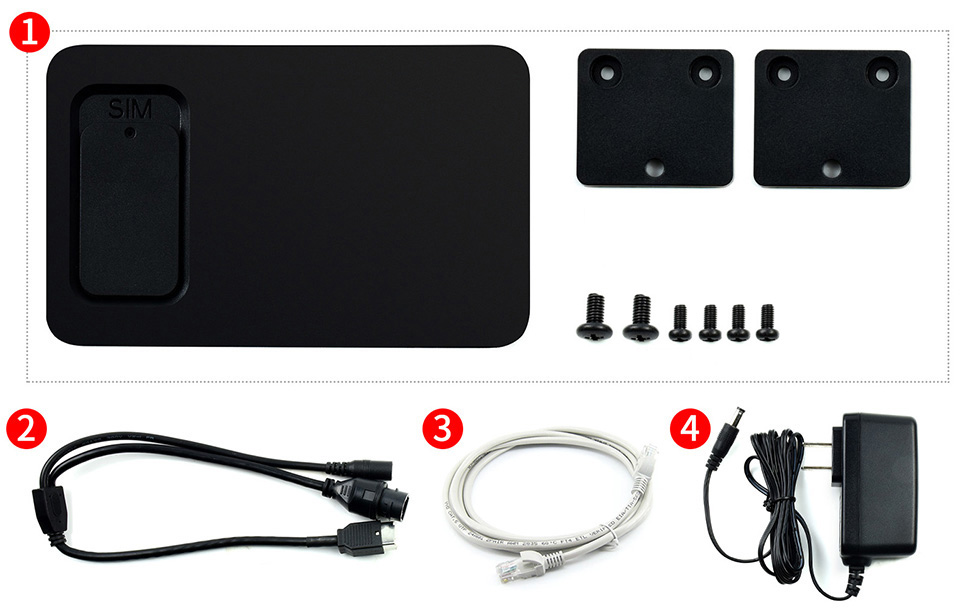

PACKAGE CONTENT

Weight: 0.267 kg

  1. 5G CPE BOX x1
  2. Adapter cable x1
  3. Ethernet cable 1.5m x1
  4. Power adapter 12V x1

WiFi6 Industrial 5G CPE Wireless Router, Gigabit Ethernet / WiFi / USB 3.1 Type-C, Snapdragon X55 Onboard

5G CPE WIRELESS ROUTER

Converts 5G network into Gigabit Ethernet, USB 3.1, and WiFi 6

5G SA and NSA support, global multiple frequency band, small size, plug & play
Suitability for applications where high speed 5G network access are required, like: AI robot/drone, industrial IoT, outdoor live streaming, automotive devices...

Features At A Glance

  • Qualcomm snapdragon X55 platform, multi band multi frequency support, applicable for countries and regions like China, Japan, South Korea, Europe, the Middle East, etc.
  • Supports 5G SA or NSA networking, backward compatible with 4G/3G network, automatically switching between 3G/4G/5G, meets mobile requirement
  • Supports WiFi 6, up to 1.8Gbps downlink speed, allows WiFi 2.4G and 5G concurrent connections
  • Gigabit Ethernet port and USB3.1 Type-C port, flexible and reliable
  • Auto startup and dial-up on power-up, requires no extra configuration, plug & play
  • Supports software and hardware watchdog for auto recovery on failure, double guarantees, more stable operation
  • Provides friendly webpage console, for configurations like network and security, easy to use
  • Comes with mounting feet, can be fixed by screws or adhesive tape
  • Automotive grade Ethernet port, keeps reliable and stable operation even on vibration environment
  • Embedded cooling design, allows properly operating under -30℃ ~ 70℃ temperature

Specifications

IC 5G Qualcomm SDX55
WiFi 6 Qualcomm QCA6391
DIMENSIONS 125 × 78 × 27mm
FREQUENCY BAND 5G NR Sub-6G N1/N3/N28/N40/N41/N77/N78/N79
LTE-FDD B1/B3/B5/B7/B8/B18/B19/B20/B28
LTE-TDD B34/B38/B39/B40/B41/B42
WCDMA B1/B3/B5/B8
5G SPEED Downlink up to 3.3Gbps
Uplink up to 450Mbp
WIFI Supports WiFi 6, 2.4GHz & 5GHz concurrent connections, WiFi 2×2 MIMO,
802.11 a/b/g/n/ac/ax
Max connections 32
HARDWARE Storage/Memory 4Gb NAND + 4Gb LPDDR4
Operating voltage DC 8~16V, 12V (default)
Ethernet 10/100/1000 Base-T automotive grade connector
SIM card 2FF standard SIM Card slot × 1, with cover
Embedded antenna LTE/NR Antenna × 6, WiFi × 2
USB USB3.1 Type-C
Other hardware watchdog
SOFTWARE Webpage webpage console
APN Global auto APN
Upgrade FOTA & TR069 & Local
SMS supports sending/receiving messages
Other Firewalls / Port forwarding / DHCP server / SNTP / IPV4 / IPV6
ENVIRONMENT CONDITION Extended temperature -30℃ to 70℃
Storage temperature -40℃ to +85℃
5G CERTIFICATE CTA/CCC

Multi Mode Multi Band

Applicable For Most Of The Countries And Regions

Based on Qualcomm snapdragon X55 platform with multi mode multi band support.
Applicable for regions including China, Europe, the Middle East, South America...
Supports 5G NSA (4G+5G common networking) and SA (5G standalone networking), based on 5G NR/LTE-FDD/LET-TDD/HSPA+ cellular network

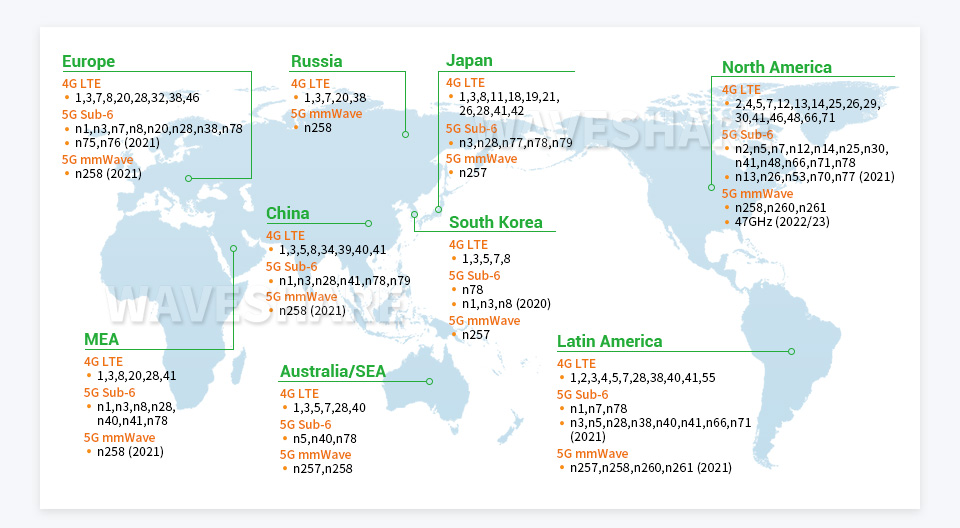

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

New WiFi 6 Standard Support

Faster Speed, Lower Latency

Incorporates Qualcomm the next generation WiFi 6 AP chip, with 2×2 MIMO, supports new technologies including uplink/downlink MU-MIMO, OFDMA, TWT (Target Wake Time), BSS Coloring, and so on, provides up to 1.8Gbps downlink speed, allows WiFi 2.4G and 5G concurrent connections, allows up to 32x user connections.

Flexible Port Selection

Gigabit Ethernet Port & USB 3.1 Type-C Port

Metallic shielding around the Ethernet port to prevent electromagnet interference, there are also metal elastic clip on the Ethernet connector for better fixing, ensuring reliable and stable operation even under vibration environment like automotive devices. Provides USB 3.1 Type-C port, up to 10Gbps physical layer data rate, suitable for high speed 5G products.

The 5G CPE BOX is powered from DC 12V power supply by default. If you prefer to power it from the 5V USB-C connection, some hardware configuration is required, please leave us a message while placing order, so we can do it for you. In this case, the USB power port MUST be capable of providing at least 1A output current.

Plug & Play, Webpage Console

Just Insert A SIM Card To Enable High Speed 5G Communication, Needs No Configuration

Provides webpage console for displaying network parameters and configuring network/security related settings

Multi Guarantees, High Availability

Embedded Multi Safety Protections
Supports Hardware And Software Watchdog For Auto Recovery On Failure
Double Guarantees, More Stable Operation

Application Examples



Autonomous Vehicles

Pilotless driving and real-time remote control based on 5G network. It is possible to send command to the vehicle on emergency through 5G high speed network, suck as braking or turning direction, to fast take over control of the vehicle.



Industrial AGV

Connecting industrial AGV robots via 5G network, to get through steps including design, purchase, storage, logistics, makes the manufacture to be flatten, customized, and intelligent, achieves functions like data sharing, agile interconnection, cloud-based application, and intelligent strategic decision, plays an important supporting role on applications like storage management, industrial control, logistics tracking, and flexible manufacturing.



Drones Utilization

Due to features like high speed, low latency, and high precision, 5G transmission has unparalleled advantage over 4G/3G on drone field. The use of drones on different fields will be speed up on 5G era, such as: air logistics, emergency rescue, data collection, and more...



Live Streaming

5G network enable more clear video effect for scenes like adventure travel, outdoor events live streaming. Compared to previous 4G network, its advantages of high speed, low latency will prevent transmission lag or system crashing, thus improving live streaming experience.



Automotive Application

Enhanced Gigabit Ethernet port and WiFi 6 connectivity, ensures the stable operation of Ethernet port even under automotive vibration environment, providing high speed and stable 5G network connections for both automotive devices and the passengers.



Industrial/Agricultural Control

Remote auto controlling of industrial/agricultural equipments is easily achieved through the high speed 5G network. Remote control applications such as container loading procedure, or agriculture machines auto driving, have strong practical significance, and could be widely deployed to industry and agriculture, thus reducing worker intensity, and improving operating precision.

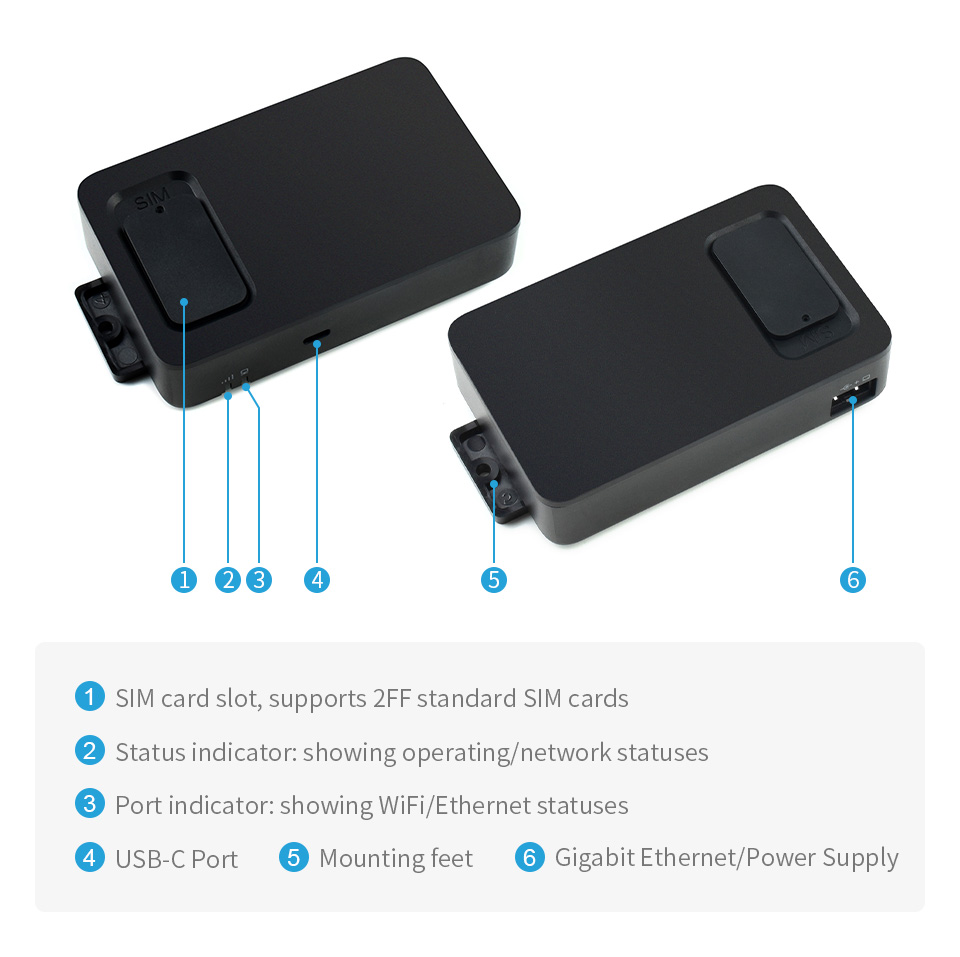

Introduction

Outline Dimensions

Resources & Services

Wiki: 5G_CPE_BOX
