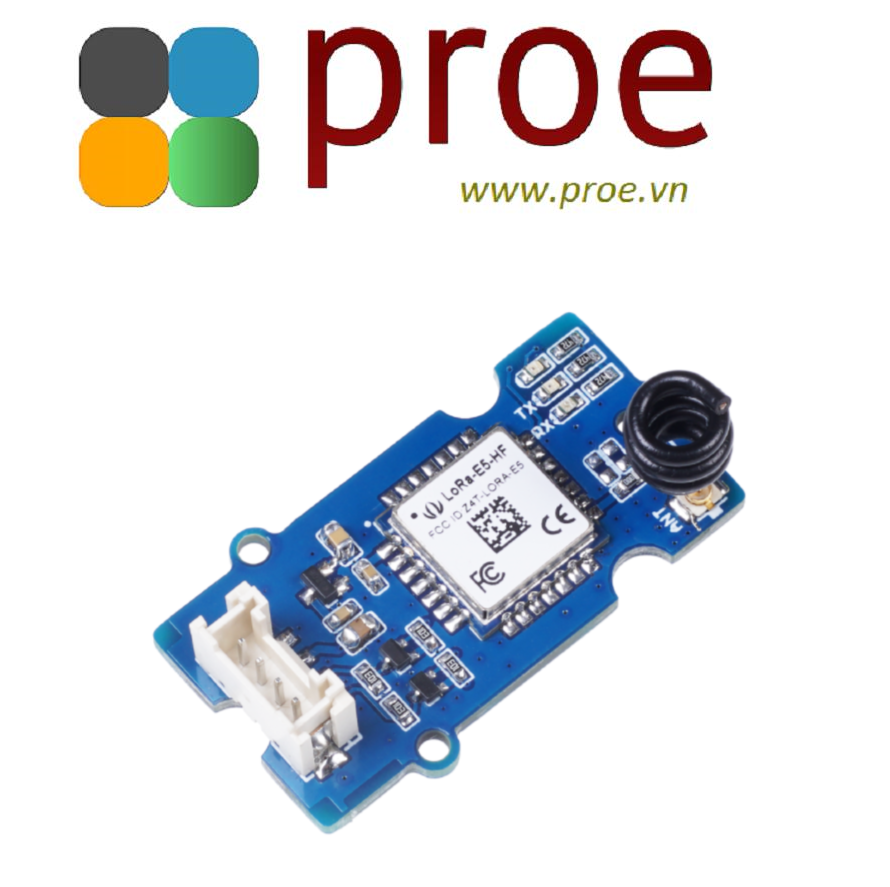

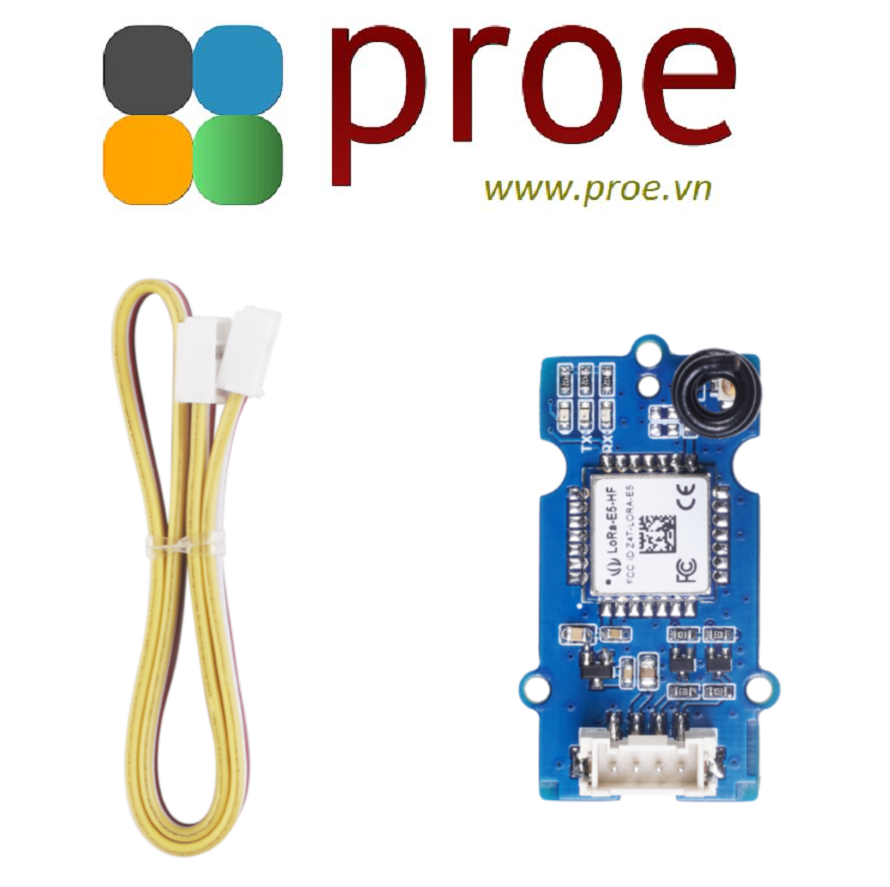

113020091 Grove - LoRa-E5 (STM32WLE5JC), EU868/US915, LoRaWAN supported

Features

• LoRa-E5 (STM32WLE5JC) embedded
• Support LoRaWAN protocol on EU868/US915 frequency band
• Ultra-long transmitting range up to 10km (Ideal value in open space)
• Easy control by AT command via UART connection
• Rapid prototyping with plug-and-play Grove interfaces
• Ultra-low power consumption and high performance

As an upgrade of our old version - Grove - LoRa Radio - powered by RFM95 ultra-long-range Transceiver Module, Grove LoRa-E5 embedded with LoRa-E5 STM32WLE5JC Module is a high-performance and easy-to-use wireless radio LoRa module supporting LoRaWAN protocol.

LoRa-E5 LoRaWAN STM32WLE5JC module is the major functional part integrated into Grove - LoRa-E5. It is a LoRaWAN module that embedded with ARM Cortex M4 ultra-low-power MCU core and LoRa SX126x, as the world-first combo of LoRa RF and MCU chip into one single tiny module, it supports (G)FSK, BPSK, (G)MSK, and LoRa modulations, and is FCC, CE certified. Grove - LoRa-E5 features extremely compacted size, ultra-low power consumption, low cost, and amazing performance. (Learn more about LoRa-E5)

More comparison between the LoRa-E5 and RFM95 chip:

Grove - LoRa-E5 can endow your development boards' strong features of ultra-long transmitting range, great performance, and high efficiency by easiliy plug and play with Grove connector on board. By connecting Grove - LoRa-E5 to your development boards, your devices is able to communicate with and control LoRa-E5 conveniently by AT command through UART connection.

With all the outstanding features listed above, Grove LoRa-E5 will be a superior choice for IoT device development, testing, and long-distance, ultra-low power consumption IoT scenarios like smart agriculture, smart office, and smart industry. It is designed with industrial standards with a wide working temperature at -40℃ ~ 85℃, high sensitivity between -116.5 dBm and -136 dBm, and power output between 10 dBm and 22 dBm.

Hardware Overview

Please check out this article LoRapedia, which introduces LoRa and LoRaWAN to learn about LoRaWAN and LoRa technology in detail.

Applications

• Works for LoRaWAN sensor nodes and any wireless communication application.
• IoT device testing and development

Application Note

For more detailed information about how to use LoRa-E5, please visit LoRa-E5 (STM32WLE5JC) Module Wiki.

1. Factory AT Firmware

LoRa-E5 series has a built-in AT command firmware, which supports LoRaWAN Class A/B/C protocol and a wide frequency plan: EU868/US915/AU915/AS923/KR920/IN865. With this AT command firmware, users can easily and quickly build their prototype or application.

The AT command firmware contains a bootloader for DFU and the AT application. The "PB13/SPI_SCK/BOOT" pin is used to control LoRa-E5 to stay in the bootloader or jump to the AT application. When PB13 is HIGH, the module will jump to AT application after reset, with a default baud rate of 9600. When PB13 is LOW (press the "Boot" button on LoRa-E5 Dev Board or LoRa-E5 mini), the module will stay in the bootloader, and keep transmitting "C" character every 1S at baud rate 115200.

Attention

1. Factory AT Firmware is programmed with RDP(Read Protection) Level 1, developers need to remove RDP first with STM32Cube Programmer. Note that regression RDP to level 0 will cause a flash memory mass to erase and the Factory AT Firmware can't be restored again.

2. The "PB13/SPI_SCK/BOOT" pin on the LoRa-E5 module is just a normal GPIO, not the "BOOT0" pin of the MCU. This "PB13/SPI_SCK/BOOT" pin is used in the bootloader of the Factory AT firmware, to decide to jump to APP or stay in bootloader(for DFU). The real "BOOT0" pin doesn't pinout to the module, so developers need to be careful when developing low-power applications.

2. Clock Configuration

    2.1 HSE

• 32MHz TCXO

• TCXO power supply: PB0-VDD_TCXO

    2.2 LSE

• 32.768KHz crystal oscillator

3. RF Switch

LoRa-E5 module ONLY transmits through RFO_HP:

• Receive: PA4=1, PB5=0

• Transmit(high output power, SMPS mode): PA4=0, PB5=1

Specifications

ECCN/HTS

LEARN AND DOCUMENTS

Documentations

Datasheet:

Grove LoRa-E5 v1.0.brd

Grove LoRa-E5 v1.0.pdf

Grove LoRa-E5 v1.0.sch

LoRa-E5 datasheet and specifications

LoRa-E5 AT Command Specification

STM32WLE5JC Datasheet

Certifications:

LoRa-E5-HF Certification CE-VOC-RED

LoRa-E5-HF FCC Certification -DSS

LoRa-E5-HF FCC Certification -DTS

Relevant SDK:

STM32Cube MCU Package for STM32WL series

Learn

[Documentation] 【LoRa-E5 SDK】STM32Cube MCU Package for STM32WL series

HAL, Low-Layer APIs and CMSIS, File system, RTOS, KMS, Secure Engine, Sub-GHz Phy, LoRaWAN and Sigfox stacks - and examples running on ST boards

[Wiki] Grove - LoRa-E5 (STM32WLE5JC) Wiki

Here for you to find detailed info about the product, including its specifications, datasheet, and a demo showing you how to connect TTN (The Things Network) and Seeeduino XIAO module via Grove - LoRa-E5 module enabling wireless transmission function.
