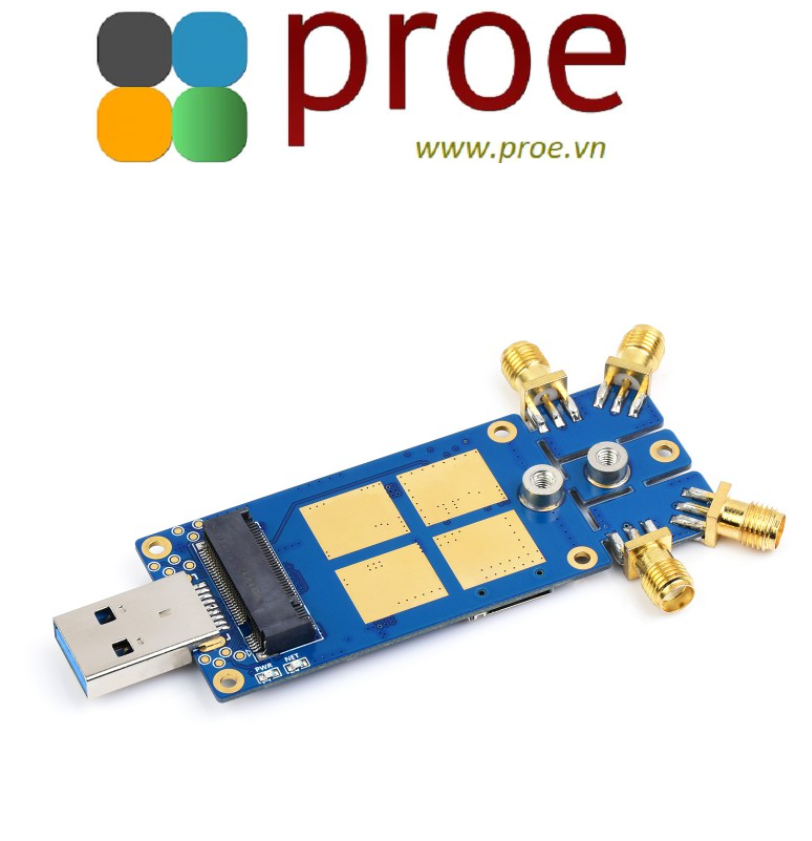

USB TO M.2 B KEY

PACKAGE CONTENT

Weight: 0.157 kg

1. USB TO M.2 B KEY x 1
2. Aluminum Alloy case (top and bottom) x 1
3. Antenna x 4
4. IPEX adapter cable x 1
5. USB Type-A extension cable x 1
6. SMA Protective Cap x 4
7. Thermal tape x 1
8. Screws pack x 1

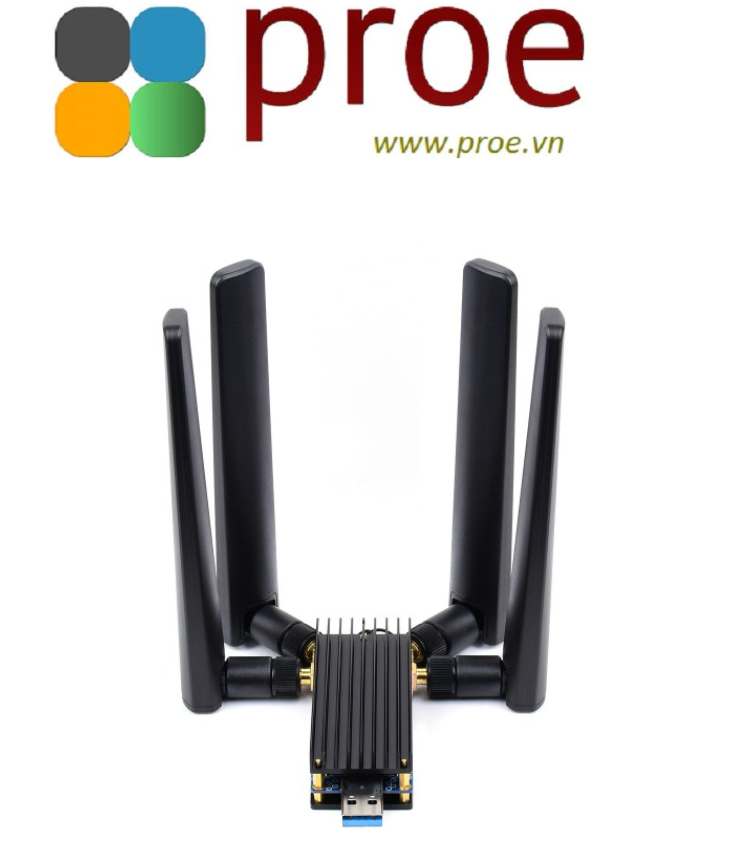

5G DONGLE Module, Quad Antennas, USB3.1 Port, Aluminum Alloy Heatsink, M.2 Key B Interface

5G DONGLE MODULE

M.2 TO USB 3.1 port

Support SIMCom & Quectel 5G Module

Features At A Glance

• Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom and Quectel 5G modules
• Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules
• USB 3.1 Type A port for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G network
• 4x SMA antenna connectors, easy to install the antenna

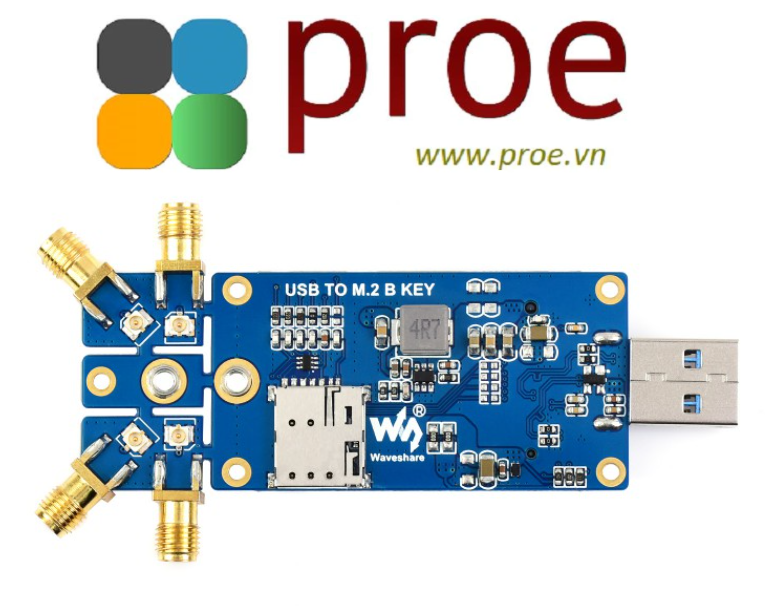

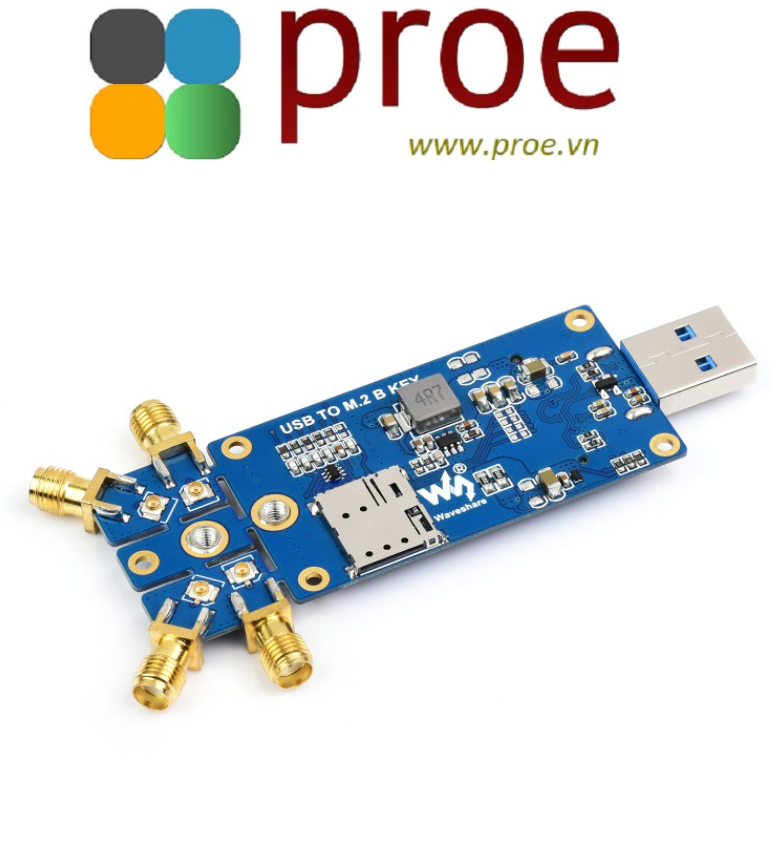

• Onboard SIM card slot for NANO SIM card
• Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions
• PCB ENIG process, reserved multi slots and positioning holes for integration
• Comes with customized aluminum alloy heatsink, good heat dissipation, nice-looking, protective and durable

Compatible With SIMCom / Quectel 5G Module

	SIM8202G-M2	SIM8262E-M2	RM500Q-GL	RM500Q-AE	RM502Q-AE
Region / Provider	China, US, Japan, South Korea, Europe, the Middle East, the Americas	except Americas	Global (except US)	Global (except China)
CHIP	Qualcomm Snapdragon X55	Qualcomm Snapdragon X62	Qualcomm Snapdragon X55
FREQUENCY BAND
Sub-6G	n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79	5G NR NSA: n41, n77, n78, n79	5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
			5G NR SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71	B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48	B38, B39, B40, B41, B42, B43	B34, B38, B39, B40, B41, B42, B43, B48
LAA	-		B46
WCDMA	B1, B2, B3, B4, B5, B8	B1, B5, B8	B1, B2, B3, B4, B5, B6, B8, B19
GNSS	GPS / GLONASS / BeiDou(Compass) / Galileo
DATA RATE
Sub-6G	2.4 Gbps (DL) / 500 Mbps (UL)		5G NR NSA: 2.1 Gbps (DL) / 900 Mbps (UL)	5G NR NSA: 2.1 Gbps (DL) / 450 Mbps (UL)	5G NR NSA: 4.2 Gbps (DL) / 450 Mbps (UL)
			5G NR SA: 2.5 Gbps (DL) / 600/650 Mbps (UL)	5G NR SA: 2.5 Gbps (DL) / 650 Mbps (UL)	5G NR SA: 5.0 Gbps (DL) / 650 Mbps (UL)
LTE	1 Gbps (DL)  /  200 Mbps (UL)				2.0 Gbps (DL) / 200 Mbps (UL)
UMTS	42 Mbps (DL) / 5.76 Mbps (UL)
SOFTWARE FUNCTIONS
Operating systems	Windows/Linux/Android
Communication protocols	TCP / UDP / FTP / HTTP / HTTPS / PING / SMS
Dial Up	RNDIS, NDIS, PPP, MBIM
Firmware upgrade	Supports firmware upgrade via USB port
HARDWARE SPECIFICATIONS
SIM Card	1.8V/2.95V
Antenna	For 3G/4G/5G/GNSS
	4 × IPEX-4 connectors
Power Supply	3.135~4.4V		3.135 to 4.4 V, 3.7 V typical
Form Factor	M.2
Dimensions	42.0 × 30.0 × 2.3mm		52.0 × 30.0 × 2.3mm
Note: For reference only, 5G module is not included. If used with other modules, actual testing is required to confirm pin compatibility

Multiple Size Compatibility

Compatible With 3042 / 3052 Form Factor

Connection Examples

Supports Directly Connect Or Access Via The USB Cable To Windows PC, Raspberry Pi 4B/3B+,
CM4-IO-BASE-A/B And Jetson Nano Series

connecting with Raspberry Pi 4B

Connect to PC with USB cable

Connect to Jetson Nano

for reference only, the modules in the pictures are not included.

Multi System Support, Easy To Use

Supports Windows/Linux

Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use

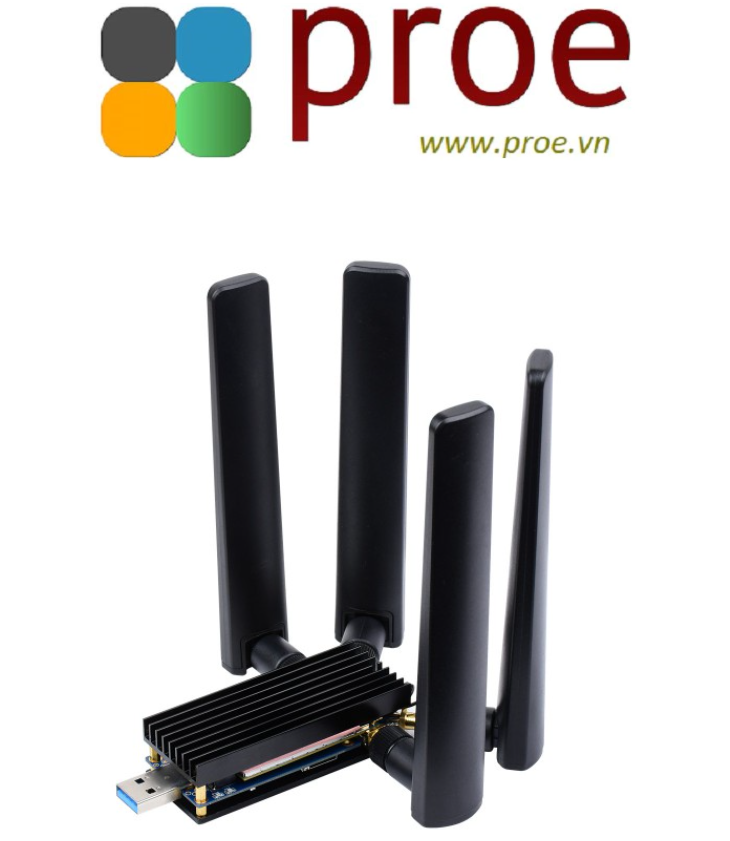

Aluminum Alloy Heatsink

Effective Heat Dissipation For 5G Module, Protect Your HAT At The Same Time

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/USB_TO_M.2_B_KEY
