UR35-L00E The UR35 industrial-grade 4G LTE cellular router
- Mã sản phẩm: UR35-L00E
- Nhà sản xuất: Ursalink
- Website hỗ trợ: https://www.proe.vn
5.500.000₫
The UR35 is an industrial-grade 4G LTE cellular router
with a 5-port Ethernet interface for mission-critical communications.
Featured with multiple network protocols and VPN tunnels,
UR35 provides secure and reliable solutions for a range of M2M/IoT deployments.
To fulfill the market demand, UR35 is built with hardened enclosure, industrial components,
and wide operation range from -40°C to 70°C for harsh environments.
Aside from Dual SIM redundancy and Wi-Fi for seamless wireless connectivity,
it is also equipped with 4 PSE PoE ports, serial ports, digital I/O for field communications.
Powerful Software Suites
DeviceHub
for remote management
UrsalinkVPN
for remote access solution

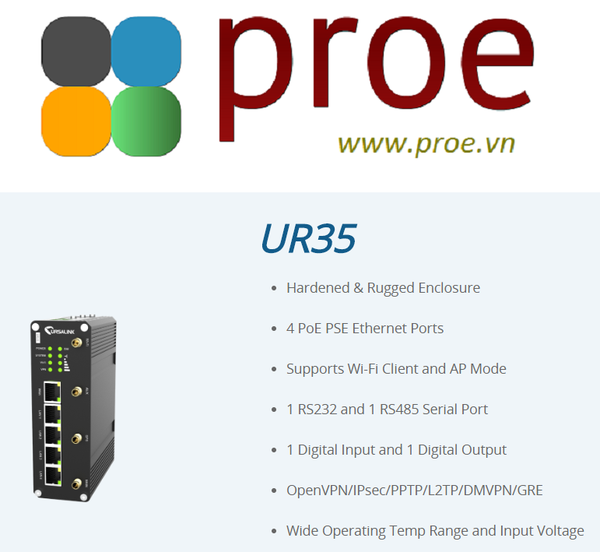

UR35
- Hardened & Rugged Enclosure
- 4 PoE PSE Ethernet Ports
- Supports Wi-Fi Client and AP Mode
- 1 RS232 and 1 RS485 Serial Port
- 1 Digital Input and 1 Digital Output
- OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE
- Wide Operating Temp Range and Input Voltage
Compare UR3x Series
| UR32 | UR35 | ||||||||||||||||||
| Capabilities | CPU | 528 MHz, 32-bit ARM Cortex-A7 | |||||||||||||||||
| Flash | 128 MB | ||||||||||||||||||
| Memory | 128 MB DDR3 | ||||||||||||||||||
| Built-in | Watchdog | ||||||||||||||||||
| GPS | GPS + GLONASS | ||||||||||||||||||
| Micro SD | Supports micro SD card up to 128 GB | ||||||||||||||||||
| Interfaces | SIM Slots | 2 | |||||||||||||||||
| Ethernet Ports | 2 × 10/100 Mbps | 5 × 10/100 Mbps | |||||||||||||||||
| Serial Ports | 1 x RS232 (optional RS485) | 1 x RS232 +1 x RS485 | |||||||||||||||||
| DI/DO | 1 × DI + 1 × DO | ||||||||||||||||||
| Antenna Connectors | 2 x Cellular Connectors, 1 x Wi-Fi /1 x GPS Connector |
2 x Cellular Connectors, 1 x Wi-Fi 1 x GPS Connector |
|||||||||||||||||
| Network | Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH |
|||||||||||||||||
| AAA | RADIUS, TACACS+, LDAP, Local Authentication | ||||||||||||||||||
| Firewall | Anti-DDoS, SPI, ALC, DMZ, Port Mapping, MAC Binding | ||||||||||||||||||
| Wi-Fi (Optional) | IEEE 802.11b/g/n | ||||||||||||||||||
| Serial Port | Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master |
||||||||||||||||||
| Reliability | VRRP, WAN Fail-over, Dual SIM Backup | ||||||||||||||||||
| VPN | OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE | ||||||||||||||||||
| Maintenance | Management | Web, CLI, SMS, Watchdog, On-demand Dial Up | |||||||||||||||||
| Multilevel Authority | Multiple Levels of User Authority | ||||||||||||||||||
| Hardware | Power Input | 9-48 VDC | |||||||||||||||||
| Power Output (Optional) | 2 × 802.3af/at PoE PSE | 4 × 802.3af/at PoE PSE | |||||||||||||||||
| Ingress Protection | IP30 | ||||||||||||||||||
| Housing & Weight | Metal, 271g (0.60 lb) | Metal, 481g (1.06 lb) | |||||||||||||||||
| Dimensions | 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) | 135 x 100 x 45 mm (5.31 x 3.94 x 1.77 in) | |||||||||||||||||
| Mounting | Desktop, Wall or DIN Rail Mounting | ||||||||||||||||||
| Others | Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced cellular performance above 60°C | |||||||||||||||||
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) | ||||||||||||||||||
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ | ||||||||||||||||||
| Certifications | RoHS, CE, FCC, AT&T (UR32) | ||||||||||||||||||
|
|
||||||||||||||||||
