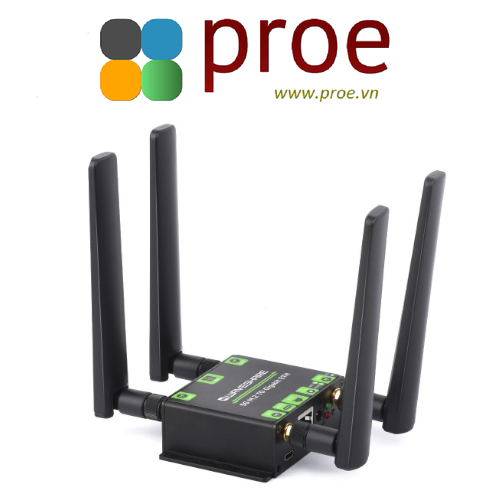

5G M.2 to Gigabit Ethernet Converter, 5G M.2 to USB3.1, Aluminum Alloy Case, Wall-Mount Support, Quad Antennas, Options For 5G Module

  • Mã sản phẩm: 5G M.2 TO Gigabit ETH
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
0₫ Giá thị trường: Tiết kiệm:
5g module

Wiki: www.waveshare.com/wiki/5G_M.2_TO_Gigabit_ETH

PACKAGE CONTENT

Weight: 0.243 kg

5G M.2 TO Gigabit ETH

  1. 5G M.2 TO Gigabit ETH x1
  2. 5G antenna x4
  3. OPTIONS 12V Power Supply x1
  4. USB Type-A to Type-C cable ~1m x1

SIM8262E-M2 5G M.2 TO ETH

  1. 5G M.2 TO Gigabit ETH x1
  2. SIM8262E-M2 + Heatsink x1
  3. 5G antenna x4
  4. OPTIONS 12V Power Supply x1
  5. USB Type-A to Type-C cable ~1m x1

DESCRIPTION

5G M.2 To Gigabit Ethernet Converter, 5G M.2 To USB3.1, Aluminum Alloy Case, Wall-Mount Support, Quad Antennas, Onboard M.2 Key B Interface, USB3.1 Port, Options For 5G Module

5G M.2 To Gigabit Ethernet Converter

5G M.2 to Gigabit Ethernet + 5G M.2 to USB3.1

Supports SIMCom / Quectel / Fibocom Mainstream 5G M.2 Modules
Compatible With 3042 / 3052 Packages

Features At A Glance

  • Supports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from the brands such as SIMCom, Quectel, and Fibocom
  • Supports 5G modules in 3042/3052 packages such as SIM82XX, RM5XX and FM160XX series
  • Onboard RTL8125 Ethernet chip, supports 5G to Gigabit Ethernet for high speed 5G networking via the Gigabit Ethernet port
  • Onboard USB 3.1 Type-A port for connecting to PC, Raspberry Pi, or Jetson series motherboards for high-speed 5G networking or debugging
  • Onboard voltage translator circuit, supports 9-12V power supply via DC 5.5mm jack, or 5V/2A power supply via USB 3.1 port
  • Onboard standard SIM card slot
  • Onboard power supply and network indicator, reset button, for checking the working status of the module and 5G debugging
  • Aluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support
  • Comes with 4× 5G omnidirectional high-gain antennas and 12V power supply adapter, easy to use directly with 5G module

Compatible 5G Modules

MODEL SIM8202G-M2 SIM8262E-M2 SIM8262A-M2 RM500U-CNV RM502Q-AE RM520N-GL FM160-EAU
5G STANDARD 3GPP R15 3GPP R16 3GPP R15 3GPP R16
APPLICABLE REGIONS except Americas Americas China, EMEA, Asia-Pacific Global (except China) Global EMEA, Australia
CHIP Qualcomm Snapdragon X55 Qualcomm Snapdragon X62 UNISOC Qualcomm Snapdragon X55 Qualcomm Snapdragon X62
FREQUENCY BAND
Sub-6G n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79 n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79 n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 5G NR NSA: n41, n78, n79 5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n77, n78
5G NR SA: n1, n2, n3, n5, n8, n28, n41, n77, n78, n79 5G NR SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 B1, B3, B5, B8 B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 B1, B3, B5, B7, B8, B20, B28, B32
LTE-TDD B34, B38, B39, B40, B41, B42, B43, B48 B38, B39, B40, B41, B42, B43 B41, B46, B48 B34, B38, B39, B40, B41 B38, B40, B42, B43
LAA - B46 -
WCDMA B1, B2, B3, B4, B5, B8 B1, B5, B8 B2, B4, B5 B1, B5, B8 B1, B2, B3, B4, B5, B6, B8, B19 B1, B2, B4, B5, B8, B19 B1, B5, B8
GNSS GPS / GLONASS / BeiDou(Compass) / Galileo / QZSS (RM500Q-GL and RM502Q-AE do not support)
DATA RATE
Sub-6G 2.4Gbps (DL) / 500Mbps (UL) 5G NR SA: 2Gbps (DL) / 1Gbps (UL) 5G NR SA: 4.2Gbps (DL) / 450Mbps (UL) 5G NR SA: 2.4Gbps (DL) / 900Mbps (UL)
5G NR NSA: 2.5Gbps (DL) / 575Mbps (UL) 5G NR NSA: 5.0Gbps (DL) / 650Mbps (UL) 5G NR NSA: 3.4Gbps (DL) / 550Mbps (UL)
LTE 1.0Gbps (DL) / 200Mbps (UL) 600Mbps (DL) / 150Mbps (UL) 2.0Gbps (DL) / 200Mbps (UL) 1.6Gbps (DL) / 200Mbps (UL)
UMTS 42Mbps (DL) / 5.76Mbps (UL)
Dimensions 42.0 × 30.0 × 2.3mm 52.0 × 30.0 × 2.3mm
Note: 5G module is optonal. This table only lists some supported models after actual testing, and the pin compatibility should be tested if used with other models.



Supports Multiple Operating Modes

USB3.1 Port Direct Connection Mode

Enabling 5G High Speed Networking For PC / Raspberry Pi /Jetson Series / Industrial Control Host Via USB3.1 Port



Gigabit Ethernet Port Direct Connection Mode

Enabling 5G High Speed Networking For PC / Raspberry Pi /Jetson Series / Industrial Control Host Via Gigabit Ethernet Port



Router Mode

The Router Accesses The 5G Network Via Gigabit Ethernet Port, And Then Distributes To All Devices Connected For The 5G Networking



USB 3.1 Port And Gigabit Ethernet Port Simultaneous Networking Mode *

Provides 5G Network For Two Devices Separately Via USB3.1 Port And Gigabit Ethernet Port.

* Note: The 5G module needs to support the simultaneous conversion of USB port and Gigabit Ethernet port for networking. All 5G modules in the Compatible 5G Modules table can support this function, except for RM502Q-AE and RM520N-GL, which can only support one channel at a time.

Networking Example

Supports 5G Networking Via USB 3.1 Interface And Gigabit Ethernet Port At The Same Time *

Note: the 5G network speed will be shared if using laptop and Raspberry Pi to access 5G network at the same time

Multiple Size Compatible

Support 3042/3052 Package

Industrial Grade Aluminium Alloy Enclosure

Aluminum Alloy Enclosure With Oxidation Dull-Polish Surface, Solid And Durable, Desktop Or Wall-Mount Support

Application Scenarios

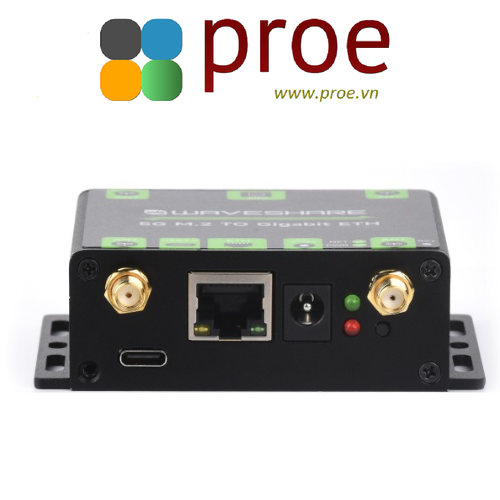

Interface Introduction

* Note: USB Type-C port is enabled via jumper by default for power supply and communication, requires 5V/2A or more power. And the jumper cap should be removed if powered separately via the DC power port.

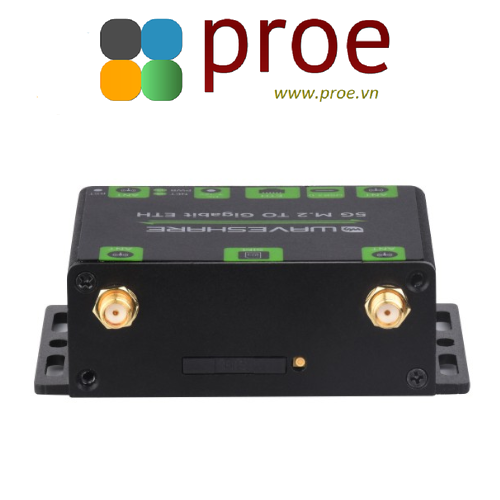

Product Show

Outline Dimensions

* Note: The above dimensions are measured manually, there is a certain error



5G Module Installation Introduction

* Note: the 5G module is NOT included in the 5G M.2 TO Gigabit ETH kit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to the Kit Selection table for more details.
