UR75-500GL-G-W Industrial Cellular Router

  • Mã sản phẩm: UR75-500GL-G-W
  • Nhà sản xuất: Milesight
  • Website hỗ trợ: https://www.proe.vn
23.000.000₫

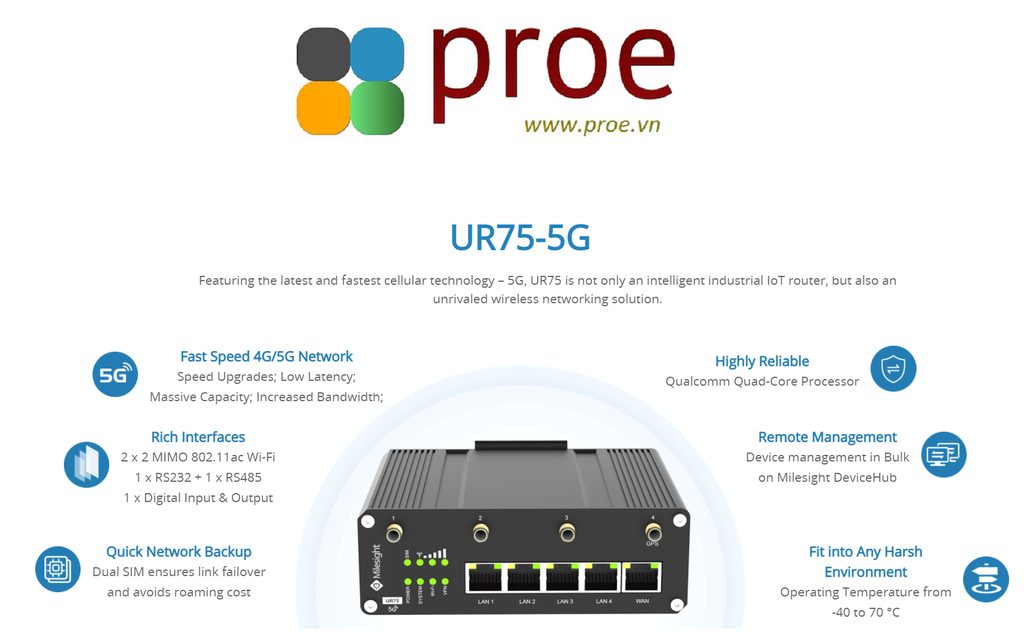

UR75-500GL-G-W (5G, GPS and Wi-Fi)

UR75-5G

Featuring the latest and fastest cellular technology – 5G, UR75 is not only an intelligent industrial IoT router, but also an unrivaled wireless networking solution.

Fast Speed 4G/5G NetworkSpeed Upgrades; Low Latency;
Massive Capacity; Increased Bandwidth;

Rich Interfaces2 x 2 MIMO 802.11ac Wi-Fi
1 x RS232 + 1 x RS485
1 x Digital Input & Output

Quick Network BackupDual SIM ensures link failover
and avoids roaming cost

Remote ManagementDevice management in Bulk
on Milesight DeviceHub

Fit into Any Harsh
EnvironmentOperating Temperature from
-40 to 70 °C

Strong Wi-Fi Performance

  • Peak Speed up to 1.733 Gbps
  • IEEE 802.11a/b/g/n/ac
  • MU-MIMO, TxBF, Qualcomm® Wi-Fi SON

High Reliability & Stability

  • 5G NSA & NA Modes
  • Qualcomm Quad-Core Processor
  • CAT4/6/12/20 Cellular Modem (optional)

Edge Intelligence

azure logo

Azure

aws logo

AWS Greengrass

python logo

Python Programming

Specifications


Interfaces SIM Slots 2
Ethernet Ports 5 × 10/100/1000 Mbps
Serial Ports 1 × RS232 + 1 × RS485
DI/DO 1 × DI + 1 × DO
Voice N/A
Antenna Connectors 3 x Cellular Connectors
1 x Cellular/GPS Connector
2 x Wi-Fi Connectors
Network Cellular 5G, 4G CAT4/6/9/12/20 (Optional)
Wi-Fi IEEE 802.11b/g/n/ac
Serial Port Transparent (TCP Client/Server, UDP),
Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master
Network Protocols PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF,
DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
AAA RADIUS, TACACS+, LDAP, Local Authentication
Firewall URL Filtering/ACL/DMZ/Port Mapping/MAC Binding/SPI/DoS Protection
Reliability VRRP, WAN Fail-over, Dual SIM Backup
VPN OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE
Maintenance Management Web, CLI, SMS, Watchdog, On-demand Dial Up
Multilevel Authority Multiple Levels of User Authority
Capabilities CPU 716 MHz, Quad-Core ARM Cortex-A7
Flash 8 GB
Memory 512 MB DDR3
Built-in Watchdog
GPS GPS + GLONASS
Extended Memory 1 × M.2 NVMe SSD Slot
Hardware Power Input 9 ~ 48 VDC
Power Output (Optional) 4 × 802.3af/at PoE PSE
Ingress Protection IP30
Housing & Weight Metal, 525 g (1.16 lb)
Dimensions 135 × 118 × 45 mm (5.31 × 4.65 × 1.77 in)
Mounting Desktop, Wall or DIN Rail Mounting
Others Operating Temperature -40°C to +70°C (-40℉ to +158℉) Reduced cellular performance above 60°C
Storage Temperature -40°C to +85°C (-40℉ to +185℉) to +185℉)℉))
Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉
Certifications RoHS, CE, FCC
Frequency Band E LTE: B1/B3/B5/B7/B8/B20/B38/B40/B41 3G: B1/B5/B8 GSM: B3/B8
AF LTE: B2/B4/B5/B12/B13/B14/B66/B71 3G: B2/B4/B5 /
AU LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40 3G: B1/B2/B5/B8 GSM: B2/B3/B5/B8
500GL* N1/N2/N3/N5/N7/N8/N12/N20/N28/N41/N66/N71/N77/N78/N79 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)
/B25/B26/B28/B29/B30/B32/B66/B71
LTE TDD: B34/B38/39/B40/B41/B42/B48




Xem thêm Thu gọn
