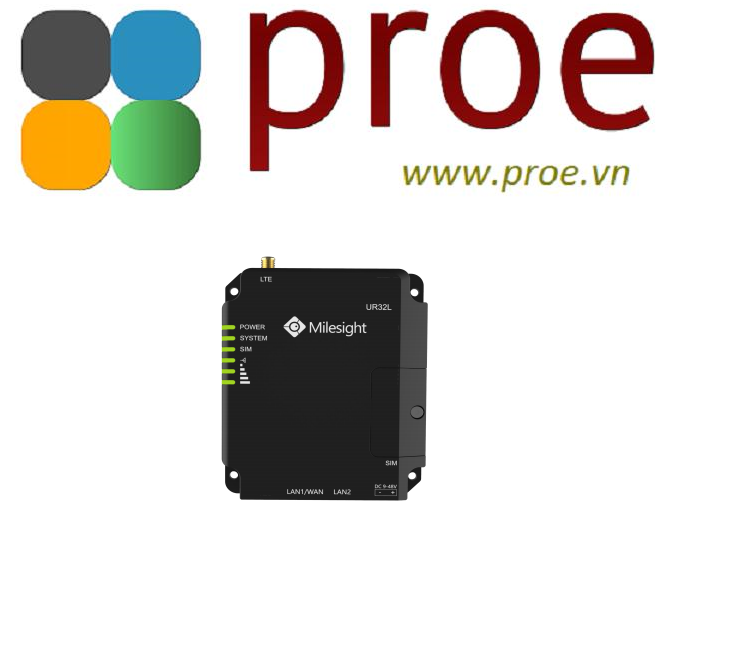

UR32L-L00E-P: 4G and PoE
| Specifications |
Hardware System | CPU | ARM Cortex-A7,528 MHz |
Memory | 128 MB DDR3 RAM and 128MB Flash | |
Cellular Interface | Antenna Connector | 1 × 50 Ω SMA Connectors (Center PIN: SMA Female) |
SIM Slots | 1(Mini SIM-2FF) | |
Ethernet Interface | Numbers | 1 × WAN + 1 × LAN or 2 × LAN |
Property | 1(Mini SIM-2FF) | |
Mode | Full or half duplex (Auto-Sensing) | |
PoE | 2 × 802.3 af/at PoE PSE on LAN Ports (Optional) | |
Software | Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, etc. |
VPN | DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE | |
Security | Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough |
|
Management | Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub | |
AAA | Radius, Tacacs+, LDAP, Local Authentication | |
Multilevel Authority | Multiple Levels of User Authority | |
Reliability | VRRP, WAN Failover | |
Power Supply | Power Connector | 2-pin 5.08 mm Terminal Block |
Input Voltage | 9-48 VDC, with Surge-Protection and Reverse Polarity Protection | |
Physical Characteristics | Ingress Protection | IP30 |
Housing | Metal | |

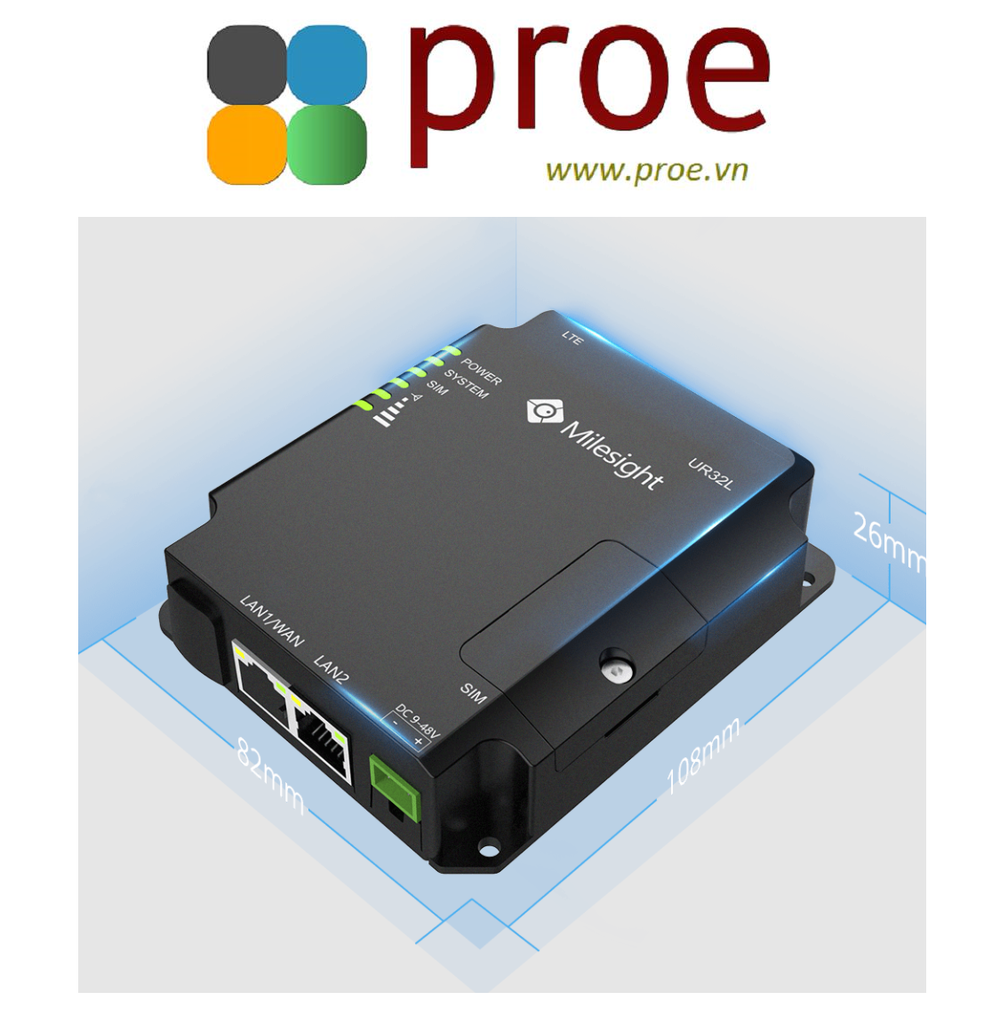

Dimension | 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) | |
Installation | Desktop, Wall or DIN Rail Mounting | |
Environmental | Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Ab |
Storage Temperature | -40°C to +85°C (-40℉ to +185℉) | |
Ethernet Isolation | 1.5 kV RMS | |
Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
