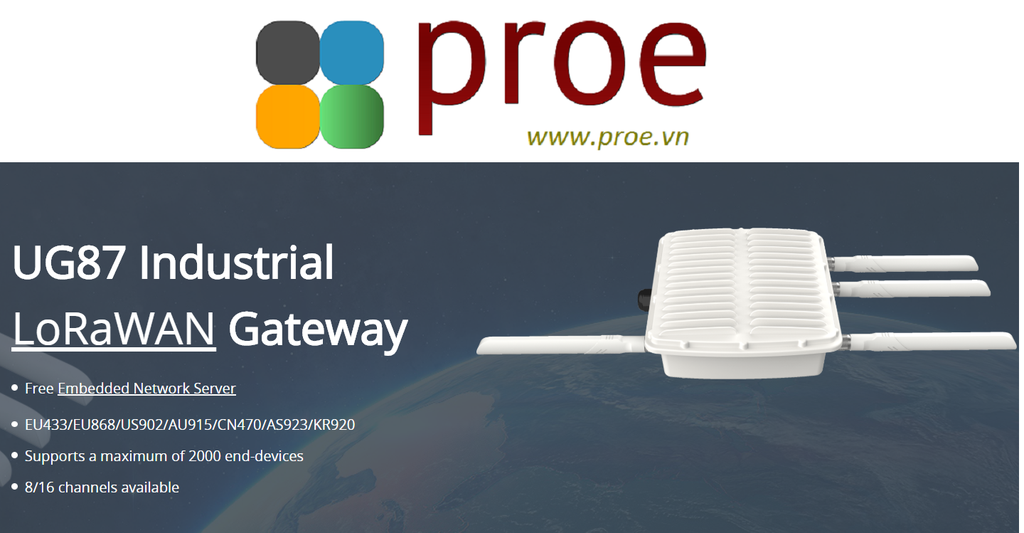

UG87 Industrial LoRaWAN Gateway

  • Mã sản phẩm: UG87 Industrial LoRaWAN Gateway
  • Nhà sản xuất: Ursalink
  • Website hỗ trợ: https://www.proe.vn
19.900.000₫

UG87 Industrial
LoRaWAN Gateway
Free Embedded Network Server
EU433/EU868/US902/AU915/CN470/AS923/KR920
Supports a maximum of 2000 end-devices
8/16 channels available



ug87_lorawan_gateway_outdoor

ug87-features

ursalink_dark_light_blue_lorawan_gateway_background2

UG87

The Ursalink UG87-Outdoor industrial LoRaWAN gateway has an IP67 enclosure and is designed for wide area smart city applications and can work perfectly with The Things Network. Check out how to connect UG87 to The Things Network

ursalink_lorawan_gateway_background3

Application

lorawan_gateway_outdoor_topology

ursalink_lorawan_gateway_

Specifications

  UG85 UG87
Memory 8 GB Flash, 512 MB DDR3 RAM
Weight 271g (0.60 lb) 1874 g (4.13 lb)
Power Supply 9-48 VDC (Default)



PoE PD (Optional)

PoE PD (Default)
Dimensions 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) 254 x 222 x 89 mm (10 x 8.75 x 3.5 in)
Software Network Protocol PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs,
DNS, ARP, NTP, SMTP, Telnet, SSH2, DDNS, etc.
VPN Tunnel OpenVPN , IPsec , PPTP , L2TP , DMVPN , GRE
Connectivity Cellular (Optional) 2 × SIM Slot, Support for Global GSM/3G/4G LTE Frequency Bands
Wi-Fi (Optional) IEEE 802.11b/g/n/ac
Ethernet 1 x 10/100/1000 Mbps
Console 1 x Console
GPS+GLONASS Optional Yes
Serial 1 × RS232 N/A
I/O 1 × DI + 1 × DO N/A
LoRaWAN Channel 8 8 / 16
Frequency Band EU433, EU868, US902, AU915, CN470, AS923, KR920 and so on
Sensitivity -140dBm Sensitivity @292bps
Output Power 27dBm Max
Protocol V1.0 Class A/Class C and V1.0.2 Class A/Class C
Others Operating Temperature -40°C to +70°C (-40℉ to +158℉) Reduced cellular performance above 60°C
Storage Temperature -40°C to +85°C (-40℉ to +185℉)
Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉
Ingress Protection IP30 IP67
Mounting Desktop, Wall or DIN Rail Mounting Wall or Pole Mounting
Certifications RoHS, CE, FCC
Frequency Band*
E
AF
AU
LTE: B1/B3/B5/B7/B8/B20/B38/B40/B41 3G: B1/B5/B8 GSM: B3/B8
LTE: B2/B4/B5/B12/B13/B14/B66/B71 3G: B2/B4/B5
LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40 3G: B1/B2/B5/B8 GSM: B2/B3/B5/B8
