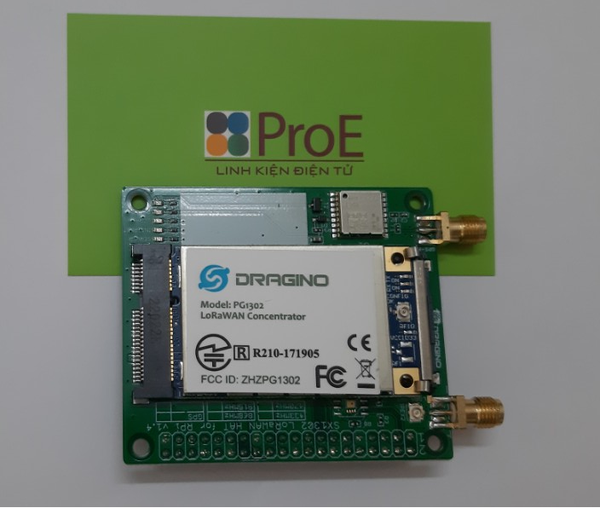

PG1302 LoRaWAN Concentrator

Online User Manual

Technical Documents

The PG1302 is a multi-channel high performance transmitter/receiver designed to simultaneously receive several LoRa packets using random spreading factors on random channels. Its goal is to enable robust connection between a central wireless data concentrator and a massive amount of wireless end-points spread over a very wide range of distances.

The PG1302 is design to use with Raspberry Pi to build smart metering fixed networks and Internet of Things applications with up to 5000 nodes per km2 in moderately interfered environment.

PG1302 is fully compatible with RPi3/4, users can use the pre-build OS from Dragino to set up and easy to use the module by Web UI. Or install the raw lorawan driver in the exist OS.

Features:

• Base on Semtech SX1302 solution
• Support Raspberry Pi 3B/3B+/4
• Up to -140dBm sensitivity
• Support 3.3v and 5v
• Mini-PCIe Interface
• Converter board to support Raspberry Pi

Hardware:

• CPU:  RPI4/4B/3B/Zero
• RAM: 2G, 4G or 8G
• Memory: Greater than 16GB SD card
• LoRaWAN Max Output: 27dBm
• Sensitivity: -140dBm

General Interfaces:

• SPI interface for LoRa
• 1 x I-PEX for LoRa
• Power Input: 5v, 1A

PG1302 Package Includes:

• PG1302 x 1
• LoRa Antenna x 1

PG1302-PI Package Includes:

• PG1302 x 1
• LoRa Antenna x 1
• RPi3/4 converter PCB
• Screws to hole converter PCB on RPI
