UG65 Semi-industrial LoRaWAN® Hotspot

Mã sản phẩm: UG65-915M-EA-H32
Nhà sản xuất: Milesight
Website hỗ trợ: https://www.proe.vn

24.000.000₫

Helium LongFi

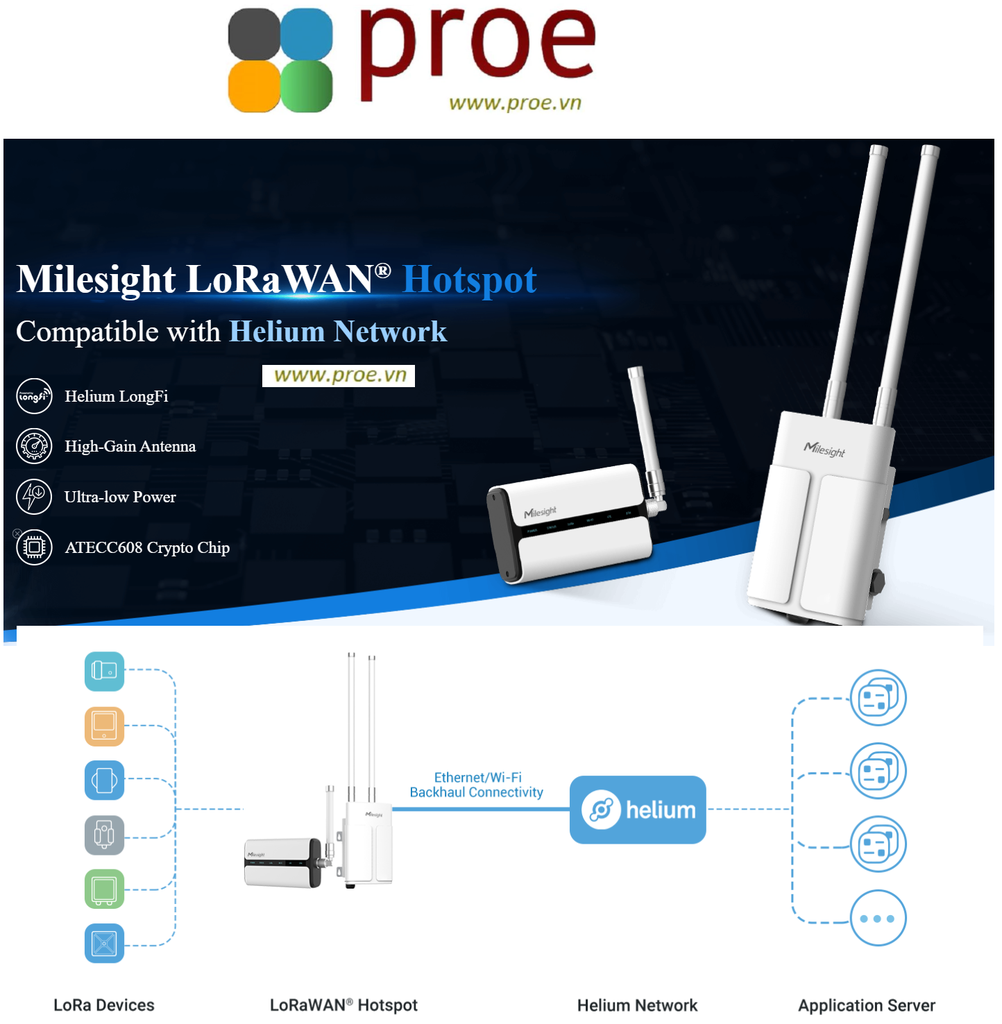

Compatible with Helium LongFi, a technology benefits from all advantages and features of LoRaWAN® network while adding the capability for gateway owners to earn HNT (Helium Network Token).

High Performance

Quad-core Processor
2 GB DDR4 RAM
32 GB Flash

Adopted NXP industrial-grade quad-core processor,2 GB big memory, and 32 GB eMMC flash. The Milesight Hotspots provide the top-notch hardware for efficient mining operation

Secure and Reliable

Milesight Hotspots built-in ATECC608 crypto chip provides swarm keys storage, as well as highly secure authentication and reliable connectivity.

High-Gain Antenna

Enhanced high-gain antenna offers wider network coverage, meaning better Proof of Coverage for increased HNT earnings.

Ultra-low Power Consumption

The maximum power consumption is below 5 W. The electricity usage is similar to a 5 W LED bulb.

Hardware System
CPU	Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory	2 GB DDR4 RAM
Flash	32 GB eMMC
Encryption Chip	ATECC608
LoRaWAN®
Antenna	UG65: 2 × Internal Antennas + 1 × 50 Ω N-Female External Connector UG67: 2 × Internal Antennas + 2 × 50 Ω N-Female External Connectors
Channel	8 (Half/Full-duplex)
Frequency Band	CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923/AS923-2
Sensitivity	-140dBm Sensitivity @292bps
Output Power	27dBm Max
Protocol	V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ethernet Interface
Port	1 × RJ45 (PoE PD supported)
Physical Layer	10/100/1000 Base-T (IEEE 802.3)
Data Rate	10/100/1000 Mbps (Auto-Sensing)
Interface	Auto MDI/MDIX
Mode	Full or Half Duplex (Auto-Sensing)
Wi-Fi Interface
Antenna	Internal Antenna
Standards	IEEE 802.11 b/g/n, 2.4GHz
Mode	AP or Client mode
Security	WPA/WPA2 authentication, WEP/TKIP/AES encryption
Tx Power	802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
Cellular Interface (Optional)
Antenna	Internal Antenna
SIM Slot	1 (mini SIM-2FF)
GPS (UG67 Only)
Antenna	Internal Antenna
Sensitivity	-167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition
Position Accuracy	<2.5m CEP
Others
Reset Button	1 × RST
Console Port	1 × Type-C
LED Indicator	UG65: 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH UG67: 1 × SYS, 1 × LoRa, 1 × LTE
Built-in	Watchdog, RTC, Timer
Software
Network Protocols	PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel	OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Firewall	ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management	Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
Reliability	WAN Failover
App	Python SDK, Node-RED
Power Supply
Power Input	UG65: 1 × 802.3 af PoE input & DC Jack Connector for 9-24 VDC power supply UG67: 1 × 802.3 af PoE input & 12 VDC with M12 Connector
Physical Characteristics
Ingress Protection	UG65: IP65 UG67: IP67
Dimensions	UG65: 180 x 110 x 56.5 mm (7.09 x 4.33 x 2.22 in) UG67: 250 x 172 x 92 mm (9.84 x 6.77 x 3.62 in)
Installation	Wall or Pole Mounting
Environmental
Operating Temperature	-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C
Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation	1.5 kV RMS
Relative Humidity	0% to 95% (non-condensing) at 25°C/77℉
