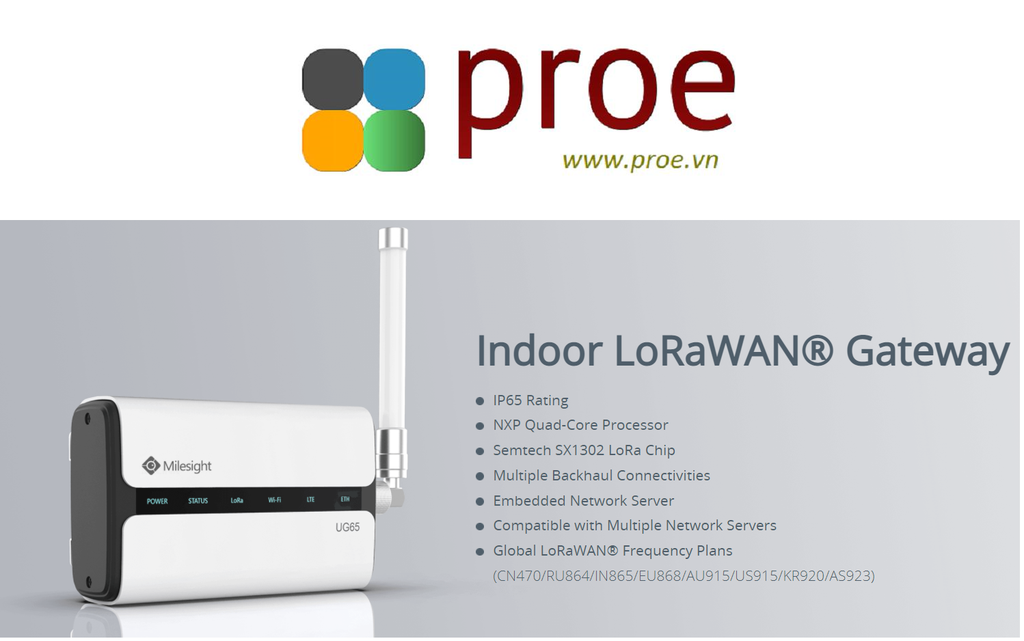

UG65-L00E-915M-EA Indoor LoRaWAN Gateway 4G Option

  • Mã sản phẩm: UG65-L00E-915M-EA-H32 4G
  • Nhà sản xuất: Milesight
  • Website hỗ trợ: https://www.proe.vn
22.000.000₫

Indoor LoRaWAN® Gateway

spotIP65 Rating

spotNXP Quad-Core Processor

spotSemtech SX1302 LoRa Chip

spotMultiple Backhaul Connectivities

spotEmbedded Network Server

spotCompatible with Multiple Network Servers

spotGlobal LoRaWAN® Frequency Plans

(CN470/RU864/IN865/EU868/AU915/US915/KR920/AS923)



Specifications

Model UG65
Hardware System
CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory 512 MB DDR4 RAM
Flash 8 GB eMMC
LoRaWAN®
Antenna Fully Integrated Internal Antenna (Optional: 1 × 50 Ω N-Female External Antenna Connector)
Channel 8
Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
Sensitivity -140dBm Sensitivity @292bps
Output Power 27dBm Max
Protocol V1.0 Class A/Class C and V1.0.2 Class A/Class C
Ethernet Interface
Port 1 × RJ45 (PoE PD support)
Physical Layer 10/100/1000 Base-T (IEEE 802.3)
Data Rate Rate 10/100/1000 Mbps (Auto-Sensing)
Interface Auto MDI/MDIX
Mode Full or Half Duplex (Auto-Sensing)
Wi-Fi
Antenna Fully Integrated and Internal Antenna
Standards IEEE 802.11 b/g/n
Tx Power 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
Cellular Interface (Optional)
Antenna Fully Integrated and Internal Antenna
SIM Slot 1
Software
Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
Reliability WAN Failover
Power Supply and Consumption
Power Supply 1. DC Jack Connector for 9-24 VDC power supply
2. 1 × 802.3 af PoE input
Consumption ≤ 4.2W
Physical Characteristics
Ingress Protection Protection IP65
Dimensions 180 x 110 x 56.5 mm
Mounting Desktop, Wall or Pole Mounting
Others
Reset Button 1 × RST
Console Port 1 × Type-C Port
LED Indicators 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH
Built-in Watchdog, RTC, Timer
Certification CE, FCC
Physical Characteristics
Ingress Protection Protection IP65
Dimensions 180 x 110 x 56.5 mm
Mounting Desktop, Wall or Pole Mounting
Environmental
Operating Temperature -40°C to +70°C (-40℉ to +158℉)
Reduced Cellular Performance Above 60°C
Storage Temperature -40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation 1.5 kV RMS
Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉
Xem thêm Thu gọn
