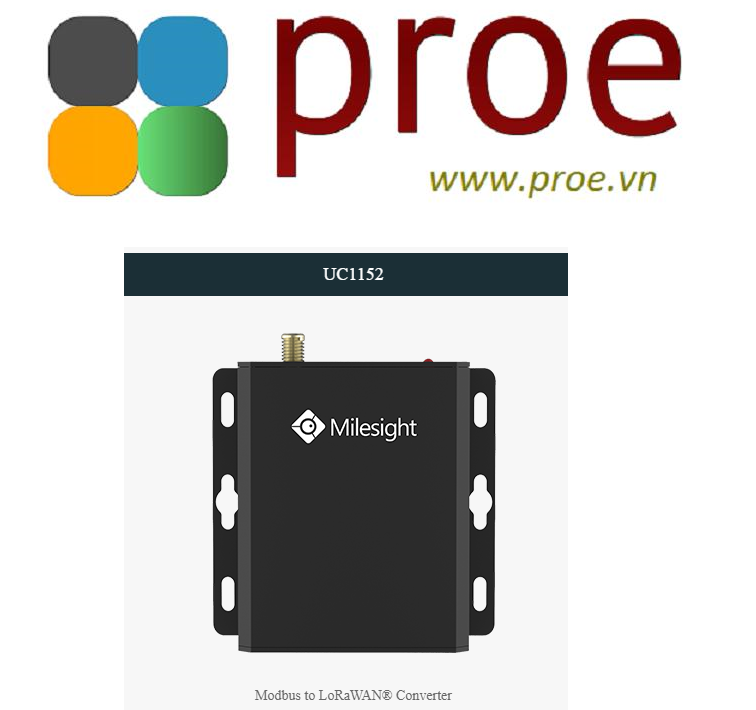

Featuring 2 serial inputs and 1 alarm input & relay output, UC1152 supports standard LoRaWAN® class C protocol, which is perfectly used as a remote data logger or a controller.
Coupled with Milesight LoRaWAN® gateway, UC1152 enables users to fastly build up a LoRa-Based IoT solution for data collection, remote control and monitoring of field devices.
Easy operation
anywhere and anytime
Compliant with LoRaWAN® 1.0/1.0.2 class C
Collect data from Modbus RTU slave device
Customizable conditions & programmable actions
Convert serial and I/O data to LoRa environment
Hundreds of combinations of trigger conditions and actions
Support CN470/EU868/AU915/US915/AS923
Report updated I/O status to Cloud if any changes are detected
Up to 10km communication distance with omni-directional antenna
Specifications
LoRaWAN Interface | |
Connector | 1 × 50 Ω SMA (Center PIN: SMA Female) |
Protocol | LoRaWAN® 1.0/1.0.2 Class C |
Configuration Interface | |
Port | 1 × Micro USB Port |
IO | |
Connector | Terminal block |
Digital Inputs | 2 x Opto-isolated Digital Inputs DC Voltage (3-24V) |
Digital Outputs | 2 x SPDT Relay Contact Rating: 3 Amp DC (Max: 30 V) or 3 Amp AC (Max: 250 V) |
Serial | |
Ports | RS232/RS485 |
Baud Rate | 4800~115200bps (RS232)/1200~115200 bps (RS485) |
Protocol | Transparent (RS232), Modbus RTU (RS485) |
Analog Input | |
Input Range | 4~20 mA |
Resolution | 12 bit |
Power Supply | |
Connector | Terminal block |
Input Voltage | 5-24V DC (Standard adapter: DC 12V/0.5A) |
Physical Characteristics | |
Ingress Protection | IP30 |
Dimensions | 79 x 76 x 24 mm |
Mounting | Desktop or Wall Mounting |
Others | |
Reset Button | 1 × RESET (Inside The Device) |
LED Indicators | 1 × System, 1 × ACT |
Built-in | Watchdog |
Operating Temperature | -40°C to 70°C |
