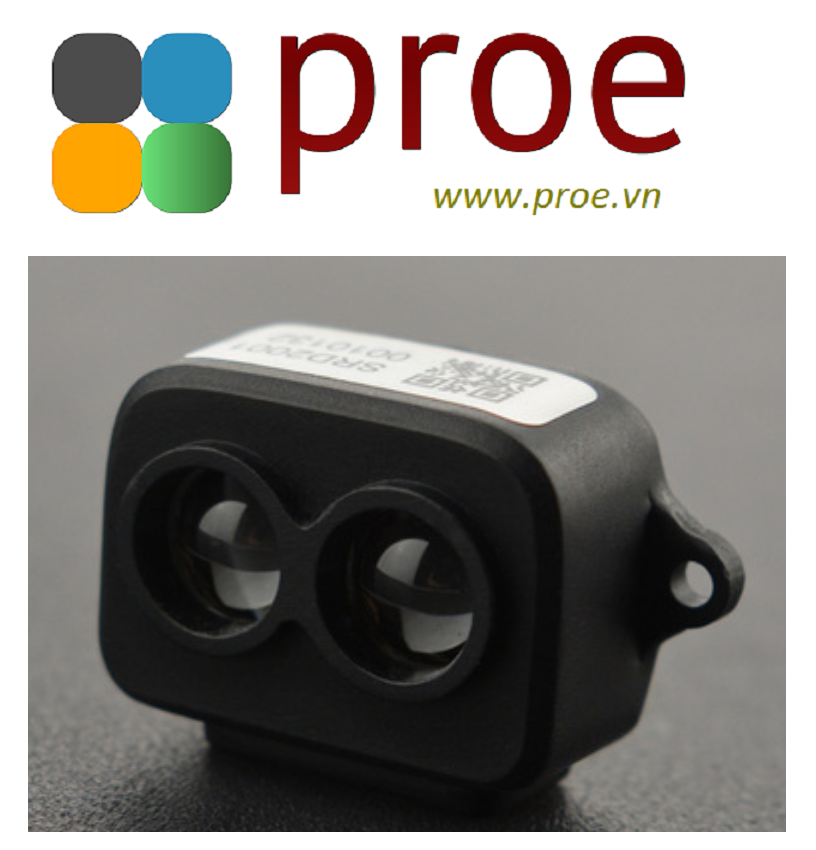

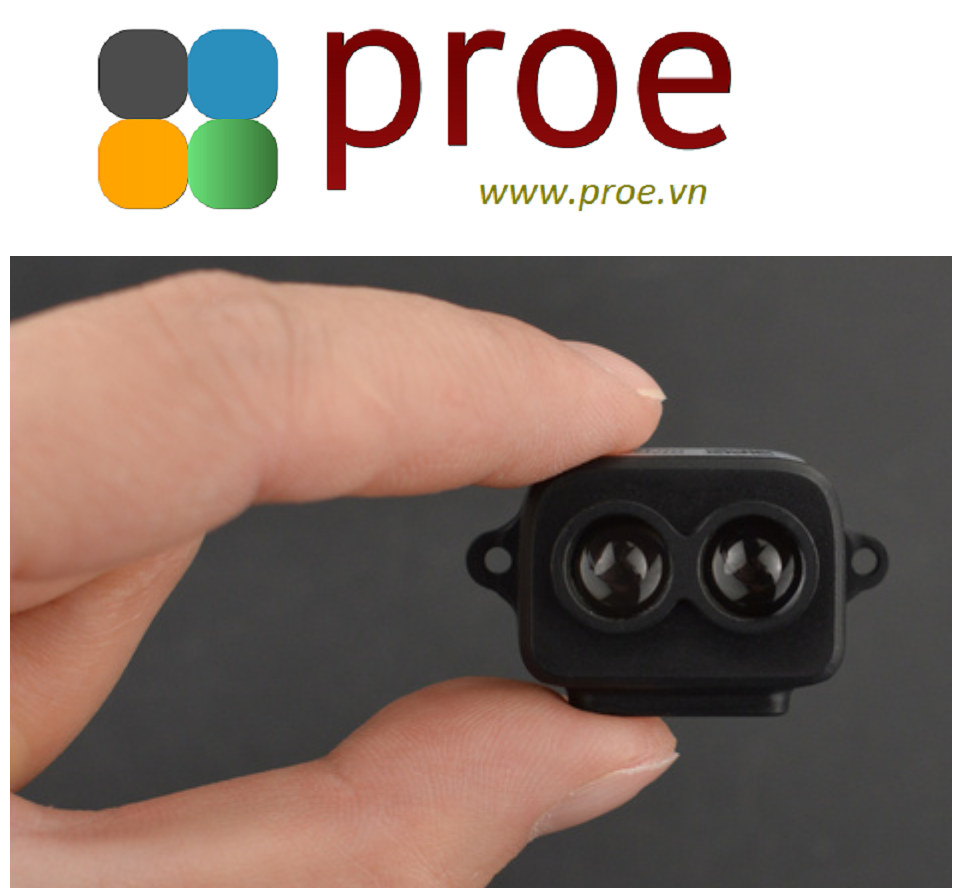

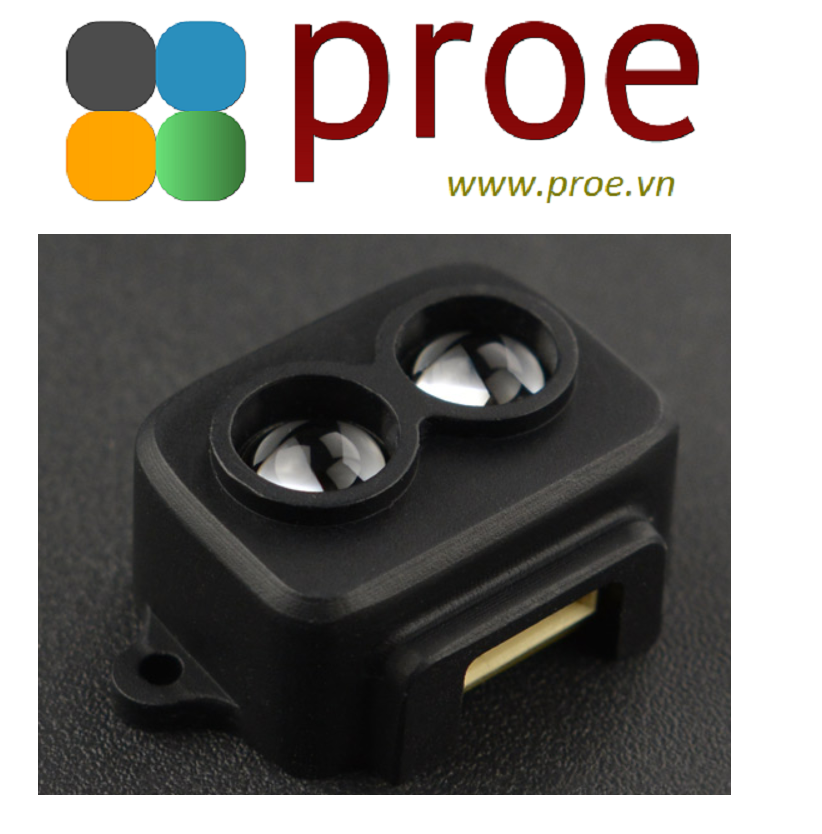

TF-Luna ToF Micro Single-point Ranging LiDAR

TF-Luna is a single-point ranging LIDAR using the principles of ToF to perform the object distance measurement. With optical and electrical design unique, TF-Luna can produce a stable performance, accurate, and sensitive. TF-Luna can detect objects at a maximum distance of 8 meters with a resolution of 1 cm, making it suitable for use in applications such as robotics, area mapping, drones and UAVs, and so on.

SPECIFICATION

• Distance Resolution: 1cm
• Frequency: 100Hz
• Ambient Light Resistance: 70klux
• Detecting Range: 0.2~8m
• Weight: ＜5g
• FoV: 2°
• Supply Voltage: 5V±0.1V
• Data Interface: UART/ I²C
• Accuracy: ±6cm@(0.2m-3m)

Datasheet & User Manual
