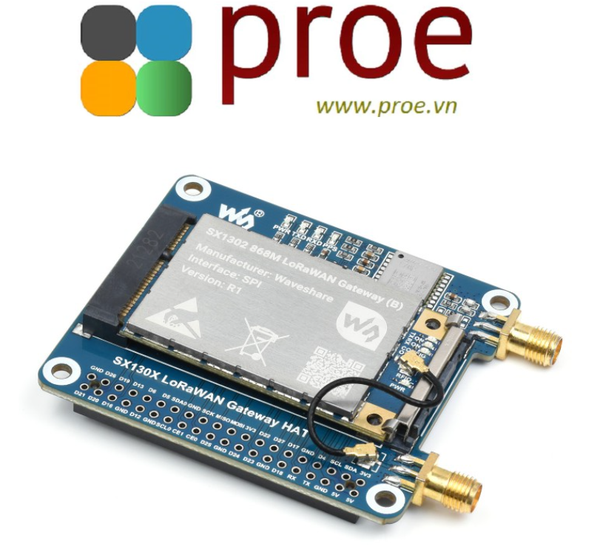

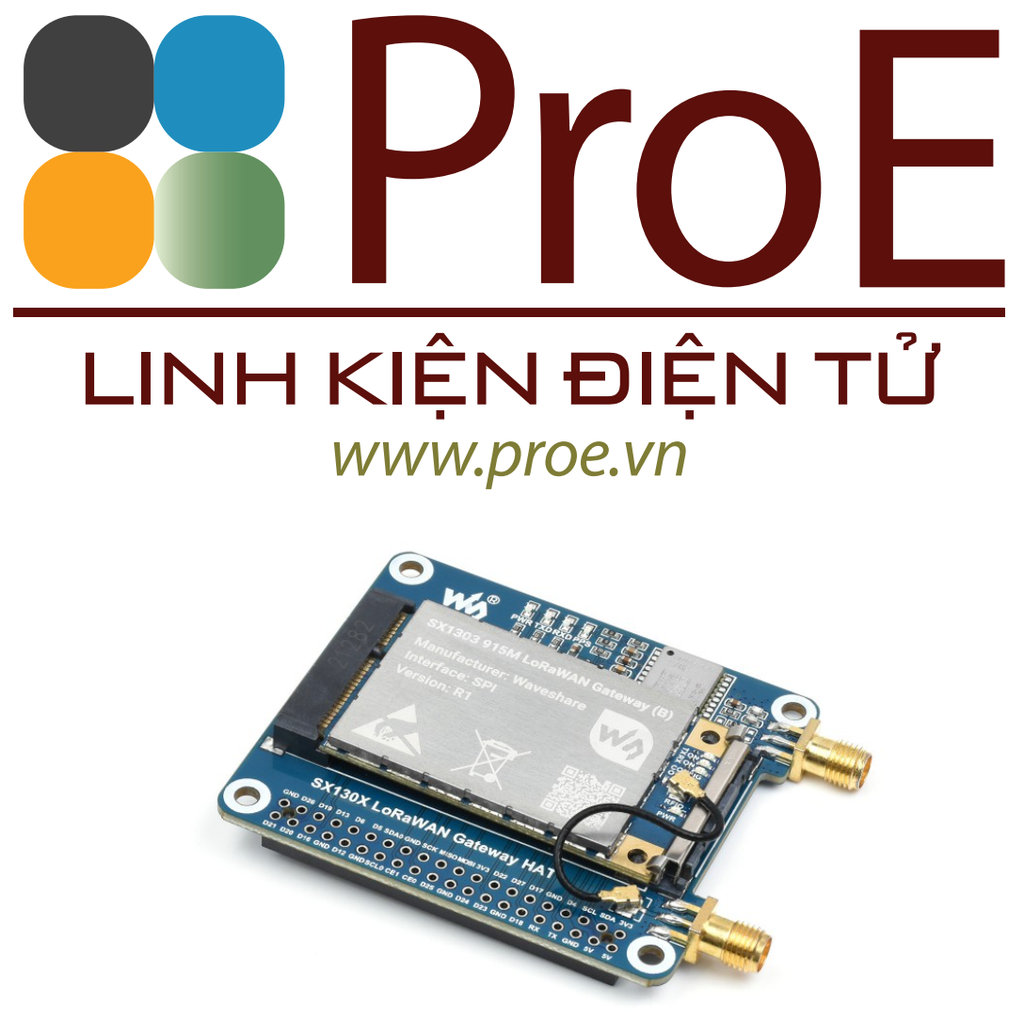

SX130x 868M/915M LoRaWAN Gateway Module/HAT for Raspberry Pi, Standard Mini-PCIe Socket, Long range Transmission

  • Mã sản phẩm: SX1303 915M LoRaWAN Gateway HAT
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
3.500.000₫
PACKAGE CONTENT

Weight: 0.123 kg

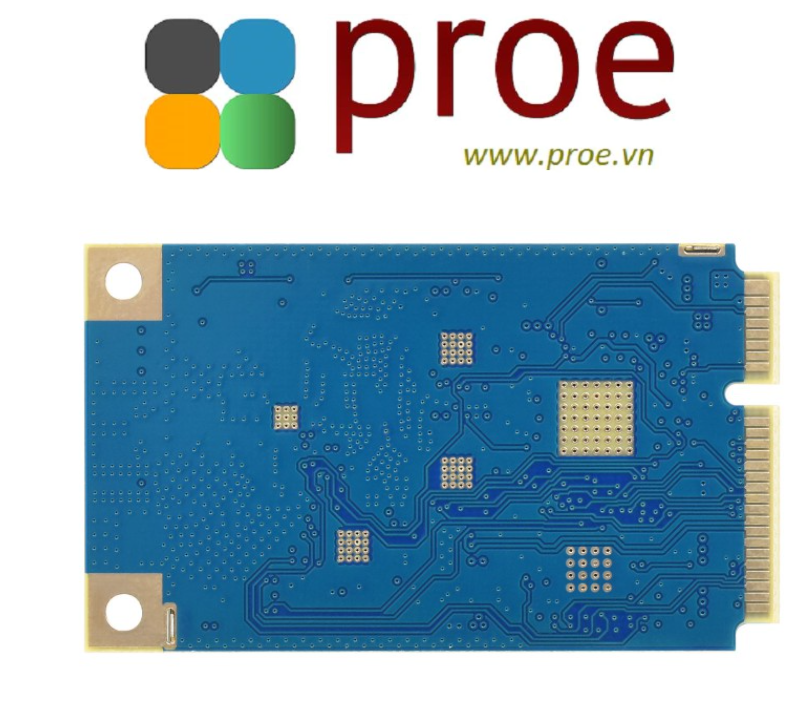

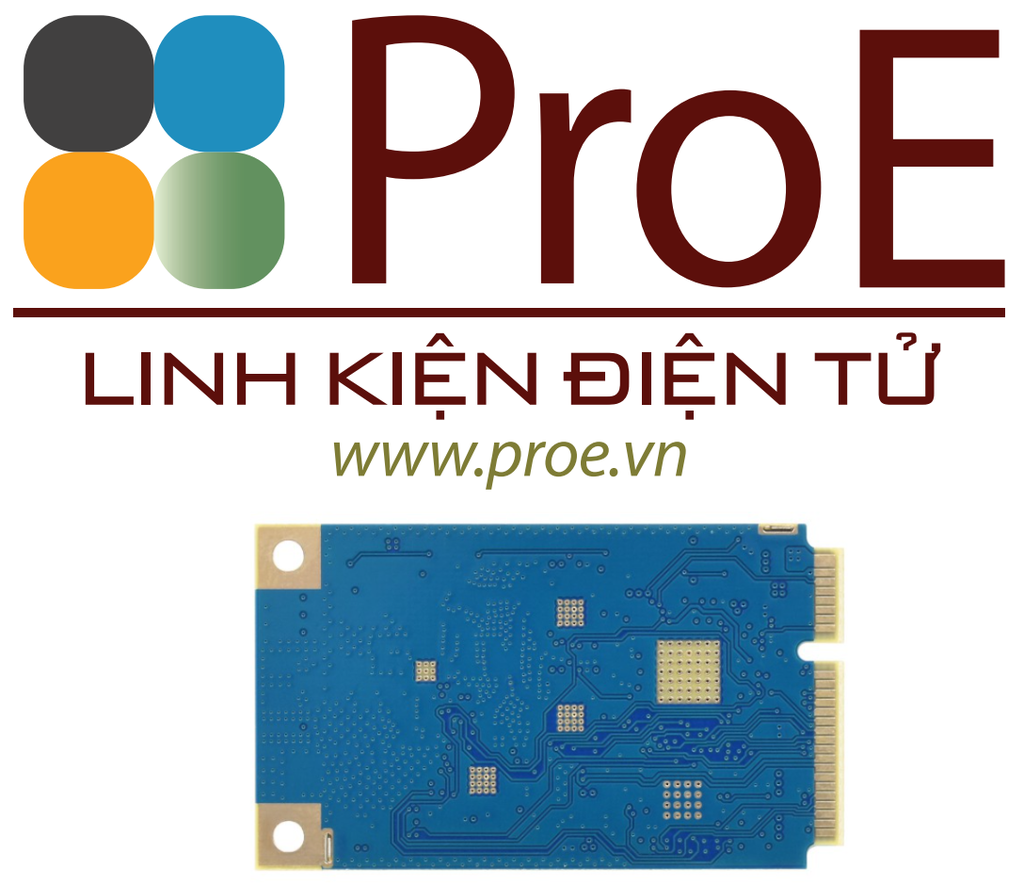

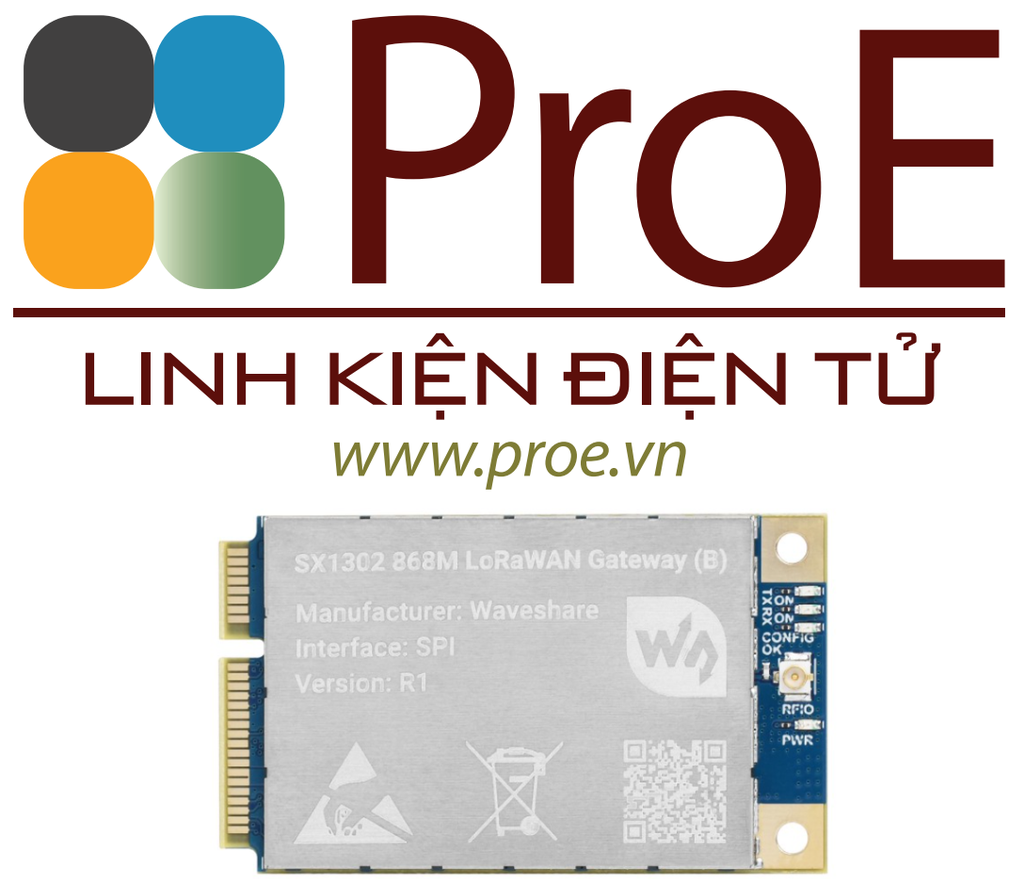

SX130x LoRaWAN Gateway Module (B)

  1. OPTIONS SX130x LoRaWAN Gateway Module (B) x1
  2. IPEX1 to SMA wire x1
  3. Antenna 868M 5dBi x1

1

2

3

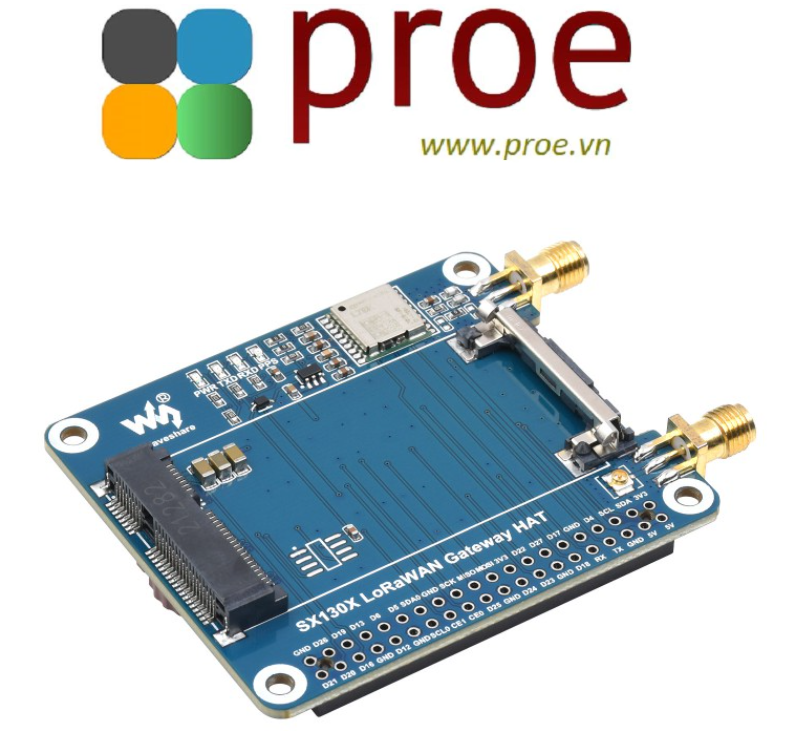

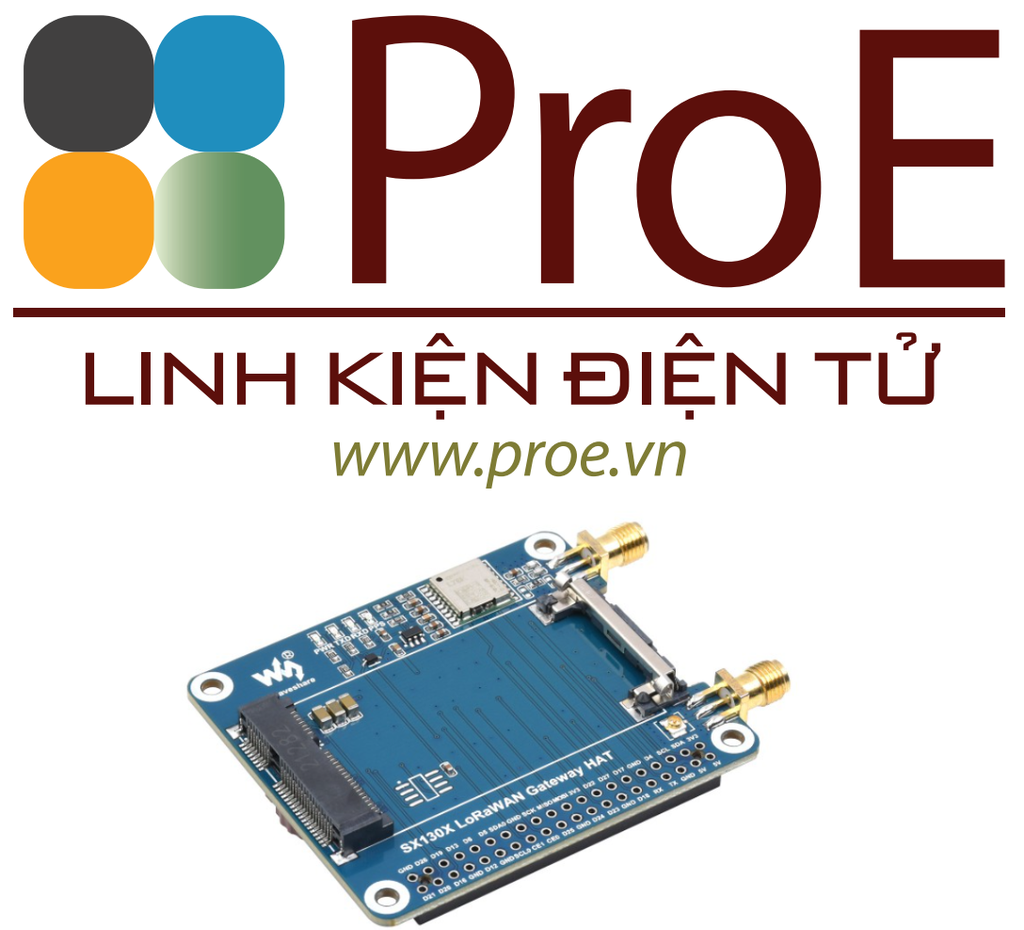

SX130x LoRaWAN Gateway HAT

  1. SX130x LoRaWAN Gateway HAT x1
  2. OPTIONS SX130x LoRaWAN Gateway Module (B) x1
  3. Antenna 868M 5dBi x1
  4. GPS antenna x1
  5. 2×20PIN female pinheader x1
  6. Dual IPEX1 wire x1
  7. Screws pack x1

SX130x 868M/915M LoRaWAN Gateway Module/HAT For Raspberry Pi, L76K Module(HAT Only), Standard Mini-PCIe Socket, Long Range Transmission, Large Capacity, Multi-Band Support

SX130x LoRaWAN Gateway Module/HAT

Standard Mini-PCIe Socket



SX130x LoRaWAN Gateway HAT - Optional

For detailed configuration, please refer to the package list

Features At A Glance

This product is a LoRa Gateway module that incorporates a new-generation SX1302/3 normal band chip. It has lots of advantages including long-range transmission, large capacity node, and high receiving sensitivity. In addition, SX1303 supports concurrent communication. Due to the outstanding performance of SX1302/3 on low power consumption, the heat dissipation design of the Gateway can be simplified, thus reducing material cost, also achieving a smaller size.

LoRaWAN Gateway Module features:

  • Integrates Semtech SX1302/3 normal band and SX1250 radio RF frond-end chip
  • Onboard PA and LNA, features +26dBm emit power and -141dBm high sensitivity receiving gain
  • The SX1303 supports Fine Timestamp and network positioning based on time difference of arrival (TDOA)
  • 52-pin Mini-PCIe socket for easy integration into various embedded systems
  • Onboard 4 LED indicators for module operating status
  • Comes with development resources and manual (example in C)

HAT features:

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Incorporate L76K module with GPS/BD support, provide accurate clock and location info for gateway module
  • Comes with development resources and manual (example in C)

Specifications

BAND CHIP SX1302 SX1303
868M 915M 868M 915M
FREQUENCY RANGE 868M: EU868, IN865, RU864
915M: US915, AU915, KR920
POWER SUPPLY 5V
MODULATION LoRa/(G)FSK
EMIT POWER +26dBm@5V
RECEIVING SENSITIVITY -141dBm@125KHz/SF12
-121dBm@125KHz/SF5
OVERALL POWER CONSUMPTION emitting: 454mA@5V
receiving: 42mA@5V
sleep: 11mA@5V
emitting: 427mA@5V
receiving: 40mA@5V
sleep: 8mA@5V
COMMUNICATION BUS SPI, I2C
EXTERNAL CONNECTOR Mini-PCIe
OPERATING TEMPERATURE -40~85℃
DIMENSIONS 50.95 x 30mm



Performance-Upgraded SX1302/3 Chip

Onboard Semtech SX1302/3 Band Chip
Lower Power Consumption, Fast Data Rate, Longer Distance

Multiple Channels Smooth Communication

A Better Solution For Concurrent High Throughput Situation

FEC Forward Error Correction Algorithm

The New Generation LoRa Spread Spectrum Technology,
Higher Anti-Interference Performance, Longer Communication Distance

SX1303 Supports Fine Timestamp

Network Positioning Based On Time Difference Of Arrival (TDOA)

SX1302 does not support this function.



Application Example

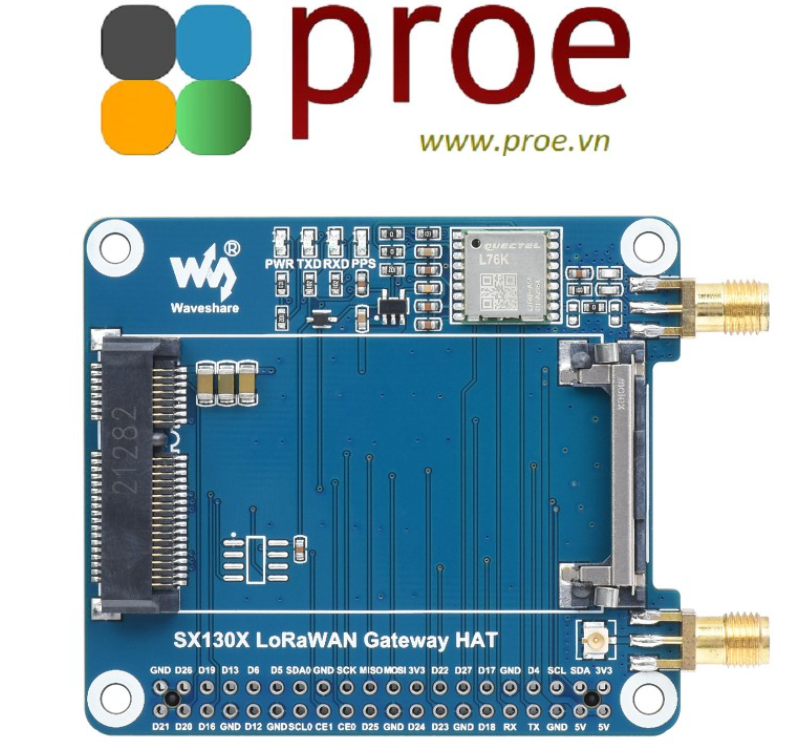

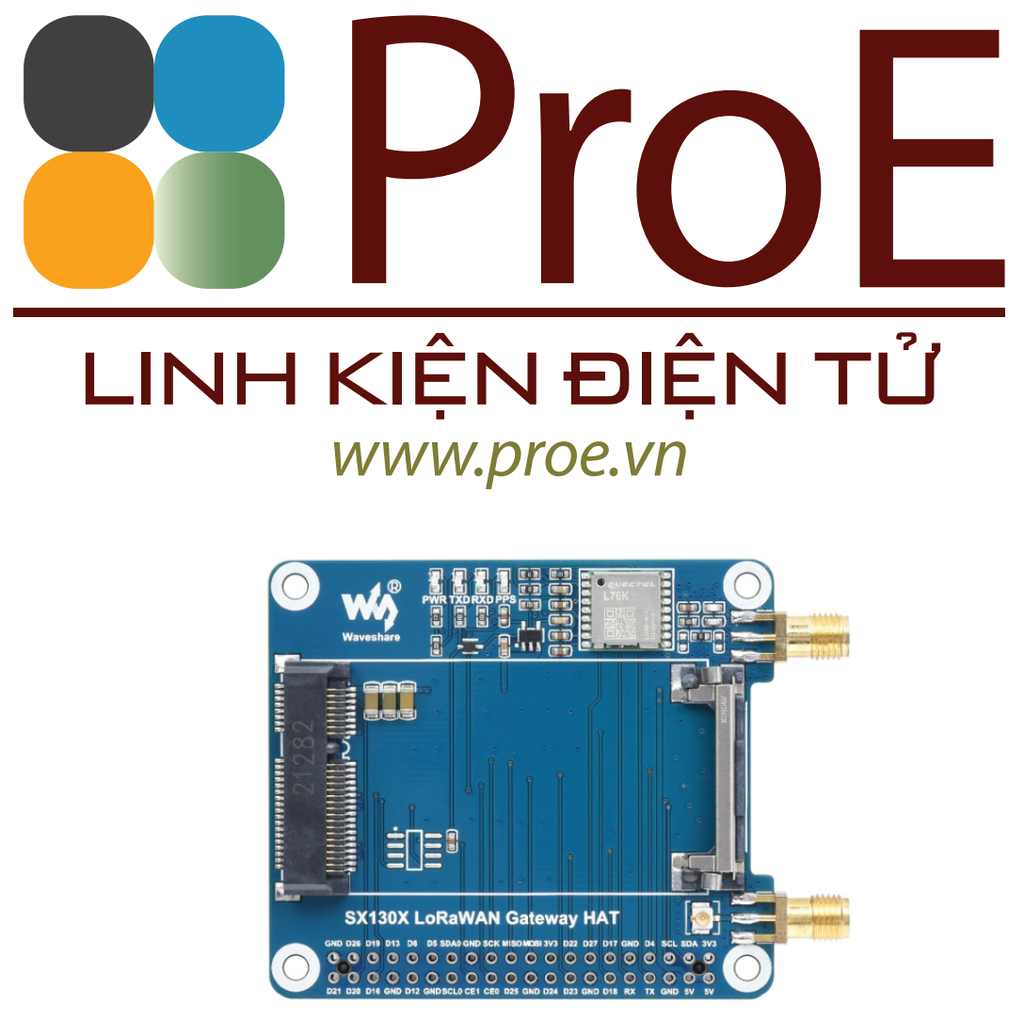

What's On Board

  1. SX1302/3 LoRaWAN Gateway module
  2. Mini-PCIe socket and buckle
  3. L76K module
  4. RT9193-33 power chip
  5. Status indicator
    PWR: power indicator
    RXD/TXD: UART RX/TX indicator
    PPS: GPS status indicator



  1. Raspberry Pi GPIO header
    for connecting with Raspberry Pi series boards
  2. L76K antenna connector
  3. LoRa Gateway antenna connector
  4. Battery holder
    supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts

Module Pinout Definition

HAT Pinout Definition

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/SX1302_LoRaWAN_Gateway_HAT
