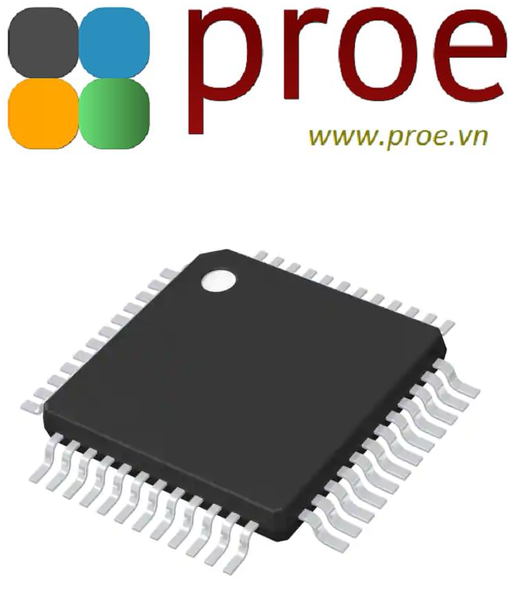

STM32F070CBT6 C MCU 32BIT 128KB FLASH 48LQFP
- Mã sản phẩm: STM32F070CBT6
- Nhà sản xuất: STMicroelectronics
- Website hỗ trợ: https://www.proe.vn
90.000₫
MCU 32-bit ARM Cortex M0 RISC 128KB Flash 2.5V/3.3V 48-Pin LQFP Tray
Want to centralize your components to one device? Look no further use this STM32F070CBT6 microcontroller manufactured by STMicroelectronics. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 48 MHz. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2.4 V, while its maximum is 3.6 V. This device is based on the ARM Cortex M0 core architecture. Its ADC resolution is 12. This is a 32 bit processor. Its flash program memory is 128KB
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | 3A991.a.2 |
| Part Status | Active |
| HTS | 8542.31.00.01 |
| Family Name | STM32F |
| Instruction Set Architecture | RISC |
| Device Core | ARM Cortex M0 |
| Core Architecture | ARM |
| Maximum CPU Frequency (MHz) | 48 |
| Maximum Clock Rate (MHz) | 48 |
| Data Bus Width (bit) | 32 |
| Program Memory Type | Flash |
| Program Memory Size | 128KB |
| RAM Size | 16KB |
| Programmability | Yes |
| Interface Type | I2C/SPI/USART/USB |
| Number of I/Os | 37 |
| No. of Timers | 8 |
| PWM | 1 |
| Number of ADCs | Single |
| ADC Channels | 13 |
| ADC Resolution (bit) | 12 |
| USART | 2 |
| UART | 0 |
| USB | 1 |
| SPI | 2 |
| I2C | 2 |
| I2S | 0 |
| CAN | 0 |
| Ethernet | 0 |
| Watchdog | 2 |
| Parallel Master Port | No |
| Real Time Clock | Yes |
| Minimum Operating Supply Voltage (V) | 2.4 |
| Typical Operating Supply Voltage (V) | 2.5|3.3 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Maximum Power Dissipation (mW) | 364 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Packaging | Tray |
| CECC Qualified | No |
| Standard Package Name | QFP |
| Pin Count | 48 |
| Supplier Package | LQFP |
| Mounting | Surface Mount |
| Package Height | 1.4 |
| Package Length | 7 |
| Package Width | 7 |
| PCB changed | 48 |
| Lead Shape | Gull-wing |
