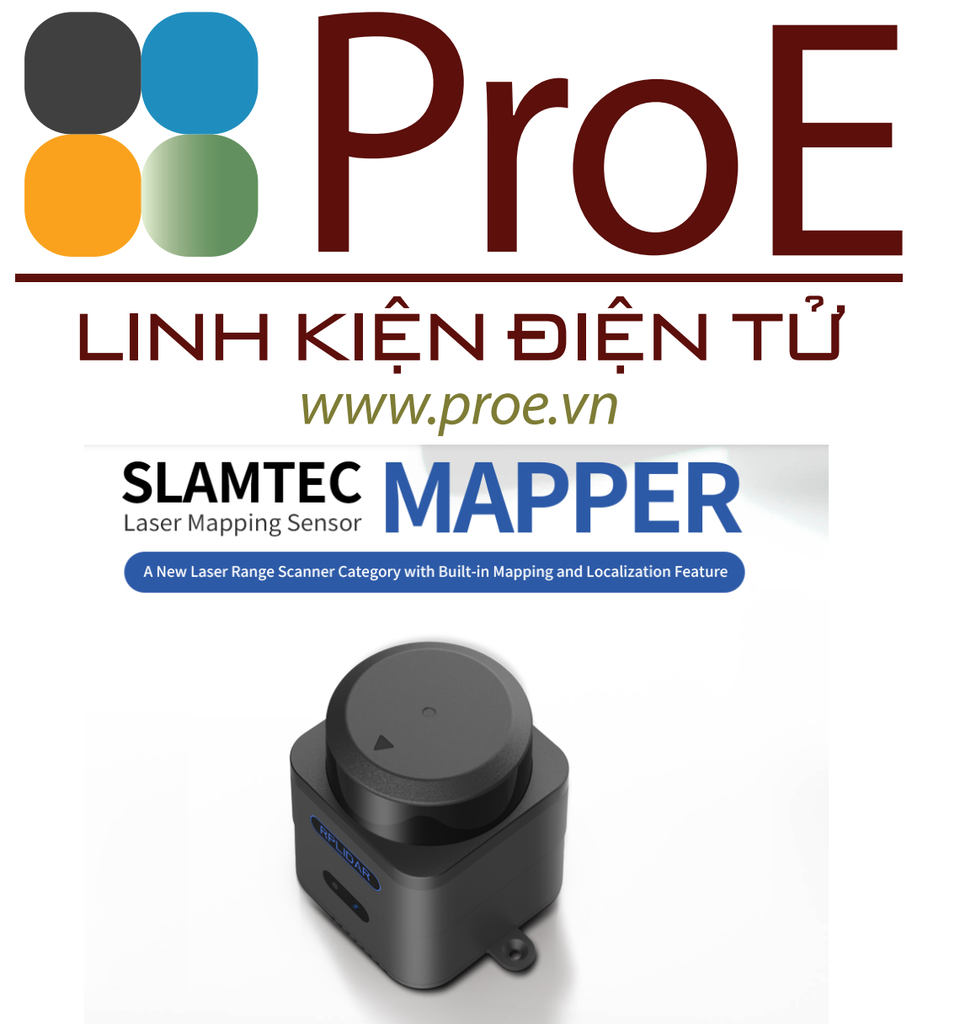

Slamtec MAPPER M2 M3

User Manual

Overview: MAPPER M2

The Slamtec Mapper is a cutting-edge laser LIDAR solution designed to deliver seamless real-time location and mapping capabilities. Powered by Slamtec’s third-generation high-performance SLAM engine and advanced LIDAR technology, it offers robust performance in a compact, standalone device. With no need for external tools, the Mapper is ready to use straight out of the box, making it an excellent choice for applications such as robot navigation and localization, environmental mapping, and handheld measurement tasks.

High-Precision Mapping on a Large Scale

Equipped with Slamtec’s advanced third-generation SLAM optimization engine and SharpEdge fine mapping technology, the Slamtec Mapper is built for exceptional performance. It delivers precise mapping and real-time location tracking across expansive areas up to 100,000 square meters. The device intelligently detects and resolves loop closures to ensure accurate map correction, making it ideal for even the most complex mapping and localization tasks. Users can trust it to consistently provide high-quality map and location data.

Instant Startup for Immediate Use

The Slamtec Mapper offers effortless operation—simply connect it via a USB cable to power it on, and it’s ready to start working. No additional setup or tools are required, ensuring a seamless and quick start for all your mapping and localization needs.

Tilting Compensation and High-Speed Adaptability

The Slamtec Mapper features an integrated degree-of-freedom inertial navigation system, ensuring reliable performance even in undulating or inclined environments when used in handheld mode. This capability guarantees optimal mapping quality, regardless of terrain. Furthermore, the device is designed to adapt to high-speed movement, supporting operation at speeds of up to 2 meters per second, making it versatile for dynamic and demanding scenarios.

Reliable Performance Indoors and Outdoors

The Slamtec Mapper excels in both indoor and outdoor environments, delivering exceptional mapping and localization capabilities. Whether navigating complex indoor spaces or operating under challenging outdoor conditions like intense sunlight, the device ensures reliable and accurate performance in any setting.

Seamless Data Analysis and ROS Compatibility

The Slamtec Mapper offers a versatile cross-platform SDK development kit, along with user-friendly mobile and PC evaluation tools, enabling effortless evaluation, development, and usage. Its integration with a ROS driver ensures that the generated map and location data are fully compatible with the ROS environment, providing users with a streamlined experience for advanced robotics applications.

More Than Just a Mapping LIDAR

Beyond its exceptional mapping and localization capabilities, the Slamtec Mapper doubles as a reliable laser sensor. With support for SDK and ROS nodes, users can seamlessly integrate LiDAR data into their existing systems, enhancing versatility and expanding its range of applications.

Effortless Communication and Access

The Slamtec Mapper features dual-mode AP/Station WiFi and a 100M Ethernet interface, ensuring seamless connectivity. Users can access real-time mapping and location data through the compatible mobile app, enabling smooth communication and efficient operation.

Compliant with CLASS 1 Laser Safety Standard

The Slamtec Mapper utilizes a modulated pulse-type low-power infrared laser light source, adhering to the Class 1 laser safety standard. The laser emits light within a very short time frame, ensuring complete safety for both humans and pets during operation.

urement

Dimensions
