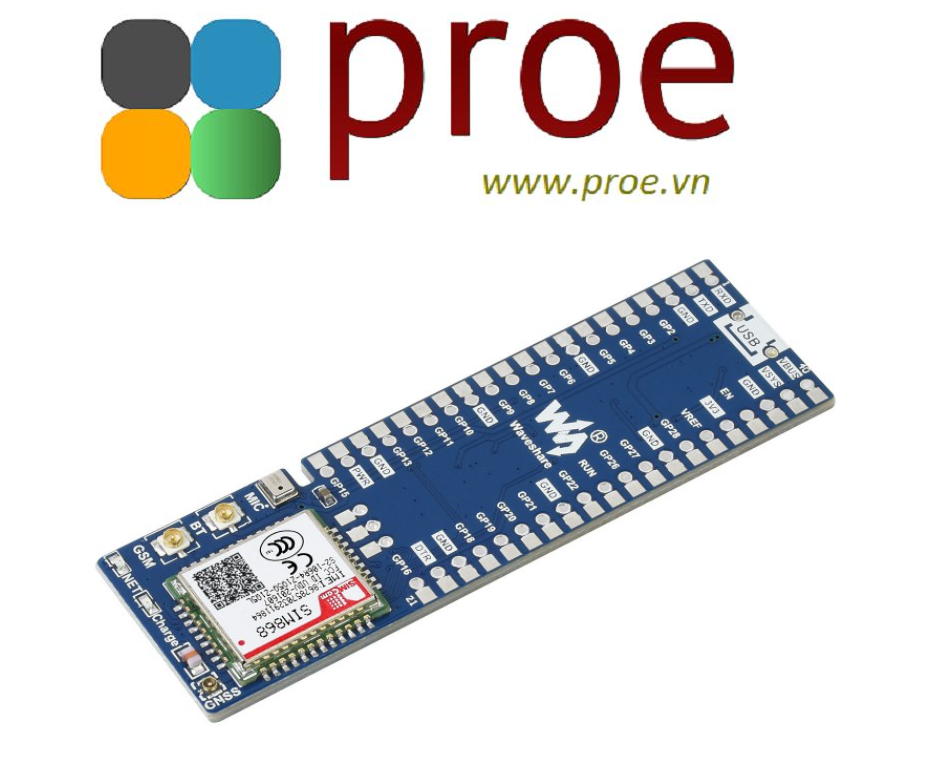

SIM868 GSM/GPRS/GNSS Module for Raspberry Pi Pico, Bluetooth Connection

PACKAGE CONTENT

Weight: 0.121 kg

1. Pico-SIM868-GSM/GPRS/GNSS x1
2. LTE antenna x1
3. GPS antenna x1
4. Bluetooth antenna x1
5. 20PIN female pin header x2
6. 40PIN male pin header × 1
7. 3.7V rechargeable Li-po battery x1
8. Speaker x1

1

2

3

4

5

6

7

8

SIM868 GSM/GPRS/GNSS Module For Raspberry Pi Pico, Bluetooth Connection

SIM868 GSM / GPRS / GNSS
Module For Pico

Incorporates SIM868, Supports 2G Communication, Phone Call, SMS,
GNSS Positioning, As Well As Bluetooth Data Transfer

Features At A Glance

The Pico-SIM868-GSM/GPRS/GNSS is a GSM, GPRS, GNSS, and Bluetooth module designed for Raspberry Pi Pico. This small size and low power module will easily enable your Raspberry Pi Pico multiple functions including making phone call, sending SMS, 2G communication, global positioning, as well as Bluetooth transmission.

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
• UART communication, serial AT commands control
• Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
• Bluetooth3.0 support, allows Bluetooth data transfer
• RTC real time clock, with rechargeable Li-po battery
• Integrates 3.7V Li-po battery connector and recharge circuit, allows being powered from external rechargeable Li-po battery, or recharging it in turn
• Onboard microphone, together with speaker header, can be used to make phone call
• 2x LED indicators, for monitoring the module operating status
• Onboard nano SIM card slot, supports 2G/4G SIM card *
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

* depending on the local network service provider.

Specifications

Raspberry Pi Pico Header Compatibility

The Pico Can Be SMD-Mounted (Left), Or Attached Via Female Header (Right)

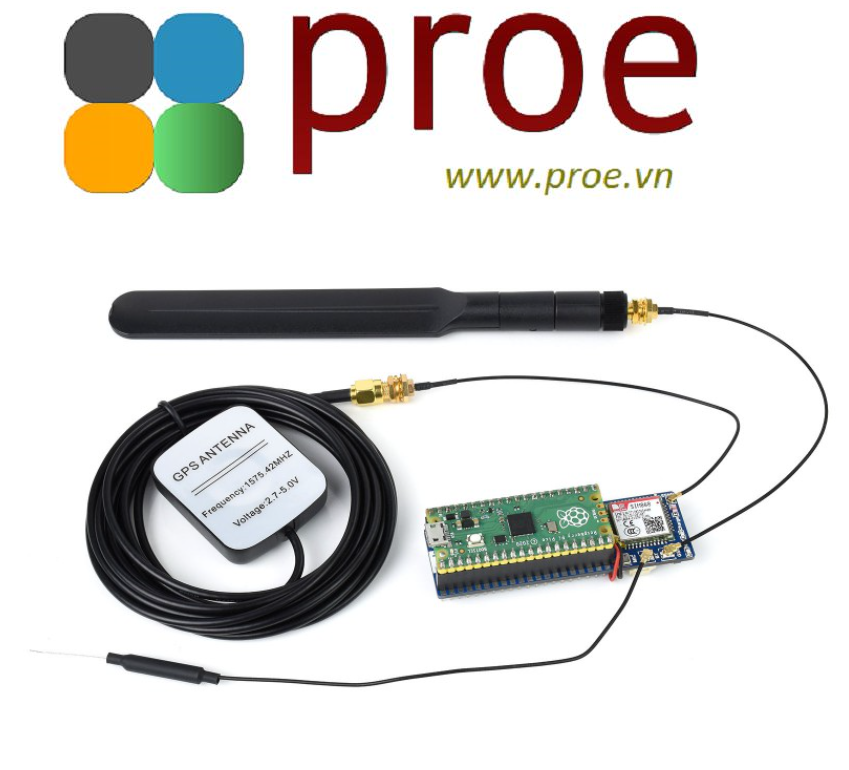

Connecting With Other Expansion Module And Antenna

Raspberry Pi Pico is NOT included.
The pin headers are NOT soldered by default.

Cloud Communication

Supports Communication Protocols Including: TCP/UDP/HTTP/SSL/FTP/POP3/SMTP/MQTT

GNSS Positioning

GNSS Support Including GPS, GLONASS, BeiDou

Phone Call / SMS / MMS / Email Support

Onboard Microphone, Together With Speaker Header, For Making Phone Call
Supports Sending SMS, MMS, And Email Via AT Commands

Bluetooth3.0 And BLE Support

Allows Bluetooth Wireless Communication With Bluetooth3.0 Devices

Pinout Definition

Outline Dimensions

Resources & Services

Wiki: Pico-SIM868-GSM/GPRS/GNSS
