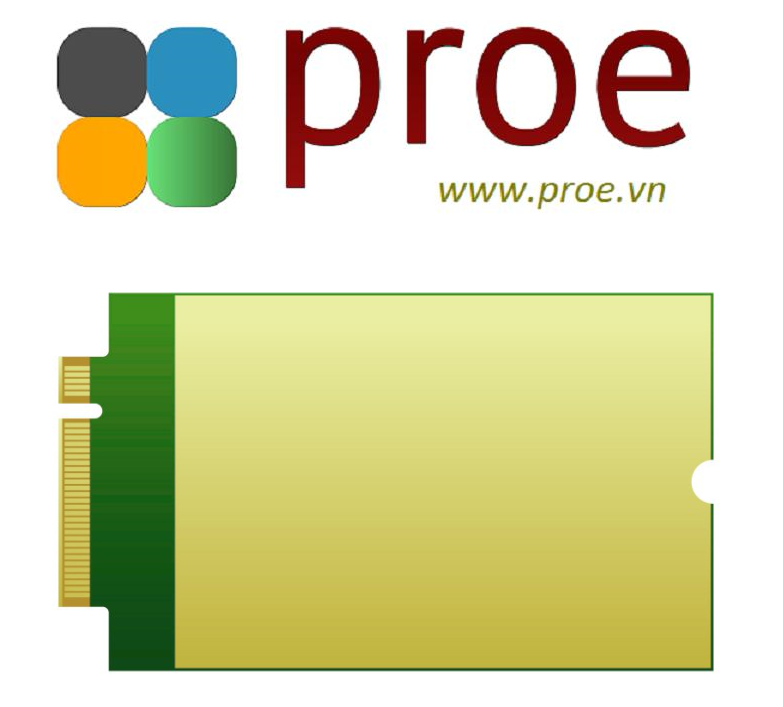

SIM8200EA-M2 SIM8200-M2 SIMCom Original 5G Module, M.2 Form Factor, High Throughput Data Communication

  • Mã sản phẩm: SIM8200EA-M2
  • Nhà sản xuất: SIMCOM
  • Website hỗ trợ: https://www.proe.vn
8.500.000₫

SIM8200-M2 SIMCom Original 5G Module, M.2 Form Factor, High Throughput Data Communication

SIM8200-M2 SERIES

5G Module

The SIM8200-M2 series is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R15 5G NSA/SA up to 4Gbps data transfer.

It has strong extension capability with rich interfaces including  UART,PCIe,USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's application.

The SIM8200-M2 series adopts M.2 form factor, TYPE 3052-S3-B. AT commands of SIM8200-M2 series are compatible with SIM7912G/SIM8300G-M2 series modules. This also minimizes the investments of customers, and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.



Product Advantages

  • Standard M.2 interface.
  • High throughput data communication.
  • AT commands of  the SIM8200-M2 series are compatible with SIM7912G/SIM8300G-M2 series modules

Specifications

PRODUCT SIM8200EA-M2
FREQUENCY BAND
Sub-6G n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n40, n41, n66, n71, n77, n78, n79
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B66/B71
LTE-TDD B34/B38/B39/B40/B41/B42/B48
WCDMA B1/B2/B3/B4/B5/B8
GNSS GPS, GLONASS, Beidou, Galileo, and QZSS
DATA RATE
Sub-6G 4 Gbps (DL)  /  500 Mbps (UL)
LTE 2 Gbps (DL)  /  200 Mbps (UL)
HSPA 42 Mbps (DL)  /  5.76 Mbps (UL)
SOFTWARE FUNCTIONS
Operating systems Windows/Linux/Android
Communication protocols TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0
SMS Supports MT, MO, CB, Text, PDU
Firmware upgrade Supports firmware upgrade via USB port
HARDWARE INFO
SIM card 1.8V/3.0V
Antenna connector 6x IPEX-4 connector, for 3G/4G/5G/GNSS
Power supply 5V 3A
Form factor M.2
Dimensions 52.0 × 30.0 × 2.3mm
Operating temperature -30℃ ~ +70℃
APPLICATIONS
Applicable regions China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc.
Application examples CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security
