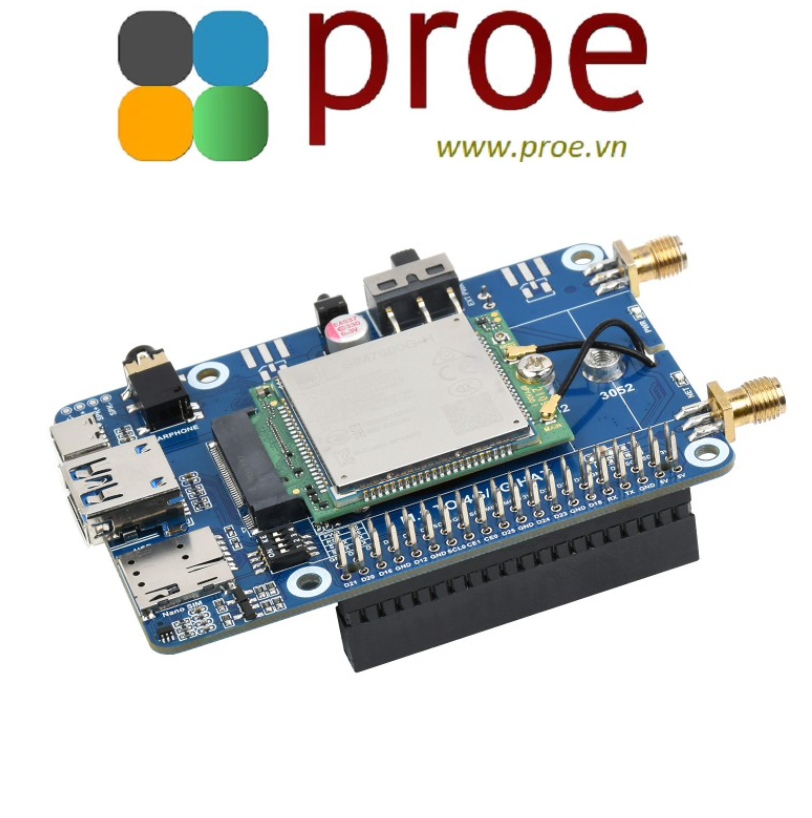

SIM7600G-H M.2 4G HAT for Raspberry Pi, LTE CAT4 High Speed, 4G/3G/2G, GNSS, Global Band

PACKAGE CONTENT

Weight: 0.215 kg

1. M.2 TO 4G/5G HAT x1
2. SIM7600G-H-M.2 x1
3. Antenna 2pcs x1
4. IPEX adapter cable 2pcs x1
5. 2*20PIN pin header x1
6. Passive GPS antenna x1
7. Dual plug USB3.0 cable x1
8. USB3.0 adapter x1
9. USB2.0 adapter x1
10. SMA protective cap 2pcs x1
11. Screws pack x1

SIM7600G-H M.2 4G HAT For Raspberry Pi, LTE CAT4 High Speed, Global Coverage Multi Band, 4G/3G/2G Compatible, GNSS

SIM7600G-H M.2 4G HAT FOR RASPBERRY PI

4G/3G/2G communication and GNSS positioning, global band

Features At A Glance

This is a 4G/3G/2G Raspberry Pi communication HAT with GNSS positioning and high speed LTE CAT4 global band connection. By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable 4G high speed networking, cloud platform communication, phone call/SMS, and global GNSS positioning functions.

• Supports dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
• GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station
• USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 4G communication
• Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
• Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
• Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
• Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
• Onboard audio jack and audio decoder, allows audio operation like making phone call
• High efficiency power supply circuit, up to 3A output current

Module Specifications

Global Band 4G/3G/2G Support

LTE Cat-4: Up To 150Mbps (Downlink) / 50Mbps (Uplink)
3G (HSPA+): Up To 42Mbps (Downlink) / 5.76Mbps (Uplink)
2G (GPRS/EDGE): Up To 236.8Kbps (Downlink) / 236.8Kbps (Uplink)

Multi System Support, Easy To Use

Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...

Just plug it into USB port, go through some simple configuration, the high speed 4G network connection will be ready to use

Connection Examples

For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter

connecting with Raspberry Pi 4B

connecting with Raspberry Pi 3B+

connecting with CM4 IO Base

Cloud Communication

Supported Communication Protocols: TCP, UDP, FTP, FTPS, HTTP, HTTPS...

GNSS Positioning

Supports GPS, Beidou, Glonass, Galileo, QZSS, And LBS Base Station Positioning

Phone Call & SMS Support

Allows Using AT Commands To Make Phone Call Or Send SMS

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs

* for reference only, please check the Package Content section for exact part list.

High Speed Cooling Fan

Better Heat Dissipation For Both Raspberry Pi And The 4G Module

Standard M.2 B KEY Slot

Compatible With SIM7600X-M.2, SIM7906X-M.2, A7906X-M.2 Series Modules

SIM7600X-M.2

SIM7906X-M.2

A7906X-M.2

Outline Dimensions

Resources & Services

Wiki: SIM7600G-H-M2_4G_HAT
