SIM7600E LTE Cat-1 HAT for Raspberry Pi, 3G / 2G / GNSS as well, for Southeast Asia, West Asia, Europe, Africa

  • Mã sản phẩm: SIM7600E LTE Cat-1 HAT
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
1.400.000₫
DESCRIPTION


SIM7600E LTE Cat-1 HAT For Raspberry Pi, Supports 3G / 2G, And GNSS Positioning As Well

For different regions, we provide multiple 4G HATs to choose from:

Please check the supported bands according to your local service provider, select the proper one when placing order.

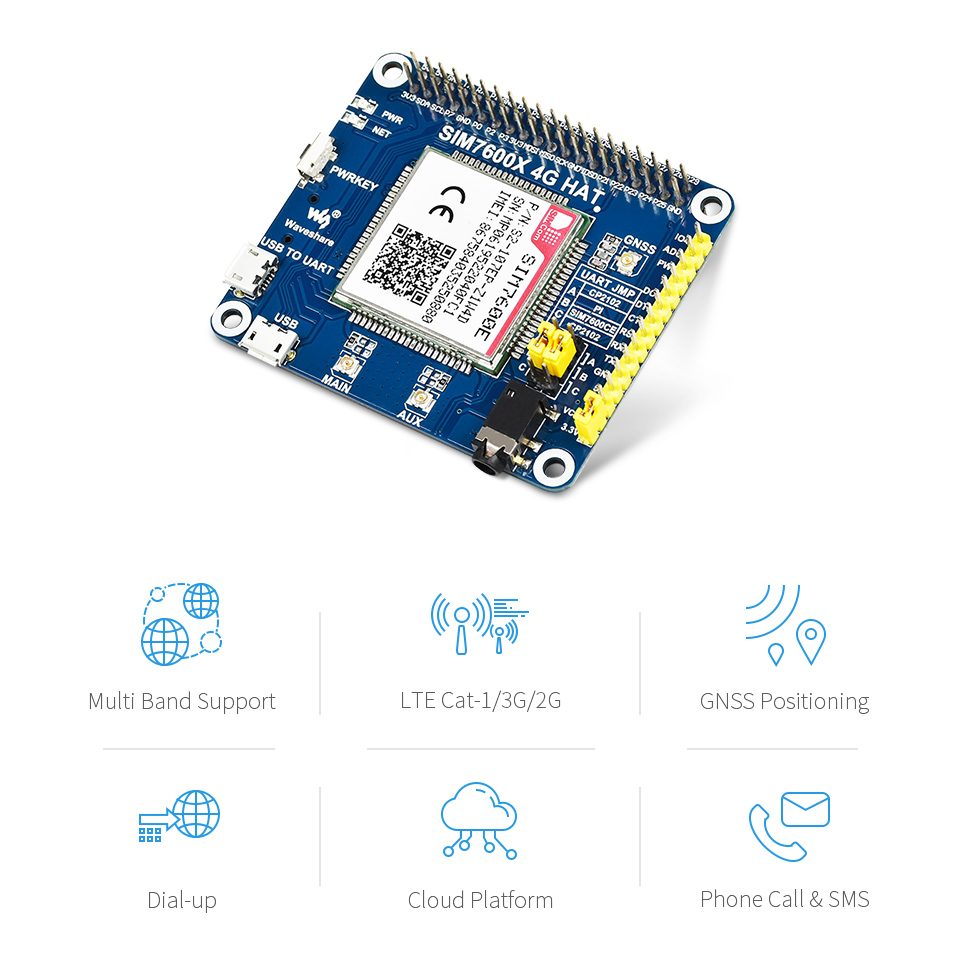

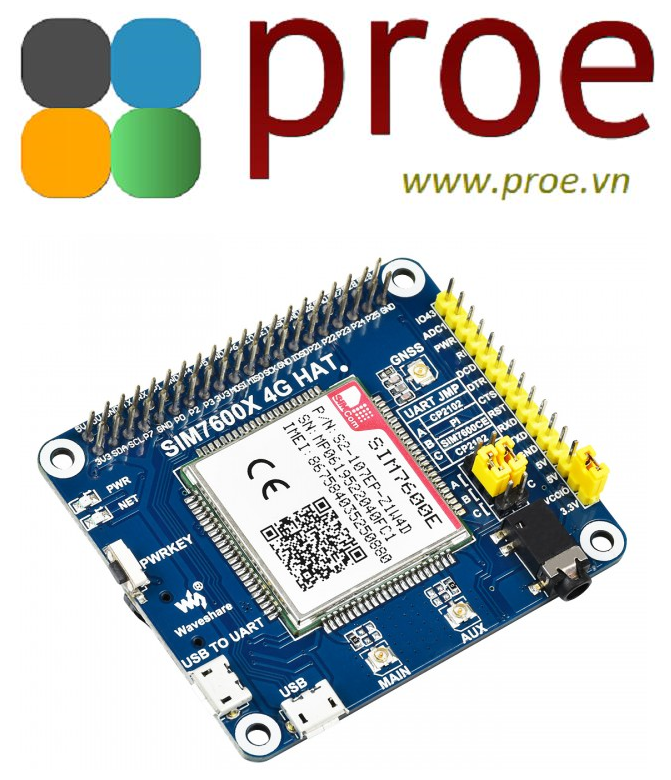

LTE CAT-1 HAT FOR RASPBERRY PI

Enabling LTE Cat-1/3G/2G Communication & GNSS Positioning

Based on SIM7600E



Features At A Glance

  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, LBS base station positioning
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Onboard CP2102 USB to UART converter, for serial debugging
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • TF card slot for storing data like files, messages, etc.
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the working status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

Specifications

LTE CAT-1/3G/2G
LTE Cat-1 LTE-TDD: B38 / B40 / B41
LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20
3G UMTS / HSPA +: B1 / B5 / B8
2G GSM / GPRS / EDGE: 900 / 1800 MHz
GNSS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / -159dBm (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS AND AUDIO
SMS Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio feature Supports echo cancellation
Supports noise reduction
OTHER
Power supply 5V
Operating voltage 5V / 3.3V (configured via jumper)
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C
Dimensions 56.21mm × 65.15mm

Standard Raspberry Pi 40PIN GPIO

Compatible With Raspberry Pi Series Boards, Jetson Nano



Dial-Up On Windows/Linux

LTE Cat-1: Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink) *
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS

GNSS Positioning

Supports GPS, BeiDou, Glonass, LBS Base Station Positioning

Telephoto Call & SMS Support

Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack

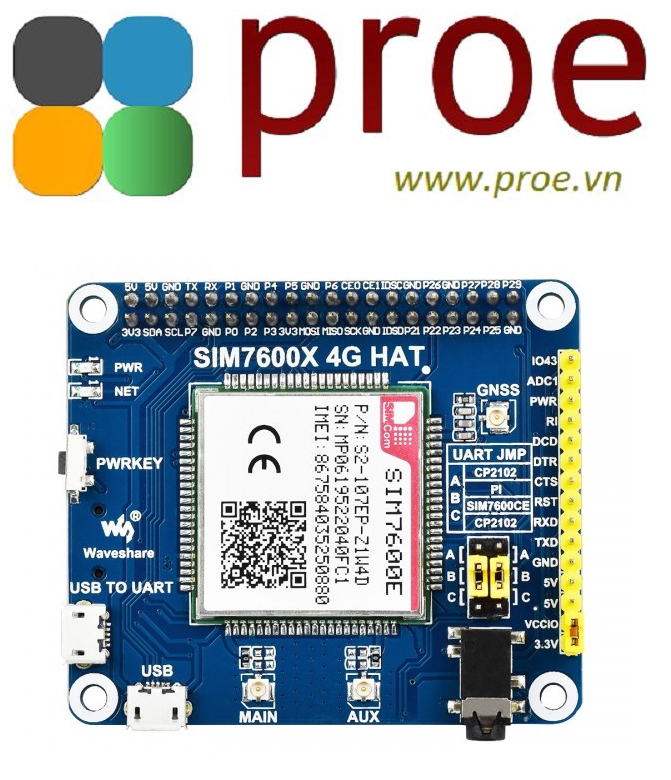

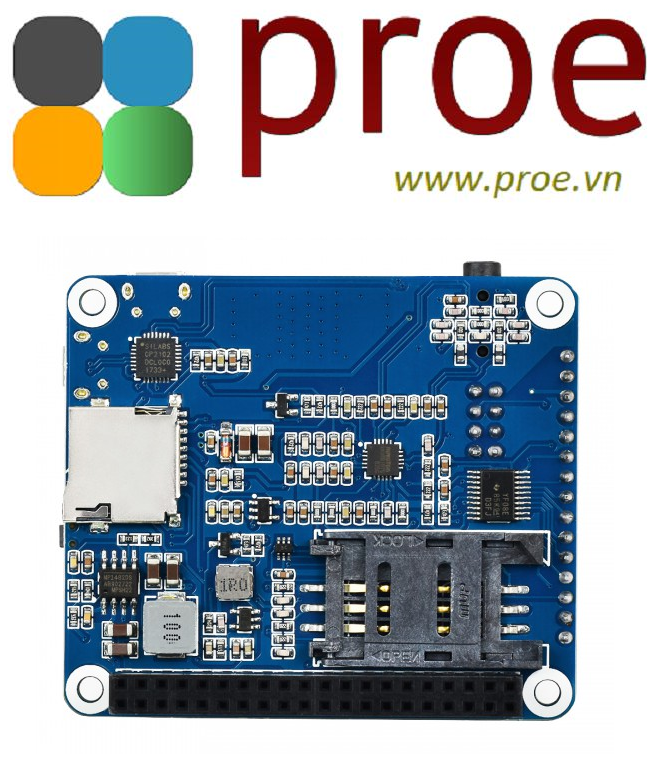

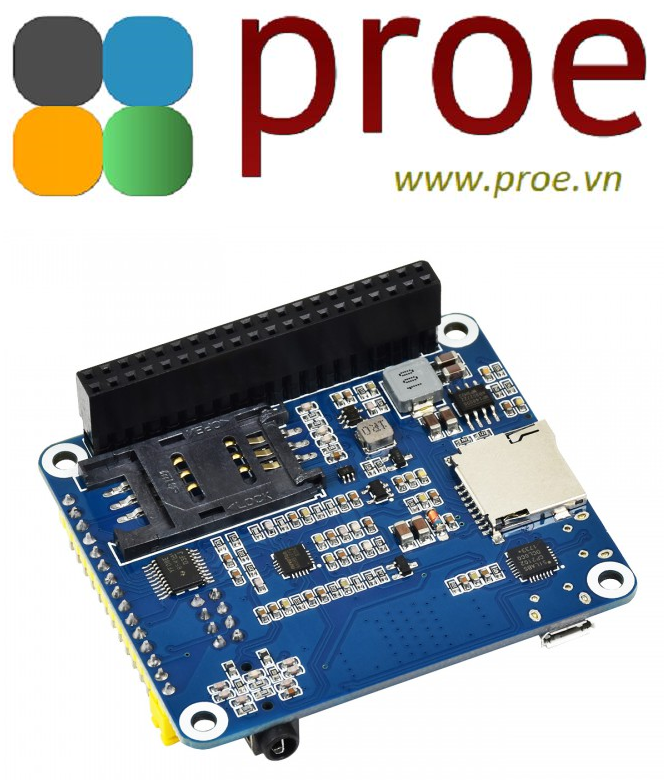

What's On Board

  1. SIM7600E
  2. CP2102 USB to UART converter
  3. NAU8810 audio decoder
  4. TXS0108EPWR voltage translator
    • translates 3.3V/5V into 1.8V
  5. MP2128DT power chip
  6. MP1482 power chip
  7. Raspberry Pi GPIO header
    • for connecting with Raspberry Pi
  8. SIM7600 control interface
    • for connecting with host boards like Arduino/STM32
  9. SIM card slot
    • supports 1.8V/3V SIM card
  10. TF card slot
    • for storing data like files, messages, etc.
  11. 3.5mm earphone/mic jack
    • for audio actions like making telephoto call

  1. USB interface
    • for testing AT Commands, getting GPS positioning data, etc.
  2. USB TO UART interface
    • for serial debugging, or login to Raspberry Pi
  3. MAIN antenna connector
  4. AUX antenna connector
  5. GNSS antenna connector
  6. Module power switch
  7. Network status indicator
  8. Power indicator
  9. Operating voltage selection jumper
    • VCCIO - 3.3V: set operating voltage as 3.3V
    • VCCIO - 5V: set operating voltage as 5V
  10. UART selection jumper
    • A: access Raspberry Pi via USB to UART
    • B: control the SIM7600 by Raspberry Pi
    • C: control the SIM7600 via USB to UART

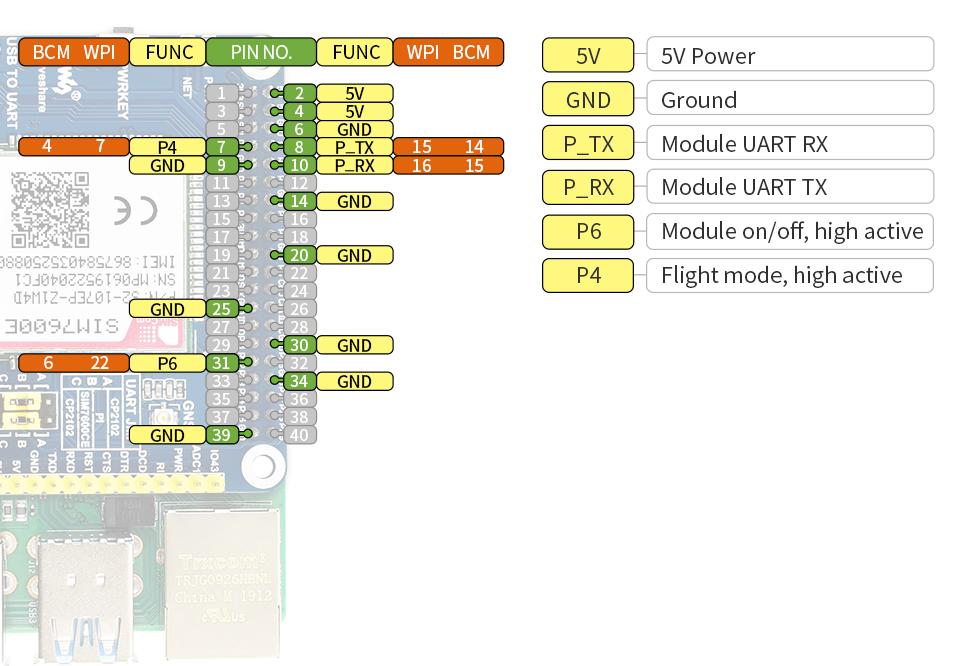

Pinout Definition

Outline Dimensions

Resources & Services


WIKI: www.waveshare.com/wiki/SIM7600E_LTE_Cat-1_HAT

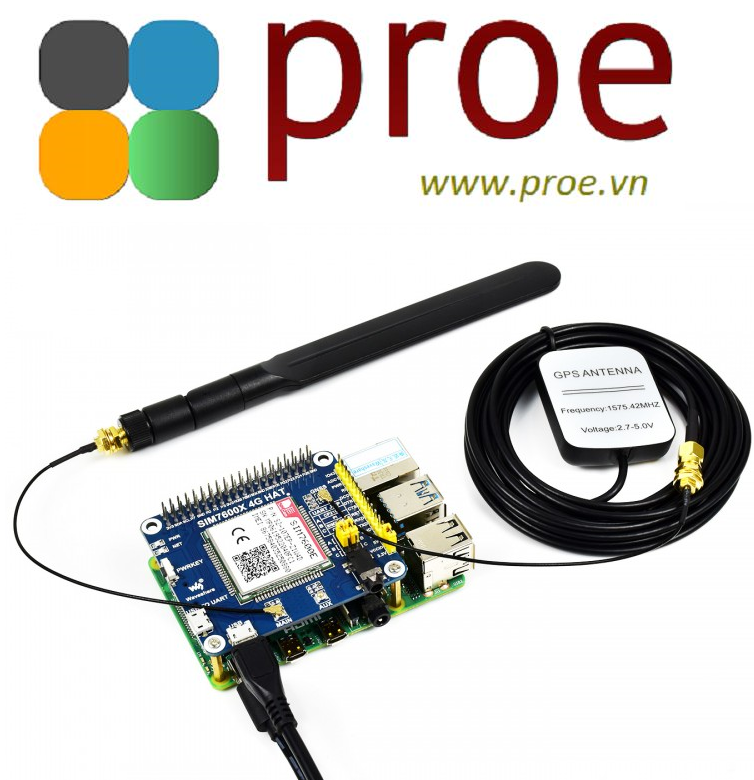

PACKAGE CONTENT

Weight: 0.25 kg

  1. SIM7600E LTE Cat-1 HAT x1
  2. LTE Antenna x1
  3. GPS External Antenna (B) x1
  4. USB-A to Micro-B cable x2
  5. RPi screws pack (2pcs) x1

1

2

3

4

5
