SIM7600CE-T 4G(LTE) Shield for Arduino

NTRODUCTION

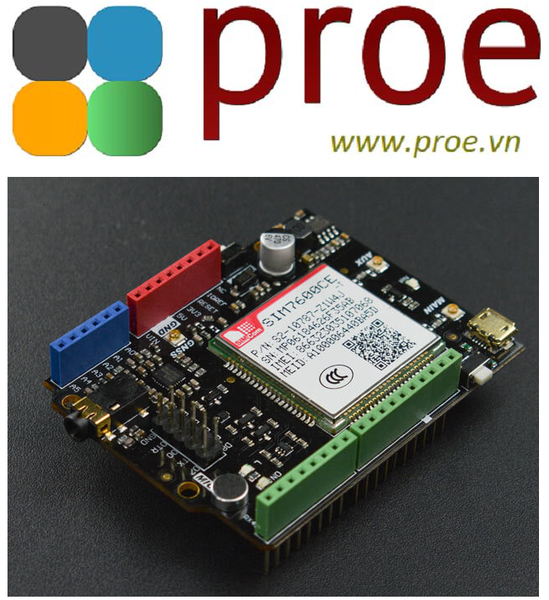

SIM7600CE-T 4G(LTE) Shield is a 4G/3G/2G communication and GNSS positioning module.

This shield is as small as a credit card and compatible with controller boards like Arduino UNO, arduino Leonardo, arduino Mega etc.  The frequency bands that SIM7600CE-T 4G(LTE) Shield supports are LTE-TDD/ LTE-FDD/HSPA+/TD-SCDMA/EVDO and GSM/GPRS/EDGE. It also supports LTE-CAT4(with uplink rate 50 Mbps and downlink rate 150 Mbps).  With stable performance, this small cost-effective expansion shield can realize SMS and data transmission in a pretty low power consumption. Besides, it adopts the latest SIM7600CE module. Compared with other GSM/GPRS/GPS modules on the market, this module is well advanced in stable performance and powerful function such as 4G communication and accurate GNSS positioning.

FEATURES

• Support Multi-frequency Communication
• GNSS Positioning
• Standard Arduino Interface

SPECIFICATION

• USB Voltage: 5V
• Operating Voltage: 5V
• Input Voltage: VIN(7-23V)/USB(5V)
• Support Network:
• TDD-LTE B38/B39/B40/B41
• FDD-LTE B1/B3/B8
• TD-SCDMA B34/B39
• WCDMA/HSDPA/HSPA+ B1/B8
• CDMA 1X/EVDO BC0
• GSM/GPRS/EDGE 900/1800 MHz
• 4G Communication Rate: uplink rate 50 Mbps, downlink rate 150 Mbps
• Support AT Command Control:
• 3GPP TS 27.007,27.005 and SIM7500_SIM7600 Series_AT Command
• Support GNSS Positioning
• Support Low Power Consumption: 20mA@7V-Flight Mode
• Support LED Status Display: display the power supply status, network connection and operating mode
• Operating Temperature: -40℃ ~85℃

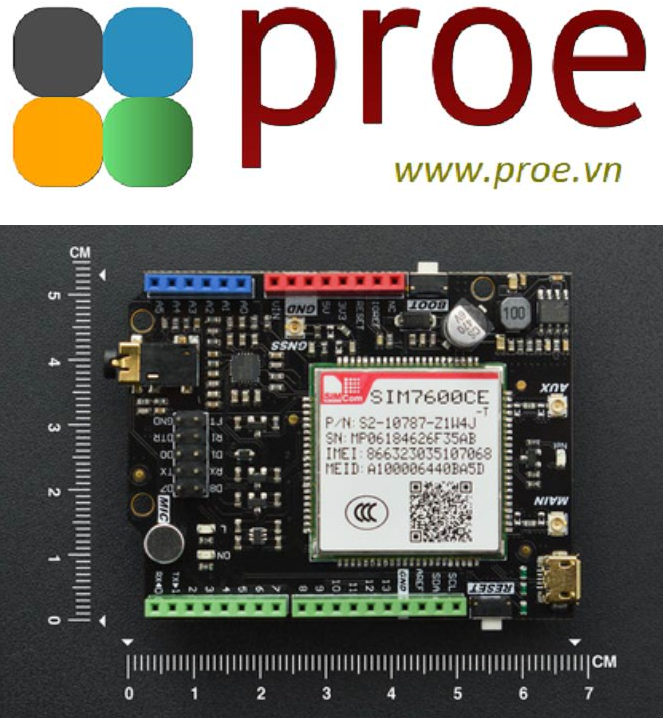

• Size: 69*54mm/2.72*2.13inch

DOCUMENTS

• Product wiki

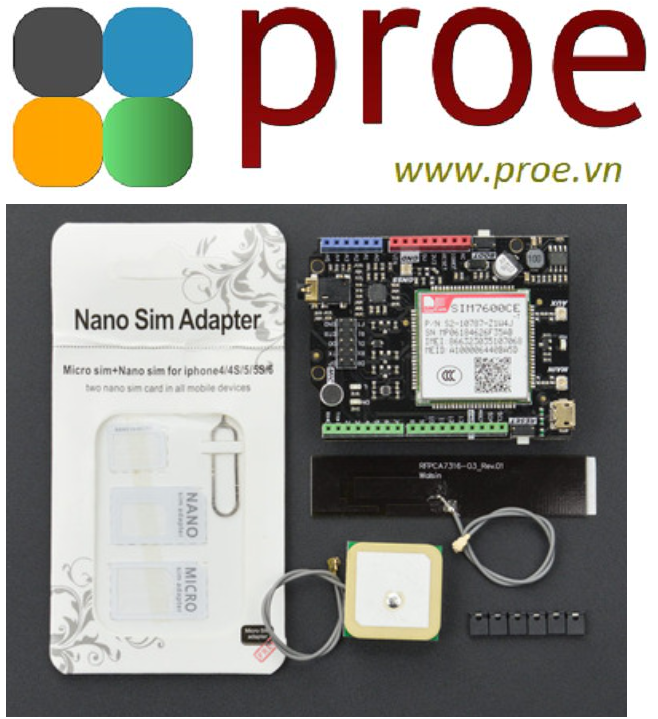

SHIPPING LIST

• SIM7600CE-T 4G(LTE) Shield(V1.0)            x1
• GPS Antenna                                          x1
• 4G LTF Antenna                                       x1
