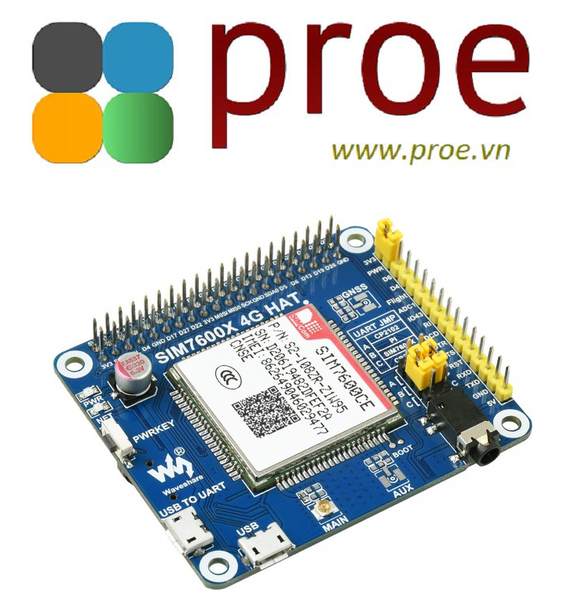

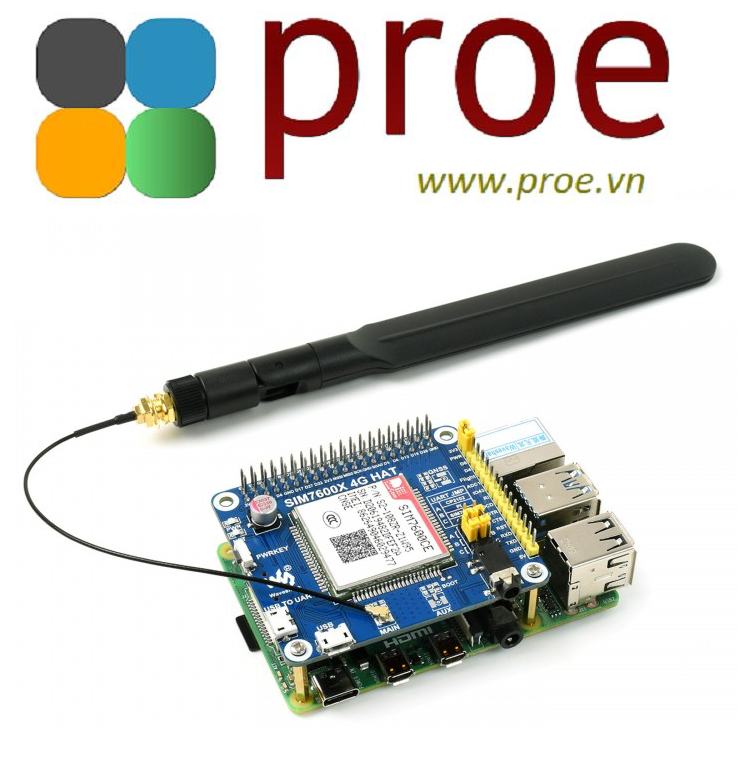

SIM7600CE-CNSE 4G HAT SIM7600CE-CNSE 4G HAT for Raspberry Pi, 4G / 3G / 2G, for China

  • Mã sản phẩm: SIM7600CE-CNSE 4G HAT
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
1.250.000₫

SIM7600CE-CNSE 4G HAT For Raspberry Pi, Supports 4G / 3G / 2G Communication, Also LBS Positioning

For different regions, we provide multiple LTE Cat-4/Cat-1 HATs to choose from:

  • SIM7600A-H 4G HAT: mainly applicable in North America (US, CA)
  • SIM7600E-H 4G HAT, SIM7600E LTE Cat-1 HAT: mainly applicable in Europe, Southeast Asia, West Asia, Africa, China, North Korea
  • SIM7600SA-H 4G HAT: mainly applicable in Australia, New Zealand, Taiwan, Latin America
  • SIM7600CE 4G HAT, SIM7600CE-CNSE 4G HAT: mainly applicable in China, and some Southeast Asia countries
  • SIM7600G-H 4G HAT: the global version

Please check the supported bands according to your local service provider, select the proper one when placing order.

4G HAT FOR RASPBERRY PI

Enabling 4G / 3G / 2G Communication & LBS Positioning

Based on SIM7600CE-CNSE



Features At A Glance

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports LBS base station positioning
  • Onboard USB interface, for testing AT Commands, establishing network connection, and so on
  • Onboard CP2102 USB to UART converter, for serial debugging
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • TF card slot for storing data like files, messages, etc.
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the working status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

FREQUENCY BAND
LTE Cat-4 LTE-FDD: B1/B3/B5/B8
LTE-TDD: B38/B39/B40/B41
3G UMTS/HSDPA/HSPA+: B1/B8
2G GSM/GPRS/EDGE: 900/1800 MHz
SMS AND AUDIO
SMS Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio feature Supports echo cancellation
Supports noise reduction
OTHERS
Power supply 5V
Operating voltage 5V / 3.3V (configured via jumper)
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C
Dimensions 56.01mm × 65.00mm

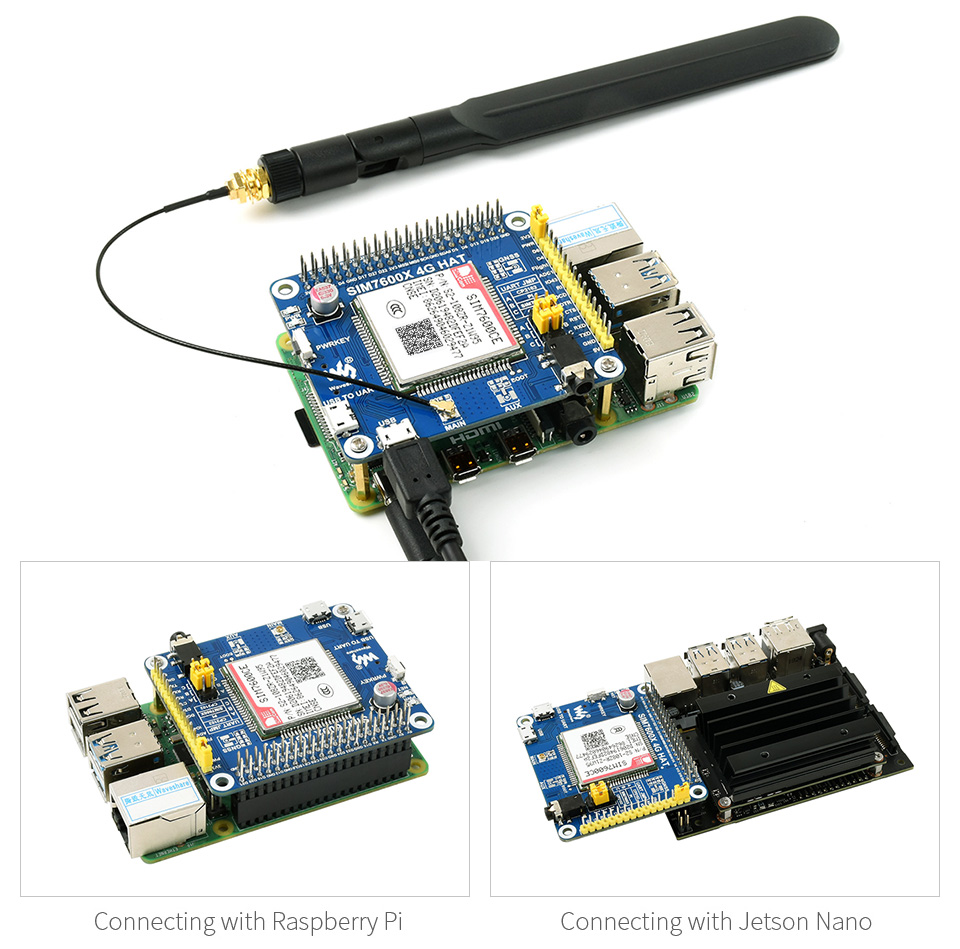

Standard Raspberry Pi 40PIN GPIO

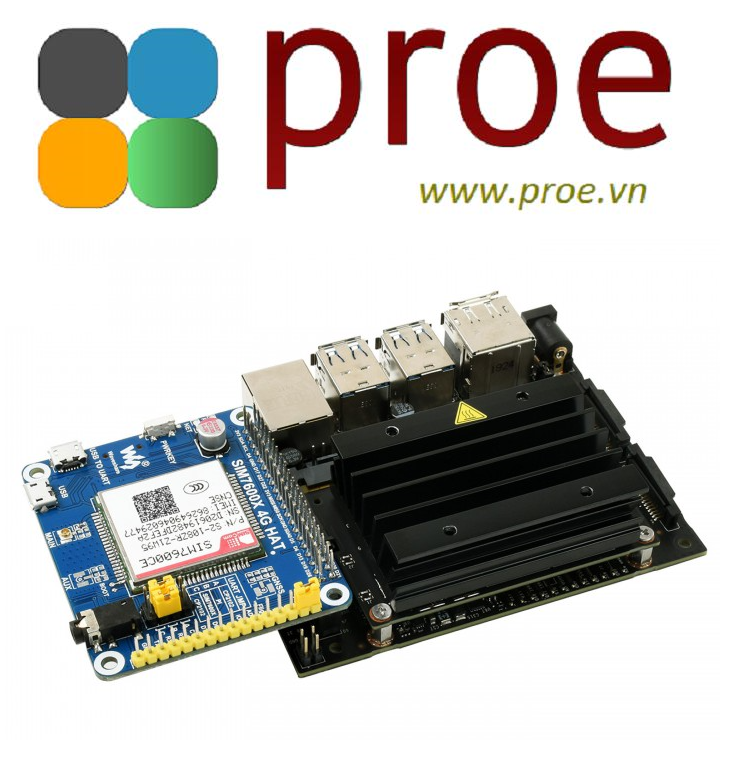

Compatible With Raspberry Pi Series Boards, Jetson Nano

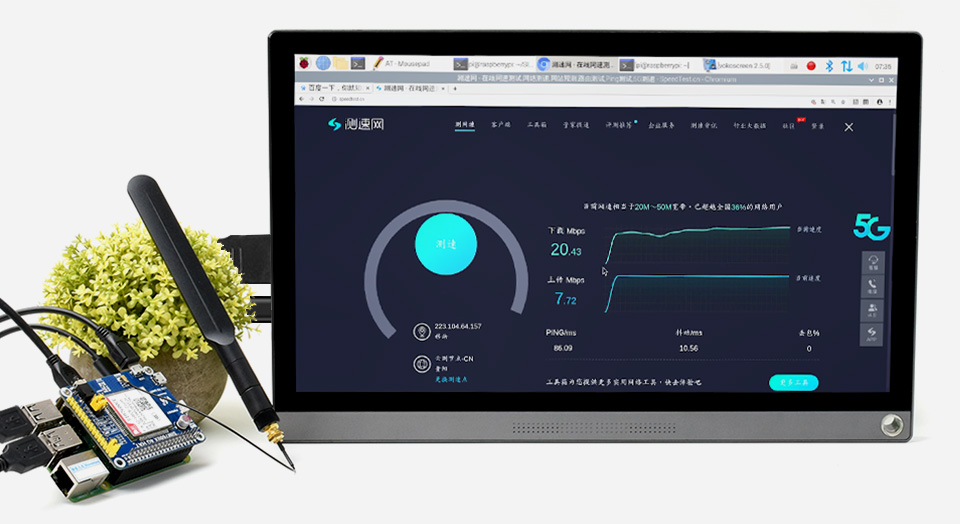

Dial-Up On Windows/Linux

LTE Cat-4: Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink) *
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS

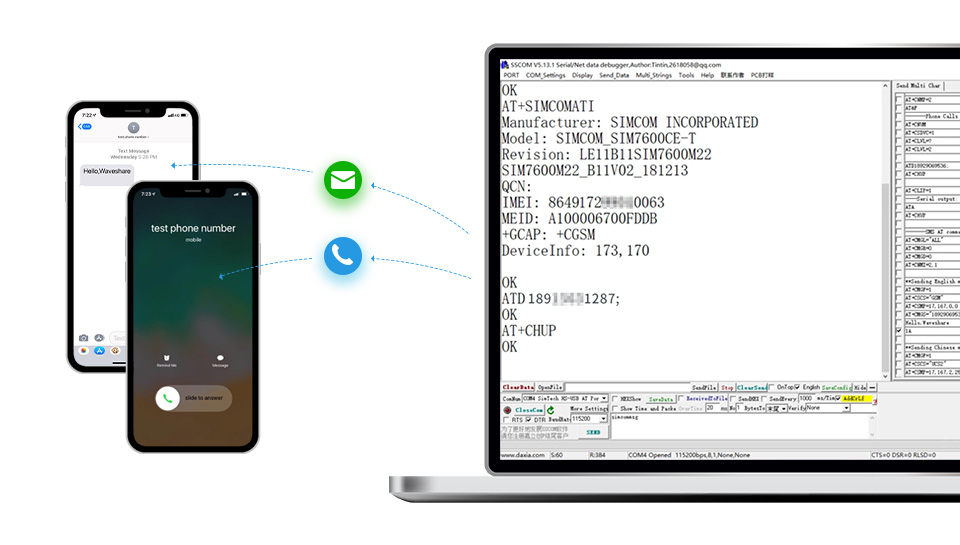

Telephoto Call & SMS Support

Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack

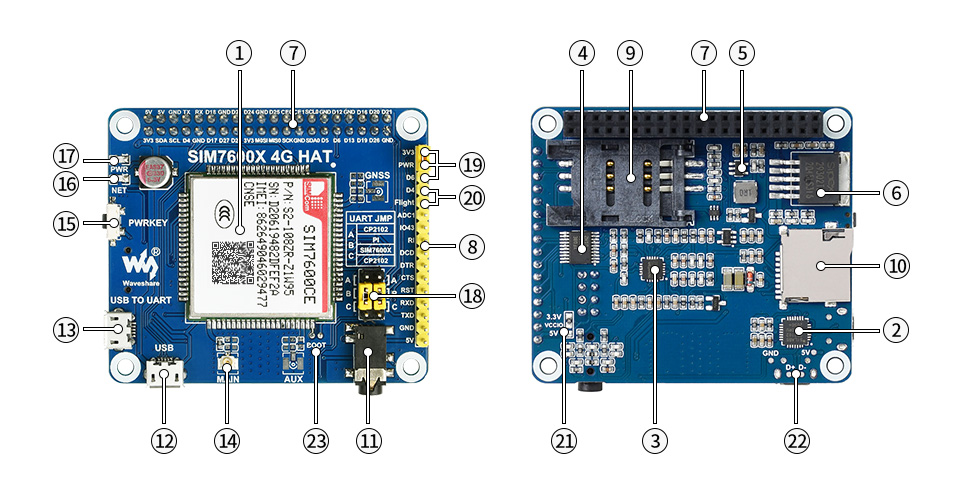

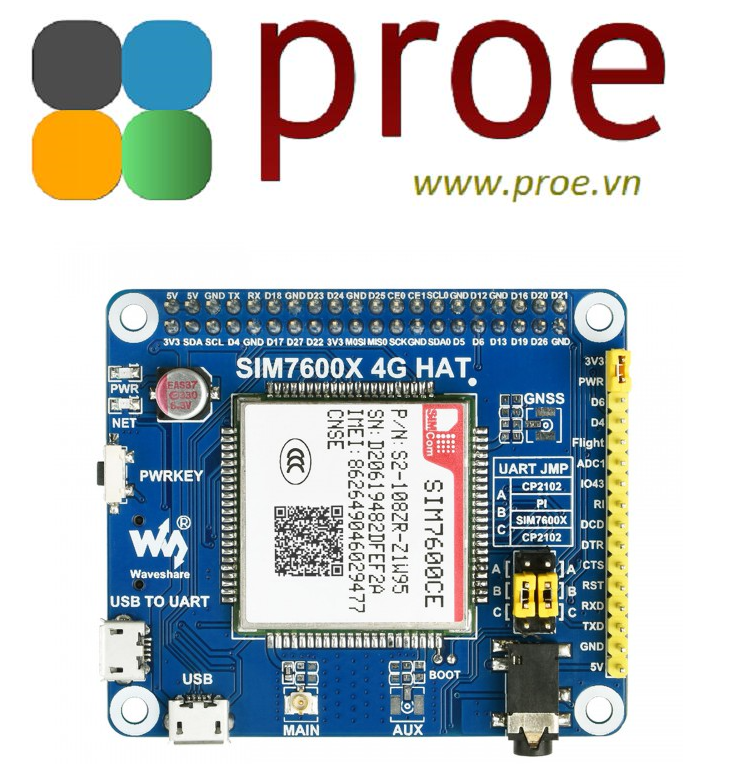

What's On Board

  1. SIM7600CE-CNSE
  2. CP2102 USB to UART converter
  3. NAU8810 audio decoder
  4. TXS0108EPWR voltage translator
    • translates 3.3V/5V into 1.8V
  5. MP2128DT power chip
  6. MP1482 power chip
  7. Raspberry Pi GPIO header
    • for connecting with Raspberry Pi
  8. SIM7600 control interface
    • for connecting with host boards like Arduino/STM32
  9. SIM card slot
    • supports 1.8V/3V SIM card
  10. TF card slot
    • for storing data like files, messages, etc.
  11. 3.5mm earphone/mic jack
    • for audio actions like making telephoto call
  12. USB interface
    • for testing AT Commands, and so on
  13. USB TO UART interface
    • for serial debugging, or login to Raspberry Pi

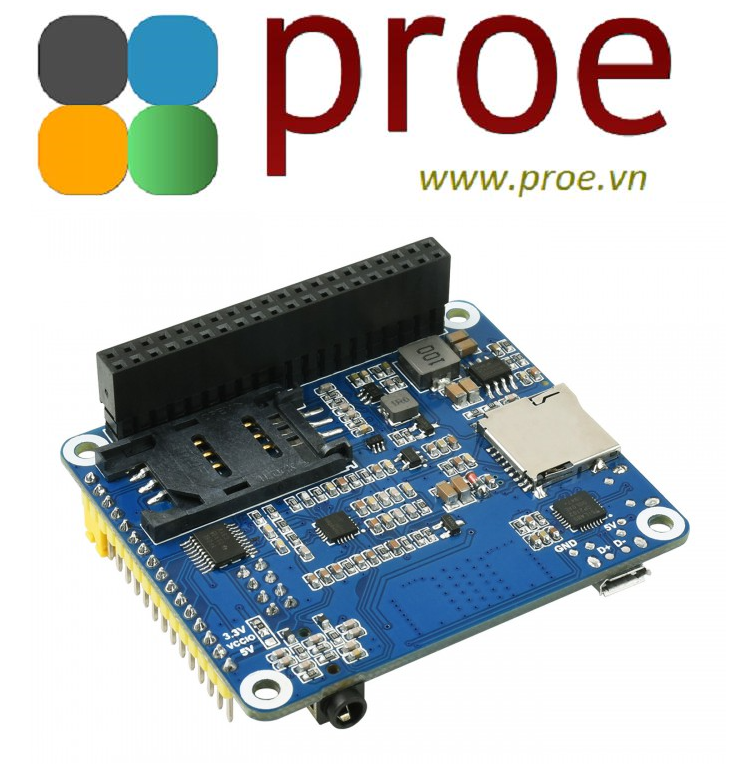

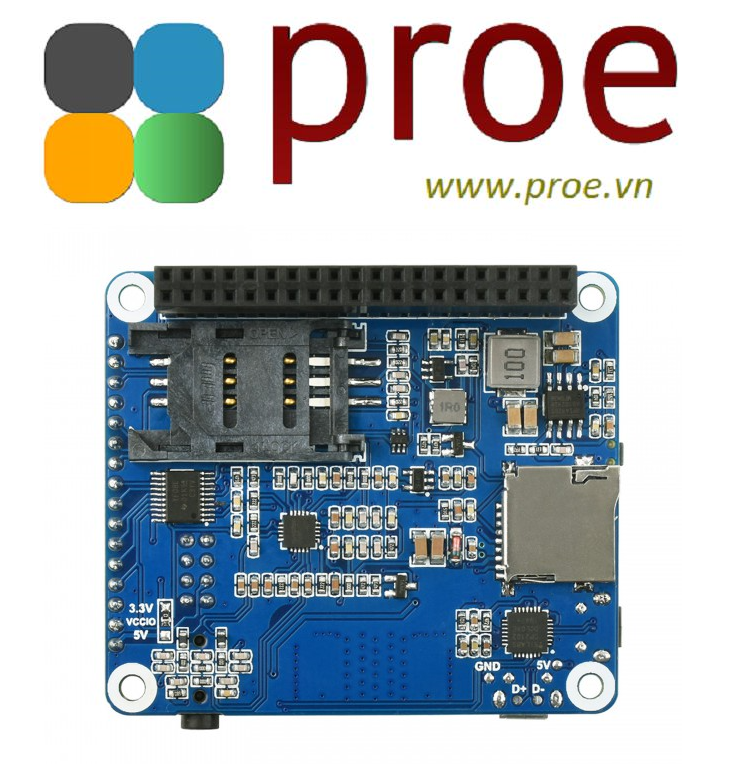

  1. MAIN antenna connector
  2. Module power switch
  3. Network status indicator
  4. Power indicator
  5. UART selection jumper
    • A: access Raspberry Pi via USB to UART
    • B: control the SIM7600 by Raspberry Pi
    • C: control the SIM7600 via USB to UART
  6. PWR selection jumper
    • PWR - 3V3: auto startup on power-up
    • PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
  7. Flight mode selection jumper
    • NC by default, no flight mode control pin
    • Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
  8. Operating voltage selection jumper
    • VCCIO - 3.3V: set operating voltage as 3.3V
    • VCCIO - 5V: set operating voltage as 5V
  9. USB connector solder pads
  10. BOOT forced programming solder pads

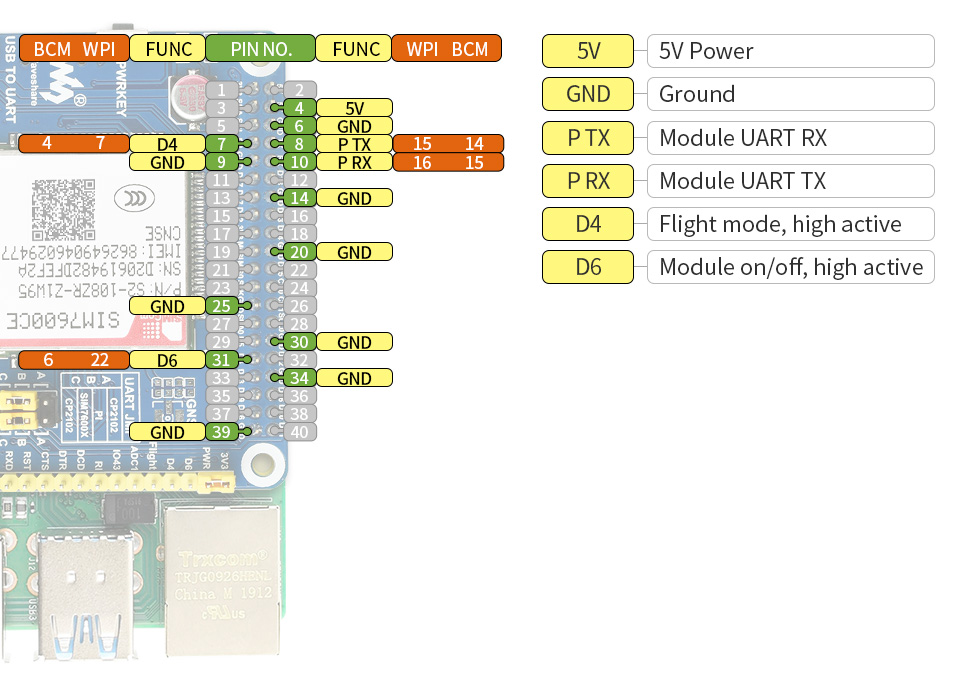

Pinout Definition

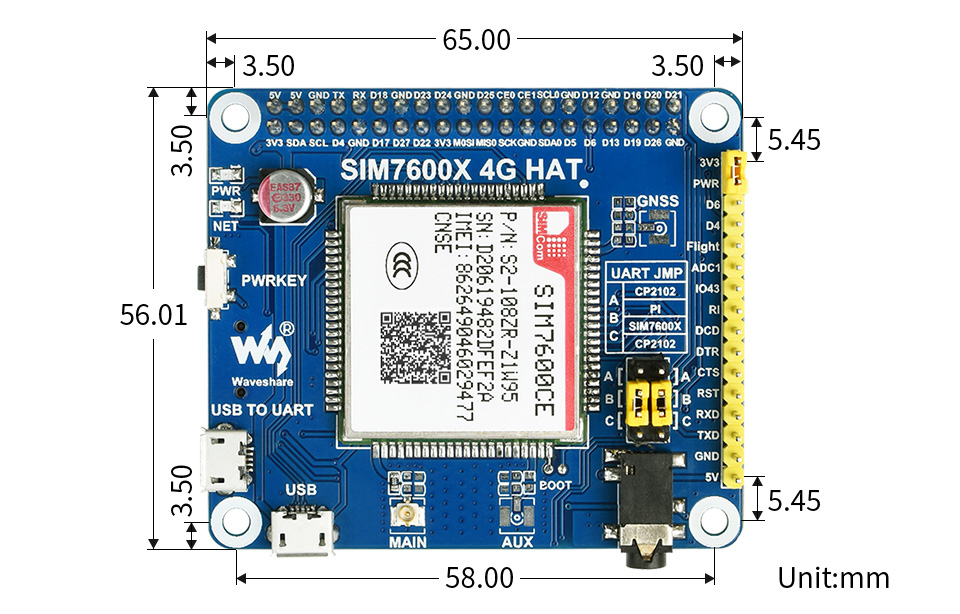

Outline Dimensions

Resources & Services


WIKI: SIM7600CE-CNSE_4G_HAT
