SIM7600CE 4G HAT for Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, for China

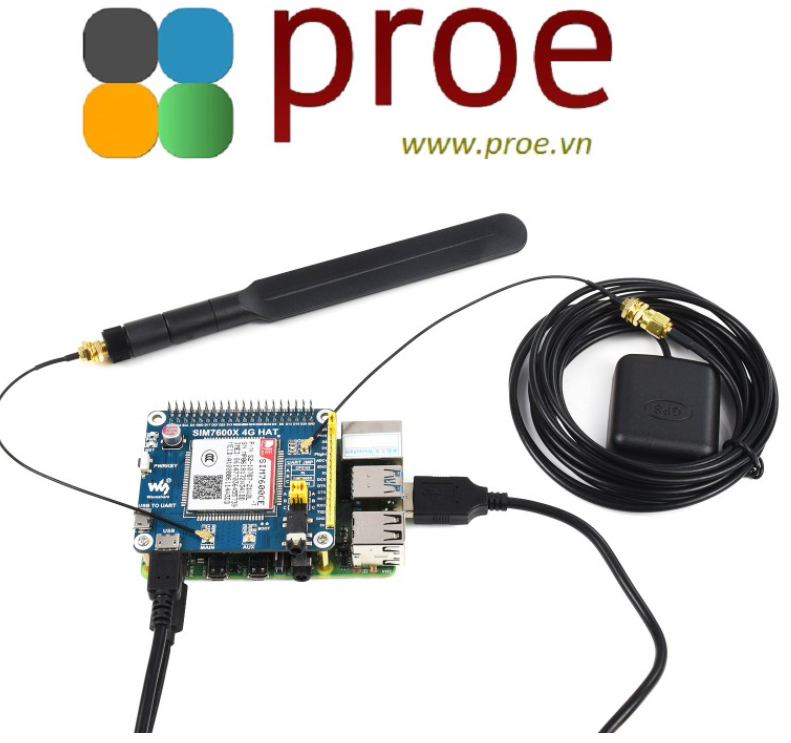

PACKAGE CONTENT

Weight: 0.191 kg

1. SIM7600CE 4G HAT x1
2. LTE Antenna x1
3. GPS External Antenna (B) x1
4. USB type A plug to micro plug cable x2
5. RPi screws pack (2pcs) x1

1

2

3

4

5

SIM7600CE 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, For China

For different regions, we provide multiple LTE Cat-4/Cat-1 HATs to choose from:

Please check the supported bands according to your local service provider, select the proper one when placing order.

4G HAT FOR RASPBERRY PI

Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning

Based on SIM7600CE-T

Features At A Glance

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Onboard CP2102 USB to UART converter, for serial debugging
• Breakout UART control pins, to connect with host boards like Arduino/STM32
• SIM card slot, supports 1.8V/3V SIM card
• TF card slot for storing data like files, messages, etc.
• Onboard audio jack and audio decoder for making telephone call
• 2x LED indicators, easy to monitor the operating status
• Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
• Baudrate: 300bps ~ 4Mbps (default: 115200bps)
• Autobauding baudrate: 9600bps ~ 115200bps
• Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Standard Raspberry Pi 40PIN GPIO

Compatible With Raspberry Pi Series Boards, Jetson Nano

Dial-Up On Windows/Linux

LTE Cat-4: Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink) *
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS

GNSS Positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS Base Station Positioning

Telephone Call & SMS Support

Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

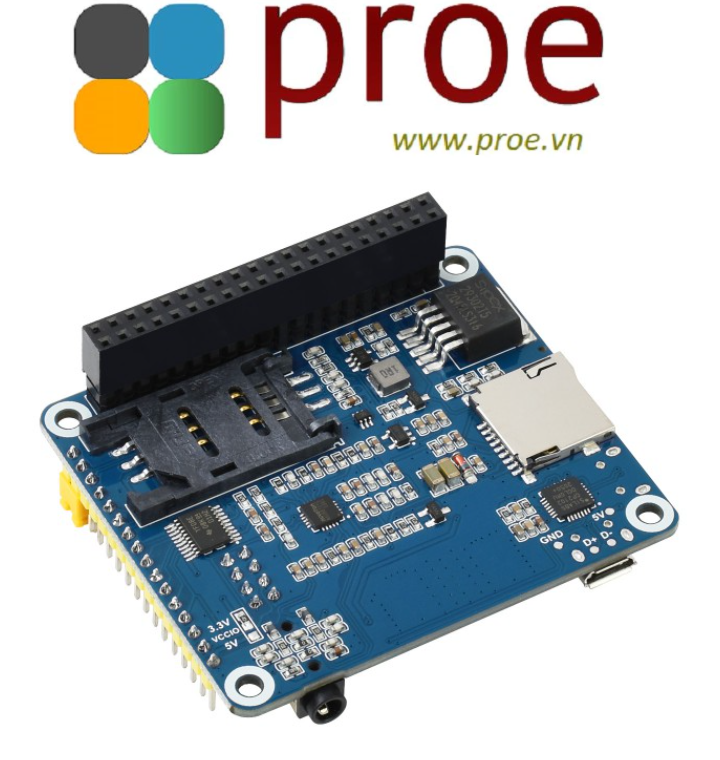

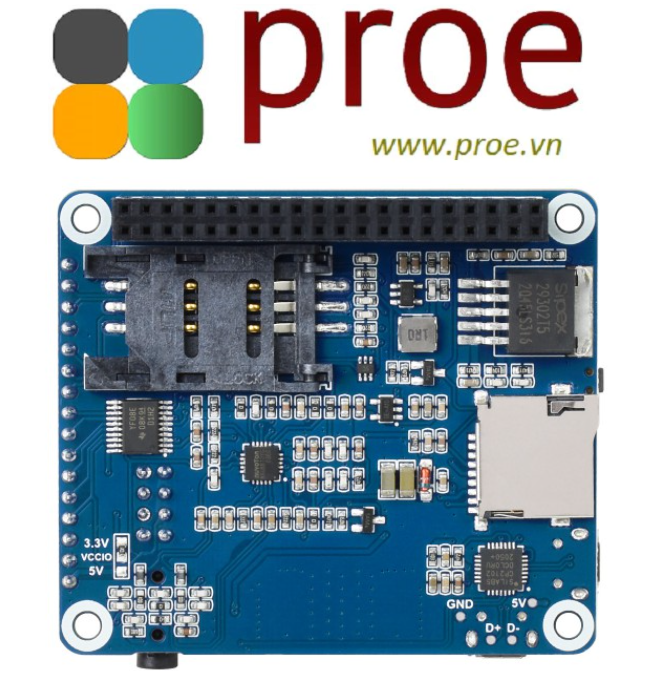

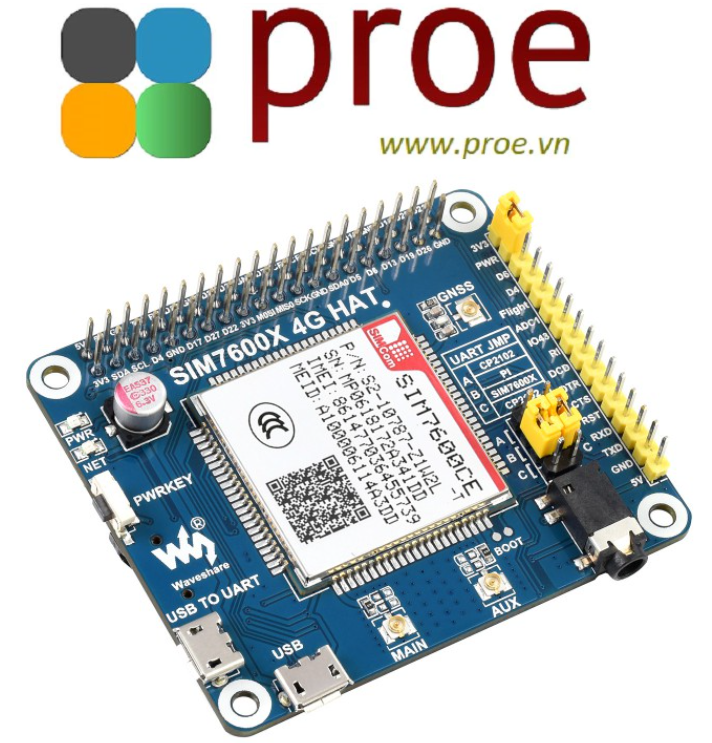

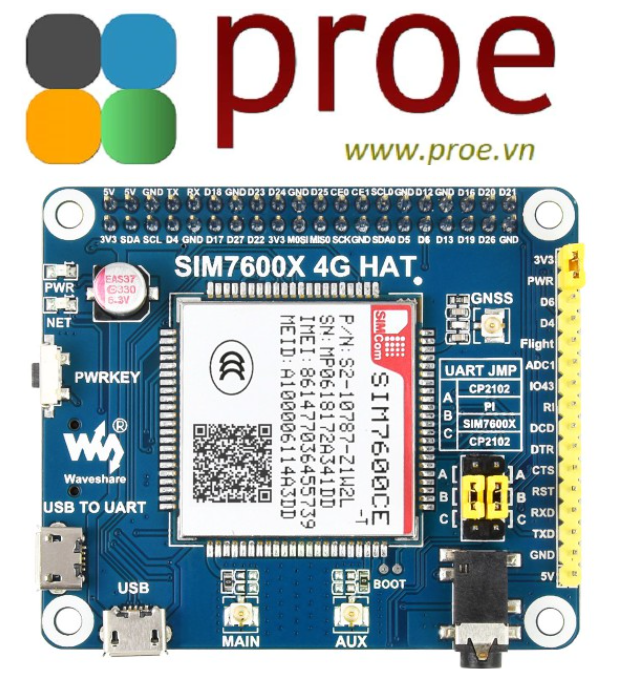

What's On Board

1. SIM7600CE-T
2. CP2102 USB to UART converter
3. NAU8810 audio decoder
4. TXS0108EPWR voltage translator
   translates 3.3V/5V into 1.8V
5. MP2128DT power chip
6. SPX29302 power chip
7. Raspberry Pi GPIO header
8. SIM7600 control interface
   for connecting with host boards like Arduino/STM32
9. SIM card slot
   supports 1.8V/3V SIM card
10. TF card slot
    allows data storage like files, messages, etc.
11. 3.5mm earphone/mic jack
12. USB interface
    for testing AT Commands, getting GPS positioning data, etc.
13. USB to UART interface
    for serial debugging, or login to Raspberry Pi

14. MAIN antenna connector
15. AUX antenna connector
16. GNSS antenna connector
17. Power switch
18. Network status indicator
19. Power indicator
20. Operating voltage selection jumper
    configured via 0Ω resistor jumper
    VCCIO - 3.3V: set operating voltage as 3.3V
    VCCIO - 5V: set operating voltage as 5V
21. UART selection jumper
    A: access Raspberry Pi via USB to UART
    B: control the SIM7600 by Raspberry Pi
    C: control the SIM7600 via USB to UART
22. PWR configuration jumper
    PWR - 3V3: auto startup on power-up (default)
    PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
23. Flight mode configuration jumper
    NC by default, no flight mode control pin
    Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
24. USB connector solder pads
25. BOOT forced programming solder pads

Pinout Definition

Outline Dimensions

Resources & Services

WIKI: SIM7600CE_4G_HAT
