RPi IR-CUT Camera (B), Better Image in Both Day and Night

PACKAGE CONTENT

Weight: 0.053 kg

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

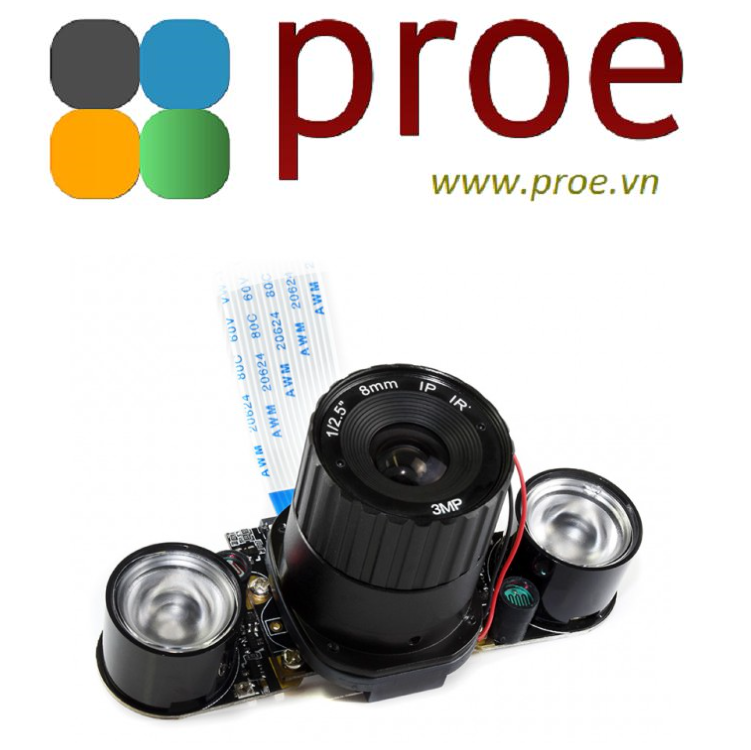

1. RPi IR-CUT Camera (B) x1
2. Infrared LED Board (B) x2
3. 15-pin FFC (opposite sides contact) x1

1+2+3

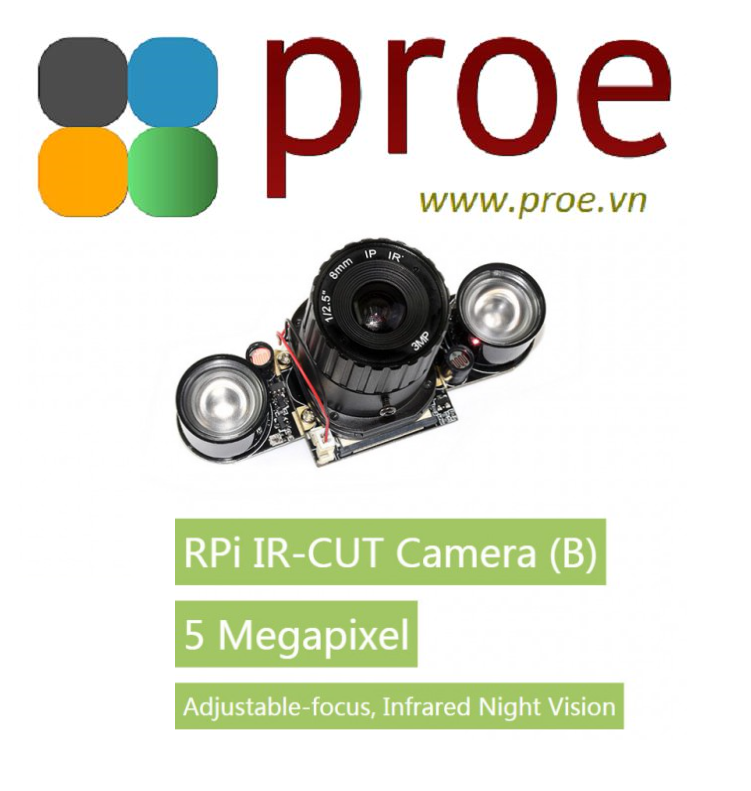

Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision, Type B

Features

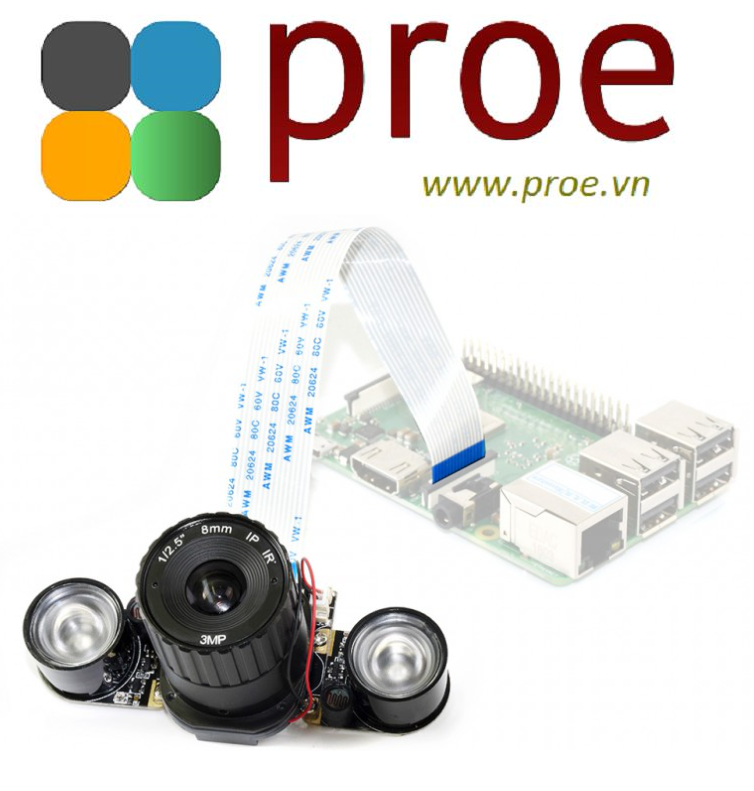

• Raspberry Pi Camera, supports all revisions of the Pi
• Embedded removable IR-CUT filter, eliminating color distortion in the daylight

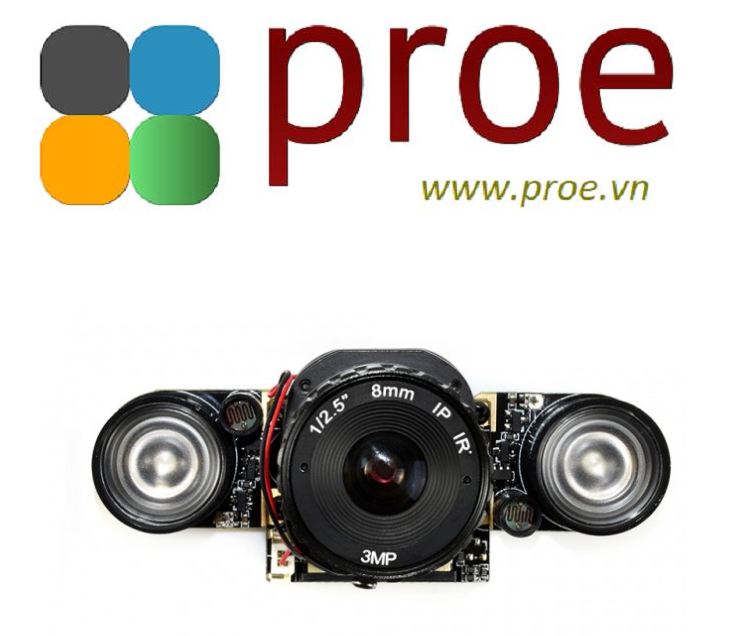

• Comes with infrared LED, supports night vision
• 5 megapixel OV5647 sensor

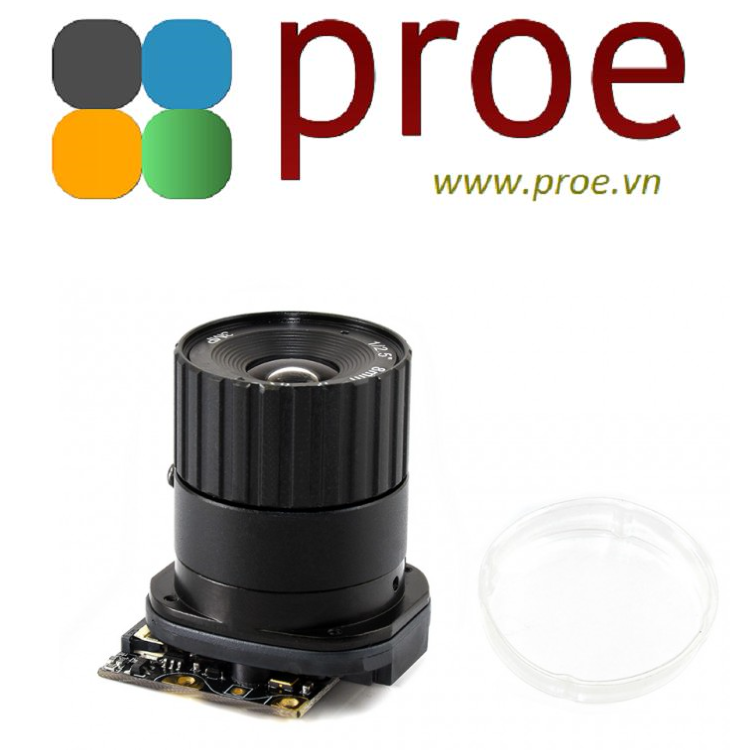

• Adjustable focus distance
• Camera specifications
  • CCD size : 1/4inch
  • Aperture (F) : 1.2
  • Focal Length : 8mm
  • Angle of View (diagonal) : 40 degree
  • Sensor best resolution : 1080p

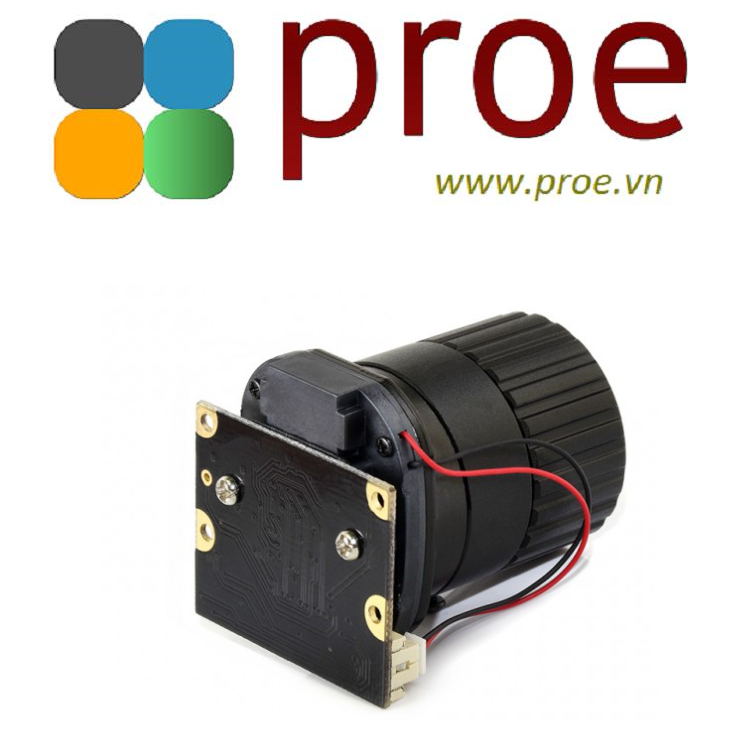

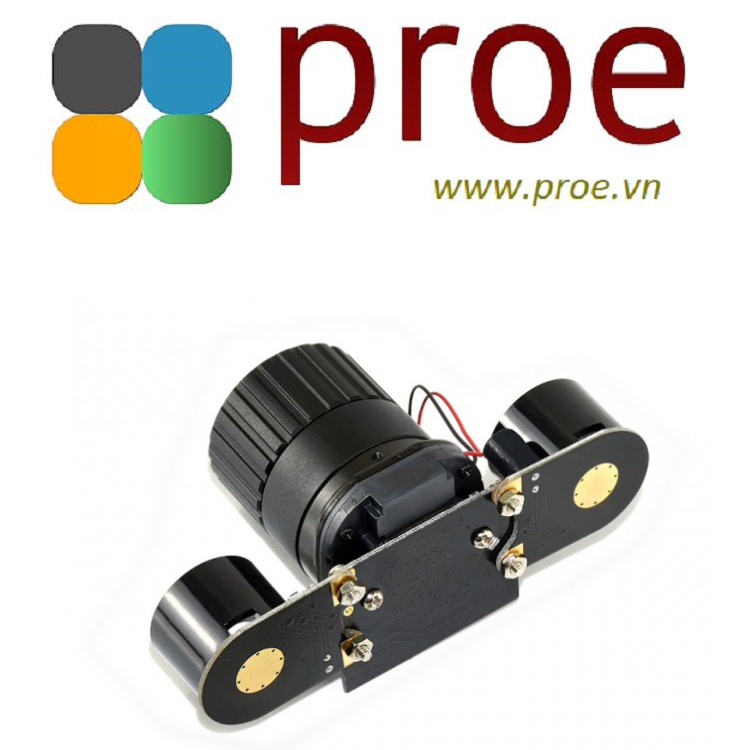

• 4 screw holes
  • Used for attachment
  • Provides 3.3V power output
  • Supports connecting infrared LED and/or fill flash LED
• Dimension: 31mm x32mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

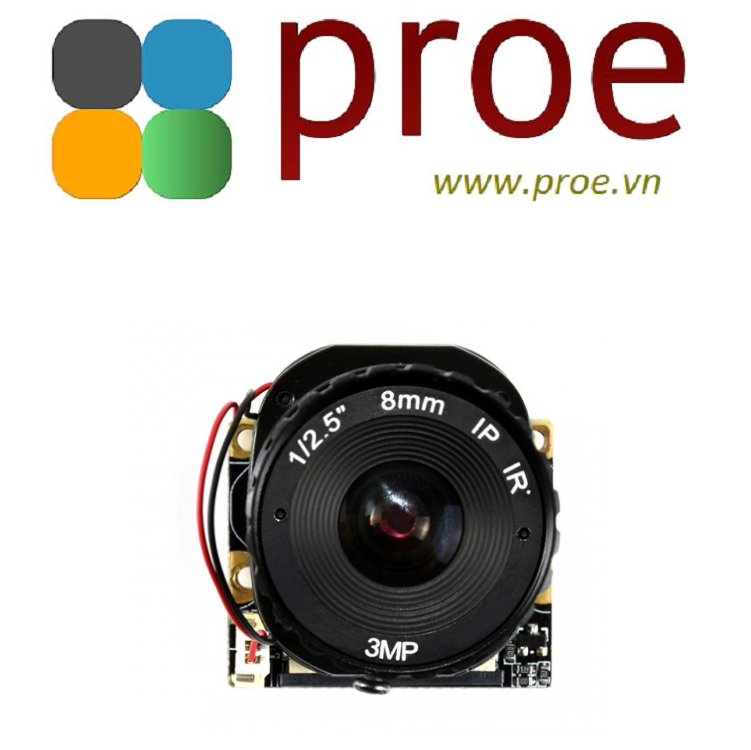

Note: the actual image pixels is 5MP, which depends on the sensor, so it doesn't matter that there is a 3MP silk mark on the camera.

Development Resources

Wiki : www.waveshare.com/wiki/RPi_IR-CUT_Camera_(B)
