Arducam B0561
- Mã sản phẩm: B0561
- Nhà sản xuất: uctronics
- Website hỗ trợ: https://www.proe.vn
3.500.000₫
Overview

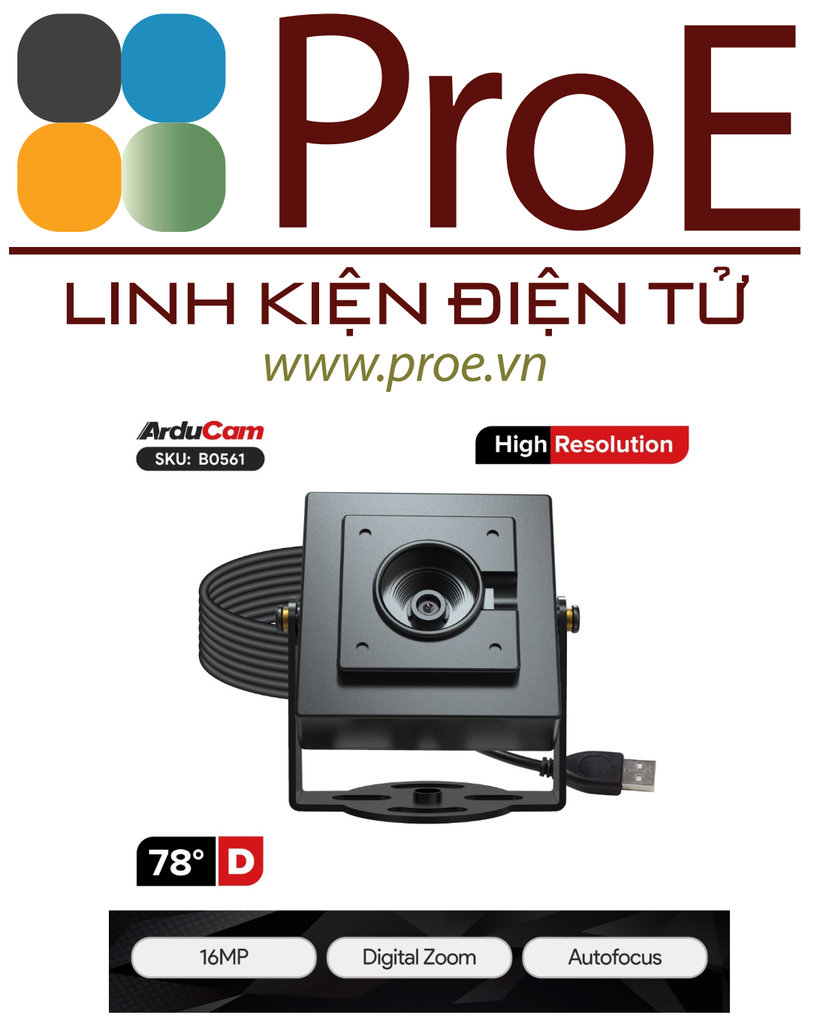

ezBOX-Klarity offers precision in every pixel with its SONY 16MP Color Sensor, featuring a 1.12um x 1.12um pixel size. It maximizes the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality. This camera is perfect for applications requiring exceptional clarity and precision, with resolutions up to 16MP. Additionally, it provides enhanced flexibility at lower resolutions (480p, 720p, 1080p), allowing for digital Pan-Tilt-Zoom (PTZ) adjustments to optimize composition.
Applications
- Robotics
- Precision Agriculture
- Medical and Scientific Research
- Document Scanning and Archiving
- Broadcast and Media Production
- We Welcome You to Test: Explore the ezBOX-Swift in your own applications and share your results with us—or contact us for custom orders tailored to your specific needs!
Features
- ezBOX-Klarity: Precision in Every Pixel for Exceptional Clarity

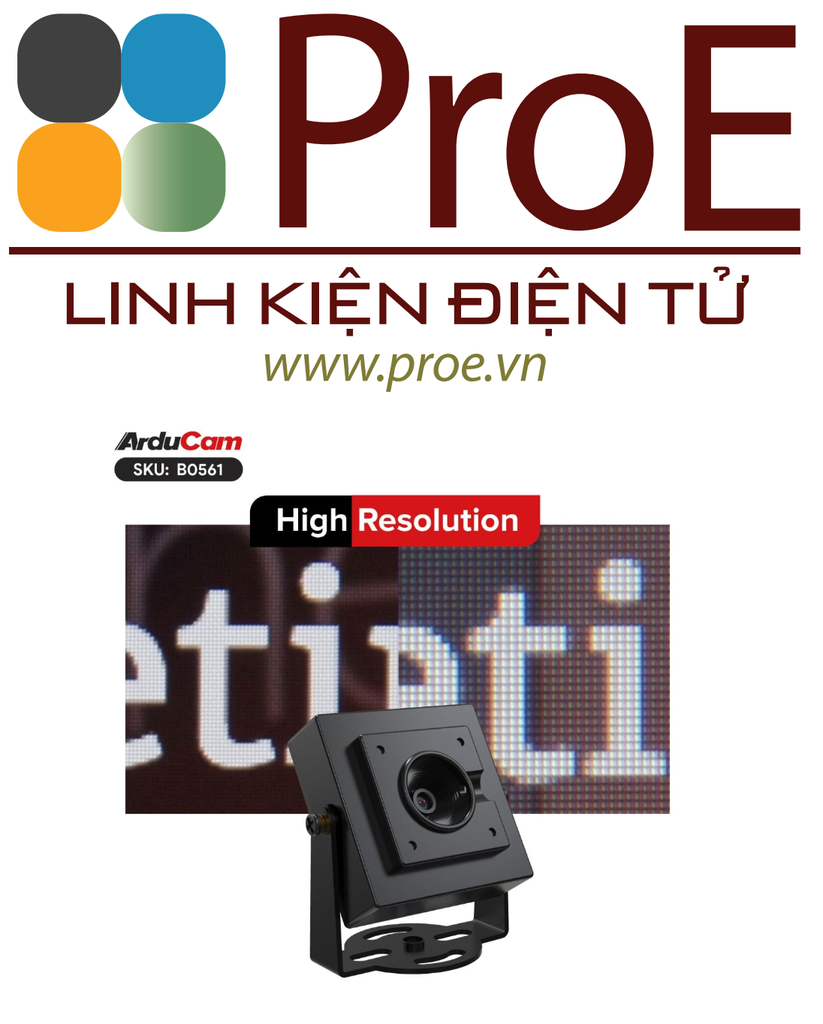

- SONY 16MP Color Sensor for Ultra-High Definition: The ezBOX-Klarity features a SONY 16MP color sensor with 1.12µm x 1.12µm pixel size, delivering ultra-high-definition imaging. Its ability to capture intricate details makes it ideal for medical imaging, scientific research, and applications requiring exceptional clarity.

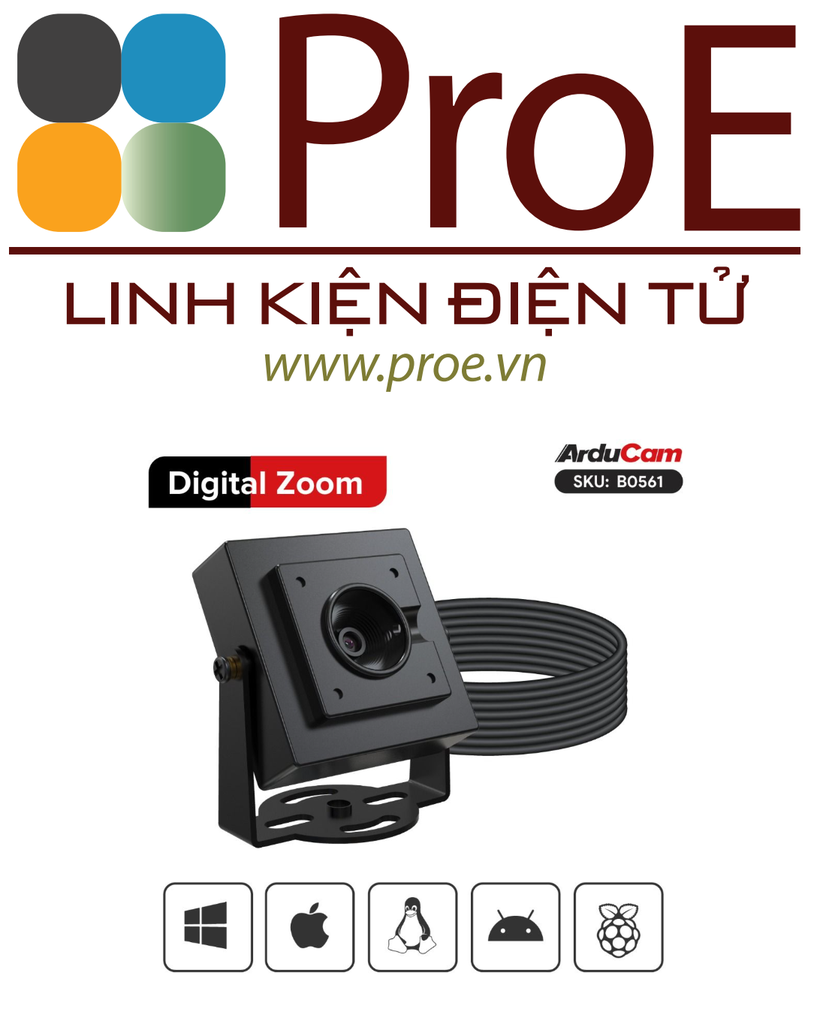

- Digital PTZ Adjustments for Flexible Composition: The Klarity offers digital PTZ (Pan-Tilt-Zoom) adjustments at lower resolutions (480p, 720p, 1080p), allowing users to optimize composition without physically moving the camera. This feature enhances flexibility in framing and focusing, particularly in constrained environments.
- Maximized Active Sensor Area for Optimal Quality: Like the ezBOX-HDR, the ezBOX-Klarity maximizes its sensor’s active area, ensuring no pixel is wasted. This results in sharper, more detailed images, making it a powerful tool for applications where precision and image quality are critical.
Specifications
| Image Sensor | |
| Sensor | SONY 16MP Color Sensor |
| Still Resolution | 16 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.8″ |
| Output Format | MJPG |
| Pixel Size | 1.12 µm x 1.12 µm |
| Sensor Active Area | 4656(H) x 3496(V) |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Frame Rate | 4656x3496@10fps, 4000x3000@15fps, 3840x2160@25fps, 3264x2448@25fps, 2592x1944@25fps, 1920x1080@25fps |
| Lens | |

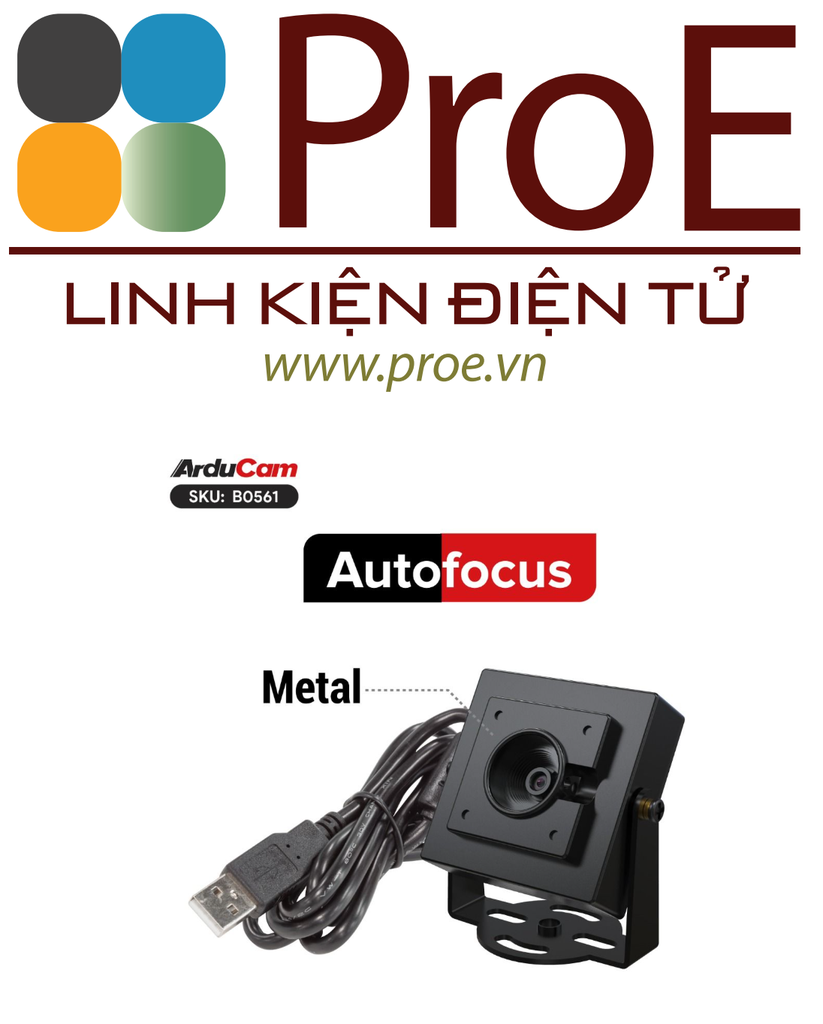

| Focus Type | Autofocus |

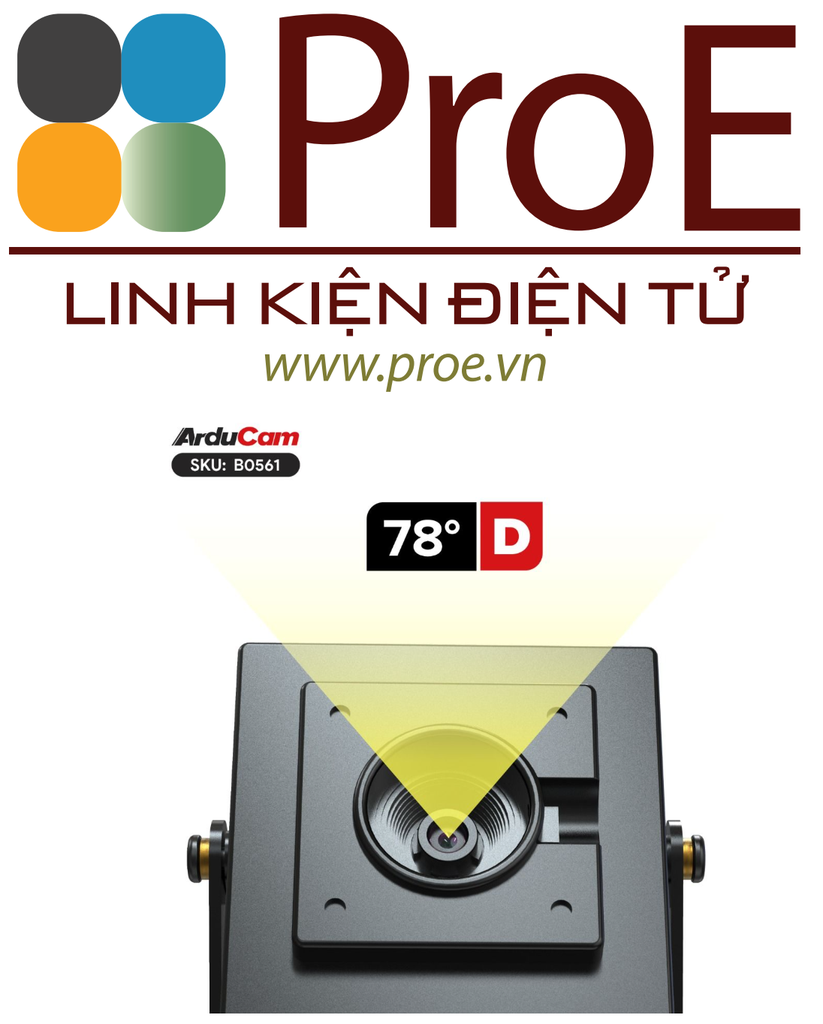

| FOV | 78°(D)×65°(H)×52°(V) |
| Lens Mount | Stock Lens |
| F.NO | F1.8 |
| E.F.L | 3.95mm |
| Default Focus Range | 10cm-∞ |
| USB Interface | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5V |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Consumption | 1.75W |
| Camera Board Size | 32mmX32mmX1.6mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, PTZ (Pan/Tilt/Zoom), White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto) |
Package Including
- 1 x 16MP High Resolution Color USB2 UVC Camera
- 1 x 1m USB2 to B4B-ZR JST Cable
