640x480@360fps*: Due to the limitation of USB2.0 device descriptor, the software can only report a maximum frame rate of 240fps, but the camera can actually reach 360fps(the actual frame rate can be seen during preview).
Arducam B0559
- Mã sản phẩm: B0559
- Nhà sản xuất: uctronics
- Website hỗ trợ: https://www.proe.vn
3.900.000₫
Overview

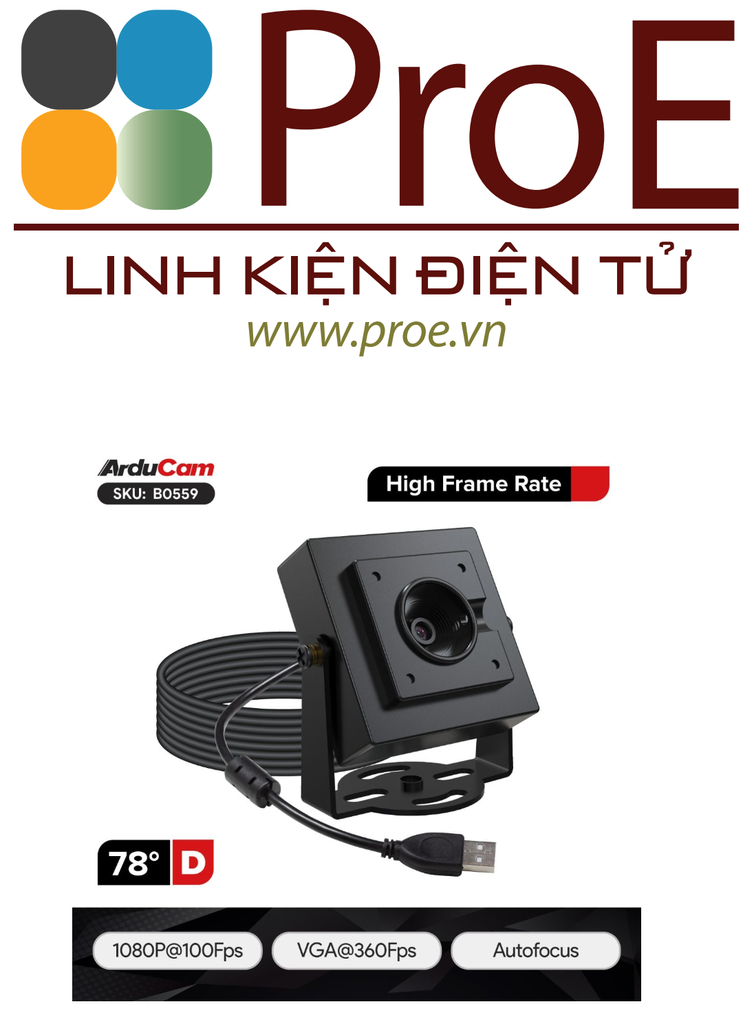

ezBOX-Swift combines speed and precision, delivering up to 360 FPS at VGA resolution for capturing fast-moving objects with exceptional clarity. Powered by a SONY 1080P Color Sensor, it supports a wide range of FPS-Res combinations, from 1920x1080@100fps to 640x480@360fps, ensuring versatility and high-quality imaging for dynamic applications.
Applications
- Robotics
- Precision Agriculture
- Motion Analysis
- Sports Tracking
- Industrial Automation
- Traffic Monitoring and Surveillance
- We Welcome You to Test: Explore the ezBOX-Swift in your own applications and share your results with us—or contact us for custom orders tailored to your specific needs!
Features
- ezBOX-Swift: Speed and Precision for Dynamic Applications
- Exceptional Frame Rates Across Resolutions: The ezBOX-Swift delivers unparalleled speed, offering 9 versatile FPS-Res combinations, from 1920x1080@100fps to 640x480@360fps. This flexibility ensures smooth and precise capture of fast-moving objects, making it ideal for applications like motion analysis, sports tracking, and high-speed imaging.
- SONY 1080P Color Sensor with Advanced Imaging: Equipped with a SONY 1080P color sensor, the Swift ensures high-quality imaging even in fast-paced scenarios. Its advanced sensor technology minimizes noise and maximizes clarity, delivering sharp and detailed visuals for dynamic applications.
- Proprietary ISP for Full Control: The Swift features a proprietary Image Signal Processor (ISP) that provides complete control over key imaging parameters, including brightness, contrast, saturation, white balance, gain, focus, and exposure. This level of customization ensures optimal image quality tailored to specific needs, enhancing its versatility across diverse use cases.
Specifications
| Image Sensor | |
| Sensor | SONY 1080P Color Sensor |
| Still Resolution | 1080P |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.8″ |
| Output Format | MJPG |
| Pixel Size | 2.24 µm x 2.24 µm |
| Sensor Active Area | 1920(H) x 1080(V) |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |

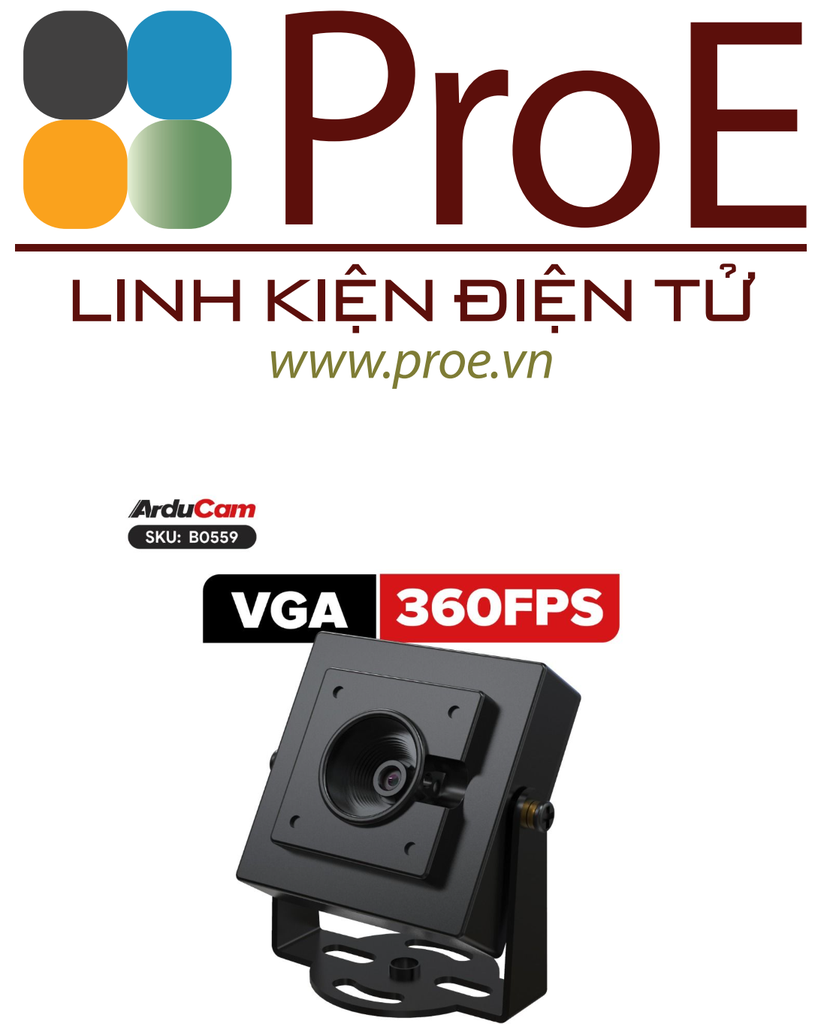

| Frame Rate | 1920x1080@100fps, 1280x720@180fps, 640x480@360fps* |
| Lens | |
| Focus Type | Autofocus |

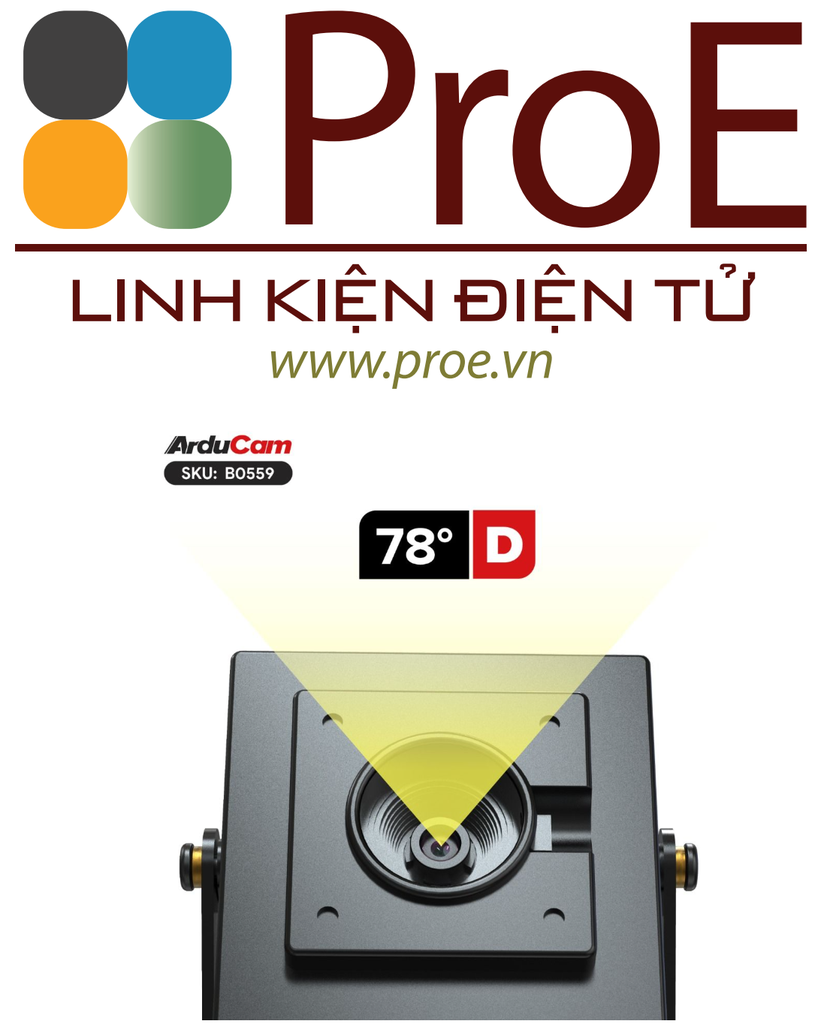

| FOV | 78°(D)×65°(H)×52°(V) |
| Lens Mount | Stock Lens |
| F.NO | F1.8 |
| E.F.L | 3.95mm |
| Default Focus Range | 10cm-∞ |
| USB Interface | |
| Interface | USB 2.0 Device |

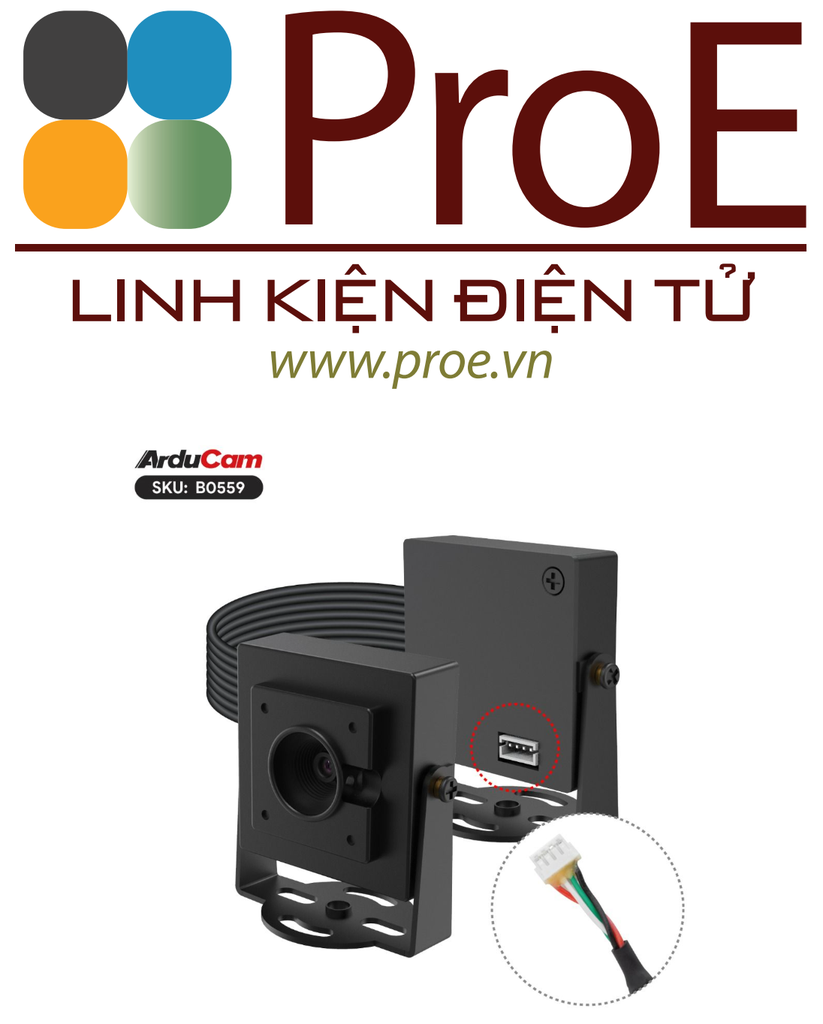

| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5V |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Consumption | 1.75W |

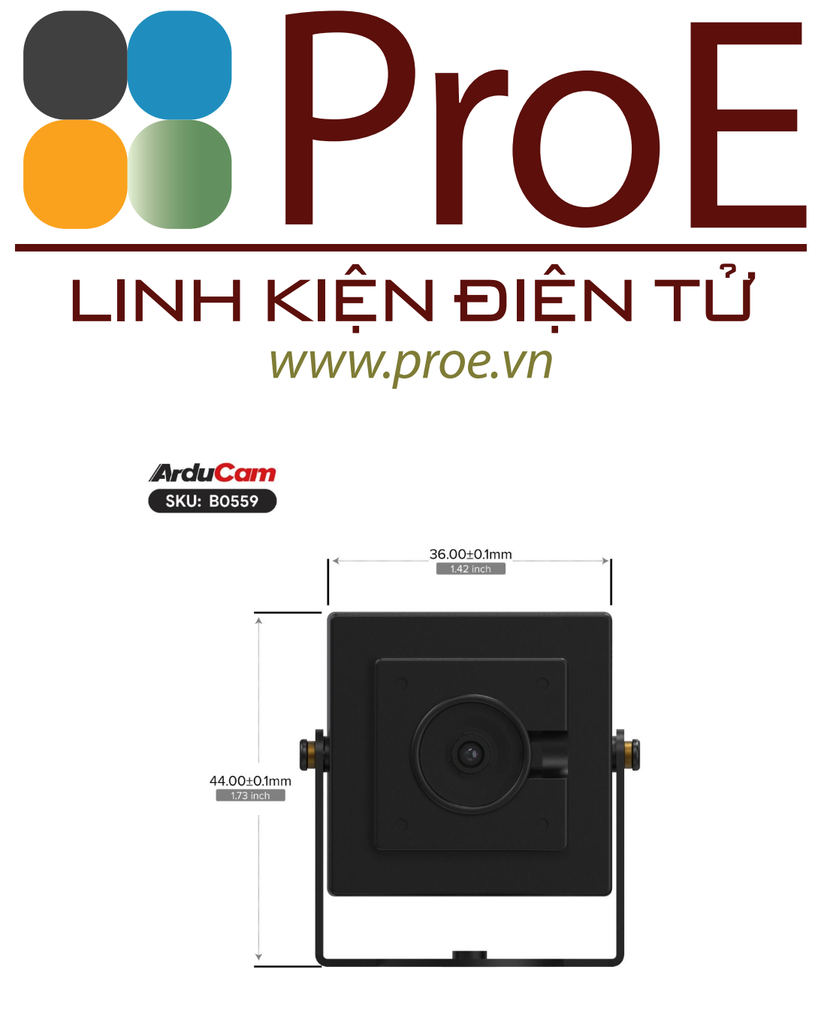

| Camera Board Size | 32mmX32mmX1.6mm |
| Functionality and Compatibility | |

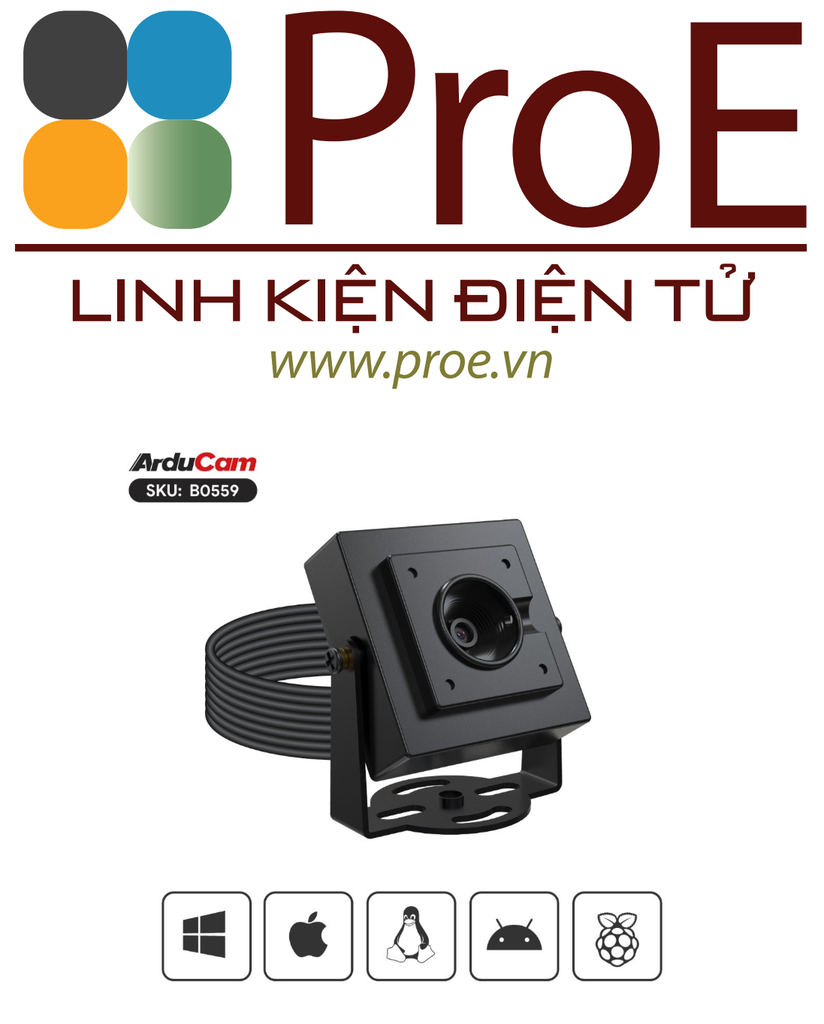

| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto) |
Package Including

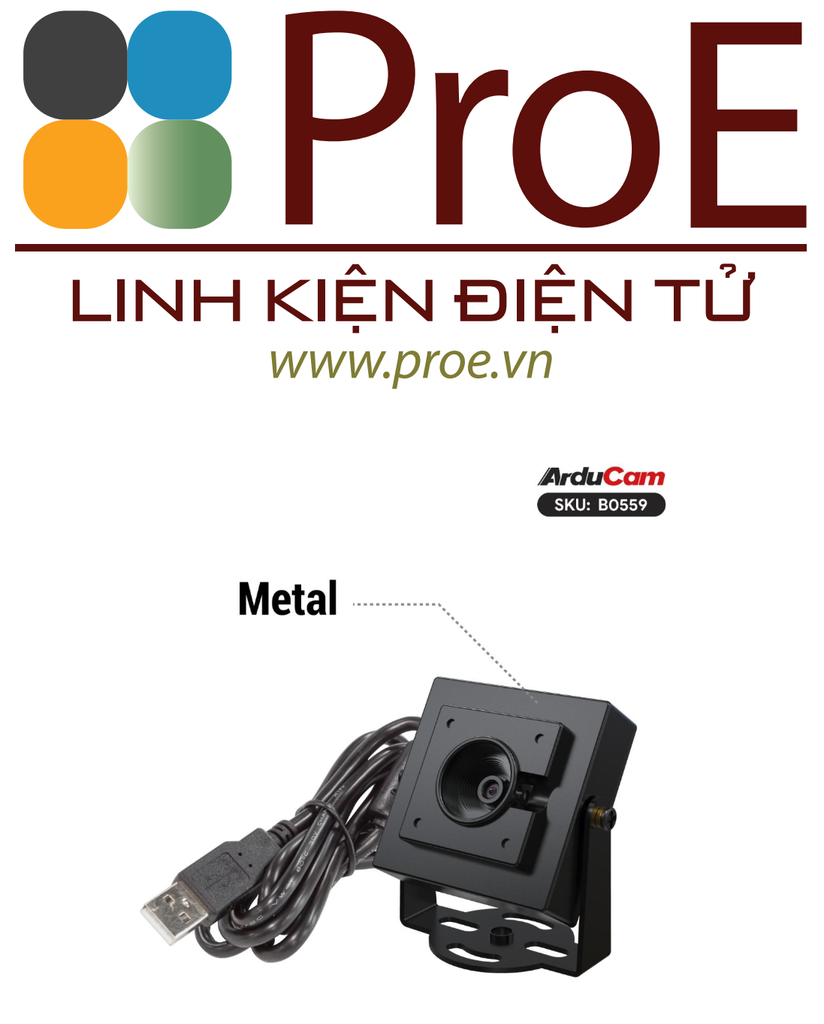

- 1 x 1080P High Frame Rate Color USB2 UVC Camera
- 1 x 1m USB2 to B4B-ZR JST Cable
