RPi Camera F

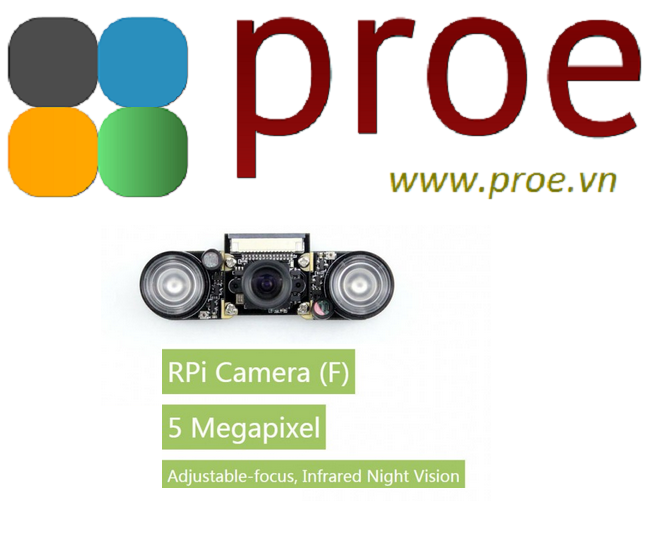

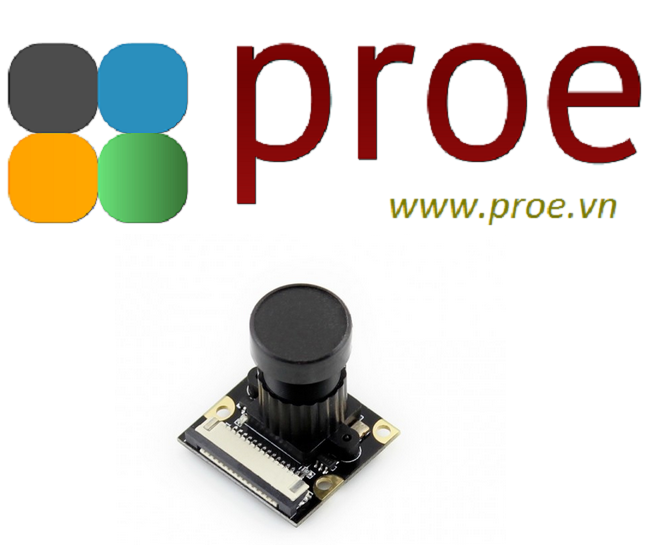

Raspberry Pi Camera Module, Supports Night Vision

Features

• Raspberry Pi Night Vision Camera, supports all revisions of the Pi
• 5 megapixel OV5647 sensor
• Adjustable focus distance
• Camera specifications
  • CCD size : 1/4inch
  • Aperture (F) : 1.8
  • Focal Length : 3.6mm
  • Angle of View (diagonal) : 75 degree
  • Sensor best resolution : 1080p
• 4 screw holes
  • Used for attachment
  • Provides 3.3V power output
  • Supports connecting infrared LED and/or fill flash LED
• Dimension : 25mm x 24mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Downloads

Development resources:user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(F)
