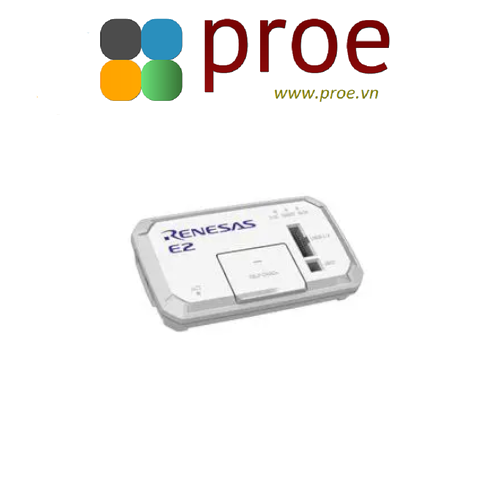

RENESAS RTE0T00020KCE00000R

Product Overview

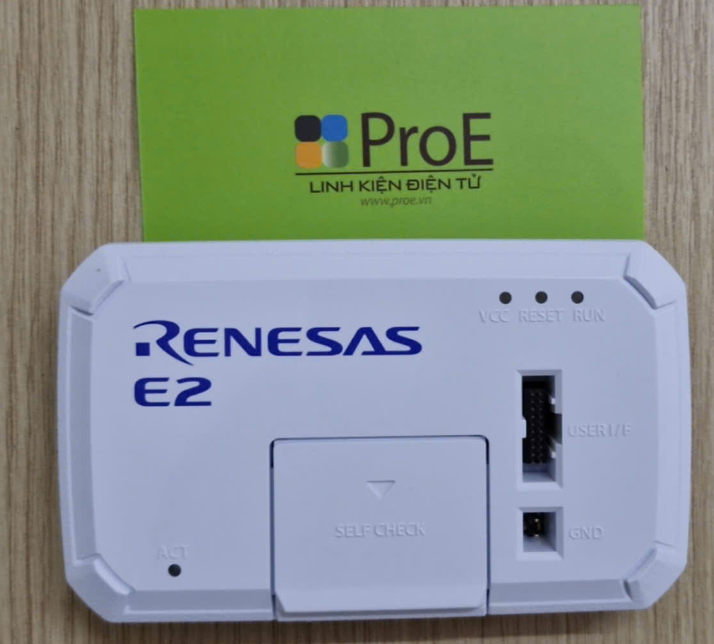

E2 emulator is an advanced on-chip debugging emulator and flash programmer developed with the concept of greater efficiency in development. The combination of its high speed downloading and various software and hardware solutions will contribute to reducing development times. The download speed is up to twice as fast as the E1 emulator. This substantially reduces waiting time for downloading the control programs to one-half at a maximum.

•  • CAN communications time measurement solution (for RH850 family)
•  • Current consumption tuning solution (for RL78 and RX families)
•  • Support for the input and output of external triggers (For RH850 family)
•  • Hot plug-in function available without an optional adapter
•  • Board interface compatible with that of E1
•  • USB 2.0, full speed and high speed
•  • Support for new MCUs with next-generation cores
•  • Software trace function (For RH850 Family)
•  • Power-supply voltage range from 1.8V to 5.5 (range of operating voltage for the target MCU)
•  • Compliance with European standards: EN 55022 Class A, EN 55024/US FCC standard: FCC part 15 Class A

Content

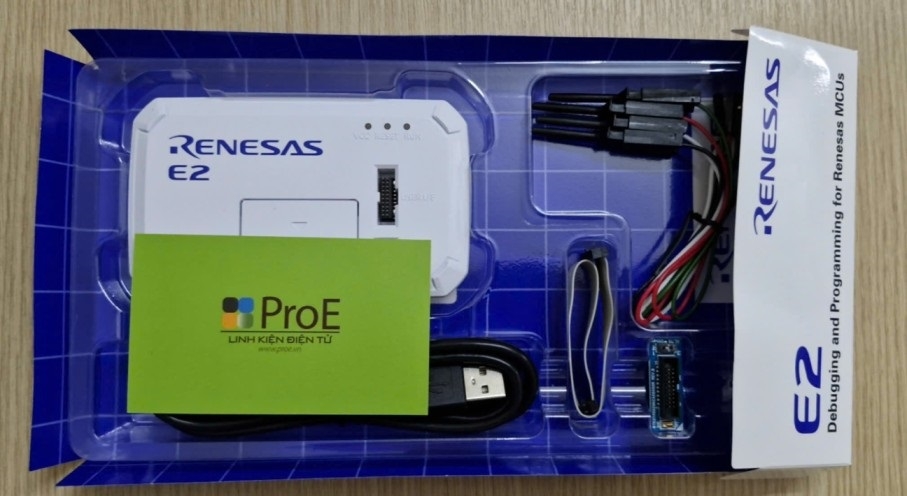

E2 emulator main unit, USB cable, User's system I/F cable (RTE0T00020KCAC0000J), Conversion adapter (RTE0T00020KCA00000R), Test lead.
