Pico-RTC-DS3231 Precision RTC Module for Raspberry Pi Pico, Onboard DS3231 Chip

Weight: 0.023 kg

1. Pico-RTC-DS3231 x1

1

Precision RTC Module For Raspberry Pi Pico, Onboard DS3231 Chip

Precision RTC Module For Pico

Incorporates High Precision RTC Chip DS3231

Features At A Glance

The Pico-RTC-DS3231 is a RTC expansion module specialized for Raspberry Pi Pico. It incorporates high precision RTC chip DS3231 and uses I2C bus for communication. More external sensors are allowed to be connected thanks to the stackable design.

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
• Onboard high precision RTC chip DS3231, with backup battery holder
  • Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
  • Optional format : 24-hour OR 12-hour with an AM/PM indicator
  • 2x programable alarm clock
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

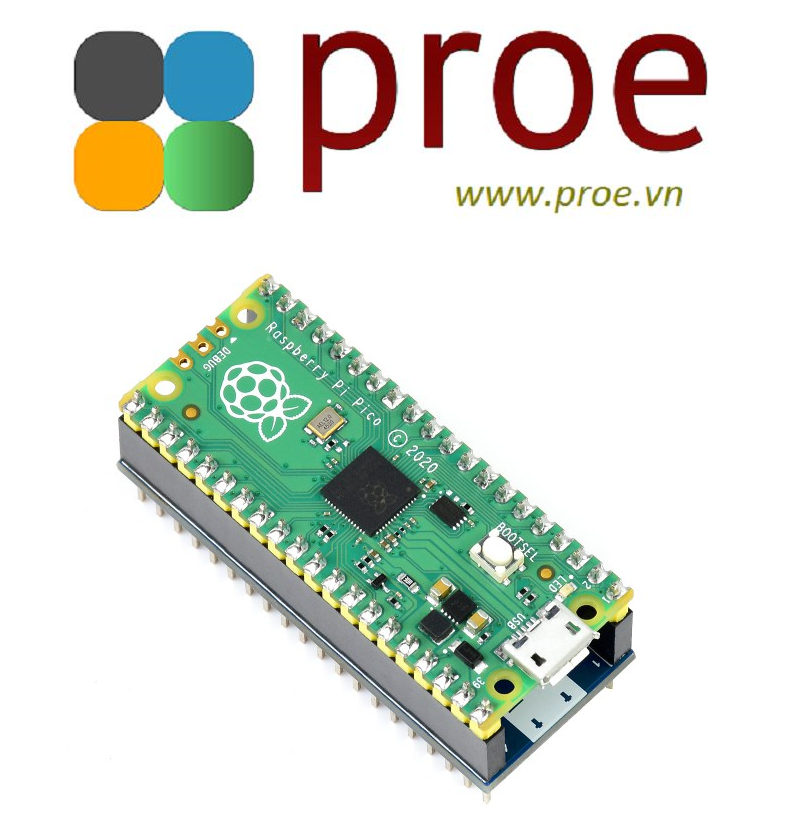

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Stackable Design

Raspberry Pi Pico is NOT included.

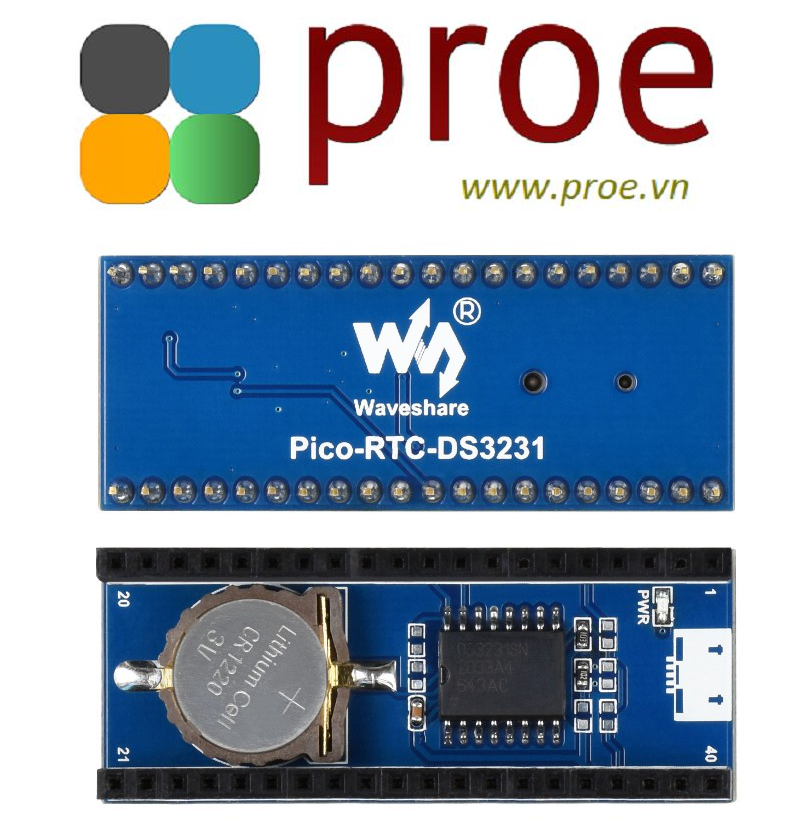

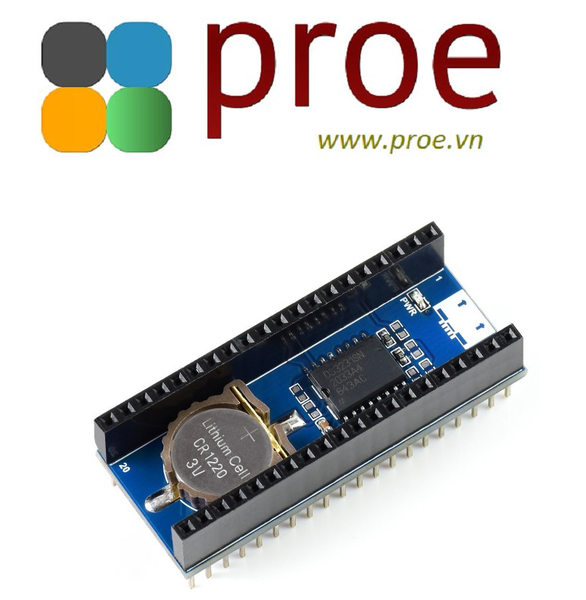

What's On Board

1. DS3231
   high precision RTC chip, I2C bus
2. RTC backup battery
   supports CR1220 button cell
3. Power indicator
   enabled by soldering a 0Ω resistor on the jumper, disabled by default

4. Raspberry Pi Pico header
   for attaching to Raspberry Pi Pico, stackable design

Pinout Definition

Outline Dimensions

Resources & Services

WIKI: Pico-RTC-DS3231
